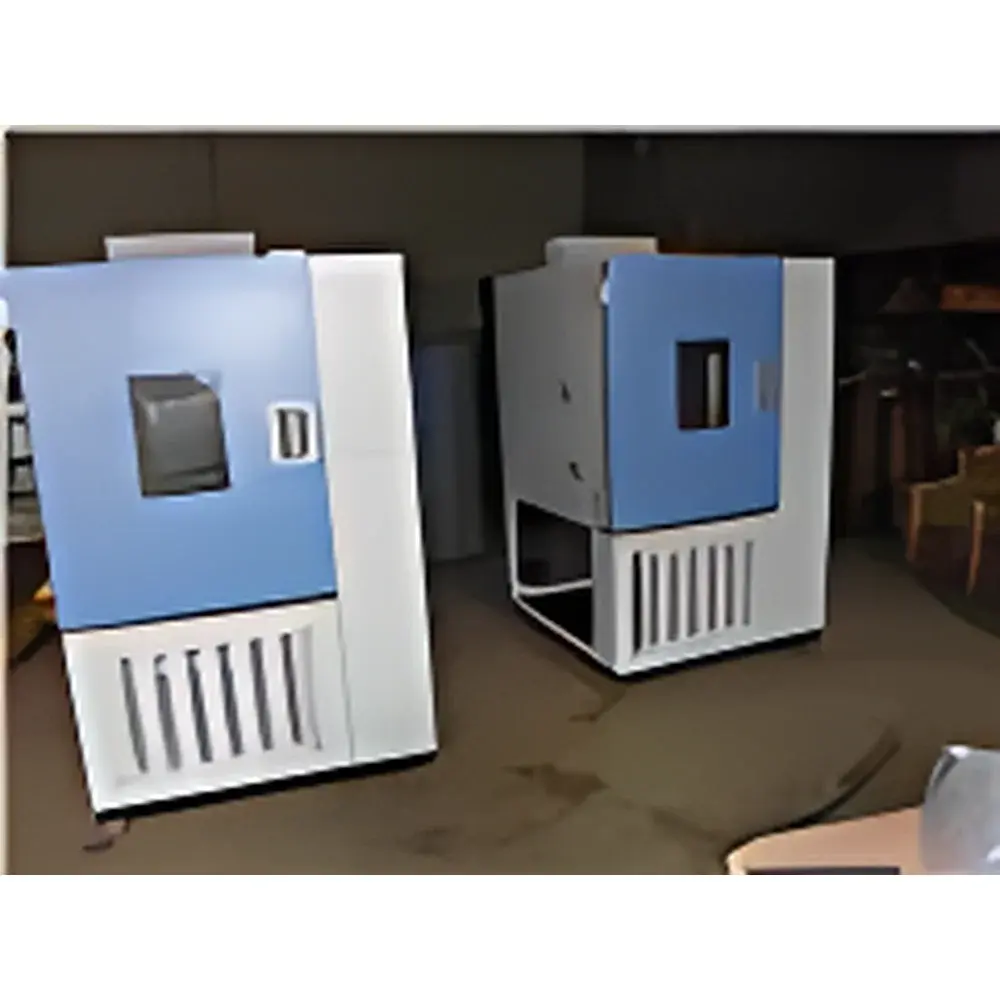

Langbo YWX-10 Salt Spray Test Chamber

Overview

The Langbo YWX-10 Salt Spray Test Chamber is an ASTM B117-21 and ISO 9227 compliant environmental test system engineered for accelerated corrosion evaluation of metallic materials, coatings, and surface treatments. It operates on the principle of continuous or cyclic salt fog exposure under tightly controlled thermal and aerosol conditions, simulating aggressive marine or industrial atmospheric environments. The chamber generates a stable, reproducible sodium chloride (NaCl) mist—typically 5 wt% NaCl solution at pH 6.5–7.2—delivered via a pressurized tower-type atomizer. Its integral fiberglass-reinforced plastic (FRP) monocoque structure ensures long-term chemical inertness against chloride ion attack, eliminating galvanic degradation common in stainless-steel or coated steel enclosures. Designed for laboratory and QC environments, the YWX-10 supports standardized pass/fail assessment per ASTM D1654 (corrosion rating after scribe), ISO 10289 (evaluation of corrosion products), and JIS Z2371.

Key Features

• Monolithic FRP chamber body: Molded-in-one construction eliminates seams, joints, or welds—preventing electrolyte leakage and ensuring structural integrity over >10,000 hours of cumulative salt fog operation.
• Water-sealed lid interface: A submerged gasket design maintains vapor-tight containment without silicone or elastomeric seals that degrade under sustained chloride exposure.
• Precision PID temperature control: Digital controller with ±0.1 °C setpoint accuracy and auto-tuning capability; optional field-upgradable modules from Fuji Electric (PXR series) or RKC Instrument (CD series) for enhanced traceability and audit readiness.
• Tower-type spray system: Optimized nozzle geometry and compressed air regulation deliver uniform droplet distribution (median diameter ~1–3 µm) across the test specimen zone, meeting ASTM B117’s requirement for 1–2 mL/80 cm²·h deposition rate measured via calibrated funnels.
• Multi-layer safety architecture: Independent thermal cut-out (120 °C mechanical fuse), low-reservoir float switch, and three-phase monitoring prevent dry-run, overheating, and power imbalance events—critical for unattended overnight testing.

Sample Compatibility & Compliance

The YWX-10 accommodates flat or moderately contoured specimens up to 600 mm × 450 mm × 400 mm (W×D×H). Specimen racks are constructed from non-reactive PVC or PP, and sample orientation follows ASTM B117 guidelines (15–30° from vertical). The chamber meets essential regulatory prerequisites for GLP-compliant laboratories: full temperature logging (optional RS485/Modbus output), configurable alarm history, and user-accessible calibration offset fields. While not inherently 21 CFR Part 11 compliant, its controller firmware supports electronic signature-ready audit trails when integrated with validated LIMS platforms. All materials in contact with saline mist—including tubing, nozzles, and reservoir—are certified to ISO 10993-5 (cytotoxicity) and ASTM F2459 (biocompatibility of plastics).

Software & Data Management

The standard embedded controller provides real-time display of chamber temperature, elapsed test time, and operational status indicators. Optional data acquisition modules enable CSV export of temperature logs at 1-minute intervals, compatible with Excel-based trending or statistical process control (SPC) analysis. For enterprise integration, the RS485 port supports Modbus RTU protocol—allowing bidirectional communication with SCADA systems or centralized environmental monitoring platforms. Calibration records, maintenance logs, and test run metadata can be archived locally on microSD card (sold separately) with timestamped file naming (e.g., “YWX10_20240522_1430_B117.csv”) to satisfy ISO/IEC 17025 documentation requirements.

Applications

• Qualification of electroplated zinc, nickel, and chromium layers on automotive fasteners and chassis components.
• Comparative evaluation of organic coatings (epoxy, polyurethane, PVDF) on architectural aluminum extrusions per AAMA 2604/2605.
• Validation of passivation efficacy on austenitic stainless steels (e.g., 304, 316) per ASTM A967.
• Corrosion resistance benchmarking of powder-coated MDF panels used in medical device enclosures.
• Supplier qualification testing for MIL-DTL-5541 Class 1A/3 chromate conversion coatings on aerospace aluminum alloys.

FAQ

What standards does the YWX-10 comply with?

It is configured to meet ASTM B117, ISO 9227, JIS Z2371, and GB/T 2423.17—covering neutral salt spray (NSS), acetic acid salt spray (AASS), and copper-accelerated acetic acid salt spray (CASS) test modes.
Can the chamber operate continuously for 96+ hours?

Yes—the FRP body, sealed reservoir, and redundant safety circuits support uninterrupted operation up to 1,000 hours, provided routine brine replenishment and nozzle inspection are performed per maintenance schedule.
Is external humidity control required?

No. The YWX-10 operates as a closed-loop saturated environment; ambient lab humidity has negligible impact on internal fog generation or deposition consistency.
How is temperature uniformity verified?

Per IEC 60068-3-5, uniformity is validated using nine calibrated PT100 sensors placed across the working volume during IQ/OQ protocols; deviation must remain within ±2 °C at all locations.
Does the system include calibration certificates?

Factory calibration certificates for temperature sensor and controller are supplied. NIST-traceable third-party calibration (per ISO/IEC 17025) is available as an add-on service.
