Laser-Export TECH Series Diode-Pumped Solid-State (DPSS) Laser

Overview

The Laser-Export TECH Series represents a family of compact, diode-pumped solid-state (DPSS) lasers engineered for precision pulsed operation in demanding laboratory and industrial environments. Unlike lamp-pumped or fiber-integrated systems, the TECH Series utilizes high-brightness semiconductor laser diodes as the primary pump source, optically coupled to Nd:YAG, Nd:YVO₄, or frequency-converted nonlinear crystals (e.g., LBO, BBO, CLBO) to generate stable output at ultraviolet (263 nm, 351 nm), visible (527 nm), and near-infrared (1053 nm) wavelengths. Its core architecture follows a monolithic, thermally optimized resonator design with conductive heat sinking—eliminating reliance on active water cooling while maintaining thermal lensing stability over extended duty cycles. The system operates in Q-switched mode with flexible internal or external TTL-triggering, enabling synchronization with high-speed detectors, time-of-flight spectrometers, or scanning galvanometers. Designed for integration into OEM instrumentation and turnkey analytical platforms, the TECH Series meets fundamental requirements for reproducible pulse-to-pulse energy delivery, low spatial noise, and long-term pointing stability—critical for applications where optical alignment integrity and signal-to-noise ratio directly impact measurement validity.

Key Features

• Diode-pumped architecture ensures superior wall-plug efficiency (>15%) and extended diode lifetime (>10,000 hours)

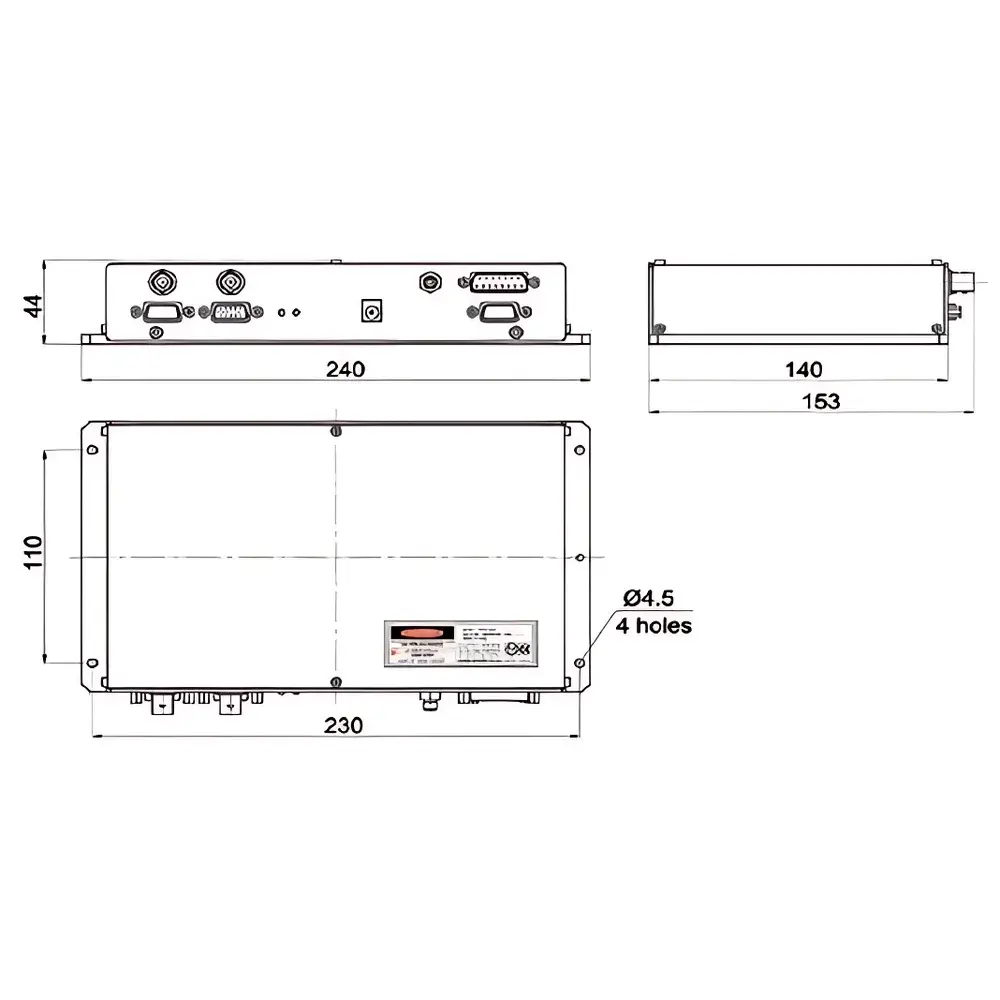

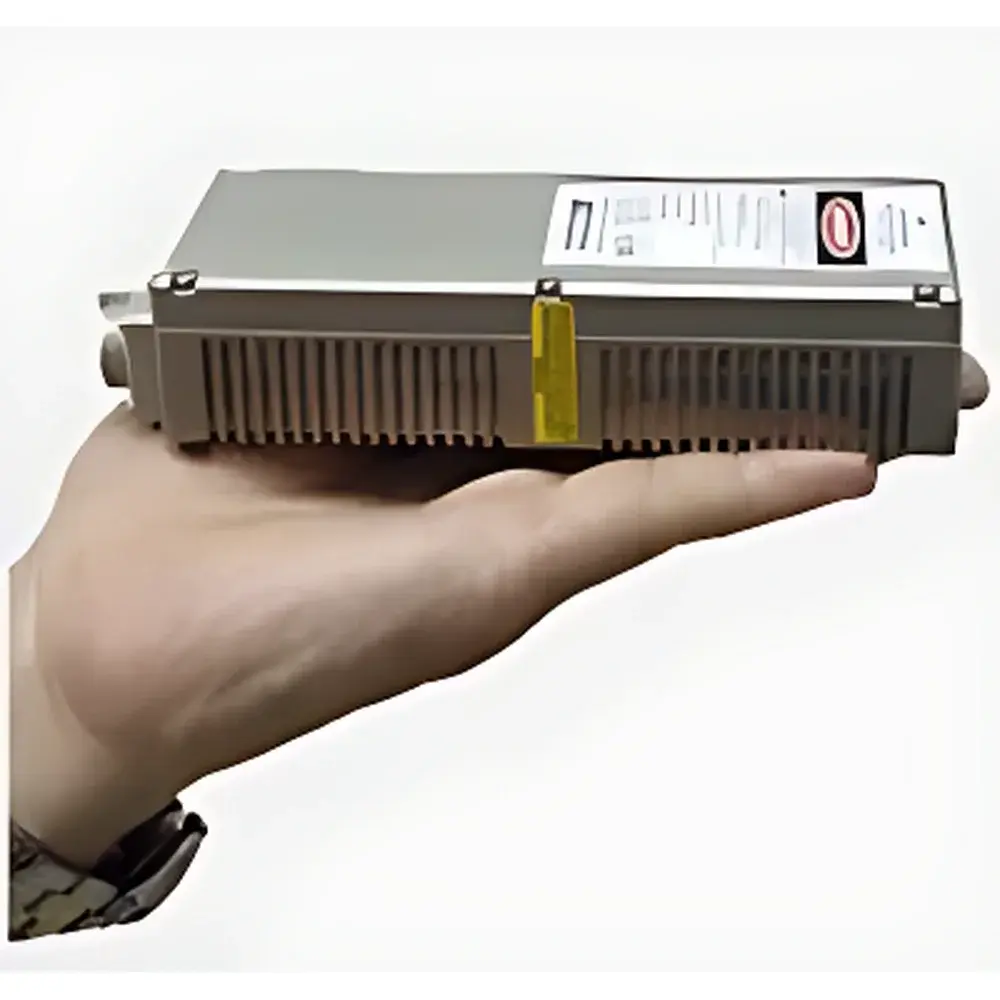

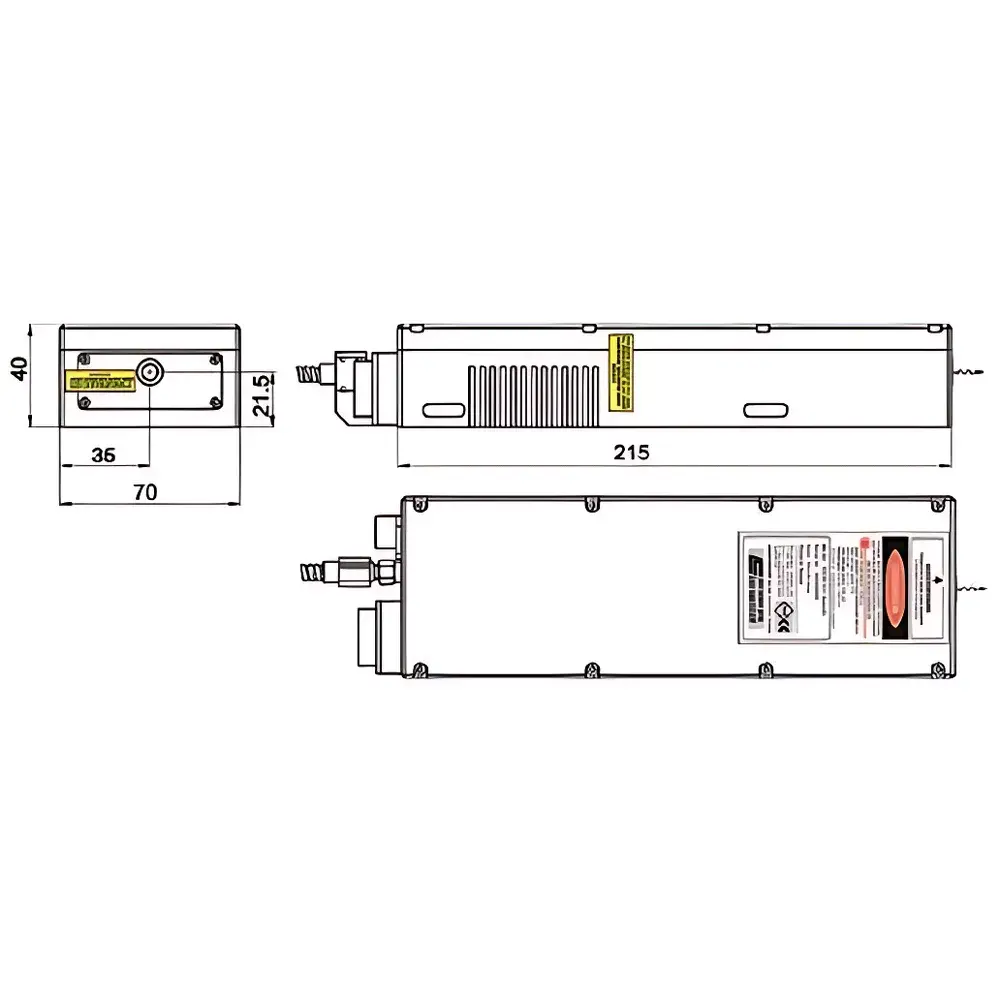

• Ultra-compact form factor: laser head dimensions ≤ 120 × 80 × 50 mm; total system footprint < 0.01 m³
• Conductive cooling only—no chiller, no deionized water loop, no maintenance-intensive heat exchangers
• TEM₀₀ Gaussian beam profile with M² < 1.28, enabling diffraction-limited focusing for high-intensity microprocessing
• Programmable repetition rate from single-shot to 4 kHz with jitter < 1 ns (RMS) relative to trigger edge
• Integrated analog monitoring outputs for real-time pulse energy and temperature diagnostics
• Ruggedized mechanical housing rated IP52 for dust resistance and operational reliability in non-cleanroom lab settings

Sample Compatibility & Compliance

The TECH Series is compatible with standard optical tables, kinematic mounts (e.g., Thorlabs KM100), and common vacuum feedthrough interfaces (CF-35, KF-25). All models comply with IEC 60825-1:2014 for Class 4 laser safety, incorporating mandatory interlock circuits, emission indicators, and key-controlled enable switches. Full documentation supports ISO/IEC 17025-compliant calibration traceability when paired with NIST-traceable energy meters (e.g., Ophir PE50-CF). The system satisfies essential requirements for GLP and GMP-aligned environments, including audit-ready firmware logging of operational parameters (pulse count, average power, thermal status) and configurable user access levels. No hazardous substances are used per RoHS Directive 2011/65/EU, and CE marking confirms conformity with the EU Electromagnetic Compatibility Directive 2014/30/EU.

Software & Data Management

Laser-Export provides the TECH Control Suite—a cross-platform (Windows/macOS/Linux) application built on Qt and libusb, supporting USB 2.0 communication. The suite enables full parameter configuration (repetition rate, Q-switch delay, burst mode sequencing), real-time oscilloscope-style pulse waveform capture via optional photodiode monitor input, and automated data export in CSV and HDF5 formats. Firmware supports SCPI command set compliance (IEEE 488.2), allowing seamless integration into LabVIEW, Python (PyVISA), or MATLAB-based test automation frameworks. All configuration changes are timestamped and stored in non-volatile memory with optional password protection—supporting FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed in regulated QC/QA workflows.

Applications

• Laser-induced breakdown spectroscopy (LIBS): High peak power and sub-15 ns pulses enable efficient plasma generation in conductive and dielectric samples with minimal thermal diffusion
• Time-of-flight mass spectrometry (TOF-MS) ionization: Precise pulse timing and energy stability support reproducible ion yield across heterogeneous biological tissue sections
• OPO pumping: Narrow linewidth (< 0.1 nm) and low-amplitude noise (< 0.5% RMS) ensure efficient nonlinear conversion in beta-barium borate (BBO) and lithium triborate (LBO) crystals
• Micro-machining of polymers and thin-film solar cells: UV variants (263 nm, 351 nm) provide sub-micron ablation thresholds with negligible HAZ
• Photoacoustic spectroscopy: Synchronized pulse trains drive broadband acoustic transducers with high SNR in gas-phase and liquid-phase detection cells
• Fluorescence lifetime imaging (FLIM) excitation: Variable repetition rates allow optimization for TCSPC acquisition without pile-up distortion

FAQ

Is the TECH Series compatible with third-party pulse pickers or delay generators?
Yes—the laser accepts standard TTL-compatible external triggers with adjustable delay resolution down to 100 ps via integrated digital delay line.
Can the system be operated continuously at maximum repetition rate for >8 hours?
Yes—thermal management has been validated under continuous 4 kHz operation for ≥12 hours with energy drift < ±1.8% (measured per ISO 11554 Annex D).
Does the laser include factory calibration certificates?
Each unit ships with a traceable calibration report (wavelength, pulse energy, beam diameter, M²) issued by Laser-Export’s accredited metrology lab (ISO/IEC 17025:2017 certified).
What is the warranty coverage and service response time?
Standard warranty is 24 months parts-and-labor; extended service contracts include on-site technician dispatch within 5 business days in EEA and North America.
Are custom wavelength options available beyond the standard TECH portfolio?
Yes—custom configurations using KTP, BiBO, or PPLN crystals for 213 nm, 473 nm, or tunable IR output (1.3–4.5 µm via OPO integration) are available under NRE agreement.
