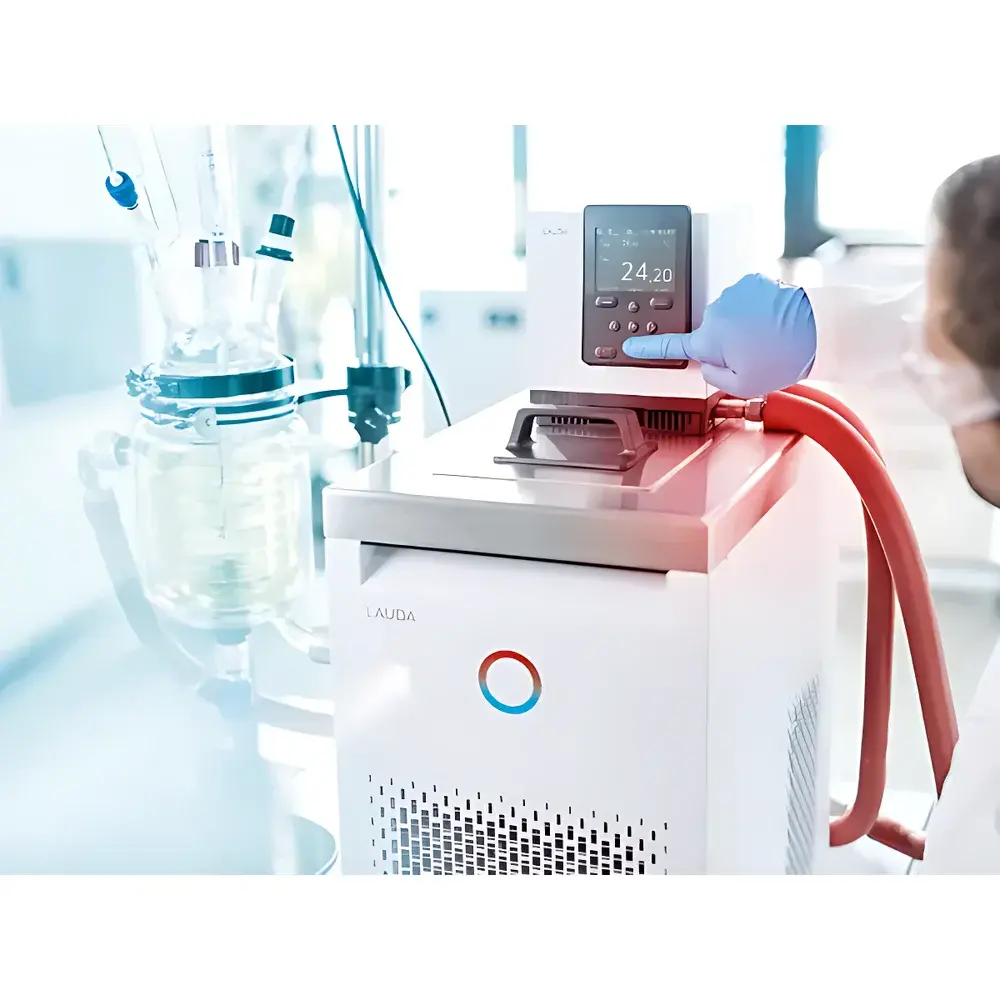

LAUDA Universa MAX Heating Circulating Bath

Overview

The LAUDA Universa MAX Heating Circulating Bath is a high-performance, precision-engineered temperature control system designed for demanding laboratory and pilot-scale applications requiring stable, uniform, and reproducible thermal environments across an extended operating range. Operating on the principle of forced convection via a high-efficiency circulation pump and optimized thermal exchange geometry, the Universa MAX delivers exceptional temperature homogeneity and dynamic response—critical for kinetic studies, material testing, calibration procedures, and process validation. Its robust stainless-steel bath construction, combined with advanced PID-based digital temperature regulation and Pt100 sensor feedback, ensures long-term stability of ±0.01 °C—even over multi-day or multi-week experiments. Unlike basic immersion heaters or open-bath systems, the Universa MAX integrates closed-loop circulation with precise external loop compatibility, enabling accurate temperature control of both bath media and externally connected reactors, jacketed vessels, or analytical instrumentation.

Key Features

• Extended temperature range from 20 °C to 300 °C—engineered for high-temperature synthesis, polymer characterization, and accelerated aging tests.
• Dual-mode circulation architecture supporting both internal bath homogenization and external loop integration with flow rates and pressure optimized for minimal thermal lag.
• Digital control interface with integrated Ethernet and USB connectivity—enabling remote monitoring, parameter logging, and real-time setpoint adjustment via PC, tablet, or smartphone using LAUDA Command software.

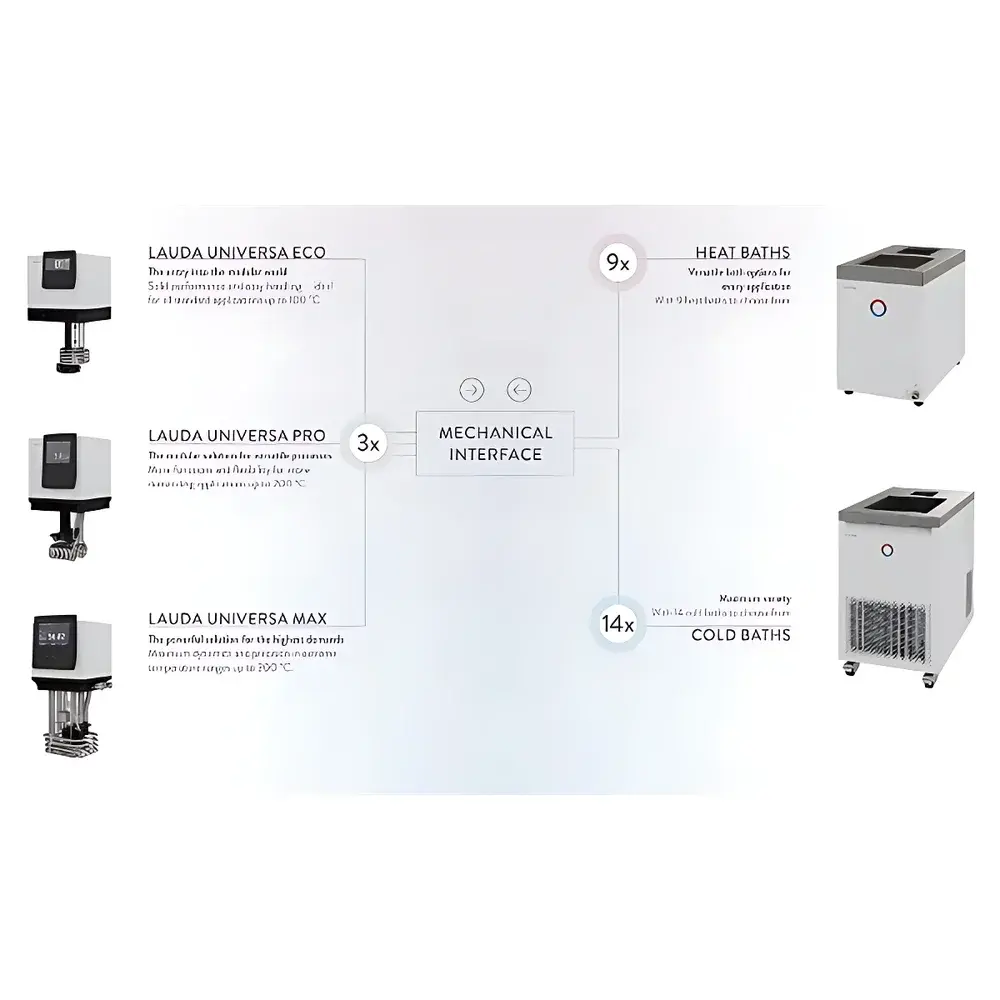

• Modular expansion capability with over ten plug-and-play interface options—including analog I/O, digital triggers, and industrial fieldbus protocols—for seamless integration into Industry 4.0 environments and automated lab platforms.
• Energy-efficient design incorporating variable-speed pump control and intelligent power modulation—reducing operational load without compromising thermal performance.
• Compliance-ready architecture: CE-marked and KNRTL-certified; supports audit trails, user access levels, and encrypted data transmission via LAUDA.LIVE cloud service—aligned with GLP/GMP documentation requirements and FDA 21 CFR Part 11 considerations for electronic records.

Sample Compatibility & Compliance

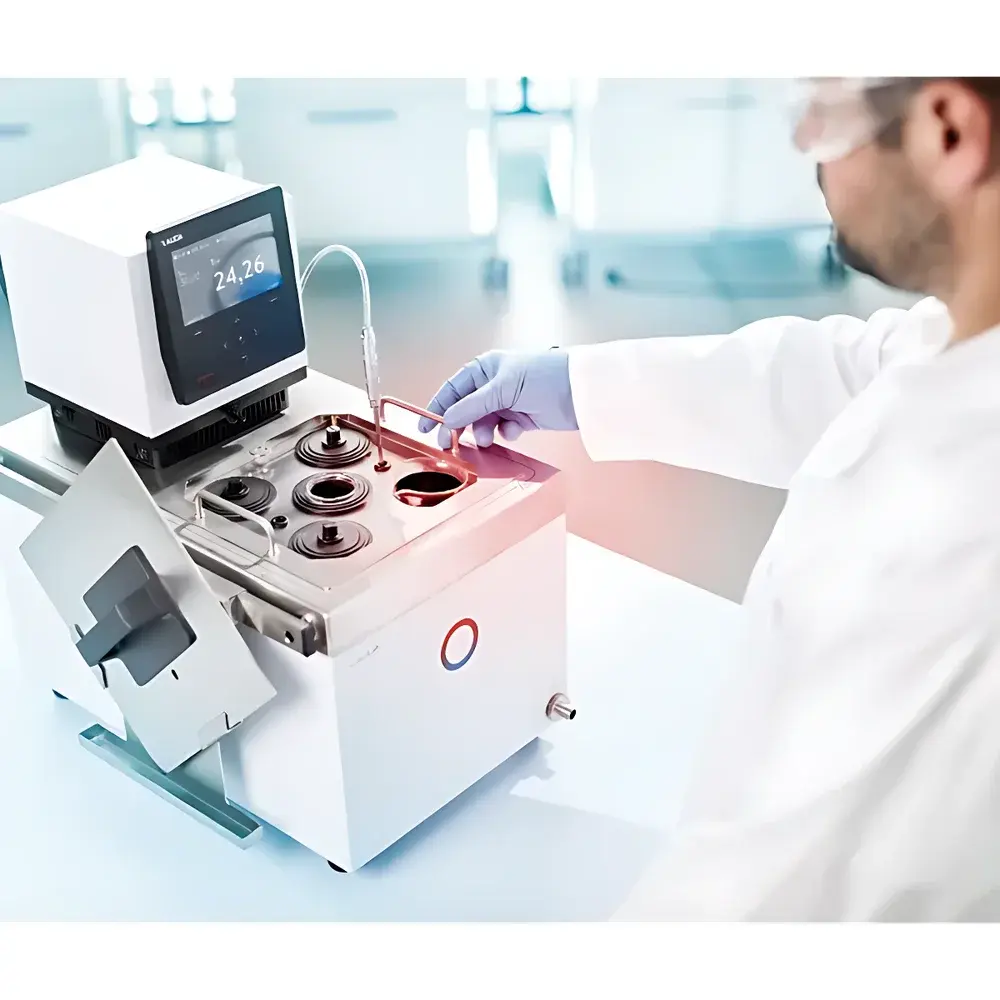

The Universa MAX accommodates standard laboratory vessels—including glass flasks, metal reactors, and jacketed bioreactors—via its standardized bath opening and optional quick-connect fittings. Its wide bath volume range (5.8–42 L) allows configuration for small-volume precision assays or large-scale thermal conditioning. The system supports calibration traceability through integrated Pt100 sensor ports and optional cylindrical calibration inserts conforming to ISO/IEC 17025 practices. All fluid-contact materials meet USP Class VI and FDA-compliant standards for non-reactivity and leachables control. As a CE-certified device manufactured in Germany under strict DIN EN ISO 9001 quality management, it satisfies essential safety and electromagnetic compatibility (EMC) requirements for use in regulated R&D, QC, and manufacturing environments across pharmaceuticals, chemicals, electronics, and food technology sectors.

Software & Data Management

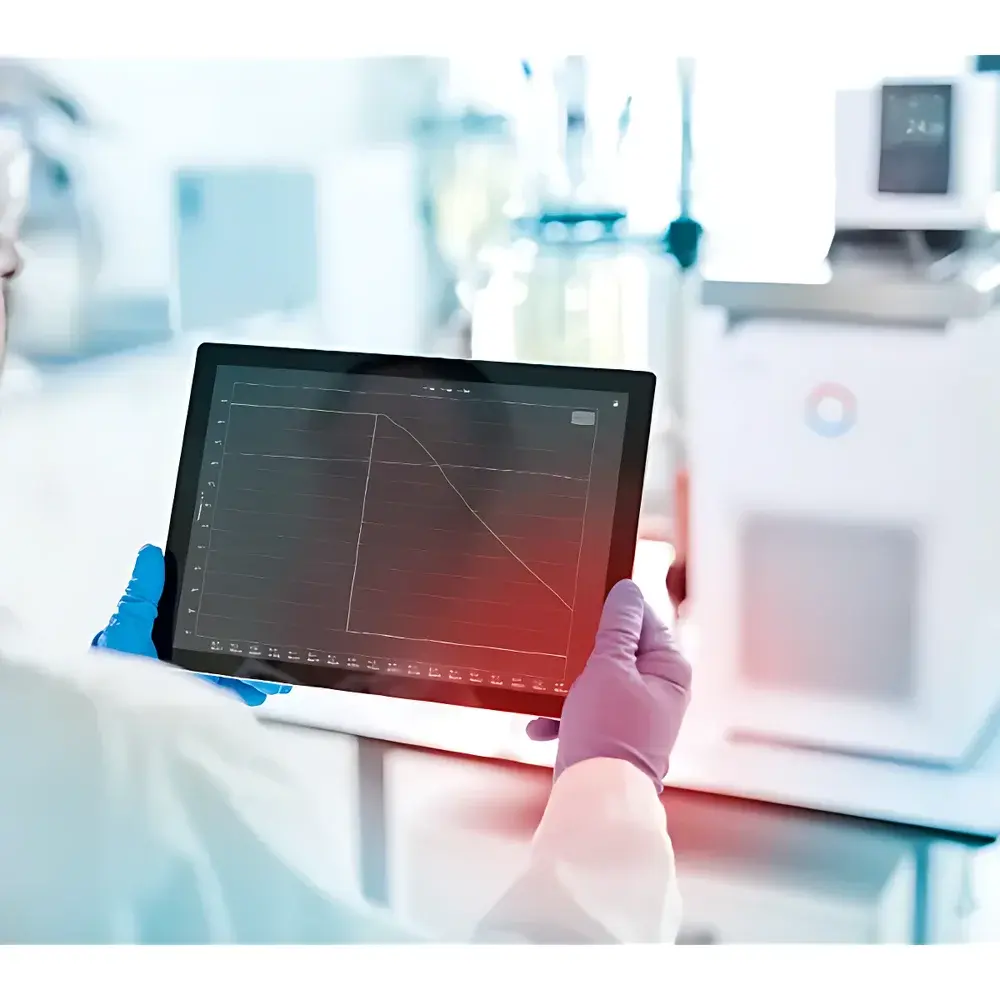

LAUDA Command provides intuitive, cross-platform control with configurable dashboards, alarm thresholds, and scheduled ramp/soak profiles. Logged temperature, power consumption, and circulation status data are stored locally and optionally synchronized to LAUDA.LIVE—a secure, ISO 27001-aligned cloud platform offering encrypted remote diagnostics, predictive maintenance alerts, and historical trend analysis. Audit trail functionality records all user actions, parameter changes, and system events with timestamp and operator ID—supporting compliance with 21 CFR Part 11 for electronic signatures and record integrity. Optional API access enables integration with LIMS, MES, or SCADA systems for centralized lab infrastructure management.

Applications

• Thermal stability testing of APIs and excipients per ICH Q1 guidelines.
• Viscosity measurement support for rotational rheometers requiring precise bath temperature synchronization.
• Calibration of thermocouples, RTDs, and infrared sensors under controlled isothermal conditions.
• Accelerated shelf-life studies in food science and packaging development.
• Temperature-dependent electrochemical cell conditioning in battery research.
• Pre-heating and thermal equilibration of optical components in metrology labs.

FAQ

Does the Universa MAX support refrigeration?
No—the Universa MAX is a heating-only circulator. For combined heating/cooling operation, refer to the Universa PRO or Universa ECO models equipped with LiBus-compatible refrigeration modules.
Can external temperature sensors be connected for cascade control?
Yes—via optional analog input modules, enabling external probe feedback for jacketed reactor or sample-stage temperature control.
Is the bath fluid capacity adjustable within the specified range?
The usable volume depends on bath insert selection and external loop configuration; standard configurations support 5.8 L (mini-bath) up to 42 L (full tank) with consistent thermal performance across the range.
What safety certifications apply to the Universa MAX?
It carries CE marking, complies with EN 61000-6-2/-6-4 EMC standards, and is KNRTL-certified for electrical safety and thermal hazard mitigation.
How is firmware updated and maintained?
Firmware updates are delivered via LAUDA Command or LAUDA.LIVE; version history, release notes, and rollback capability are fully documented and accessible through authenticated user accounts.
