Leica A60 S Stereo Microscope
| Key | Brand: Leica |
|---|---|
| Origin | Germany |
| Microscope Type | Upright Stereo Microscope |
| Total Magnification Range | 5×–30× |
| Eyepiece | 10×, 23 mm Field of View, 12 mm Working Distance |
| Zoom Ratio | 6:1 |
| Viewing Angle | 38° inclined binocular tube |
| Depth of Field | >1× standard reference (vs. comparable 5–30× stereo systems) |
| Maximum Field Diameter | 46 mm |
| Maximum Working Distance | 122 mm |
| Illumination | LED ring light with detachable diffuser plate |
| Optical Technology | Patented fused-optics stereo imaging system |
| Compliance | Designed to meet ISO 10934-1 (stereomicroscopy), EN 61000-6-3 (EMC), and IEC 62471 (LED photobiological safety) |
Overview

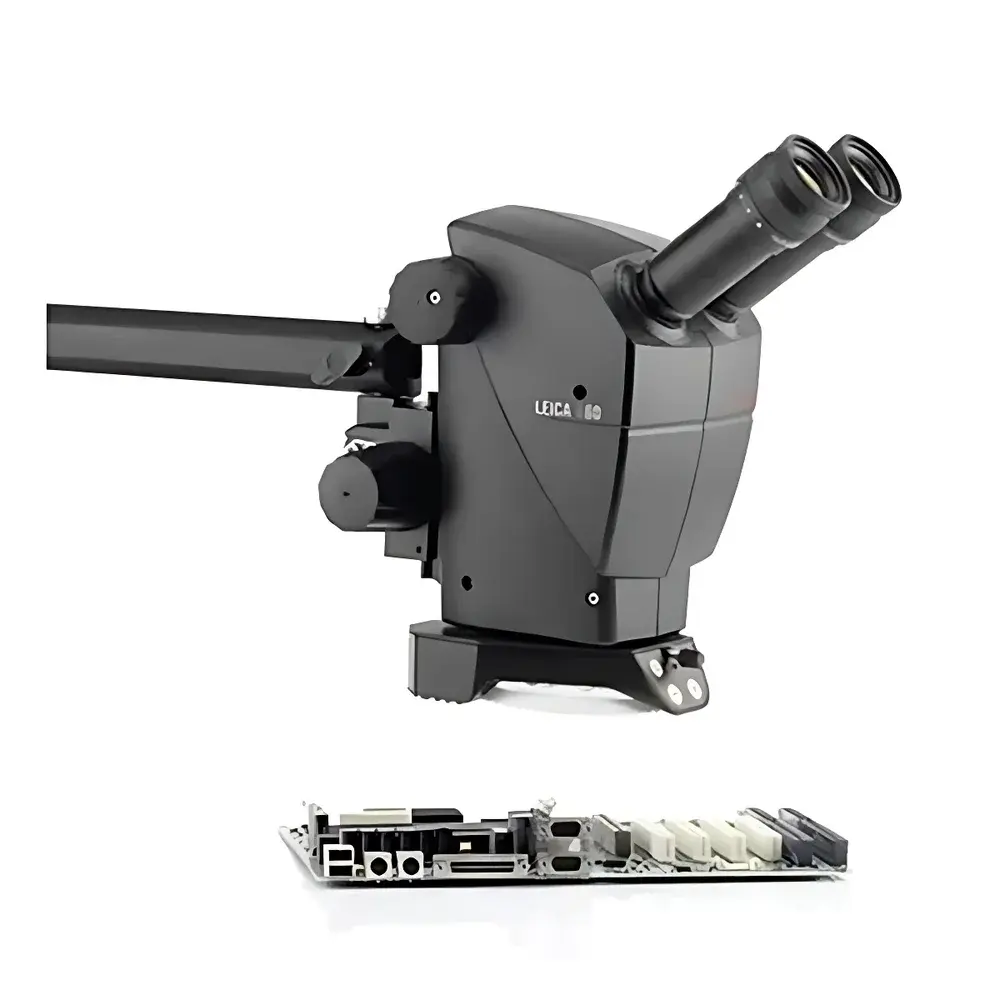

The Leica A60 S Stereo Microscope is an upright, high-performance stereoscopic inspection system engineered for precision visual examination in industrial quality control, electronics assembly, metallurgical sample evaluation, and academic teaching laboratories. Utilizing a patented fused-optics stereo imaging architecture, the A60 S delivers true optical stereopsis across its full 5×–30× magnification range—enabling accurate depth perception without digital interpolation or software-assisted reconstruction. Its 6:1 continuous zoom mechanism maintains parfocality throughout the entire range, eliminating refocusing during dynamic observation tasks. The system operates on a fixed 38° inclined binocular tube optimized for ergonomic posture during extended use, and incorporates electrostatic discharge (ESD)-safe materials and grounding pathways compliant with IPC-A-610 and J-STD-001 standards for electronics handling environments.
Key Features
- Optically coupled 6:1 zoom system with mechanical detents for rapid switching between two preset magnifications (e.g., 10× and 20×), supporting both continuous and stepwise observation workflows
- Parfocal design ensures consistent focus across all magnifications—no re-focusing required when changing zoom settings
- 10× wide-field eyepieces (23 mm field number) with 12 mm eye relief and adjustable interpupillary distance (55–75 mm)
- Maximum working distance of 122 mm—accommodates bulky specimens, manipulators, soldering tools, and automated positioning stages

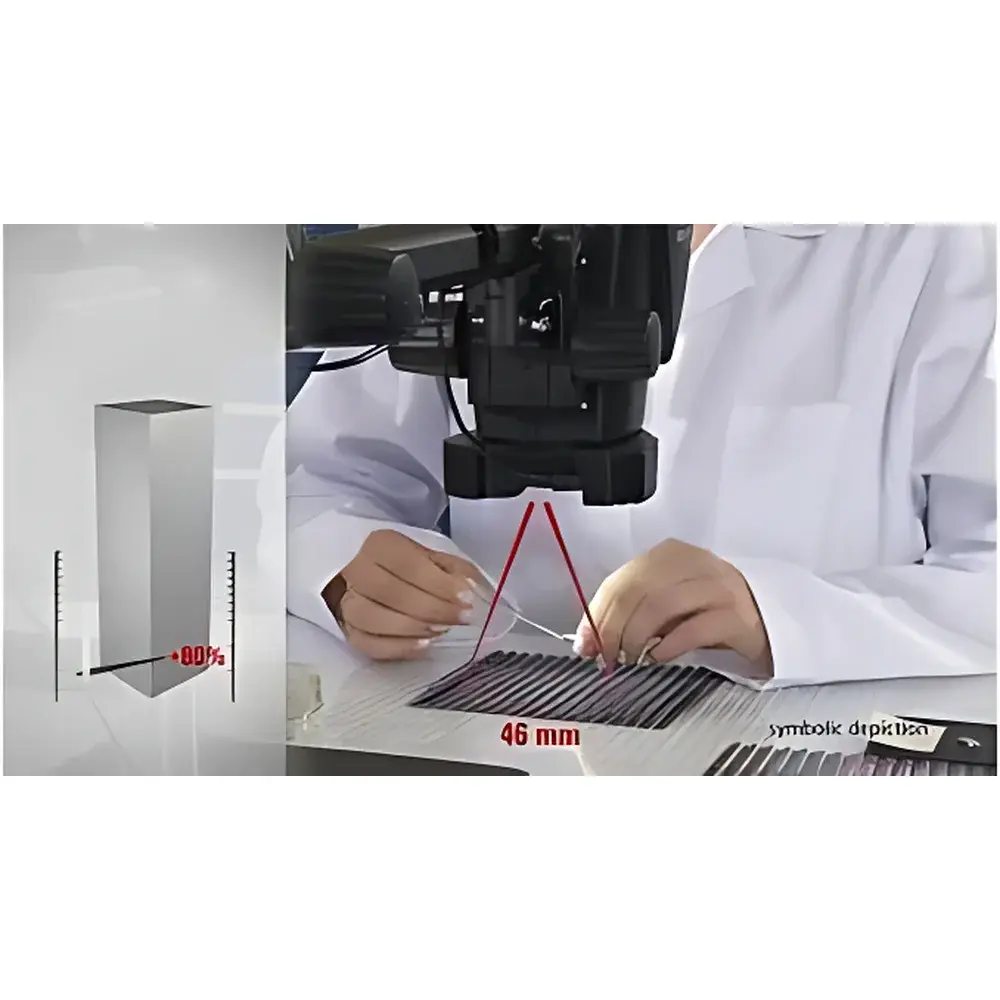

- 46 mm maximum field diameter at lowest magnification—enabling broad contextual overview prior to high-magnification inspection

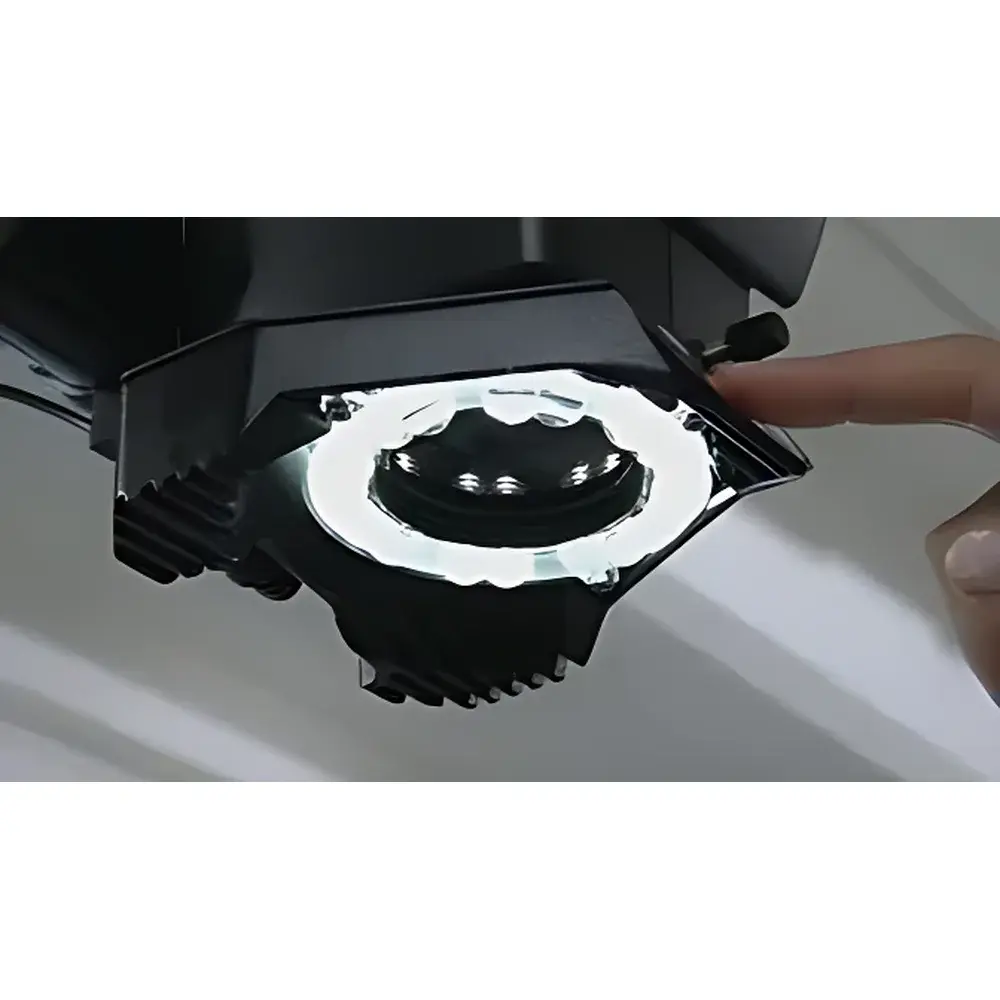

- Integrated LED ring illuminator with color temperature of 5,600 K (±200 K), CRI >90, and uniformity ≥92% across the field; includes removable frosted diffuser plate for glare-free illumination of reflective or polished surfaces
- Robust aluminum alloy chassis with vibration-damped base and ESD-conductive coating (surface resistivity <1 × 10⁶ Ω/sq)
Sample Compatibility & Compliance
The Leica A60 S accommodates specimens up to 122 mm in height and 150 mm in width without stage modification. Its large working volume supports direct integration with micromanipulators, vacuum chucks, and thermal stages. The microscope conforms to international standards governing optical instrumentation and workplace safety: ISO 10934-1 (nomenclature and performance testing for stereomicroscopes), EN 61000-6-3 (electromagnetic compatibility for residential and industrial environments), and IEC 62471 (photobiological safety classification for LED light sources). It is routinely deployed in GLP-compliant labs conducting ASTM E883 (standard guide for transilluminated infrared microscopy) and ISO 17025-accredited metallographic analysis workflows.
Software & Data Management
While the A60 S is a purely optical, non-digital instrument, it is fully compatible with Leica DMC series digital cameras via C-mount adapter (0.5× or 1× relay lens options). When paired with Leica Application Suite (LAS X) v3.7+, users gain audit-trail-enabled image capture, measurement annotation (length, angle, area), multi-focus stacking (Z-stacking), and export to TIFF, JPEG2000, or proprietary .lei formats. All image metadata—including magnification, illumination mode, date/time stamp, and operator ID—is embedded per DICOM Supplement 142 and supports FDA 21 CFR Part 11 compliance when configured with electronic signature modules and role-based access controls.
Applications
- Metallurgical sample assessment: grain structure visualization, inclusion analysis, and coating thickness estimation on bulk metal sections
- PCB and semiconductor packaging inspection: solder joint integrity, wire bond alignment, and underfill void detection
- Forensic toolmark comparison: striation pattern analysis on fired cartridge cases and bullet surfaces
- Educational histology demonstration: low-magnification tissue section orientation and dissection guidance
- Watchmaking and micro-mechanical assembly: gear train alignment, jewel setting verification, and spring tension assessment
- Failure analysis labs: crack propagation mapping, corrosion morphology documentation, and adhesive bond line inspection
FAQ
Is the Leica A60 S suitable for use in cleanroom environments?
Yes—the instrument features non-shedding polymer components, ESD-safe housing, and optional stainless-steel stage accessories certified to ISO 14644-1 Class 5 specifications.
Can I attach third-party cameras or measurement sensors?
Yes—C-mount interface supports industry-standard 1/2″ and 2/3″ sensors; mechanical mounting points allow integration of linear encoders or laser displacement sensors for coordinate metrology extensions.
Does the A60 S support fluorescence or polarized light observation?
No—this model is configured exclusively for brightfield reflected-light stereoscopy. For polarization or fluorescence capability, consider the Leica M205 FA or M165 FC platforms.
What calibration documentation is provided with shipment?
Each unit ships with a factory-issued Certificate of Conformance (CoC) traceable to PTB (Physikalisch-Technische Bundesanstalt) standards, including verification of zoom ratio accuracy (±0.8%), magnification linearity (±1.2%), and working distance tolerance (±0.3 mm).
