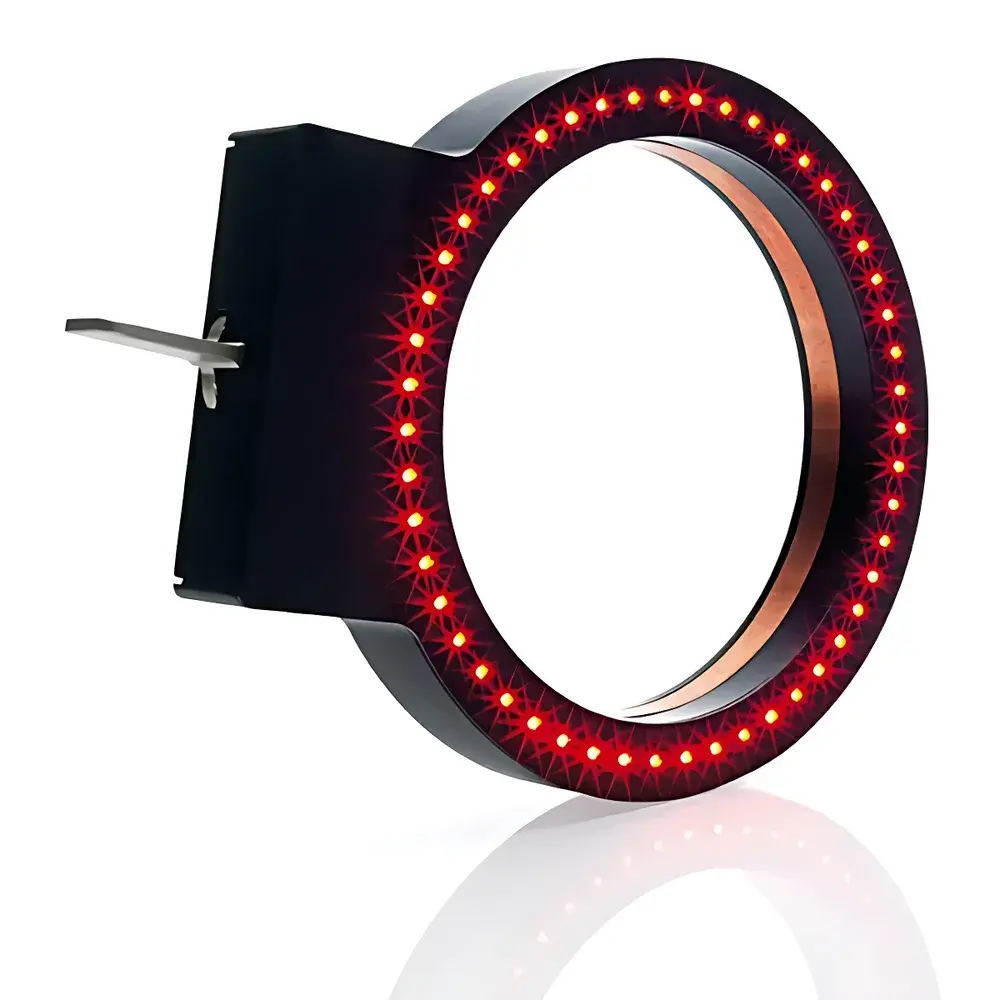

Leica Keratoscope for M800 Series Surgical Microscopes

Overview

The Leica Keratoscope is a precision-engineered annular illumination module designed exclusively for integration with the Leica M800 series of surgical microscopes. It operates on the principle of Placido disk–based corneal topography, projecting a concentric ring pattern onto the anterior corneal surface. The reflected rings are visualized in real time through the microscope’s optical path, enabling qualitative assessment of corneal curvature and astigmatic axis orientation during ophthalmic surgery. Unlike quantitative digital topographers, the Keratoscope delivers immediate, intuitive, and surgeon-controlled feedback without requiring image capture, software analysis, or post-processing—making it purpose-built for intraoperative decision support in refractive and cataract procedures.

Key Features

• Optically aligned annular LED illumination system delivering uniform, glare-free ring projection onto the cornea
• Direct mechanical coupling to Leica M800 microscope via standardized mounting interface—no external cables or power adapters required
• Fully sterilizable housing compliant with ISO 13485 medical device manufacturing standards; compatible with standard autoclave cycles (validated per EN 556-1)
• LED light source engineered for stable spectral output (>6,000 hours L70 lifetime) and minimal thermal drift during prolonged use
• Adjustable ring density and contrast optimization for varying corneal hydration states and surgical lighting environments
• No embedded electronics or firmware—eliminates regulatory complexity associated with Class IIa/IIb software-driven devices

Sample Compatibility & Compliance

The Leica Keratoscope is validated for use on human corneas under intraoperative conditions, including after epithelial removal, intra-capsular irrigation, and viscoelastic application. It does not require calibration against reference surfaces and exhibits consistent optical performance across ambient temperature ranges of 18–25°C and relative humidity of 30–60%. Device compliance includes adherence to IEC 60601-1 (general safety), IEC 60601-2-44 (particular requirements for surgical microscopes), and EU MDR 2017/745 classification as a Class I non-invasive accessory. Documentation supports traceability to Leica’s CE technical file (NB 0197) and FDA 510(k) clearance pathway as a predicate accessory to the M800 platform.

Software & Data Management

The Keratoscope functions as a passive optical component and does not incorporate software, data storage, or network interfaces. Consequently, it imposes no requirements for cybersecurity validation, electronic record retention, or audit trail generation under FDA 21 CFR Part 11 or EU Annex 11. Its operation generates no digital output—only real-time visual observation by the surgeon—thereby eliminating concerns related to data integrity, interoperability, or software lifecycle management. This architecture aligns with GLP/GMP-aligned surgical workflows where documentation occurs via operative notes and video recording (if enabled separately on the M800 system).

Applications

• Intraoperative planning and verification of limbal relaxing incisions (LRIs) for astigmatism correction during cataract surgery
• Real-time alignment guidance for toric intraocular lens (IOL) implantation, including rotational stability assessment prior to wound hydration
• Qualitative evaluation of corneal shape changes following femtosecond laser arcuate incisions
• Assessment of corneal symmetry pre- and post-penetrating keratoplasty or DALK procedures
• Training tool for resident surgeons to develop spatial recognition of corneal topographic patterns under live surgical conditions

FAQ

Is the Leica Keratoscope compatible with microscopes other than the M800 series?
No—it is mechanically and optically optimized only for Leica M800 series surgical microscopes. Integration with other platforms would require custom optical relaying and is not supported by Leica or validated for clinical use.
Does the Keratoscope require routine recalibration?
No. As a fixed-optics, non-electronic illumination module, it maintains geometric fidelity without periodic calibration. Verification of ring symmetry can be performed visually using a certified spherical test surface before each procedure.
Can the device be used in conjunction with intraoperative aberrometry systems?
Yes—its passive optical design introduces no electromagnetic interference and does not obstruct the field of view required by wavefront sensors. However, simultaneous use requires careful coordination of illumination timing to avoid saturation of sensor detectors.
What sterilization methods are approved?
The unit is validated for low-temperature hydrogen peroxide plasma sterilization (e.g., STERRAD® NX) and ethylene oxide (EtO) processing. Autoclaving is not recommended due to thermal stress on optical adhesives.
