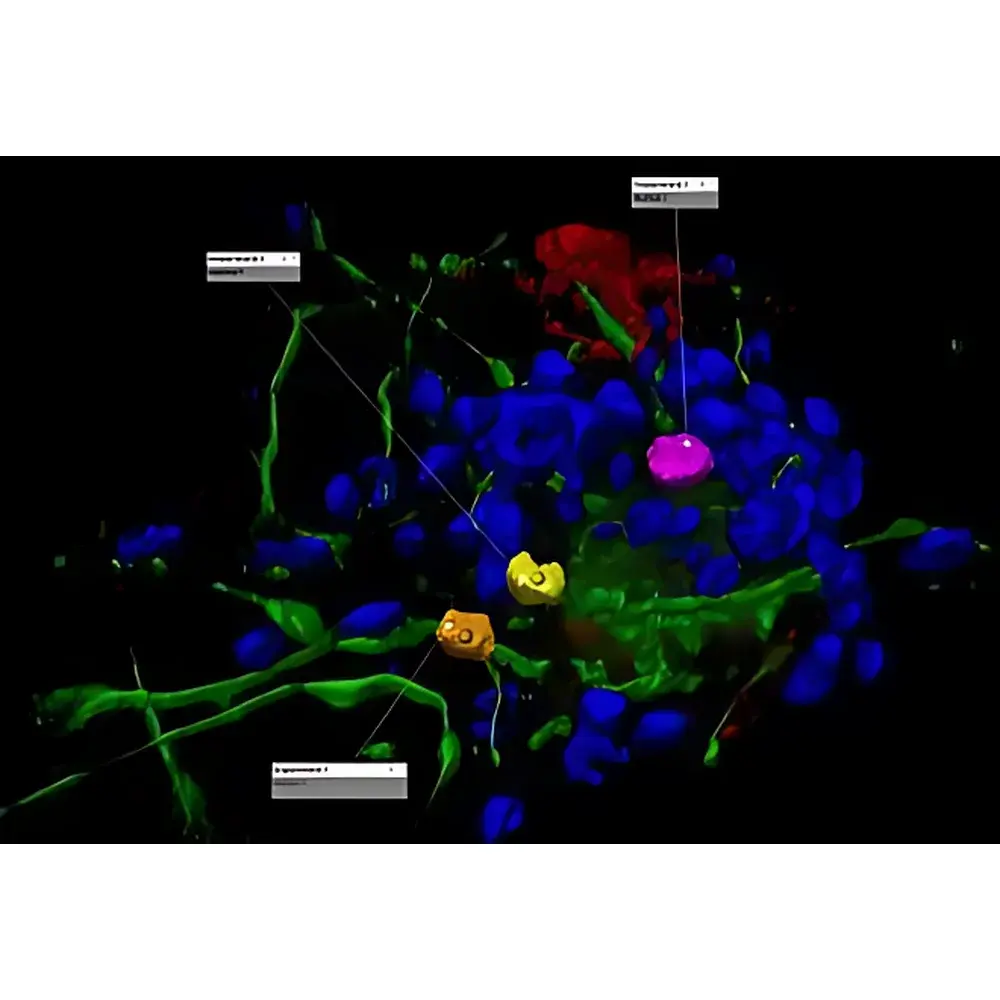

Leica LAS X Image Metrology & Automated Analysis Software for Metallurgical Microscopy

Overview

Leica LAS X Image Metrology & Automated Analysis Software is a comprehensive, modular imaging platform engineered for quantitative metrology and morphology-driven analysis on upright metallurgical microscopes. Designed exclusively for Leica DM series upright metallographic systems, LAS X operates as a hardware-integrated software environment—not a standalone image viewer—leveraging real-time camera synchronization, motorized stage control, and objective lens encoding to deliver traceable, repeatable measurements aligned with ISO 9276 (particle characterization), ASTM E112 (grain size determination), and ISO 16232 (contamination particle analysis). The software implements calibrated pixel-to-physical-unit mapping via objective magnification metadata and stage encoder feedback, enabling sub-micron spatial resolution in 2D measurements and nanometer-scale vertical precision in extended-depth-of-field (EDOF) 3D reconstructions. Its architecture supports GLP/GMP-aligned documentation workflows, including user-defined SOP templates, electronic signatures, and time-stamped, immutable audit logs.

Key Features

• Calibrated 2D Metrology Engine: Measures length, area, perimeter, radius, angle, and centroid position with automatic unit conversion (µm, mm, inch) and statistical reporting (mean, SD, CV%, min/max) across multi-field montages.
• Context-Aware Annotation Framework: Supports overlay of text labels, line segments, arrows, circles, rectangles, and freehand ROIs—all persistently embedded in TIFF/OME-TIFF files with metadata retention for regulatory review.
• Dynamic Digital Reticles: Configurable overlays including scale bars (auto-scaled per objective), crosshairs, counting grids, circular apertures, and ASTM E112-compliant grain comparison charts; rotation and scaling are synchronized with stage orientation and zoom level.
• Morphology-Based 2D Classification: Segments features by intensity thresholding, color deconvolution (RGB/HSL), or machine-learning-assisted trainable classifiers; quantifies >30 shape descriptors (aspect ratio, circularity, convexity, solidity, Feret diameter) and spatial metrics (nearest neighbor distance, cluster density).
• EDOF-Enabled 3D Surface Metrology: Reconstructs topography from z-stack sequences using focus-variance algorithms; computes surface roughness parameters (Ra, Rz, Sa, Sq), step height, volume, and tilt-corrected profile plots compliant with ISO 25178.
• Hardware-Integrated Automation: Coordinates motorized objectives, filter turrets, illumination intensity, and XY stage movement to execute predefined acquisition protocols—e.g., multi-location grain size surveys or inclusion mapping per ISO 4967.

Sample Compatibility & Compliance

Optimized for polished and etched metallic specimens (steel, aluminum, titanium alloys, superalloys), ceramic composites, and coated substrates. Supports standard metallographic sample formats (25–50 mm diameter mounts) and accommodates reflective light modes (brightfield, darkfield, DIC, polarized). All measurement algorithms undergo periodic verification using NIST-traceable calibration standards (e.g., NIST SRM 2461, 2462). Software validation packages support IQ/OQ/PQ documentation per ISO 13485 and FDA 21 CFR Part 11 when deployed in regulated manufacturing environments. Data export formats include CSV (for Excel/SPC), PDF reports (with embedded digital signatures), and OME-TIFF (for FIJI/ImageJ interoperability).

Software & Data Management

Runs on Windows 10/11 (64-bit) with NVIDIA GPU acceleration for real-time segmentation. Data integrity is enforced through hierarchical user permissions (administrator, analyst, reviewer), encrypted local storage, and optional network-based database archiving (SQL Server or PostgreSQL). Audit trails record every parameter change, image annotation, report generation, and user login/logout event—including IP address and workstation ID. Batch processing enables unattended analysis of hundreds of images using identical SOPs, with error logging and resume-on-failure capability. Integration APIs support LIMS connectivity (via HL7 or RESTful webhooks) and ERP synchronization for material lot traceability.

Applications

• Quantitative metallography per ASTM E112 (average grain size), ASTM E1245 (inclusion rating), and ISO 643 (microstructure classification)
• Porosity and defect analysis in additive manufactured parts (ASTM F2924, ISO/ASTM 52900)
• Coating thickness measurement on cross-sectioned samples (ISO 2063, ASTM B499)
• Particle contamination analysis in hydraulic fluids and lubricants (ISO 4406, ISO 16232)
• Failure analysis of fatigue cracks, intergranular corrosion, and weld microstructures
• Research-grade morphometric studies of secondary phases, precipitates, and phase distributions

FAQ

Is LAS X compatible with non-Leica microscopes?
No. LAS X is a proprietary software platform requiring native communication with Leica DM upright metallurgical microscope hardware—including encoded objectives, motorized stages, and Leica DFC cameras.
Does LAS X support automated grain size ASTM E112 reporting?
Yes. The Grain Analysis module implements the planimetric and intercept methods per ASTM E112-23, generating certified reports with confidence intervals and statistical validation summaries.
Can 3D surface data be exported for CAD integration?
Yes. EDOF-derived height maps are exportable as ASCII XYZ point clouds or STL meshes for import into Metrology software (e.g., MountainsMap, PolyWorks) or CAE tools (ANSYS, COMSOL).
How is measurement traceability ensured?
Each measurement carries embedded calibration metadata (objective ID, magnification, pixel size, date/time stamp), and all results link directly to raw image files stored in an immutable archive structure.
Is FDA 21 CFR Part 11 compliance included by default?
Audit trail logging and electronic signature support are enabled by default; full Part 11 compliance requires configuration of Windows Group Policy, network authentication, and third-party digital certificate integration.
