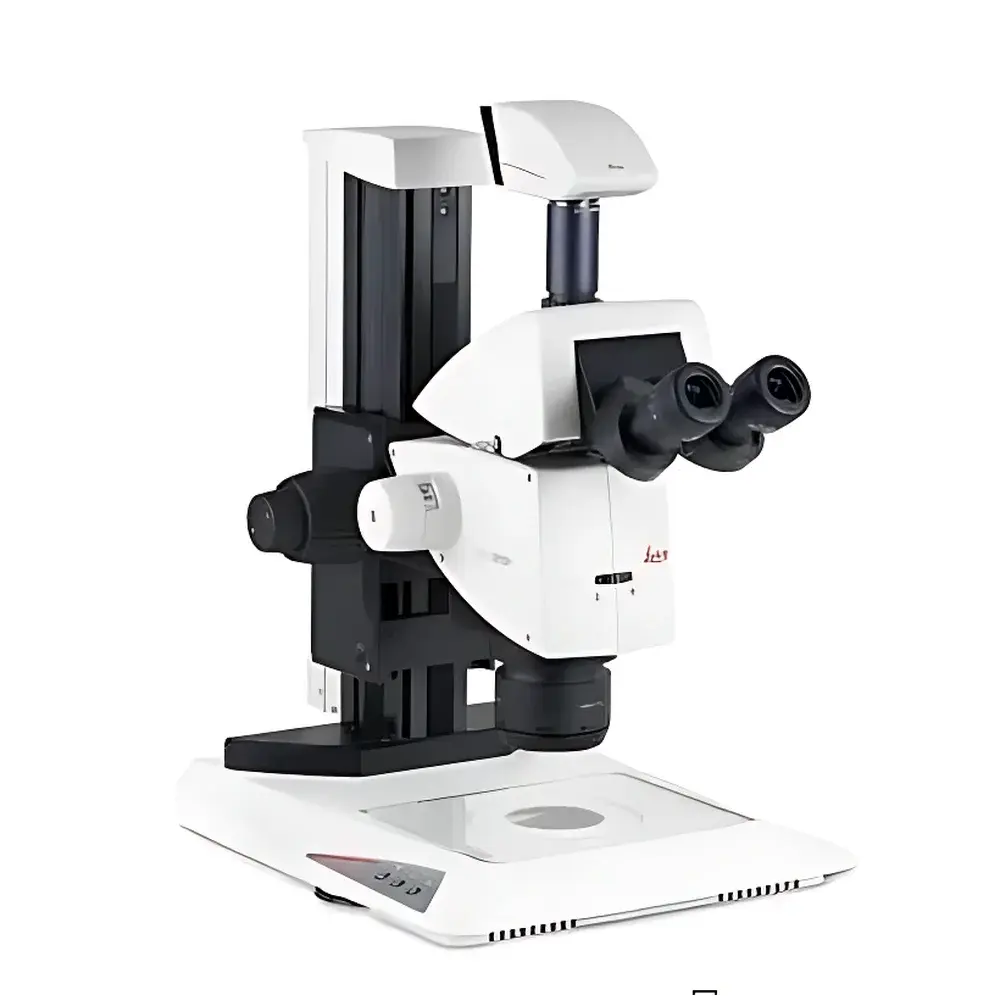

Leica M165C Stereo Microscope

Overview

The Leica M165C Stereo Microscope is a research-grade, modular CMO (Common Main Objective) architecture stereomicroscope engineered for high-fidelity three-dimensional visualization in demanding laboratory, quality control, and academic environments. Its optical design employs a parallel beam path configuration with a single shared main objective, eliminating optical asymmetry and ensuring exceptional image fidelity across the entire zoom range. The system delivers true apochromatic correction throughout the full 16.5:1 zoom ratio — from 7.3× to 120× magnification using standard 10× wide-field eyepieces and a 1× Plan Apochromat objective — enabling consistent color fidelity, minimal chromatic aberration, and resolution up to 906 line pairs per millimeter under optimal illumination and detector conditions. The M165C’s mechanical stability, thermally compensated optics, and precision-machined aluminum alloy housing support long-term dimensional repeatability required for metrology-grade inspection and documentation workflows.

Key Features

• CMO optical architecture with shared main objective ensures parfocal, distortion-free imaging and superior depth perception across all magnifications
• 16.5:1 continuous zoom ratio with encoded zoom position sensing for automated illumination intensity adjustment and scale bar embedding in captured images
• Plan Apochromat objectives (0.5×, 0.63×, 0.8×, 1×, 1.6×, 2×) offering extended working distances (20.1 mm to 135 mm) and optimized numerical aperture (up to 0.302)
• Encoded dual variable aperture system for real-time, repeatable control of depth of field and contrast without mechanical drift
• ESD-safe construction with surface resistivity <2×10¹¹ Ω/mm² and sub-2-second static discharge (1000 V → 100 V), certified for electronics assembly and semiconductor handling
• Trinocular port with 30° inclined viewing angle and standardized C-mount interface for seamless integration with digital imaging systems
• Motorized focus stand compatibility (optional) with programmable Z-axis positioning and memory recall for up to 13 predefined focal positions
• Fluorescence module support with encoded filter cube turret, enabling automatic metadata logging of excitation/emission configurations in LAS X software

Sample Compatibility & Compliance

The Leica M165C accommodates a broad spectrum of specimen types — including printed circuit boards, biological tissue sections, mineralogical samples, forensic evidence, microfluidic devices, and additive-manufactured components — without requiring immersion media or vacuum environments. Its large field diameter (up to 61.5 mm at lowest magnification) and generous working distance enable manipulation of bulky or irregularly shaped objects using micromanipulators or soldering tools. The system complies with ISO 10934-1 (optical microscopy — terminology), DIN EN 61326-1 (EMC requirements for laboratory equipment), and IEC 61000-4-2 (ESD immunity). When configured with LAS X software and optional electronic logbook modules, it supports audit-ready documentation aligned with FDA 21 CFR Part 11, EU Annex 11, and GLP/GMP regulatory expectations.

Software & Data Management

The microscope integrates natively with Leica Application Suite (LAS X), a modular imaging platform supporting acquisition, annotation, measurement, and report generation. LAS X provides calibrated pixel-to-micron scaling via automatic recognition of objective/zoom/eyepiece combinations, traceable calibration validation, and embedded scale bar insertion. Advanced features include multi-focus extended depth of field (EDF) stacking, spectral unmixing for fluorescence applications, and structured light projection for topographic profiling. All image metadata — including magnification, aperture setting, illumination intensity, timestamp, user ID, and instrument serial number — are stored in TIFF-based hierarchical data format (HDF5-compatible) with SHA-256 hash integrity verification. Optional LAS X Compliance Edition enables role-based access control, electronic signatures, and immutable audit trails meeting 21 CFR Part 11 requirements.

Applications

• Electronics manufacturing: SMT rework, solder joint inspection, PCB trace analysis, and microconnector evaluation
• Life sciences: Dissection of model organisms, embryonic staging, histological slide screening, and live-cell observation with transmitted light bases
• Materials science: Fracture surface analysis, coating thickness assessment, grain boundary mapping, and corrosion evaluation
• Forensics: Toolmark comparison, fiber identification, gunshot residue characterization, and document examination
• Quality assurance: Dimensional verification per ASTM E1558, surface defect classification per ISO 4287, and cleanliness grading per ISO 16232
• Academic research: Teaching laboratories requiring robust, serviceable instrumentation with documented calibration history and reproducible imaging protocols

FAQ

What is the maximum usable magnification of the M165C under standard optical conditions?
With a 1× Plan Apochromat objective and 10× wide-field eyepieces, the maximum nominal magnification is 120×; when combined with optional 16×, 25×, or 40× eyepieces, total magnification reaches up to 960×, limited by optical diffraction and detector resolution.
Can the M165C be used for quantitative measurement tasks?
Yes — when calibrated with Leica’s certified stage micrometers and used with LAS X measurement modules, it supports traceable linear, angular, area, and particle-count measurements compliant with ISO/IEC 17025 requirements.
Is motorized focus standard or optional?
Motorized focus is an optional accessory; the base system includes manual coarse/fine focus controls with ergonomic dual-speed knobs and adjustable torque.
Does the M165C support transmitted light illumination?
Yes — it is compatible with Leica’s TL4000 LED transmitted light base and modular condenser systems, including brightfield, darkfield, and polarization options.
How is ESD safety implemented in the optical path?
All external surfaces — including zoom housing, focus knobs, and eyepiece tubes — incorporate conductive polymer coatings with surface resistivity maintained below 2×10¹¹ Ω/mm², verified per ANSI/ESD S20.20 and IEC 61340-5-1 standards.
