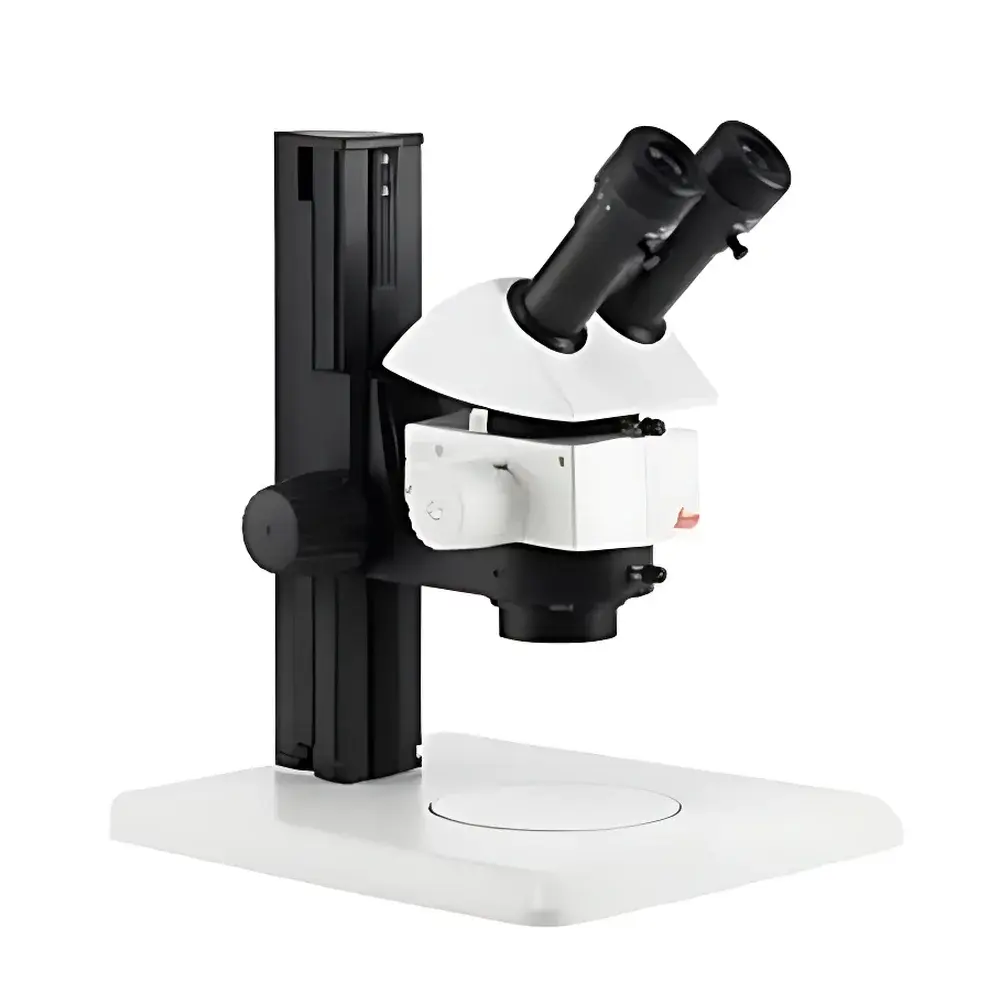

Leica M80 Stereo Microscope
| Brand | Leica |
|---|---|
| Origin | Germany |
| Model | M80 |
| Zoom Ratio | 8:1 |
| Magnification Range | 7.5×–60× (with 1× objective and 10× eyepieces) |
| Resolution | 309 lp/mm (at 60×, 1× objective) |
| Working Distance | 83.4 mm (with Plan Apochromat 1× objective) |
| Field of View | Ø98 mm (max, dependent on optical configuration) |
| LED Illumination | 6500 K color temperature, 50,000 h lifetime, fanless thermal management |
| Optical Design | Parallel optical path (Common Main Objective, CMO), multi-coated optics, lead-free housing |
| Electrostatic Dissipation | Surface resistivity 2×10¹¹ Ω/mm², discharge time <2 s (1000 V → 100 V) |
| Modular Interface | 8-position zoom detent slots for repeatable magnification settings |
| Objective Options | Achromatic (0.32×–2.0×), Plan Apochromat (0.8×–1.6×) |
| Eyepiece Options | Widefield 10×, 16×, 25×, 40× with adjustable eye cups and interpupillary distance |
| Ergonomic Modules | ErgoTube® and ErgoModules® with tilt angle 10°–50° |
| Software Compatibility | Leica Application Suite (LAS) |
Overview
The Leica M80 Stereo Microscope is an industrial-grade, parallel-optical-path (CMO) stereo imaging system engineered for high-fidelity visual inspection, precision assembly, quality control, and routine laboratory documentation. Built upon Leica Microsystems’ decades of optical engineering heritage in Wetzlar, Germany, the M80 employs a true common main objective design—distinct from Greenough-style stereomicroscopes—to deliver exceptional image fidelity, depth-of-field consistency, and chromatic correction across its full 8:1 zoom range. Its optical architecture eliminates the V-shaped light path inherent in traditional stereoscopes, thereby reducing ocular strain during extended use and supporting ergonomic compliance with occupational health guidelines for prolonged microscopy tasks. The system operates on a fixed 1× primary objective platform, with magnification continuously variable from 7.5× to 60× using manual zoom control; when combined with optional auxiliary objectives and widefield eyepieces (e.g., 40×), total optical magnification reaches up to 320×. All optical elements feature multi-layer anti-reflective coatings optimized for broadband transmission and minimal ghosting, while the mechanical housing complies with RoHS and REACH directives, including lead-free surface treatment.
Key Features
- 8:1 continuous zoom ratio with tactile, eight-position detent indexing for rapid, repeatable magnification recall—critical for SOP-driven environments and audit-ready workflows.
- Integrated 6500 K white LED illumination system delivering uniform, shadow-free Köhler-like illumination; rated for 50,000 hours with zero fan cooling—ensuring silent operation and eliminating vibration-induced image drift.
- Parallel optical path (CMO) design ensures identical magnification and focus for both left and right optical channels, enabling accurate stereoscopic perception and quantitative measurement compatibility.
- ErgoTube® binocular head with 10°–50° adjustable inclination and fully customizable interpupillary distance accommodates diverse user anthropometry and supports ISO 9241-5 ergonomic workstation standards.
- Modular accessory interface with eight standardized mounting slots allows seamless integration of motorized focus drives, camera adapters, polarizers, fluorescence modules, and measurement stages without optical realignment.
- Electrostatic-dissipative housing (surface resistivity 2×10¹¹ Ω/mm², decay time <2 s from 1000 V to 100 V) meets IEC 61340-5-1 requirements for ESD-safe operation in electronics assembly and semiconductor handling labs.
Sample Compatibility & Compliance
The Leica M80 supports broad sample versatility—from unmounted biological specimens and botanical samples to PCB assemblies, metallurgical cross-sections, forensic evidence, and pharmaceutical dosage forms. Its large working distance (up to 303 mm with 0.32× objective) enables manipulation under the objective using micromanipulators or tweezers. Optional Plan Apochromat objectives provide flat-field correction and superior edge-to-edge resolution, essential for ISO/IEC 17025-accredited calibration labs. The system conforms to DIN EN ISO 10993-5 (biocompatibility of accessories), IEC 61000-6-3 (EMC emissions), and IEC 61000-6-2 (immunity). When used with LAS software and validated digital cameras, it supports ALCOA+ data integrity principles and can be configured for 21 CFR Part 11-compliant electronic records in regulated GMP/GLP environments.
Software & Data Management
The M80 integrates natively with Leica Application Suite (LAS) X v3.7+, providing calibrated image capture, measurement annotation (length, area, angle, particle count), multi-focus stacking, and report generation with embedded metadata (magnification, objective ID, illumination intensity, timestamp). LAS supports DICOM export, CSV-based quantitative output, and direct linkage to LIMS via HL7 or REST API. Audit trails record all user actions—including parameter changes, image annotations, and export events—with immutable timestamps and operator IDs. Optional LAS Security Pack enables role-based access control, electronic signatures, and password-protected method locking—aligning with FDA guidance on computerized systems used in regulated manufacturing.
Applications
- Electronics manufacturing: SMT solder joint inspection, wire bonding verification, and micro-defect identification on HDI PCBs.
- Life sciences: Dissection of model organisms, histological slide screening, and embryonic staging under low-heat illumination.
- Materials science: Fracture surface analysis, coating thickness assessment, and grain boundary visualization in polished metallographic mounts.
- Forensics: Toolmark comparison, fiber morphology analysis, and gunshot residue documentation with traceable magnification metadata.
- Pharmaceutical QA: Visual inspection of parenteral vials, tablet coating uniformity, and particulate contamination screening per USP and Ph. Eur. 2.9.20.
FAQ
What is the maximum total magnification achievable with the Leica M80?
With a 1× Plan Apochromat objective, 10× widefield eyepieces, and a 2.0× auxiliary lens, the optical magnification reaches 320×. Digital magnification beyond this is possible via camera sensor cropping but does not improve resolvable detail.
Does the M80 support motorized focus or zoom functions?
The base M80 is manually operated; however, it accepts Leica’s Motorized Focus Drive (MFD) and Zoom Control Module (ZCM) as field-upgradable accessories—enabling programmable Z-stacking and reproducible zoom sequences.
Can the M80 be validated for GMP-regulated environments?
Yes. When equipped with LAS X Security Pack, calibrated stage micrometers, and documented IQ/OQ protocols, the system supports qualification per ASTM E2919 and EU Annex 11 requirements.
Is the LED illumination intensity adjustable?
Yes—continuous dimming is available via front-panel rotary control or remote interface (RS-232/USB), with preset illumination profiles storable in LAS for method consistency.
What certifications apply to the M80’s electrical safety and EMC performance?
The instrument carries CE marking per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and complies with IEC 61010-1:2010 for laboratory equipment safety.
