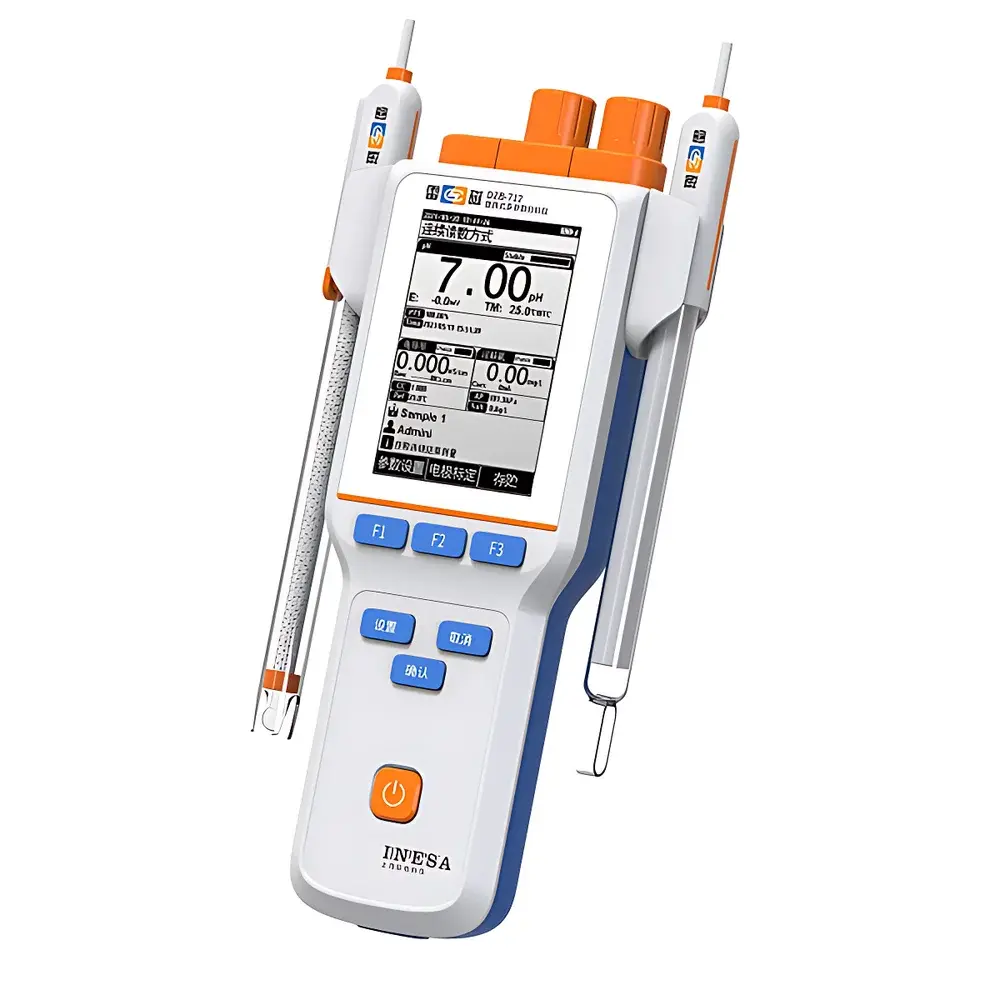

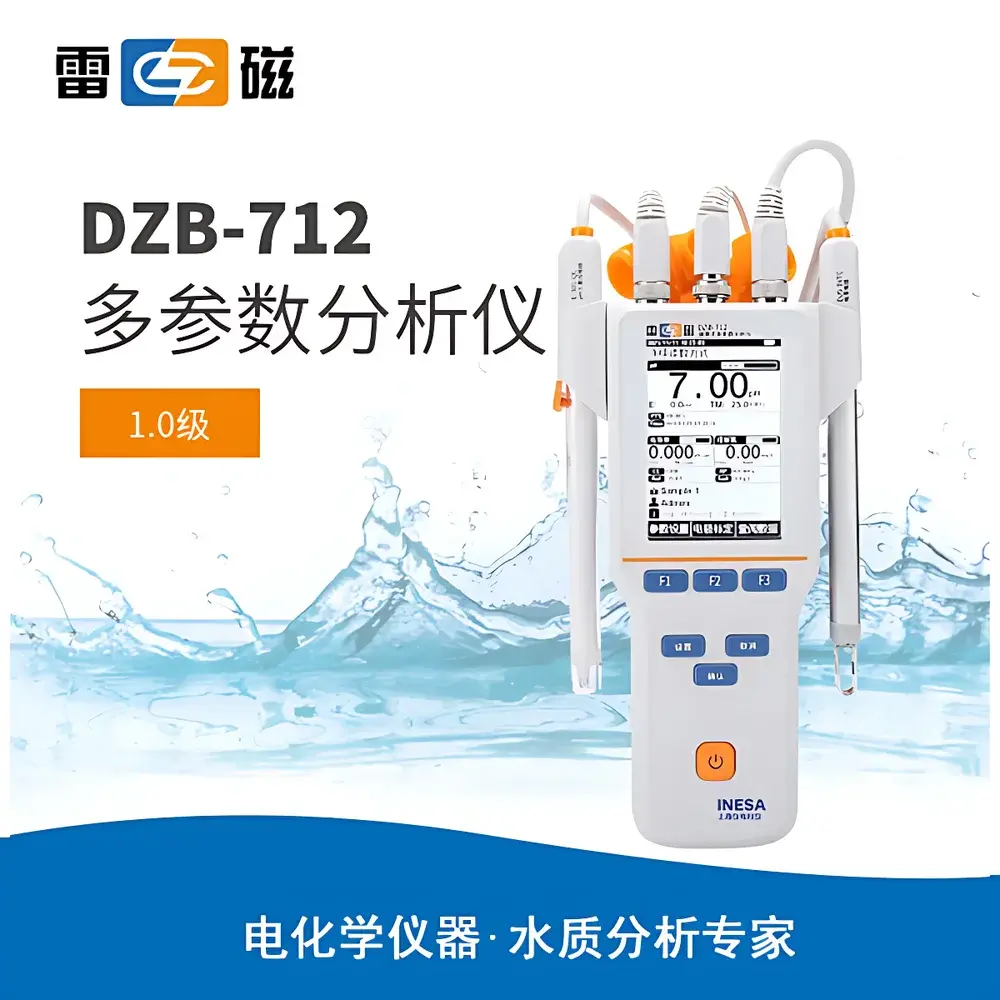

Leici DZB-712 Portable Multi-Parameter Water Quality Analyzer

Overview

The Leici DZB-712 Portable Multi-Parameter Water Quality Analyzer is an engineered field-deployable instrument designed for simultaneous, real-time measurement of critical water quality parameters in environmental monitoring, municipal water supply, wastewater treatment, aquaculture, and educational laboratory applications. Built upon a modular electrochemical sensing architecture, the DZB-712 integrates three independent measurement units—pH/pX (ion-selective), conductivity/resistivity/TDS/salinity, and polarographic dissolved oxygen—within a single compact, ruggedized housing. Its operation adheres to fundamental electrochemical principles: potentiometric measurement for pH and ion activity (Nernst equation-based), conductometric measurement via four-electrode or two-electrode cell geometry (per ASTM D1125 and ISO 7888), and amperometric detection of dissolved oxygen using a Clark-type polarographic sensor with temperature- and atmospheric pressure-compensated current integration. The device supports full GLP-compliant data integrity through timestamped storage, electrode diagnostics, calibration history logging, and audit-ready export protocols.

Key Features

• IP65-rated enclosure ensures dust-tight operation and resistance to low-pressure water jets—validated for outdoor and humid industrial environments.
• High-resolution LCD display with adjustable backlight enables legible readings under variable ambient lighting, including direct sunlight.
• Intelligent endpoint detection algorithms support multiple reading modes: auto-read (stable-signal triggered), timed-read (user-defined intervals), interval-read (scheduled acquisition), and manual-read (operator-initiated).
• Comprehensive auto-compensation suite: automatic temperature compensation (ATC) for pH, conductivity, and DO; atmospheric pressure compensation for DO (selectable units: kPa, mbar, Torr, atm); manual salinity compensation for DO; and selectable reference temperatures (20 °C or 25 °C) for conductivity calculations.
• Built-in electrode diagnostics continuously monitor slope, offset, and response time for pH, conductivity, and DO sensors—flagging performance drift prior to calibration failure.
• Rechargeable lithium-ion battery provides >15 hours of continuous operation; supports USB-C and DC5V adapter charging—including compatibility with portable power banks for extended field missions.
• Onboard firmware upgradability ensures long-term adaptability to evolving regulatory requirements and methodological updates without hardware replacement.

Sample Compatibility & Compliance

The DZB-712 is validated for use with freshwater, seawater, brackish water, treated effluent, surface runoff, and process water across ambient temperature ranges (−5.0 to 110.0 °C). It accommodates standard electrode configurations: triple-junction pH electrodes with integrated temperature sensor, graphite or platinum conductivity cells (cell constants 0.01, 0.1, and 1.0 cm⁻¹), and membrane-covered polarographic DO probes. All measurements comply with internationally recognized methodology frameworks: pH and ion concentration measurements align with ISO 10523 and ASTM D1293; conductivity measurements conform to ISO 7888 and ASTM D1125; dissolved oxygen determinations follow ISO 5814 and APHA Standard Method 4500-O G. Full GLP traceability is enforced via mandatory metadata capture—including operator ID, sample ID, calibration certificate IDs, electrode lot numbers, ambient pressure, and ambient temperature—at every data point.

Software & Data Management

Data are stored locally in non-volatile memory (500 datasets per parameter group) with full metadata embedding: date/time stamp, measurement mode, electrode serial number, calibration status, and environmental compensation values. Export is supported via USB mass-storage mode (CSV format) or RS-232 serial interface to external printers (configurable print templates) or laboratory information management systems (LIMS). The included PC communication software enables bidirectional synchronization, batch calibration report generation, trend visualization, and compliance report drafting aligned with FDA 21 CFR Part 11 requirements—supporting electronic signatures, audit trails, and user access controls. All stored data retain immutable timestamps and cannot be edited post-acquisition, satisfying ISO/IEC 17025 Clause 7.7 and EU Annex 11 data integrity expectations.

Applications

• Regulatory field monitoring of surface water bodies (rivers, lakes, reservoirs) per EPA Method 150.1, ISO 5667 series, and China’s HJ/T 91–2002.
• In-process verification during drinking water treatment—coagulation, disinfection, filtration—and distribution system integrity assessment.
• Wastewater influent/effluent characterization for BOD/COD correlation studies and nutrient loading estimation (NH₄⁺, Cl⁻, F⁻).
• Aquaculture site management: real-time DO saturation tracking, pH stability monitoring, and salinity profiling in hatcheries and recirculating aquaculture systems (RAS).
• Educational laboratories requiring multi-parameter correlation exercises—e.g., inverse relationship between DO and temperature, conductivity–TDS–salinity interdependence.
• Emergency response deployments for post-flood or chemical spill assessments where rapid, on-site triage of water safety indicators is mission-critical.

FAQ

What calibration standards are supported for pH measurement?
The DZB-712 automatically recognizes standard buffer sets per GB, DIN, and NIST specifications and allows creation of custom multi-point (up to 5-point) calibrations using user-defined solutions.
Can the instrument measure low-conductivity ultrapure water?
Yes—when paired with a 0.01 cm⁻¹ conductivity cell, the DZB-712 achieves reliable measurement down to 5.00 Ω·cm resistivity (equivalent to ~0.2 μS/cm conductivity), with linear temperature compensation optimized for Type I water per ISO 3696.
Is dissolved oxygen measurement compensated for altitude?
Yes—built-in barometric pressure sensing (or manual entry) enables automatic partial pressure correction, ensuring accurate mg/L and % saturation values at elevations up to 3000 m above sea level.
How is data security maintained during transfer to a PC?
All USB transfers occur in read-only mode; no firmware or configuration files are writable from host systems. Audit logs record every data export event, including host IP (if network-connected) and timestamp.
Does the device meet international shipping and electromagnetic compatibility requirements?
The DZB-712 complies with IEC 61326-1 (EMC for laboratory equipment) and UN 38.3 (lithium battery transport safety), and carries CE marking for conformity with EU RoHS and REACH directives.
