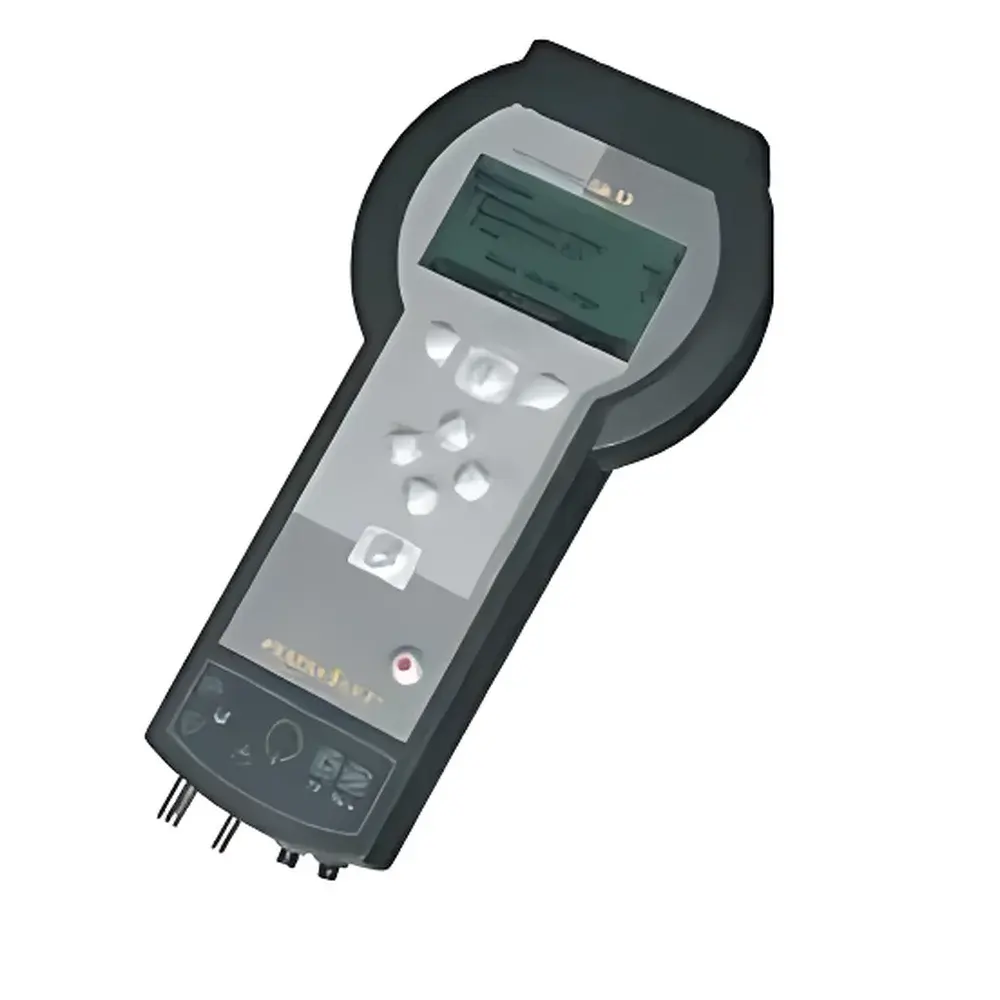

Madur GA-12plus Portable Flue Gas Analyzer

Overview

The Madur GA-12plus Portable Flue Gas Analyzer is an EN 50379-compliant, handheld instrument engineered for precision combustion diagnostics in small- to medium-scale heating systems, including residential boilers, commercial burners, and light industrial furnaces. Based on electrochemical sensor technology for toxic and oxygen gases, coupled with thermocouple-based temperature measurement and piezoresistive differential pressure sensing, the GA-12plus delivers laboratory-grade reliability in a rugged, field-deployable form factor. Its compact dimensions (245 × 90/128 × 60 mm) and 700 g mass enable single-hand operation without compromising structural integrity—reinforced by a metal-reinforced housing, stainless steel gas fittings, and IP54-rated ingress protection against dust and splashing water. Designed for compliance-driven environments, the analyzer supports traceability through real-time clock stamping, audit-ready data logging, and firmware-upgradable architecture compatible with evolving regulatory frameworks including EU Directive 2010/31/EU (Energy Performance of Buildings) and national emissions monitoring requirements.

Key Features

• Modular electrochemical sensor configuration supporting up to four simultaneous gas measurements: standard O₂ and CO; optional NO, NO₂, SO₂, or H₂S—each calibrated per ISO 12039 and traceable to NIST-certified standards.
• Integrated Bacharach smoke number test capability via electronically regulated flow control (1.631 L/min), eliminating manual flow adjustment and ensuring repeatability across operators.
• High-resolution ambient CO detection down to 0.1 ppm—critical for low-emission biomass and condensing boiler verification.
• Dual-temperature measurement: flue gas (via K-type thermocouple probe) and ambient air, enabling accurate dew point estimation and correction of volumetric flow calculations.
• Differential pressure sensing with 0.1 Pa resolution for draft and fan performance assessment, compliant with EN 15502-1 and DIN 4751.
• Backlit LCD display (66 × 36 mm active area) with intuitive icon-driven interface—designed for glove-compatible navigation and rapid parameter recognition under variable lighting conditions.
• Extended battery endurance: up to 75 hours on four AA alkaline cells; also supports external 9 V DC input for continuous benchtop use.
• Onboard memory stores 32 complete measurement reports—including time-stamped raw values, calculated combustion parameters (CO₂%, excess air, lambda, efficiency, flue loss), and user annotations.

Sample Compatibility & Compliance

The GA-12plus is validated for use with gaseous and liquid fuels covered in DIN 51622, OENORM M 7142, and EN 267. It accommodates fuel-specific stoichiometric calculations for natural gas, LPG, heating oil (EL, SL), biogas, and wood pellets. All sensor calibrations are performed against certified reference gases (ISO 6141) and verified per EN 50379-2 Annex B. The analyzer meets CE marking requirements under the EMC Directive 2014/30/EU and RoHS 2011/65/EU. Its firmware architecture supports GLP-aligned operation: automatic zero/span checks at startup, configurable averaging intervals (2–180 s), and immutable log entries with timestamp, operator ID (optional), and environmental metadata (Tₐᵢᵣ, Pₐₜₘ).

Software & Data Management

Madur’s proprietary PC software enables full configuration, report generation, and firmware updates via RS-232C or infrared link. The application imports native .MAD files containing all measured and derived parameters, supports export to CSV, PDF, and XML formats, and generates EN-compliant test certificates with digital signature fields. Audit trail functionality records all configuration changes, calibration events, and data exports—meeting documentation requirements under ISO/IEC 17025 and EU 2015/1222 (Monitoring Methodologies Regulation). Real-time serial streaming allows integration into SCADA or building management systems (BMS) for continuous emission trend monitoring.

Applications

• Routine commissioning and maintenance of domestic condensing boilers (EN 12953-10, EN 12952-15)
• Periodic flue gas inspection for HVAC contractors under national energy efficiency ordinances
• Field validation of low-NOₓ burner retrofits in commercial kitchens and laundries
• Smoke opacity correlation studies using Bacharach method in decentralized heating plants
• Educational laboratories for combustion engineering and environmental science curricula
• Third-party certification audits requiring portable, EN 50379-verified instrumentation

FAQ

Does the GA-12plus support field recalibration by the user?

Yes—zero and span calibration for O₂ and CO sensors can be performed on-site using certified span gases and built-in calibration routines. NO, NO₂, SO₂, and H₂S sensors require factory recalibration due to cross-sensitivity constraints.
Is the instrument suitable for high-moisture flue gases?

The integrated condensate trap and 20 µm inline filter provide robust protection against moisture-induced sensor poisoning. For sustained operation above 90% RH, optional heated probe accessories are recommended.
Can measurement data be exported directly to Excel?

Yes—the PC software exports fully structured CSV files with column headers matching EN 50379-defined parameter nomenclature, enabling direct import into spreadsheet-based reporting tools.
What is the warranty coverage for electrochemical sensors?

Standard warranty is 12 months from date of commissioning; typical service life exceeds 24 months under normal operating conditions (≤100 ppm CO, <50 °C flue gas, regular zero checks).
Does the device comply with FDA 21 CFR Part 11 for electronic records?

While not designed for pharmaceutical GMP environments, the GA-12plus supports ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) via time-stamped logs and non-editable binary storage—sufficient for most environmental and energy auditing applications.
