MakeWave MGZ-G6A Large-Volume Microwave Vacuum Low-Temperature Drying Oven

Overview

The MakeWave MGZ-G6A is an industrial-scale microwave vacuum low-temperature drying oven engineered for controlled, energy-efficient dehydration of thermally sensitive materials under reduced pressure. Unlike conventional convection or conductive heating ovens, the MGZ-G6A employs dielectric heating via 2.45 GHz microwave energy—enabling volumetric, rapid, and uniform internal heating while minimizing surface overheating. Operating under high vacuum (up to −0.099 MPa), the system lowers the boiling point of solvents and water, permitting effective drying at temperatures as low as ambient—critical for preserving heat-labile compounds, active pharmaceutical ingredients (APIs), biologics, botanical extracts, and functional ceramics. As a scaled-up variant of the MGZ-G2A platform, the MGZ-G6A delivers enhanced throughput capacity and process robustness for pilot-scale validation and early-stage manufacturing environments in regulated industries.

Key Features

• 400 L vacuum-compatible drying chamber constructed entirely from electropolished 304 stainless steel—resistant to corrosion, compliant with ASME BPVC Section VIII Div. 1 design guidelines for vacuum vessels.
• 4800 W rated microwave power output with frequency-variable magnetron control, enabling precise, stepless power modulation (0–100%) to match material dielectric properties and avoid thermal runaway.
• Integrated vacuum system achieving ≤−0.099 MPa absolute pressure, equipped with dual-stage oil-free scroll pump and real-time digital vacuum monitoring with automatic pressure hold and ramping profiles.
• Non-contact infrared pyrometry calibrated across 0–300 °C, mounted internally to monitor bulk material temperature without sensor insertion—eliminating contamination risk and measurement lag.

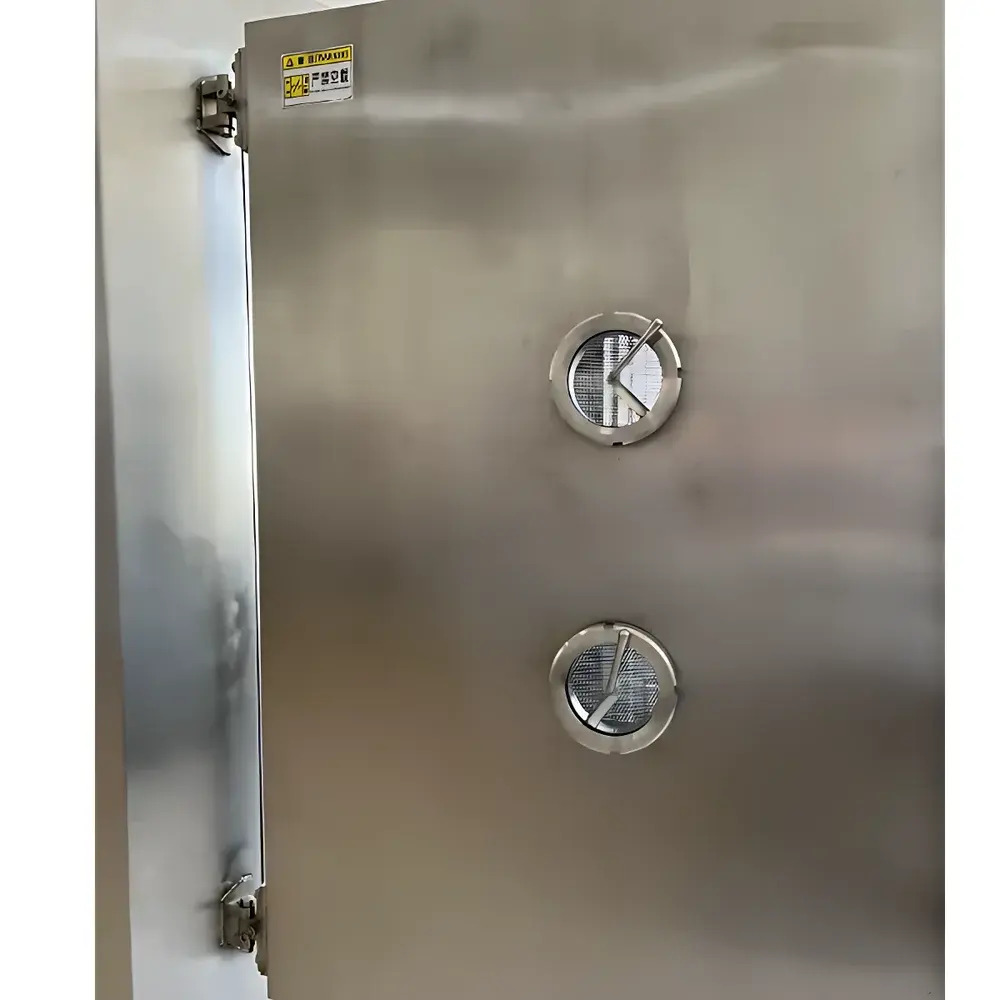

• Dual borosilicate glass observation windows with argon-purged anti-fog coating and integrated LED chamber lighting—supporting visual process monitoring without vacuum break.
• Motor-driven rotating turntable (optional multi-tier tray support) ensures homogeneous microwave field distribution and consistent drying kinetics across heterogeneous loads—including powders, granules, tablets, and irregular solids.

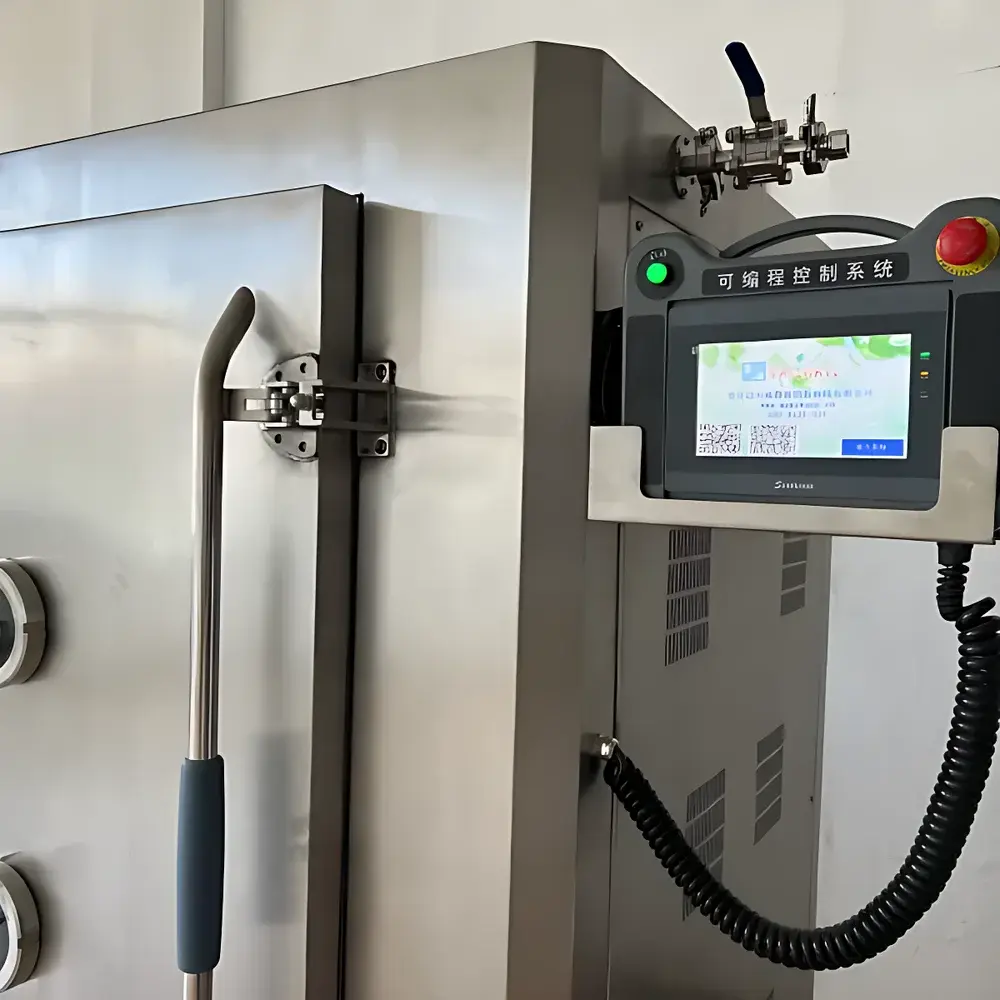

• Industrial-grade PLC controller with 10.1″ capacitive touchscreen HMI, supporting recipe-based operation, real-time trend logging, alarm management, and password-protected user levels aligned with FDA 21 CFR Part 11 data integrity requirements.

Sample Compatibility & Compliance

The MGZ-G6A accommodates a broad spectrum of sample formats: loose powders (e.g., lyophilized proteins, catalyst precursors), wet cakes (e.g., centrifuged fermentation broths), coated tablets, herbal matrices, and ceramic green bodies. Its vacuum-sealed architecture and inert atmosphere compatibility (N₂ or Ar purge optional) mitigate oxidation and hydrolysis during drying. The system meets structural and electrical safety standards per GB/T 10080–2001 (Chinese national standard for vacuum ovens) and supports optional ATEX/IECEx-certified explosion-proof configuration (Ex d IIB T4) for Class I, Division 1 hazardous locations—validated for solvent-laden processes in API synthesis and fine chemical manufacturing. Documentation packages include IQ/OQ protocols, material traceability records, and weld certification per ASTM A240/A240M.

Software & Data Management

The embedded control software enables full-cycle automation: vacuum evacuation → microwave power ramping → temperature setpoint tracking → dynamic pressure compensation → cooldown under inert gas backfill. All operational parameters—including microwave power %, chamber pressure (mbar), IR-measured temperature (°C), elapsed time, and fault logs—are timestamped and stored locally on encrypted SD card with optional Ethernet/IP or Modbus TCP export. Audit trail functionality complies with GLP and GMP Annex 11 expectations: immutable records, electronic signatures, and role-based access control. Raw data exports to CSV or Excel facilitate statistical process control (SPC) analysis and regulatory submission readiness.

Applications

• Pharmaceutical: Low-temperature drying of moisture-sensitive APIs, sterile powder blends, and inhalation-grade excipients—reducing residual solvent levels below ICH Q3C thresholds.
• Biotechnology: Stabilization of enzymes, monoclonal antibodies, and plasmid DNA without aggregation or denaturation; compatible with cGMP cleanroom integration.
• Food Science: Preservation of probiotics, anthocyanins, and volatile flavor compounds in nutraceutical powders and functional snacks.
• Materials Research: Solvent removal from MOFs, aerogels, and battery electrode slurries—maintaining nanostructural integrity and porosity.
• Academic & Contract Labs: Reproducible method development for vacuum-microwave drying kinetics, Arrhenius modeling, and mass transfer coefficient determination per ISO 15512 and ASTM E145.

FAQ

What vacuum level can the MGZ-G6A achieve, and how is it maintained during microwave operation?
The system reaches ≤−0.099 MPa using a dual-stage dry scroll pump; vacuum integrity is actively monitored and compensated during microwave cycling via PID-controlled vent/purge valves.
Is the infrared temperature sensor calibrated traceable to NIST standards?
Yes—factory calibration certificates are provided with each unit, referencing blackbody source verification at three points (50 °C, 150 °C, 250 °C) per ISO/IEC 17025-accredited procedures.
Can the MGZ-G6A be integrated into a larger automated production line?
It supports 4–20 mA analog I/O, discrete digital signals, and Modbus RTU/TCP for seamless linkage with MES, SCADA, or PLC-based central control systems.
Does the system comply with FDA 21 CFR Part 11 for electronic records?
Yes—the HMI firmware includes audit trail logging, electronic signature capture, and data encryption meeting Part 11 Subpart B requirements for closed systems.
What maintenance intervals are recommended for the magnetron and vacuum pump?
Magnetron service life exceeds 5000 h under nominal load; vacuum pump oil change is required every 2000 h or annually—whichever occurs first—per manufacturer’s preventive maintenance schedule.
