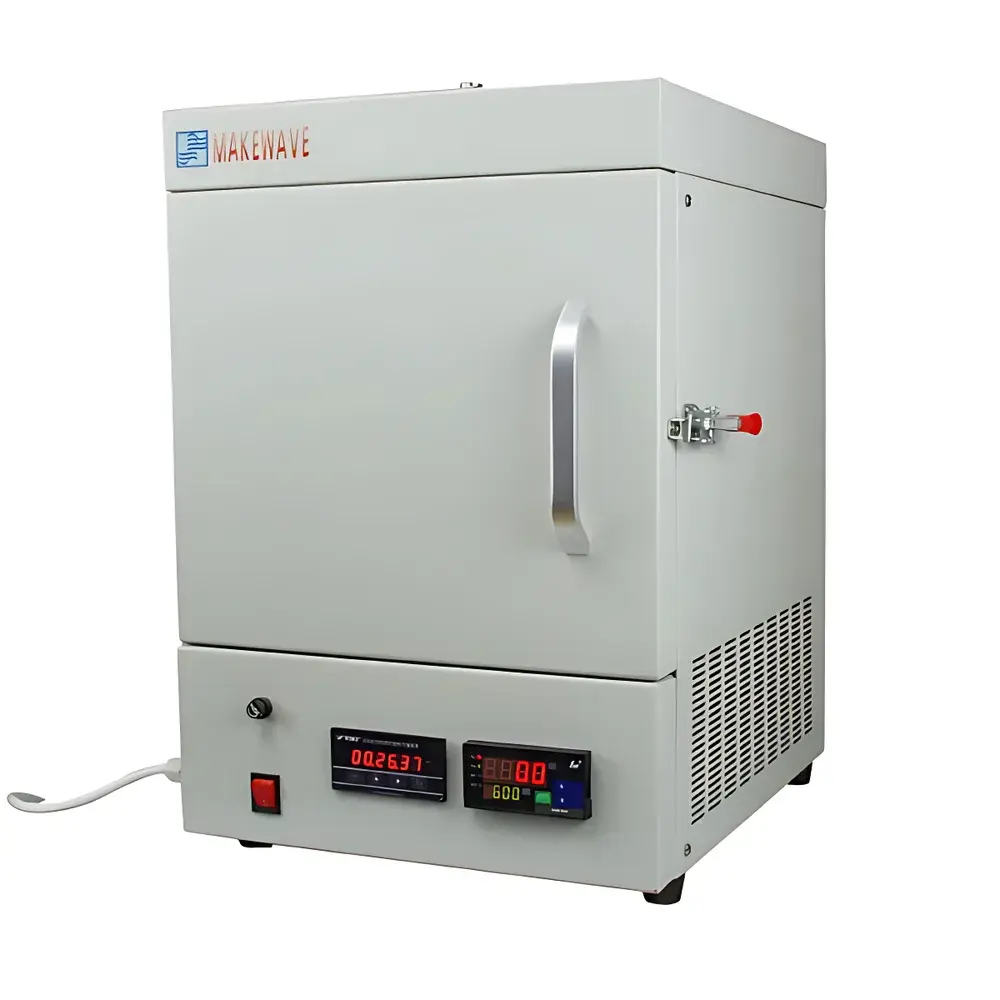

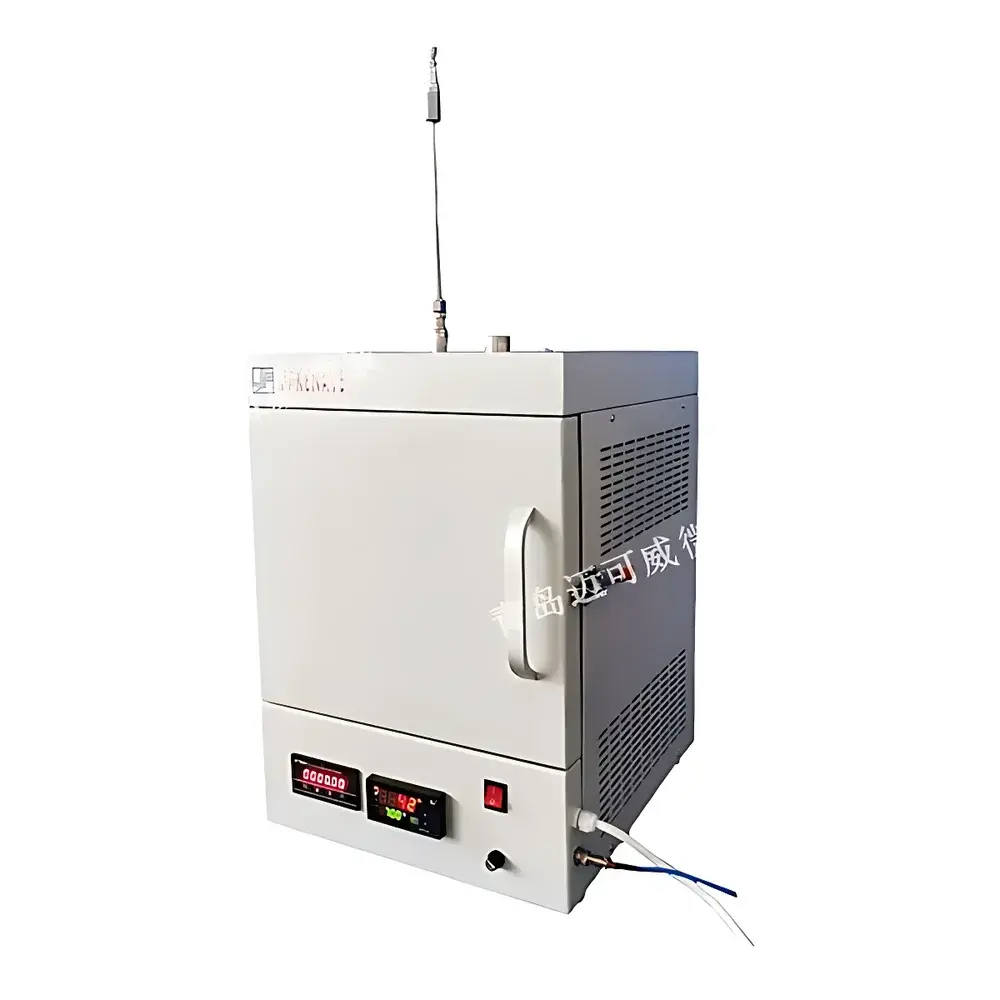

MakeWave MKX-M1A Microwave Muffle Furnace

Overview

The MakeWave MKX-M1A Microwave Muffle Furnace is a precision-engineered laboratory furnace that replaces conventional resistive heating with controlled 2450 MHz microwave energy for high-temperature thermal processing. Unlike traditional muffle furnaces relying on radiant heat transfer from embedded resistance wires, this system employs volumetric dielectric heating—where electromagnetic energy couples directly with polar molecules and conductive phases in the sample—enabling rapid, uniform, and selective thermal activation. Designed for applications requiring precise temperature control up to 1200 °C under ambient atmospheric conditions, it supports thermally driven processes including ashing, carbonization, sulfonation, sintering, melting, drying, and residue incineration. Its compact cavity architecture and integrated thermal insulation minimize thermal inertia and external heat dissipation, resulting in significantly reduced cycle times and improved reproducibility across repeated thermal protocols. The furnace operates without vacuum or pressurized gas systems, making it suitable for routine QC/QA workflows in regulated environments where simplicity, safety, and compliance are critical.

Key Features

• Continuous-wave 800 W microwave source operating at 2450 MHz, delivering non-pulsed, infinitely adjustable power output for stable thermal ramping and hold profiles.
• Monolithic 304 stainless steel cavity with embedded multi-layer ceramic fiber insulation (low ε″ loss, thermal conductivity ≈0.226 W/m·K), eliminating post-assembly refractory lining and maximizing cavity thermal efficiency.
• Integrated K-type thermocouple with direct insertion into the sample zone for real-time, closed-loop temperature feedback and PID-based regulation (±3 °C accuracy over 0–1100 °C operating range).
• Side-sliding door with λ/4 choke structure and dual mechanical interlock: automatic microwave cutoff upon door opening and physical isolation of RF leakage pathways.
• Natural convection exhaust via top-mounted vent tube—compatible with standard fume hoods—to evacuate volatile decomposition products and prevent condensate buildup within the cavity.
• Modular control interface enabling independent programming of temperature setpoint, microwave power level, and dwell time; supports user-defined multi-step thermal protocols.

Sample Compatibility & Compliance

The MKX-M1A accommodates standard crucibles up to 100 × 100 mm base dimensions—including quartz, alumina, silicon carbide, and graphite—with full compatibility across organic matrices (e.g., foodstuffs, plant tissues, polymers) and inorganic feedstocks (e.g., ceramics precursors, metal oxides, geological samples). It complies with ISO 9001 quality management requirements and meets national and international microwave safety standards (GB 10436, IEC 62233), with verified leakage <5 mW/cm² at 5 cm distance. While not certified for GMP or GLP environments out-of-the-box, its deterministic thermal response, audit-ready parameter logging (via optional RS485/USB interface), and traceable calibration paths support integration into validated workflows aligned with USP , ASTM E1558, and ISO 11464 for ash content determination and thermal stability assessment.

Software & Data Management

The furnace features an embedded microcontroller-based automation system with local LCD interface for manual operation. For advanced data capture, optional communication modules (RS485 or USB-to-serial) enable integration with third-party SCADA platforms or custom Python/LabVIEW scripts. All thermal cycles—including time-stamped temperature, power, and duration parameters—are stored in non-volatile memory and exportable as CSV files. When deployed in regulated laboratories, the system supports 21 CFR Part 11-compliant electronic records when paired with validated software layers implementing user authentication, audit trails, and electronic signatures—though native firmware does not include built-in e-signature functionality.

Applications

This microwave muffle furnace is routinely deployed in analytical chemistry labs for rapid ashing of biological and environmental samples prior to elemental analysis (ICP-OES, AAS); in materials science for low-inertial sintering of oxide ceramics and battery cathode precursors; in food safety testing for AOAC Method 990.12-compliant total ash quantification; and in pharmaceutical R&D for excipient thermal degradation profiling under ambient air. Its ability to achieve 1200 °C in under 20 minutes—without pre-heating lag or thermal gradient artifacts—makes it particularly valuable for high-throughput screening of thermal stability, combustion kinetics, and residue composition across diverse sample classes.

FAQ

What types of crucibles are compatible with the MKX-M1A?
Standard 100 × 100 mm flat-bottom crucibles made from quartz, alumina, silicon carbide, or graphite are supported. Custom crucible holders can be supplied upon request.

Can the furnace operate under inert or reducing atmospheres?
The base MKX-M1A model is configured for ambient air operation only. An optional atmosphere-controlled variant (MKX-M1B) is available with gas inlet/outlet ports and pressure-rated seals.

Is calibration traceable to national standards?
Yes—the integrated K-type thermocouple can be calibrated against NIST-traceable reference standards. Calibration certificates are provided upon request for an additional fee.

Does the system meet FDA or EU regulatory requirements for pharmaceutical use?
The hardware satisfies general electrical and RF safety directives (CE, RoHS). Full 21 CFR Part 11 or Annex 11 compliance requires integration with validated software and documented IQ/OQ/PQ protocols.

What maintenance is required for long-term reliability?
No scheduled maintenance is required beyond periodic visual inspection of door gaskets and cavity insulation integrity. Microwave waveguide components are solid-state and warrantied for 12 months.
