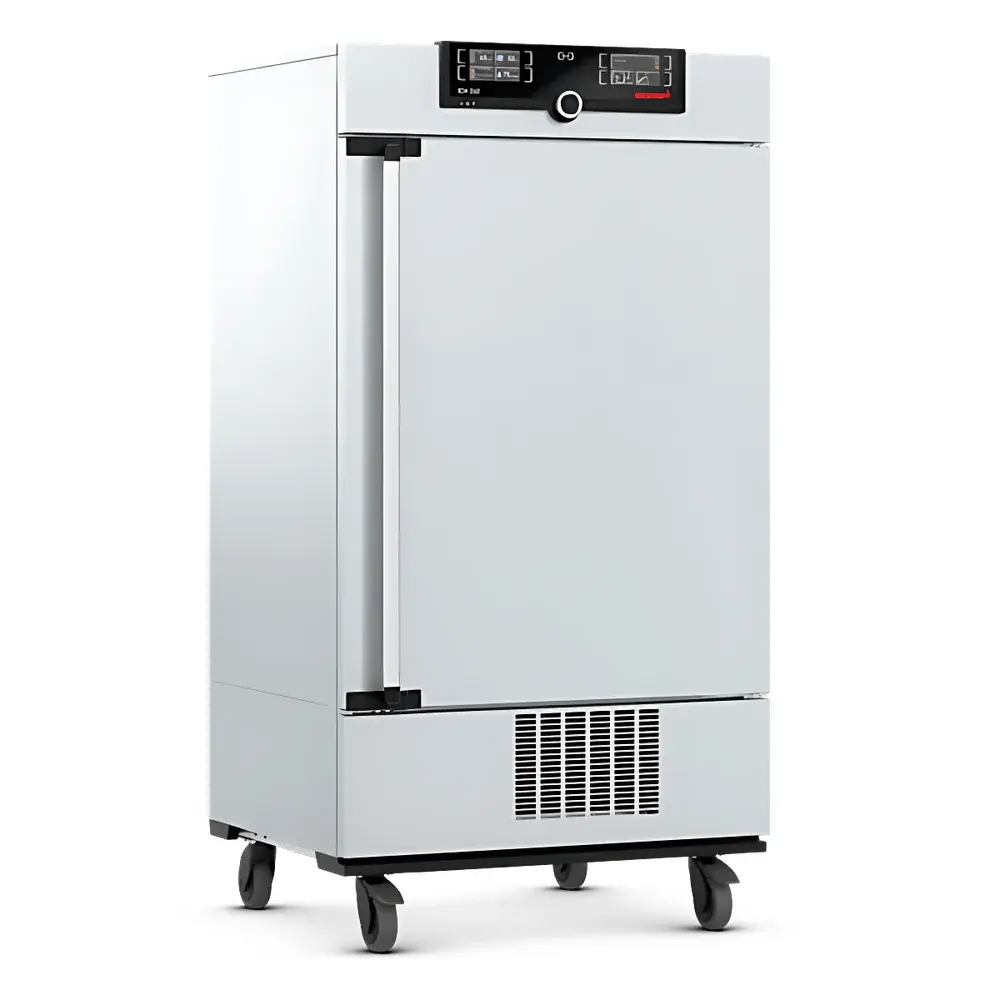

MEMMERT ICH Series Temperature and Humidity Controlled Chamber for ICH Stability Testing

Overview

The MEMMERT ICH Series is a purpose-engineered temperature and humidity controlled chamber designed explicitly for long-term stability testing of pharmaceuticals, biologics, and medical devices in accordance with International Council for Harmonisation (ICH) guidelines—particularly Q1A(R2), Q1B (photostability), and Q5C (biotechnological product stability). Unlike general-purpose environmental chambers, the ICH series implements a dual-layer air-jacketed thermal management system that fully surrounds the inner stainless-steel chamber (material grade 1.4301, equivalent to ASTM 304), enabling rapid thermal response and exceptional uniformity (< ±0.3°C across working volume at 25°C). Humidity control leverages a dedicated steam generator and condensation-free dehumidification path, eliminating condensation risk on samples or interior surfaces—a critical requirement for moisture-sensitive formulations. The chamber operates within a validated temperature range of 0°C to 70°C and a relative humidity range of 10–80% RH, with stability maintained to ±0.1°C and ±1.5% RH under standard operating conditions.

Key Features

• Air-jacketed heating and refrigeration system ensures decoupled, high-fidelity thermal control—minimizing thermal gradients and eliminating cold spots or hot zones.
• Forced convection airflow adjustable in precise 10% increments (0–100%), enabling optimization for thermally sensitive or densely loaded sample configurations.
• TwinDISPLAY touchscreen controller with embedded validation support: three user-definable temperature setpoints, two humidity setpoints (20% and 80% RH), and three CO₂ concentrations (5%, 10%, 15%)—all auto-calibratable onsite without external hardware.
• ICHeco variant utilizes natural refrigerant R744 (carbon dioxide), offering a Global Warming Potential (GWP) of 1 and full compliance with EU F-Gas Regulation (EU) No 517/2014 and U.S. SNAP program requirements.
• Integrated photostability module meets ICH Q1B Option 2 specifications: calibrated white light source (D65, 6500 K, ~8000 lux) and supplemental UV-A lamp (320–400 nm) with independent intensity monitoring and thermal management.
• Optional CO₂ control module features infrared detection technology, automatic zero-point compensation, defrost cycle management, real-time ambient pressure compensation, and configurable alarm thresholds.

Sample Compatibility & Compliance

The ICH chamber accommodates standard ISO/IEC 17025-compliant stability storage protocols for primary and secondary packaging, including blister packs, vials, syringes, and pouches. Its seamless 1.4301 stainless-steel interior—free of weld seams, crevices, or polymer gaskets—prevents microbial harborage and enables validated cleaning and sterilization (e.g., vaporized hydrogen peroxide). Dual-door configuration (model ICH 750) supports segregated access while maintaining chamber integrity. All configurations are engineered for full traceability: TwinDISPLAY logs all process parameters (temperature, humidity, CO₂, light intensity, door events) with time-stamped, immutable records. The system supports IQ/OQ/PQ documentation packages aligned with Annex 15 (EU GMP), FDA Guidance for Industry (Stability Testing of Drug Substances and Products), and ISO 14644-1 cleanroom classification prerequisites where applicable.

Software & Data Management

Data integrity is enforced through MEMMERT’s validated software architecture, which complies with FDA 21 CFR Part 11 requirements—including electronic signatures, audit trails with operator ID and timestamp, role-based access control, and exportable CSV/Excel reports. USB and Ethernet interfaces enable secure, encrypted data transfer to LIMS or ELN systems. The TwinDISPLAY controller stores ≥1 year of continuous 1-minute interval data onboard and supports remote monitoring via HTTPS-enabled web interface. Validation templates include calibration certificate templates, sensor mapping reports, and uncertainty budgets traceable to national metrology institutes (e.g., PTB, NIST).

Applications

• ICH Q1A(R2) long-term (25°C/60% RH), intermediate (30°C/65% RH), and accelerated (40°C/75% RH) stability studies.
• Photostability testing per ICH Q1B Option 2, including simultaneous visible + UV exposure with spectral irradiance monitoring.
• Biological stability assessment under controlled CO₂ environments (e.g., cell culture-derived therapeutics).
• Accelerated aging of polymer-based medical devices per ISO 11607-1 and ASTM F1980.
• Reference standard storage under GLP-compliant environmental conditions.

FAQ

Does the ICH chamber support 21 CFR Part 11 compliance?
Yes—the TwinDISPLAY controller includes electronic signature capability, immutable audit trails, and role-based permissions required for regulated pharmaceutical environments.
Can humidity be maintained below 10% RH?
No—this model is validated for 10–80% RH. For low-humidity applications (<10% RH), MEMMERT’s HPP series is recommended.
Is the CO₂ module factory-calibrated?
The optional IR-based CO₂ module includes auto-zero functionality and field-adjustable span calibration using certified gas standards.
What validation documentation is included?
Each unit ships with Factory Acceptance Test (FAT) report, material certificates (EN 10204 3.1), and a comprehensive IQ/OQ protocol template compatible with Annex 15 and ASTM E2500.
How is temperature uniformity verified across the chamber volume?
Uniformity is confirmed per ASTM E742 and ICH Q5C using 9–15 calibrated thermocouples during Performance Qualification (PQ), with results documented in the PQ report.
