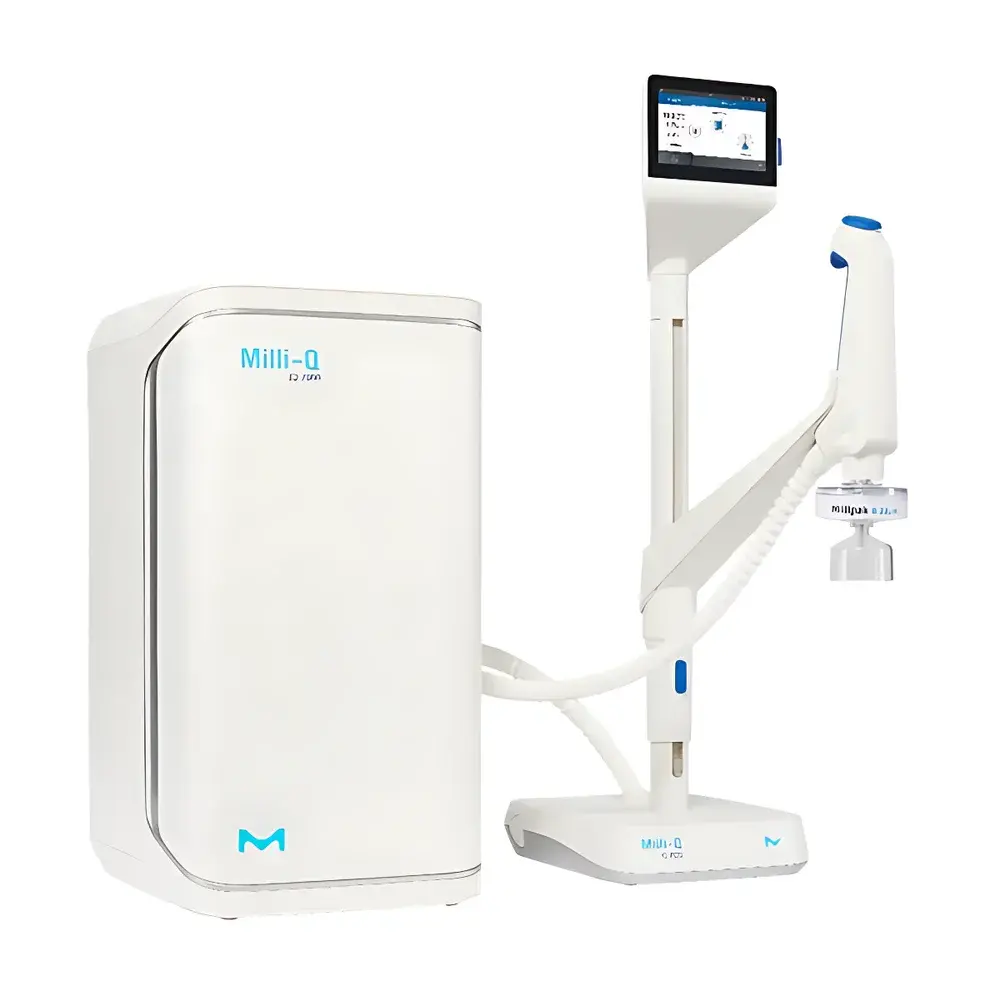

Merck Millipore Milli-Q IQ7000 Ultra Pure Water System
| Brand | Millipore |
|---|---|
| Origin | Germany |
| Model | Milli-Q IQ7000 |
| Purified Water Grade | Type I (ASTM D1193-20) |
| Resistivity | 18.2 MΩ·cm @ 25°C |
| Heavy Metals & Soluble Silica | <0.1 ppb |
| Total Organic Carbon (TOC) | <2 ppb |
| Microbial Count | <0.001 CFU/mL |
| Endotoxins | <0.001 EU/mL |
| Particles (>0.1 µm) | <1 particle/mL |
Overview
The Merck Millipore Milli-Q IQ7000 Ultra Pure Water System is a next-generation Type I ultrapure water generation platform engineered for precision-critical laboratory applications including HPLC, LC-MS, ICP-MS, cell culture, molecular biology, and trace elemental analysis. It employs a multi-stage purification architecture integrating pretreatment (Elix® integrated feedwater system), dual-wavelength UV photooxidation (185/254 nm), advanced mixed-bed ion exchange (IPAK Meta + IPAK Quanta cartridges with patented Jetpore® and IQ o™ resins), and ultrafiltration—ensuring consistent delivery of water meeting or exceeding ASTM D1193-20 Type I, ISO 3696:1987 Grade 1, and CLSI EP22-A2 specifications. Real-time, in-line monitoring is performed via a high-accuracy resistivity sensor (cell constant 0.01 cm⁻¹, ±0.1 °C temperature compensation), an A10 TOC monitor with enhanced sensitivity, and integrated microbial detection—enabling continuous compliance verification without manual intervention.
Key Features
- Q-POD® Smart Dispensing Arm with intuitive touchscreen interface—designed for tablet-like usability, supporting gesture-based navigation and real-time display of resistivity, TOC, temperature, and flow rate during dispensing.
- Precision volumetric dispensing: programmable volume delivery (0.1 mL to 99.9 L) with automatic cut-off; drop-by-drop mode (<0.5 mL/min) for accurate volumetric preparation without secondary transfer vessels.
- e-Sure™ RFID-enabled consumables tracking: automatic recognition, lifetime logging, and predictive replacement alerts for all cartridges, UV lamps, and filters—including full audit trail of installation dates, usage hours, and performance history.
- Modular footprint optimization: main purification unit supports wall-mount, under-bench, or remote cabinet installation; only the compact Q-POD arm occupies bench space, with customizable tubing lengths (up to 3 m) and shielded cable management.
- Integrated A10 TOC analyzer with dual-oxidation chamber and NDIR detection—validated per USP and EP 2.2.44, delivering sub-2 ppb TOC stability when fed with Elix-preconditioned water.
- Comprehensive data governance: all dispensing events, calibration logs, sensor diagnostics, and maintenance records are timestamped, user-ID tagged, and stored locally for ≥10 years—fully compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures.
Sample Compatibility & Compliance
The Milli-Q IQ7000 is validated for compatibility with a broad spectrum of analytical and life science workflows requiring ultrapure water as a reagent, solvent, or rinse medium. Its output meets stringent specifications for pharmaceutical QC (USP , EP 2.2.44), clinical diagnostics (CLSI GP17-A3), and semiconductor-grade cleaning (SEMI F63). All critical sensors—including the resistivity probe, PT1000 temperature sensor, and A10 TOC module—are factory-calibrated and supplied with NIST-traceable certificates. System qualification packages include IQ/OQ documentation, MP (Maintenance Procedure) templates, and PQ protocols aligned with ISO/IEC 17025 and GLP/GMP environments. Optional POD-Pak™ terminal polishers (e.g., BioPak™ for endotoxin-sensitive applications or VWS Pak™ for volatile organics removal) extend compliance to ISO 13485 and ICH Q5C bioprocessing standards.
Software & Data Management
The embedded IQ Portal™ software provides secure, role-based access control (admin/operator/user levels) and automated report generation—including daily quality summaries, user-specific water consumption analytics, and regulatory-ready audit trails. All data are stored in an encrypted SQLite database with SHA-256 hashing and immutable event logging. Reports can be exported in PDF or CSV format, or retrieved via QR code scan directly from the Q-POD screen. Integration with laboratory information management systems (LIMS) is supported through configurable RESTful API endpoints and OPC UA protocol—enabling seamless synchronization of water quality metadata with sample testing records. Calibration and validation events automatically trigger version-controlled documentation updates, satisfying ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) data integrity principles.
Applications
- High-resolution analytical instrumentation: LC-MS/MS, GC-MS, ICP-OES, and ICP-MS—where sub-ppt ion contamination or organic carryover compromises detection limits.
- Molecular biology workflows: PCR, qRT-PCR, NGS library prep, and CRISPR editing—requiring endotoxin-free, nuclease-free water to prevent enzymatic inhibition or false amplification.
- Pharmaceutical formulation and stability studies: compendial water for dissolution media, buffer preparation, and cleaning validation per USP and Annex 1.
- Cell culture and stem cell expansion: low endotoxin (<0.001 EU/mL) and sterile-filtered water for media supplementation and passaging solutions.
- Nanomaterial synthesis and electrochemical research: ultra-low conductivity water essential for controlled nucleation and interfacial charge characterization.
FAQ
What standards does the Milli-Q IQ7000 meet for ultrapure water quality?
It complies with ASTM D1193-20 Type I, ISO 3696:1987 Grade 1, CLSI EP22-A2, and pharmacopeial standards including USP , EP 2.2.44, and JP 17.
How is trace-level TOC monitored in real time?
Via the integrated A10 TOC analyzer using 185 nm UV oxidation coupled with non-dispersive infrared (NDIR) detection—validated per USP and calibrated against potassium hydrogen phthalate reference standards.
Can the system support multi-user environments with cost allocation?
Yes—each dispensing event is logged with user ID, timestamp, volume, and quality parameters, enabling departmental cost attribution and usage forecasting.
Is remote monitoring and service support available?
The system supports optional IQ Connect™ cloud connectivity for predictive maintenance alerts, firmware updates, and remote diagnostics by certified Merck Field Service Engineers.
What validation documentation is included out-of-the-box?
Factory-issued certificates of conformance, sensor calibration reports (resistivity, temperature, TOC), IQ/OQ templates, and a complete set of consumables quality certificates compliant with ISO 9001 and ISO 14001 manufacturing controls.
