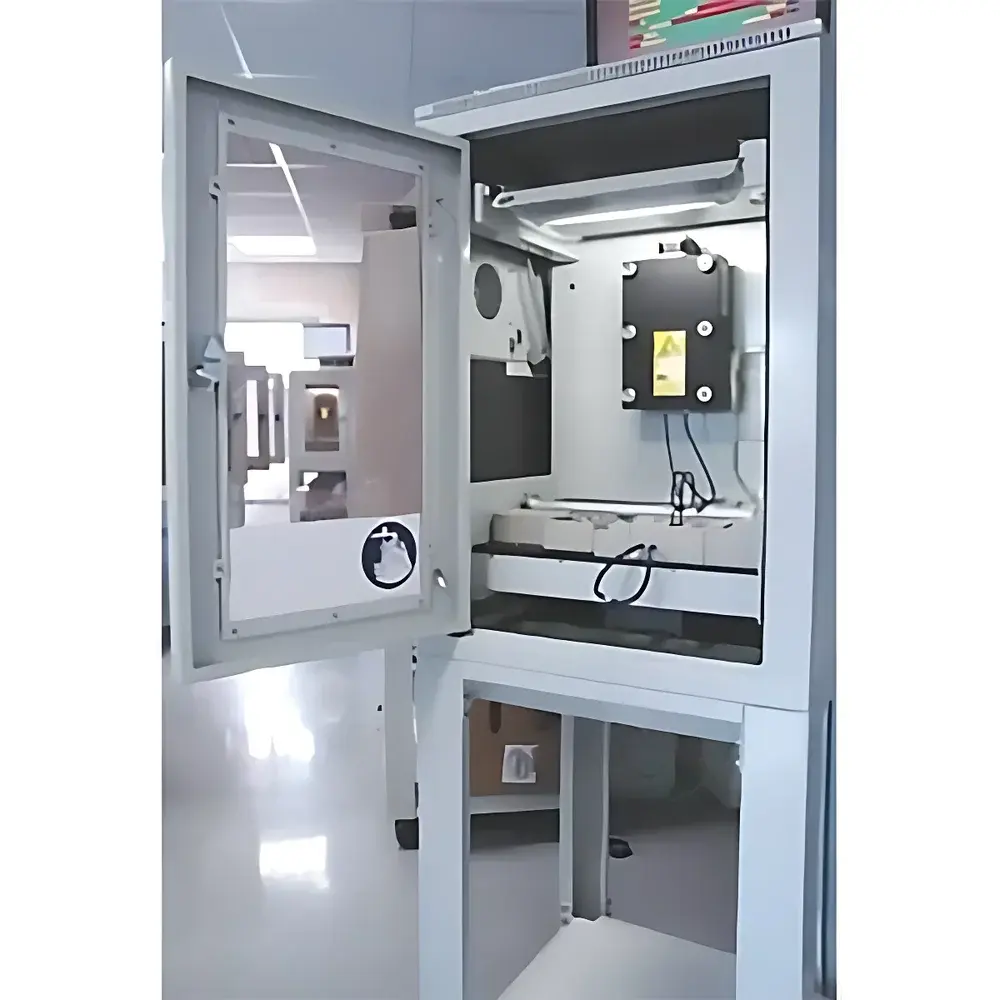

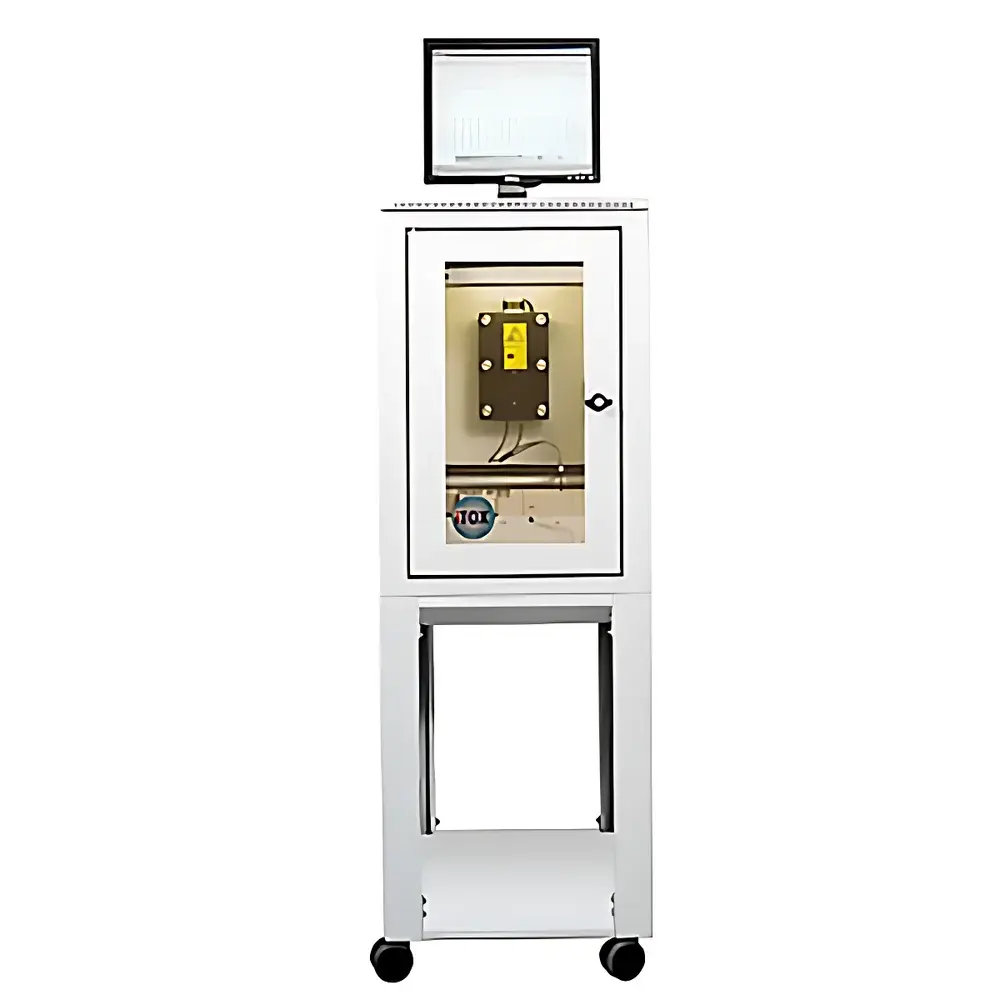

microLAN iTOXcontrol Online Integrated Biological Toxicity Monitoring System

Overview

The microLAN iTOXcontrol Online Integrated Biological Toxicity Monitoring System is an ISO-compliant, continuous-flow biosensor platform engineered for real-time assessment of acute aquatic toxicity in surface water, drinking water sources, distribution networks, and wastewater effluents. It employs the standardized bioluminescent bacterium Aliivibrio fischeri—certified to ISO 11348-3—as the biological endpoint. Upon exposure to toxicants, metabolic inhibition reduces bacterial light emission; the system quantifies this effect as percent inhibition (%I) by comparing luminescence intensity before and after sample contact. Unlike conventional chemical-specific assays, the iTOXcontrol delivers a holistic, functionally relevant measure of bioavailable toxicity across >5,000 organic and inorganic compounds—including heavy metals, pesticides, pharmaceuticals, and industrial metabolites—without requiring prior knowledge of contaminant identity. Its design adheres to principles of ecological relevance, regulatory traceability, and operational robustness for unattended deployment in municipal and industrial monitoring environments.

Key Features

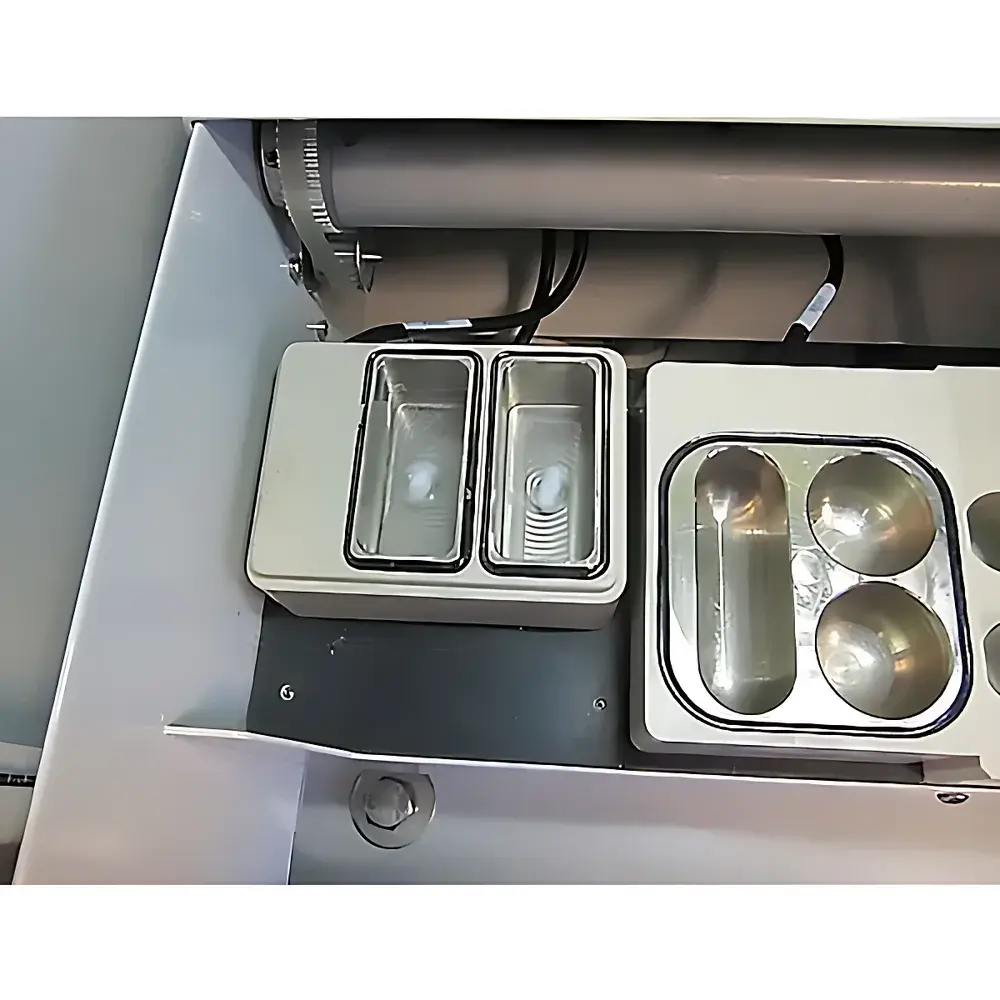

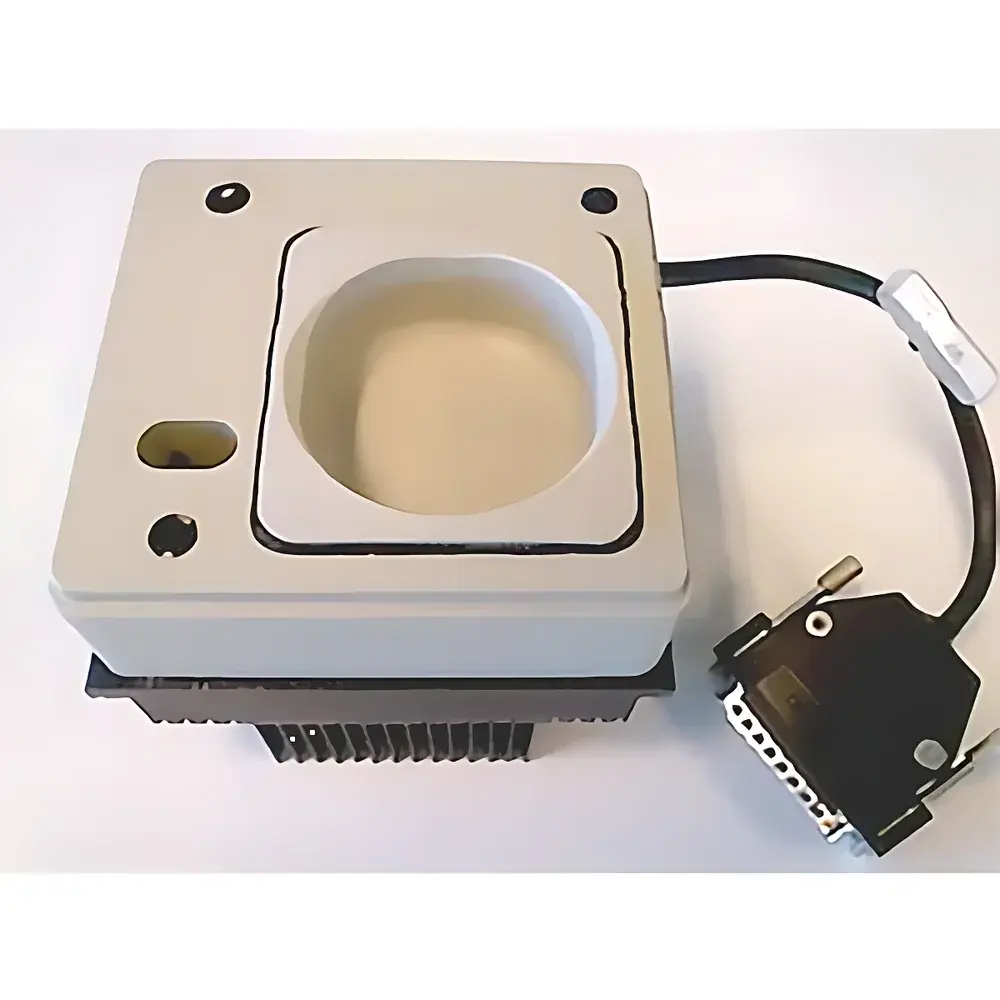

• Fully automated, dual-chamber A. fischeri cultivation system enabling biweekly maintenance intervals and reducing bacterial culture consumption by 50% versus legacy systems
• Integrated dual-path photometric detection: simultaneous measurement of sample and reference (chlorine-free control) water, minimizing false positives/negatives via differential luminance analysis
• Onboard calibration with certified reference toxicants (e.g., 3,5-dichlorophenol) at user-defined intervals, ensuring long-term measurement fidelity and compliance with QA/QC protocols
• Self-diagnostic functionality: automatic validation cycles using standard toxicants confirm instrument performance prior to each scheduled test
• Modular expandability including optional SPE (Solid-Phase Extraction) module for 1,000× pre-concentration of low-concentration analytes and ALGcontrol algal sensor suite for concurrent monitoring of chlorophyll-a, phycocyanin, turbidity, and dissolved organic matter (DOM)
• Integrated dechlorination module (optional) for direct analysis of chlorinated distribution system samples without manual quenching
• Automated post-test cleaning cycle prevents biofilm accumulation and cross-contamination between measurements

Sample Compatibility & Compliance

The iTOXcontrol accepts raw, filtered, or pre-treated water samples within a temperature range of 15–30 °C and tolerates turbidity up to 100 NTU without signal interference. It meets ISO 11348-3 requirements for microbial toxicity testing and is validated against U.S. EPA Method 100.2 and EU Water Framework Directive (WFD) Annex V criteria for early-warning systems. The system supports GLP/GMP-aligned data integrity through audit-trail-enabled software, time-stamped event logging, and electronic signature capability compliant with FDA 21 CFR Part 11 when deployed with appropriate IT infrastructure. All hardware components conform to IEC 60529 (IP31) for protection against dust ingress and vertical dripping water, suitable for indoor analytical cabinets or climate-controlled kiosks.

Software & Data Management

Instrument operation is governed by TOXcontrol Engine—a Windows-based control application that schedules tests, manages reagent delivery, triggers calibration sequences, and executes self-validation routines. Measurement data, metadata (sample ID, timestamp, environmental conditions), and diagnostic logs are stored in a relational TOXview database. TOXview provides configurable alarm thresholds (e.g., >20% inhibition for 15 min), generates trend plots (inhibition vs. time), exports CSV/Excel reports, and supports SQL queries for integration into SCADA or LIMS platforms. All data transfers occur over TCP/IP; optional Modbus RTU (via external COM module) and 4–20 mA analog output enable seamless interfacing with existing plant automation systems. Remote access and firmware updates are supported via secure HTTPS protocol.

Applications

• Surface water early warning: Continuous monitoring at river intakes, reservoirs, and lake outfalls to detect accidental spills or seasonal toxic algal metabolites
• Drinking water safety assurance: Real-time verification of treatment efficacy at raw water abstraction points, post-filtration, and within distribution networks
• Wastewater discharge compliance: Effluent toxicity screening at municipal and industrial treatment plants prior to environmental release
• Industrial process water management: Closed-loop monitoring in pharmaceutical, semiconductor, and food processing facilities where non-target toxicity poses operational risk
• Research & regulatory benchmarking: Generation of baseline toxicity profiles for ecological risk assessment and method validation studies

FAQ

What biological indicator does the iTOXcontrol use, and is it ISO-certified?
The system uses freeze-dried Aliivibrio fischeri cultures supplied by microLAN and validated to ISO 11348-3 for reproducible bioluminescent response.

How frequently does the system require maintenance?
The dual-chamber auto-cultivation system extends routine servicing to every two weeks; only nutrient media replenishment and optical path inspection are required.

Can the iTOXcontrol operate during power outages?
Yes—it incorporates battery-backed memory and automatic recovery upon power restoration, preserving calibration status and resuming the test schedule without manual intervention.

Is remote diagnostics and software update supported?
TOXcontrol Engine and TOXview support secure remote desktop access and over-the-air firmware updates via encrypted HTTPS connections.

Does the system comply with regulatory data integrity standards?
When configured with user authentication, electronic signatures, and audit-trail logging, the software meets FDA 21 CFR Part 11 and EU Annex 11 requirements for regulated environments.
