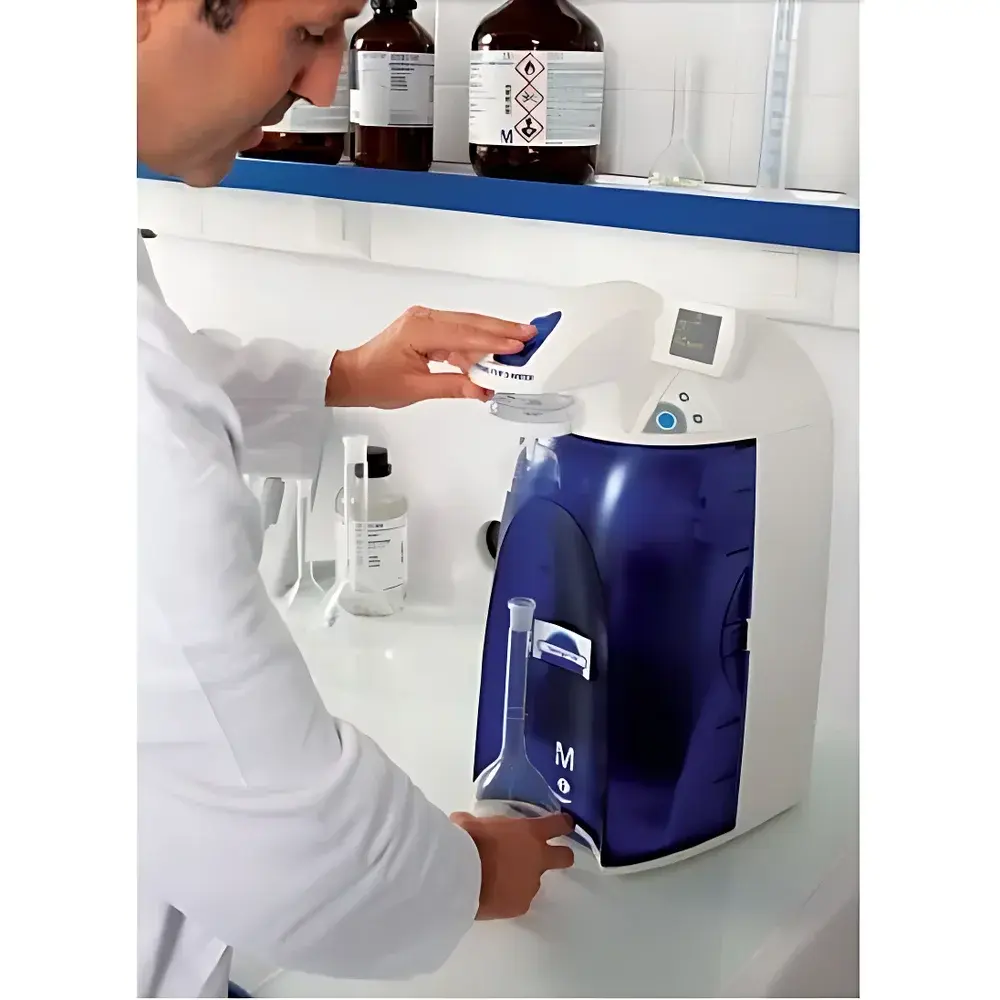

Millipore Synergy UV Ultra-Pure Water System

Overview

The Millipore Synergy UV Ultra-Pure Water System is an integrated, laboratory-grade water purification platform engineered for the continuous on-demand production of Type I ultrapure water compliant with ASTM D1193-20, ISO 3696:1995, and CLSI EP22-A guidelines. It operates via a multi-stage purification architecture: feedwater—typically purified by upstream pretreatment (e.g., reverse osmosis or distillation)—enters the Synergy system and undergoes sequential polishing through ion exchange resins, ultrafiltration membranes, dual-wavelength (185/254 nm) germicidal UV irradiation, and final 0.22 µm membrane filtration. This configuration ensures consistent removal of ionic contaminants, organic molecules, colloids, microorganisms, and endotoxins—critical for applications demanding molecular-level purity. The system is designed for integration into analytical laboratories where reproducibility, trace-level contamination control, and regulatory traceability are non-negotiable.

Key Features

• Real-time resistivity monitoring with high-precision 0.01 cm⁻¹ conductivity cell fabricated from electropolished 316L stainless steel; supports three temperature compensation algorithms (linear, non-linear, and digital reference)
• Dual-wavelength UV oxidation module (185 nm for TOC photolysis + 254 nm for microbial inactivation), enabling sustained TOC reduction to < 5 ppb
• Automated cartridge life management: embedded algorithm tracks resin exhaustion and ultrafilter saturation, triggering visual and audible alerts prior to performance degradation
• Intelligent recirculation loop maintains constant ultrapure water quality during idle periods—preventing biofilm formation and resistivity drift without requiring manual flushing
• Low-noise DC pump (< 40 dB at 1 m) ensures quiet operation in shared lab environments; integrated dry-run and low-inlet-pressure protection safeguards pump longevity
• Modular design supports flexible configurations—including wall-mounted, benchtop, or remote dispensing via optional articulated arm—without compromising flow stability or purity integrity

Sample Compatibility & Compliance

The Synergy UV delivers water meeting or exceeding specifications required for high-sensitivity instrumentation and cell-based assays. Its output is validated for use in HPLC mobile phase preparation, IC eluent formulation, AA standard dilution, PCR master mix preparation, LC-MS solvent systems, and mammalian cell culture media supplementation. The system’s architecture aligns with Good Laboratory Practice (GLP) and current Good Manufacturing Practice (cGMP) expectations: all critical parameters (resistivity, UV lamp status, cartridge usage time, alarm history) are timestamped and stored locally. While not inherently 21 CFR Part 11–compliant out-of-the-box, audit-ready data export (CSV/USB) enables integration into validated electronic lab notebook (ELN) or LIMS environments under site-specific SOPs.

Software & Data Management

The Synergy UV features an embedded process controller with a graphical LCD interface displaying real-time resistivity, TOC trend (when paired with optional online TOC monitor), UV intensity, and system pressure differentials. All operational events—including cartridge replacement logs, alarm triggers (e.g., low feed pressure, high TOC excursion), and daily self-diagnostics—are recorded with date/time stamps in non-volatile memory. Data can be exported via USB for offline review or periodic QA reporting. No cloud connectivity or proprietary software installation is required; however, the system supports RS232 or optional Ethernet modules for centralized facility monitoring when deployed across multi-station labs.

Applications

• Preparation of mobile phases and standards for high-resolution chromatographic techniques (HPLC, UHPLC, IC)
• Solvent formulation for mass spectrometry interfaces (ESI, APCI) where residual ions or organics cause signal suppression or adduct formation
• Dilution of trace-element standards in atomic absorption and ICP-MS analysis
• Cell culture media and reagent preparation where endotoxin or nuclease contamination compromises viability or assay fidelity
• Molecular biology workflows including qPCR, NGS library prep, and CRISPR transfection—where DNase/RNase-free water is mandatory
• Calibration and verification of conductivity meters, TOC analyzers, and particle counters requiring certified reference water

FAQ

What feedwater quality is required for optimal Synergy UV performance?
The system requires pretreated feedwater with conductivity ≤ 5 µS/cm (e.g., RO or distilled water). Higher feed conductivity accelerates ion exchange resin exhaustion and may compromise TOC and microbial performance.
Can the Synergy UV be connected to a central purified water loop?
Yes—it supports inlet pressures between 0.1–0.6 MPa and includes pressure regulation; however, loop integration must include a dedicated break tank and backflow prevention per ISO 20367 to avoid cross-contamination.
Is the 0.22 µm terminal filter sterilizing-grade?
Yes—the final filter is certified to retain ≥ 99.9999% of bacteria (Brevundimonas diminuta challenge) and is non-pyrogenic, supporting sterile filtration requirements for cell culture applications.
How frequently must consumables be replaced?
Typical service intervals: UPW cartridge every 6–12 months (dependent on feedwater quality and daily usage); UV lamp annually; 0.22 µm filter every 3–6 months or after 1,000 L of dispensed water—whichever occurs first.
Does the system support IQ/OQ documentation packages?
Millipore provides standardized Installation Qualification (IQ) and Operational Qualification (OQ) templates aligned with ISO/IEC 17025 and ASTM E2500; full validation support is available through authorized service partners.
