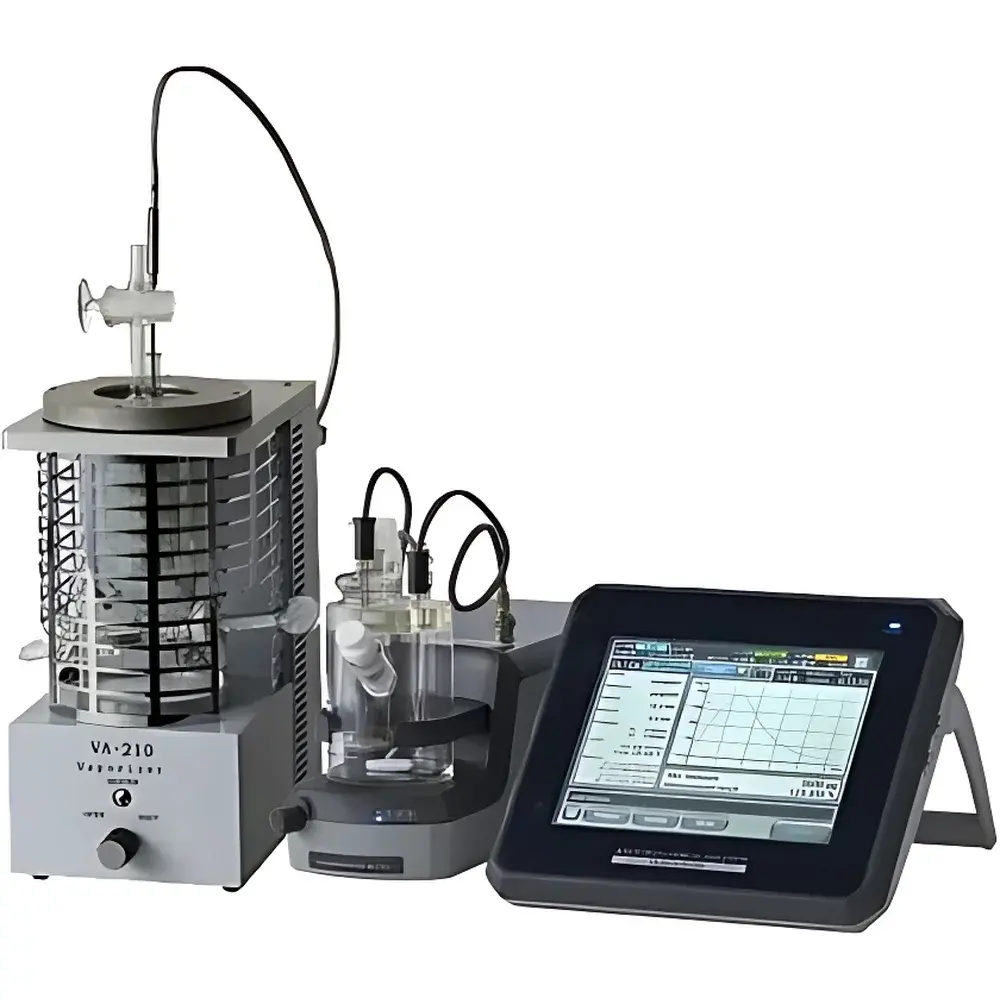

Mitsubishi Chemical VA-210 Volatilization Unit for Viscous Liquid Samples

Overview

The Mitsubishi Chemical VA-210 Volatilization Unit is a dedicated sample introduction accessory engineered for precise and reproducible moisture determination in highly viscous liquid matrices using coulometric Karl Fischer (KF) titration. Unlike conventional KF systems that rely on direct injection or dissolution, the VA-210 employs controlled thermal volatilization to quantitatively release bound and free water from challenging samples—including heavy fuel oils, industrial lubricants, coal tar derivatives, bituminous emulsions, and polymerizable resins—without solvent dilution or mechanical homogenization. It operates exclusively in conjunction with the CA-310 Coulometric KF Titrator (sold separately), forming an integrated analytical platform compliant with ASTM D6304, ISO 15512, and USP . The system leverages the fundamental electrochemical principle of coulometric KF analysis: iodine generated *in situ* via constant-current electrolysis reacts stoichiometrically with water in the titration cell, enabling absolute quantification without volumetric standardization.

Key Features

• Optimized thermal volatilization chamber with programmable heating profile (up to 250 °C) and inert gas purge (N₂ or dry air) to ensure complete, non-degradative water release from high-viscosity media
• Integrated syringe-based sample introduction with zero dead-volume transfer path, minimizing carryover and adsorption losses common in viscous matrix analysis
• Seamless bidirectional communication with the CA-310 titrator via RS-232 or USB interface, enabling synchronized start/stop, real-time current monitoring, and automatic endpoint recognition
• Robust PTFE- and quartz-lined reaction pathway resistant to aggressive organic solvents and acidic byproducts generated during pyrolysis of sulfur-rich or chlorinated hydrocarbons
• Self-calibrating temperature sensor and pressure-compensated gas flow control to maintain consistent vapor transport kinetics across variable sample densities and boiling points
• Modular design compatible with existing CA-310 installations; no firmware upgrade required for VA-210 integration

Sample Compatibility & Compliance

The VA-210 extends the operational scope of coulometric KF analysis to samples with dynamic viscosities exceeding 10,000 cP at 40 °C—well beyond the limits of standard syringe-driven injectors. It has been validated for use with ASTM D445-compliant heavy crudes, API RP 14B-grade hydraulic fluids, and ISO 8217 residual fuel oils (RMG/RME). All wetted components comply with FDA 21 CFR Part 11 requirements for electronic records when used with CA-310’s audit-trail-enabled software. System validation documentation supports IQ/OQ/PQ protocols aligned with GLP and GMP environments, including traceable calibration against certified water standards (e.g., Hydranal® Certified Water Standards, 1.00 mg H₂O/mL).

Software & Data Management

When paired with the CA-310’s proprietary KF Manager software (v4.2+), the VA-210 enables full method scripting—including ramp rate, hold time, purge duration, and post-volatilization cell stabilization delay. Raw current-time curves, integrated charge (coulombs), and calculated water mass (μg) are stored in encrypted .kfd binary format with embedded metadata (operator ID, timestamp, environmental humidity, instrument serial number). Export options include CSV, PDF analytical reports with digital signatures, and direct LIMS integration via ASTM E1384-compliant HL7 messaging. Audit trails record all parameter modifications, result overrides, and calibration events with user authentication and time-stamped immutable logs.

Applications

• Quality control of refinery intermediates: determination of trace moisture in vacuum gas oil (VGO) prior to hydroprocessing
• Stability assessment of lithium grease formulations where water accelerates oxidation and thickener degradation
• Regulatory compliance testing of biodiesel (EN 14214) for residual glycerol-bound moisture post-esterification
• Pharmaceutical excipient qualification: moisture profiling of polyethylene glycols (PEG 400–6000) and castor oil derivatives
• R&D screening of bio-based lubricants under accelerated aging conditions per ASTM D2810
• Forensic analysis of contaminated transformer oils per IEEE C57.106 guidelines

FAQ

Can the VA-210 be used with volumetric KF titrators?
No. The VA-210 is designed exclusively for coulometric operation with the CA-310 and lacks hardware interfaces or firmware support for volumetric titrators.
Is sample pre-drying or dilution required before VA-210 analysis?
No. The volatilization process eliminates the need for solvent addition or pre-heating steps, preserving sample integrity and reducing analyst exposure to volatile organics.
What maintenance intervals are recommended for the VA-210’s heating chamber?
Quartz liner cleaning is advised after every 50 analyses involving sulfur-containing samples; full chamber inspection and O-ring replacement are scheduled every 500 runs or annually, whichever occurs first.
Does the VA-210 meet IEC 61000-4 electromagnetic compatibility standards?
Yes. The unit complies with IEC 61000-4-2 (ESD), -4-3 (radiated RF), and -4-4 (electrical fast transients) for laboratory-grade instrumentation.
Can method parameters be locked to prevent unauthorized modification?
Yes. CA-310 software supports role-based access control (RBAC) with administrator-defined password protection for method editing, calibration, and report generation functions.
