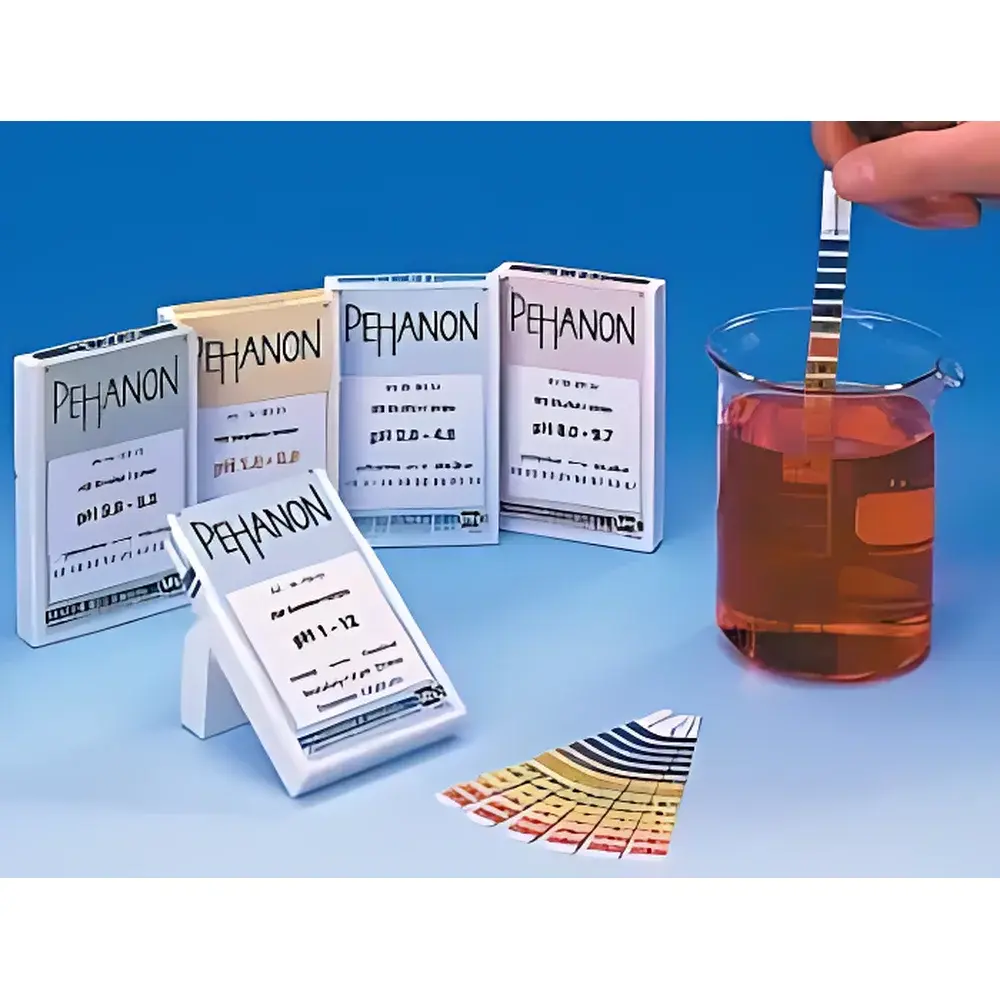

MN PEHANON 904 Series pH Test Strips

Overview

MN PEHANON 904 Series pH test strips are precision-engineered semi-quantitative indicators designed specifically for reliable pH assessment in optically challenging samples—particularly colored, turbid, or opalescent aqueous solutions where conventional pH meters or standard indicator papers may yield ambiguous readings. Unlike traditional dip-and-compare strips with separate color charts, the 904 Series integrates the reaction zone and reference color scale onto a single, unified strip substrate. This co-located design ensures that sample chromaticity affects both the test zone and the adjacent calibration scale identically, effectively canceling out interference from inherent solution color—a critical advantage in food, beverage, textile effluent, and electroplating bath analysis. The strips operate on well-established acid-base indicator chemistry, utilizing proprietary dye blends immobilized in hydrophilic polymer matrices to deliver rapid, consistent, and visually interpretable transitions across defined pH intervals.

Key Features

• Integrated reaction zone + reference scale on one strip—eliminates inter-strip color matching error and suppresses bias from sample hue
• Water-resistant barrier segmentation between adjacent pH zones prevents cross-contamination and lateral wicking
• Multiple discrete range options (13 variants) covering full pH 0–14 spectrum, each optimized for resolution and sensitivity within its interval
• Consistent 11 × 100 mm format with standardized immersion depth markers for reproducible sample contact time (typically 1–2 seconds)
• Manufactured under ISO 9001-certified processes in Germany; batch-specific traceability provided via alphanumeric lot coding
• No instrumentation required—ideal for field use, rapid QC checks, educational labs, or environments with limited power or calibration infrastructure

Sample Compatibility & Compliance

The 904 Series demonstrates robust performance across diverse aqueous matrices, including fruit juices, dairy whey, dyestuff baths, nickel plating electrolytes, wastewater streams, and buffered biological media. It is not intended for non-aqueous solvents, highly viscous gels, or strongly oxidizing/reducing solutions (e.g., >5% hypochlorite or concentrated HNO₃), which may degrade indicator dyes or alter transition kinetics. While not a primary metrology tool for regulatory submissions, the strips support GLP-aligned preliminary screening and trend monitoring when used within validated protocols. They comply with general principles of ISO 10523 (water quality — determination of pH) for indicative measurement and align with ASTM D1293 for field-based pH estimation in environmental water testing. Documentation includes CE marking per Directive 2014/31/EU (Measuring Instruments Directive) for non-automatic measuring instruments.

Software & Data Management

As a passive, analog measurement system, the 904 Series requires no software, drivers, or digital connectivity. However, it is fully compatible with laboratory data management workflows: users may log results manually into LIMS or ELN platforms using standardized entry templates. For digital enhancement, smartphone-based image capture (under controlled lighting) combined with calibrated RGB-to-pH lookup tables—developed per individual lot—can improve inter-operator consistency. MN provides downloadable PDF reference guides containing high-resolution, spectrophotometrically verified color scales for each variant, suitable for printing on color-calibrated devices. Audit trails for strip usage (lot number, date, operator ID, sample ID) are maintained per internal QA documentation requirements.

Applications

• Beverage & Dairy Processing: Rapid verification of pasteurization rinse water pH, whey acidification control, soft drink carbonation stability checks
• Textile Manufacturing: Monitoring dye bath acidity during reactive dyeing and after-wash neutralization steps
• Electroplating & Surface Finishing: Daily verification of nickel, copper, and zinc electrolyte pH prior to tank operation
• Environmental Field Screening: On-site pH profiling of surface water, leachate, and stormwater runoff per EPA Method 150.1 guidelines
• Academic & Teaching Labs: Visual demonstration of buffer capacity, titration endpoints, and pH-dependent enzymatic activity
• Small-Scale Aquaculture: Routine pond and recirculating aquaculture system (RAS) water quality triage

FAQ

Can these strips be used for highly colored industrial effluents?
Yes—the integrated reference scale design compensates for background color, making them uniquely suited for such applications when compared to conventional comparator cards.
What is the shelf life and storage requirement?
Unopened boxes retain accuracy for 24 months from manufacture date when stored at 15–25°C, <60% RH, away from direct sunlight and volatile organic vapors.
Are individual strips reusable?
No—each strip is single-use only. Re-immersion or wiping compromises dye integrity and introduces cross-sample contamination risk.
Do the strips meet FDA or USP requirements for pharmaceutical water testing?
They are not classified as primary analytical tools under USP or FDA 21 CFR Part 211; however, they serve as acceptable secondary checks for operational qualification of purified water systems.
How does temperature affect reading accuracy?
Readings should be performed at 20–25°C. Deviations >±5°C may shift apparent color transition points by up to ±0.3 pH units—calibration strips include temperature correction guidance in technical datasheets.
