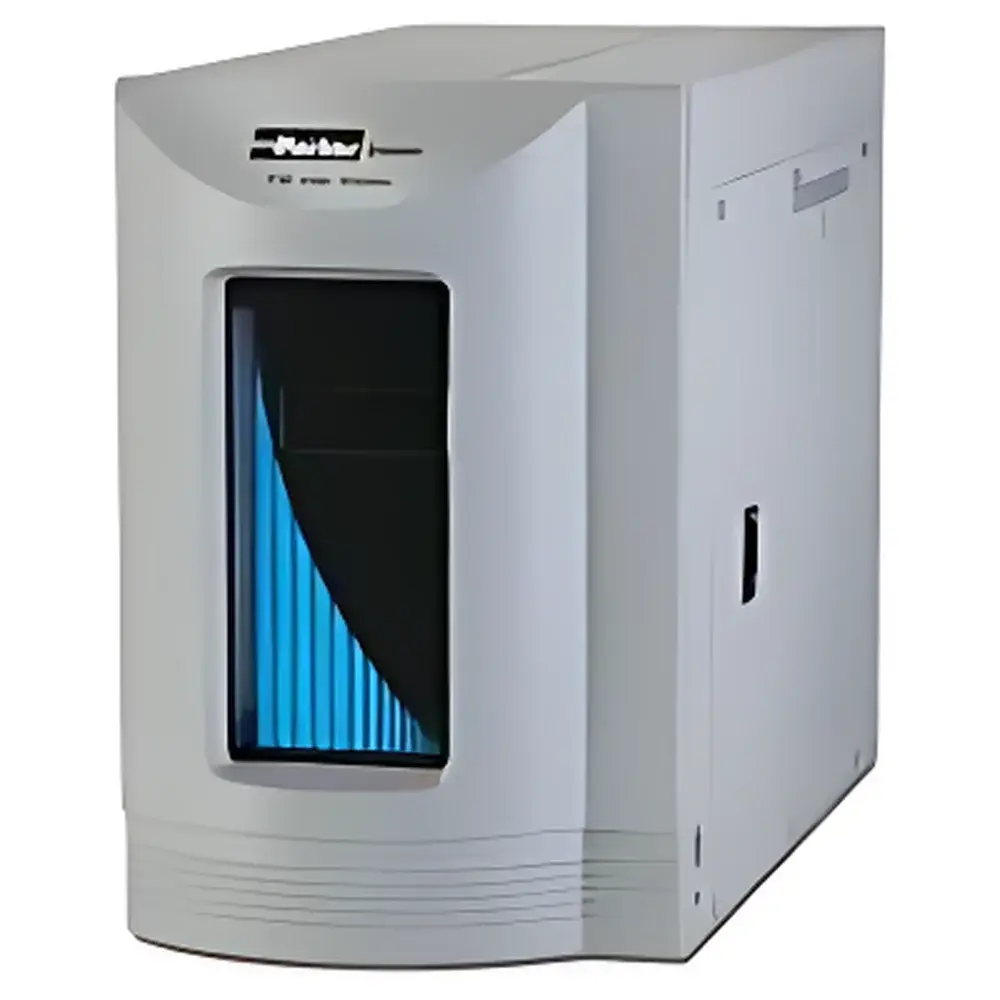

MNK FID-1000 Nitrogen-Hydrogen-Air Integrated Gas Generator

Overview

The MNK FID-1000 Nitrogen-Hydrogen-Air Integrated Gas Generator is an engineered solution for laboratories requiring reliable, on-demand supply of ultra-high-purity hydrogen and zero-grade air to support flame ionization detectors (FIDs) and flame photometric detectors (FPDs) in gas chromatography systems. Unlike conventional cylinder-based gas delivery, this integrated generator eliminates the safety hazards and logistical constraints associated with high-pressure hydrogen storage. It produces hydrogen via proton exchange membrane (PEM) electrolysis of deionized water—ensuring consistent purity without catalyst degradation or contamination risks. Simultaneously, it conditions compressed shop air through catalytic hydrocarbon removal and precision pressure regulation to deliver zero air with total hydrocarbon content < 0.1 ppm (measured as methane), meeting ASTM D6216 and ISO 8573-1 Class 1 requirements for GC detector gases. Designed for continuous operation in regulated environments, the system supports up to six FIDs when configured with appropriate flow distribution manifolds.

Key Features

• PEM-based hydrogen generation from deionized water—no caustic electrolytes, no metal hydride cartridges, and no consumable catalysts
• Integrated zero-air purification using dual-stage catalytic oxidation and activated carbon filtration to achieve < 0.1 ppm total hydrocarbons (as CH₄)
• Stable outlet pressures: 60 psig for hydrogen; adjustable 40–125 psig for zero air—compatible with all major GC manufacturers’ FID specifications
• Low-noise operation (< 55 dBA at 1 m), suitable for shared laboratory spaces and ISO 17025-accredited facilities
• Front-panel digital display with real-time status indicators for H₂ pressure, flow, air inlet pressure, and system fault codes
• Automatic leak detection and shutdown protocol compliant with IEC 61000-6-2 electromagnetic compatibility standards
• 12-month limited warranty covering parts and labor; extended service plans available for GxP-regulated labs

Sample Compatibility & Compliance

The FID-1000 is validated for use with all standard GC-FID configurations, including Agilent, Thermo Fisher Scientific, Shimadzu, and PerkinElmer platforms. Its hydrogen output meets USP and EP 2.5.27 specifications for carrier and fuel gas purity in pharmaceutical residual solvent analysis. Zero-air performance conforms to ASTM D6216-21 Annex A1 for hydrocarbon-free combustion support gas. The unit is CE-marked and complies with UL 61010-1 for electrical safety in laboratory instrumentation. For GLP/GMP environments, optional audit-trail-enabled firmware supports 21 CFR Part 11-compliant electronic records when paired with validated LIMS integration.

Software & Data Management

While the FID-1000 operates as a standalone hardware platform, its analog voltage outputs (0–10 VDC) for H₂ flow and zero-air pressure are compatible with third-party SCADA and lab automation systems. Optional RS-485 Modbus RTU interface enables remote monitoring of operational parameters—including runtime hours, maintenance alerts, and pressure deviation logs—via LabVIEW, MATLAB, or custom Python-based dashboards. All firmware updates are delivered via secure USB firmware loader, with version history and checksum verification included in release notes. No cloud connectivity or proprietary software installation is required, preserving data sovereignty and network segmentation integrity.

Applications

• Residual solvent testing in pharmaceutical manufacturing (ICH Q2(R2)-aligned method validation)
• Volatile organic compound (VOC) quantification in environmental water and soil matrices per EPA Method 8260D
• Fatty acid methyl ester (FAME) profiling in biodiesel quality control (ASTM D6751)
• Hydrocarbon speciation in petrochemical refinery streams (ASTM D5186)
• Food flavor compound analysis where baseline stability and detector sensitivity are critical
• Academic research requiring long-duration unattended GC runs with minimal operator intervention

FAQ

Does the FID-1000 produce nitrogen gas?
No—the “Nitrogen-Hydrogen-Air” designation reflects legacy naming convention used in certain regional markets; this model generates only hydrogen and zero air. For nitrogen supply, MNK recommends pairing the FID-1000 with the separate MNK N₂-2000 membrane-based nitrogen generator.
What compressed air quality is required for zero-air generation?
Inlet air must meet ISO 8573-1 Class 2:2:2 (solid particles ≤ 0.1 µm, dew point ≤ −40°C, oil content ≤ 0.1 mg/m³) and maintain minimum pressure of 40 psig (276 kPa). Use of coalescing and desiccant dryers upstream is strongly advised.
Can the FID-1000 be installed in a fume hood?
Yes—its fully sealed electronics, non-sparking components, and absence of vented electrolyte make it suitable for installation inside ventilated enclosures per NFPA 45 guidelines.
Is hydrogen purity verified by internal analytics?
Purity is ensured by design-certified PEM stack performance and validated post-generation filtration; independent verification via GC-TCD is recommended during initial qualification per ISO/IEC 17025 clause 5.9.
How often does the deionized water reservoir require refilling?
At maximum rated hydrogen flow (90 cc/min), the 2.5-liter reservoir supports approximately 72 hours of continuous operation; typical lab usage extends refill intervals to 5–7 days.
