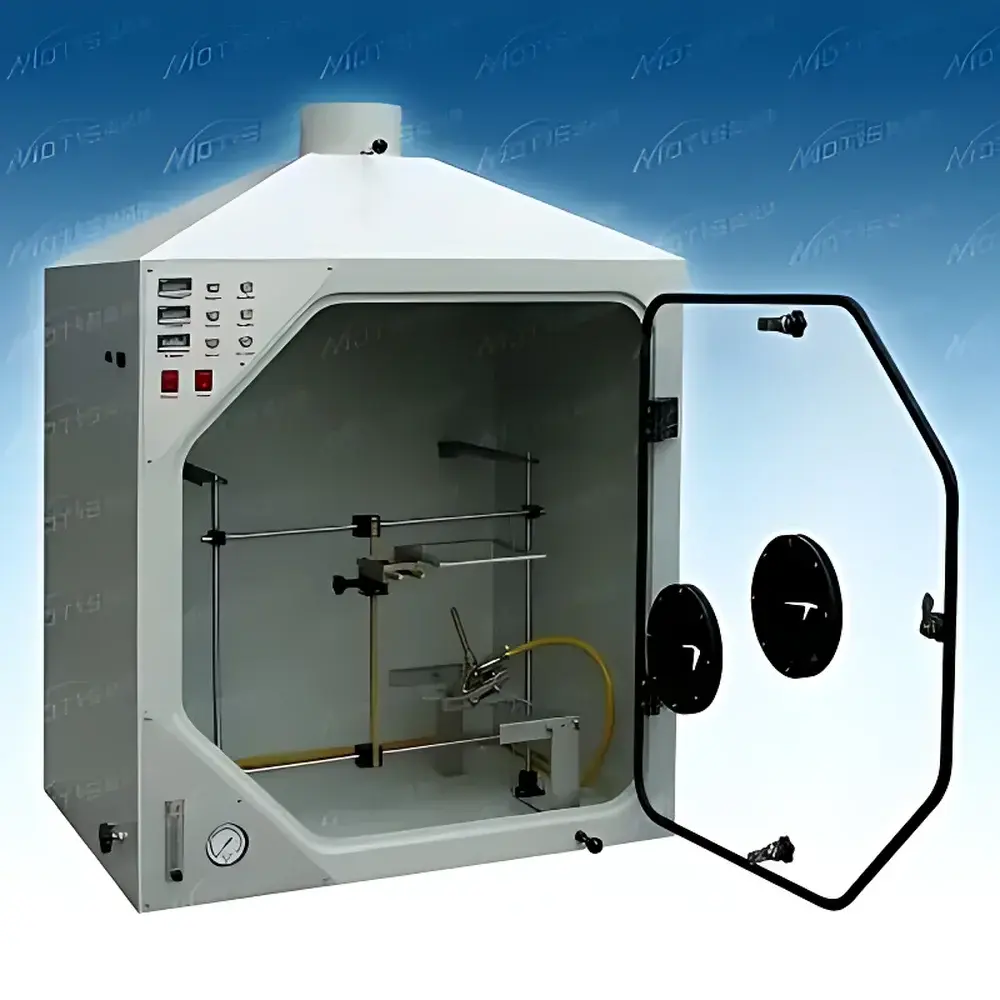

MOTIS UL94 Horizontal & Vertical Combustion Tester

Overview

The MOTIS UL94-X Horizontal & Vertical Combustion Tester is an engineered platform for standardized flammability assessment of polymeric materials and component parts used in electrical, electronic, and construction applications. It operates on the principle of controlled flame exposure under precisely defined thermal, geometric, and temporal conditions—directly implementing the core test methodologies outlined in UL 94, IEC 60695-11 series, ISO 1210, and corresponding national standards (GB/T 2408, GB/T 5169.17, GB/T 8332). The instrument supports five primary test configurations: horizontal burning (HB), vertical burning (V0/V1/V2), high-flame vertical burning (5VA/5VB), thin-film vertical burning (VTM-0/1/2), and foam horizontal burning (HF-1/HF-2/HBF). Each configuration requires strict adherence to specimen geometry, orientation, ignition source characteristics, flame application duration, afterflame/afterglow timing, and drip evaluation criteria. The UL94-X chamber is constructed as a self-contained, ventilated combustion environment with calibrated gas delivery, repeatable burner positioning, and optically unobstructed observation—ensuring measurement integrity across inter-laboratory comparisons and regulatory audits.

Key Features

• Chamber volume exceeds 0.75 m³, conforming to minimum enclosure requirements specified in UL 94 and IEC 60695-11-10 to prevent flame quenching and ensure stable combustion dynamics.
• Matte black interior surface minimizes optical interference and enhances contrast for accurate flame height and spread evaluation.
• Extra-large borosilicate glass viewing window provides full-field visual access without compromising thermal or pressure containment integrity.
• Front-access door with ergonomic opening mechanism enables safe, repeatable specimen placement and post-test residue handling.
• Triple-angle burner mount (0°, 20°, 45°) allows rapid reconfiguration between HB, V, and 5V test modes without tooling or recalibration.
• Bunsen-type burner complies with ASTM D5025 for precise 20 mm blue flame generation; fan-shaped burner meets ASTM D4986 specifications for uniform heat flux distribution in 5VA/5VB testing.
• Dual-stage gas control system integrates a precision rotameter and high-stability pressure regulator to maintain ±1% flow and pressure repeatability per UL 94 Annex A requirements.
• Digital panel-mounted timer records ignition delay, afterflame time (t₁, t₂), afterglow time, and total test duration with 0.1 s resolution—traceable to NIST-traceable time standards.
• Top-mounted forced exhaust system maintains negative pressure within the chamber during operation, safely removing combustion byproducts while preserving laminar airflow around the specimen.
• Optional ASTM D5207-compliant burner calibration kit enables periodic verification of flame temperature profile, tip-to-specimen distance, and impingement angle—critical for GLP/GMP compliance and ISO/IEC 17025 accreditation.

Sample Compatibility & Compliance

The UL94-X accommodates rigid and semi-rigid plastics, thermosets, foams, films, and laminates in standardized dimensions (e.g., 125 × 13 mm strips for V tests; 150 × 50 mm sheets for HB). Specimens are clamped vertically or horizontally using non-combustible holders compliant with UL 94 Section 7. Test reporting aligns with ISO/IEC 17025 documentation requirements, including raw timing logs, pass/fail determinations per classification thresholds (e.g., V0: t₁ + t₂ ≤ 50 s, no dripping of flaming particles), and traceable calibration records. The system supports audit readiness for FDA-regulated medical device housing validation, UL certification submissions, and CE marking under EN 60695-11-10. All mechanical and pneumatic components are certified to IP54 ingress protection and CE machinery directive (2006/42/EC).

Software & Data Management

While the base UL94-X operates via hardware-integrated analog/digital controls, optional PC-based software modules provide extended functionality: automated test sequencing, real-time flame event logging (with timestamped image capture via integrated camera port), digital signature-enabled report generation (PDF/A-1b), and structured export to LIMS via CSV or ASTM E1461-compliant XML schema. Audit trails record operator ID, test parameter changes, calibration events, and system errors—fully compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures. Data retention policies support 10-year archival per GLP Annex III guidelines.

Applications

• Qualification of polymer formulations for consumer electronics enclosures (e.g., ABS, PC/ABS blends) per UL 94 V0 requirements.
• Fire safety validation of wire insulation materials (PVC, LSZH, ETFE) under IEC 60695-11-10 horizontal burn protocols.
• Regulatory submission support for building material certifications (e.g., façade panels, ceiling tiles) referencing GB/T 8332 (foam) and GB/T 2408 (rigid plastics).
• R&D screening of flame-retardant additives (e.g., phosphinates, metal hydroxides) via comparative VTM-0/V1/V2 performance mapping.
• Third-party testing services at accredited laboratories—including SGS Anji and Shunde branches, China National Fire Protection Product Quality Supervision and Inspection Center (Sichuan), and Beijing Building Materials Research Institute.

FAQ

Does the UL94-X comply with ASTM D5025 and ASTM D4986?
Yes—the instrument includes both Bunsen and fan-shaped burners, each pre-aligned and validated to meet dimensional, flame temperature, and impingement angle tolerances specified in ASTM D5025 and ASTM D4986 respectively.
Is chamber volume independently verified per UL 94 Section 4.1?
Yes—certified chamber volume (≥0.75 m³) is documented in the factory acceptance test report (FATR) and confirmed during on-site IQ/OQ protocol execution.
Can test data be exported in formats compatible with ISO/IEC 17025 reporting?
Yes—structured CSV and ASTM E1461 XML exports include all raw timing values, operator metadata, calibration status flags, and pass/fail logic per clause references.
What maintenance intervals are recommended for gas regulators and flow meters?
Rotameters require quarterly zero-check and annual recalibration against NIST-traceable flow standards; pressure regulators should be serviced every 12 months or after 500 test cycles, whichever occurs first.
Is remote diagnostic capability available?
Optional Ethernet-enabled controller modules support secure SSH-based remote log retrieval and firmware updates—subject to site-specific network security policy approval.
