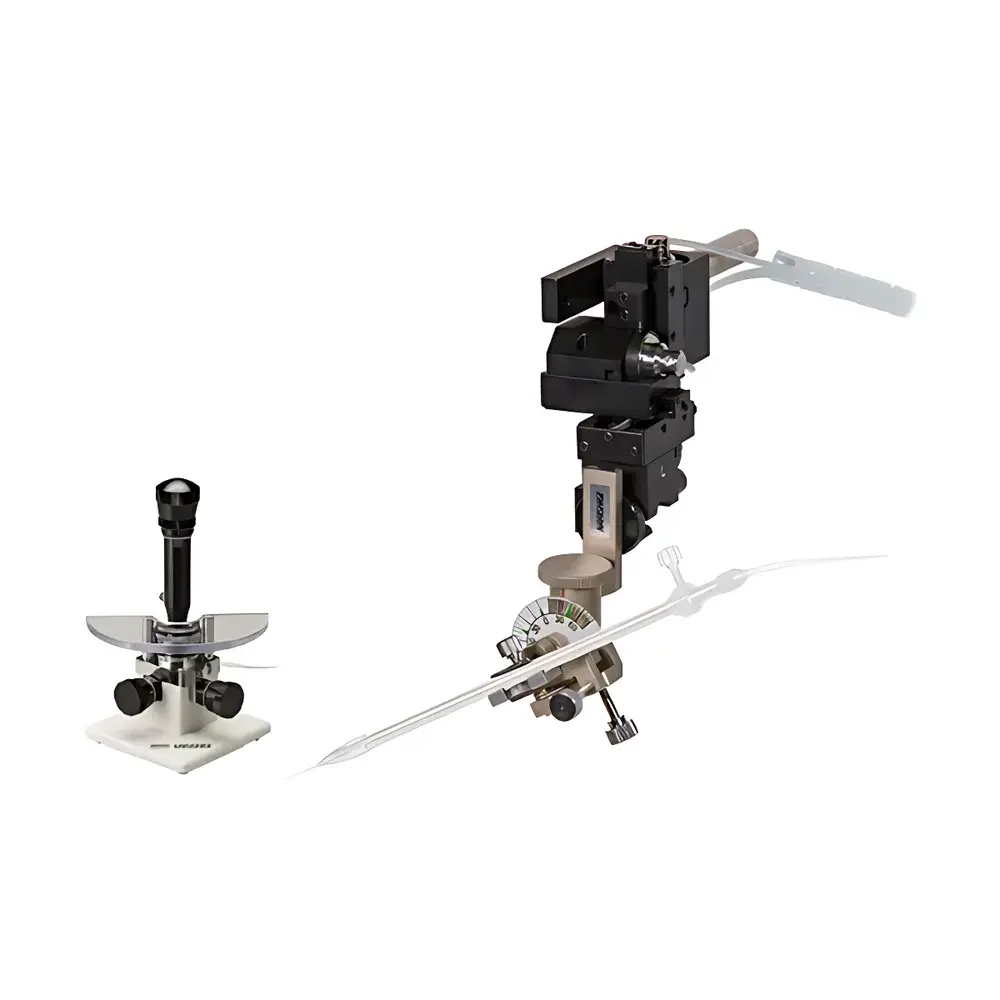

NARISHIGE MO-202U Three-Axis Joystick Oil-Hydraulic Micromanipulator

Overview

The NARISHIGE MO-202U Three-Axis Joystick Oil-Hydraulic Micromanipulator is a high-precision mechanical positioning system engineered for stable, low-drift, and vibration-damped manipulation of microtools—such as glass micropipettes, electrodes, or microinjection needles—in life science and electrophysiology applications. Utilizing oil-hydraulic transmission, the MO-202U eliminates backlash and hysteresis commonly associated with gear- or screw-driven mechanisms, delivering smooth, continuous motion with exceptional positional repeatability. Its dual-mode operation—coarse joystick control for rapid repositioning within a 2 mm X–Y envelope, and fine micrometer-knob adjustment for sub-micron precision across all three axes (X, Y, Z)—enables seamless transition between macro-navigation and nanoscale targeting. Designed for integration with upright and inverted microscopes, the MO-202U maintains mechanical rigidity under load while minimizing thermal drift and operator-induced tremor, making it suitable for intracellular recording, patch-clamp experiments, microinjection into oocytes or embryos, and laser-assisted cell surgery.

Key Features

• Oil-hydraulic actuation ensures zero-backlash, non-cumulative positioning with no mechanical wear over extended use.
• Three independent axes (X, Y, Z) each provide 10 mm of calibrated micrometer-driven travel, with a minimum resolution of 4 µm per knob increment.
• Integrated joystick lever enables intuitive, ergonomic coarse positioning in the X–Y plane up to ±1 mm from center (2 mm total span), decoupled from Z-axis movement.
• Modular architecture: compact transmission unit (40 × 51 × 87 mm, 180 g) mounts directly to microscope stages or custom frames; control unit (130 × 130 × 220 mm, 1.86 kg) houses hydraulic reservoir, valves, and ergonomically spaced knobs.
• Standard UT-2 universal joint included for angular alignment of mounted tools; compatible with NARISHIGE’s full range of pipette holders (e.g., MN-4, MM-4) and electrode carriers.
• 0.9 m reinforced hydraulic tubing allows flexible placement of control unit relative to microscope setup without pressure loss or lag.

Sample Compatibility & Compliance

The MO-202U is routinely deployed in GLP-compliant electrophysiology labs and academic core facilities performing single-cell interventions. It supports standard borosilicate and quartz micropipettes (OD ≤ 2.0 mm), tungsten and platinum-iridium electrodes, and fiber-optic probes. While the device itself carries no active electronics or software, its mechanical design conforms to ISO 13485-aligned manufacturing practices as implemented by NARISHIGE (Japan). The absence of electrical components renders it intrinsically safe for use in Faraday cages, MRI-adjacent environments, and high-voltage electrophysiology rigs. All metallic components are passivated stainless steel or anodized aluminum, ensuring corrosion resistance in humid or saline experimental conditions.

Software & Data Management

The MO-202U operates as a purely manual, analog micromanipulation platform—no firmware, drivers, or proprietary software are required. Positional data is not digitally recorded by the device; however, it is fully compatible with third-party digital imaging and acquisition systems (e.g., MetaMorph, NIS-Elements, Spike2) via synchronized stage coordinate logging when paired with motorized microscope stages or encoder-equipped adapters. For audit-trail requirements under FDA 21 CFR Part 11 or ISO/IEC 17025, users may document manipulator settings manually in lab notebooks or integrate knob-position readouts using external linear encoders (e.g., Renishaw RESOLUTE™ series) mounted on the micrometer spindles—a configuration validated in multiple peer-reviewed neurophysiology protocols.

Applications

• Intracellular and whole-cell patch-clamp recordings in brain slice and cultured neuron preparations.
• Cytoplasmic and pronuclear microinjection in zebrafish, mouse, and Xenopus embryos.
• Targeted ablation or photostimulation using UV or IR lasers coupled to manipulator-mounted optical fibers.
• Single-cell electroporation and iontophoresis with high-impedance electrodes.
• Ex vivo organotypic tissue slice manipulation during live confocal or two-photon imaging.
• Calibration and alignment of microfluidic probe interfaces in organ-on-chip platforms.

FAQ

Is the MO-202U compatible with motorized microscope stages?
Yes—the MO-202U’s mechanical interface does not interfere with automated stage communication; it is routinely used alongside Prior, Ludl, and Marzhauser motorized stages in hybrid manual/automated workflows.
Can the hydraulic fluid be refilled or replaced by the user?
No—hydraulic fluid is sealed within the transmission unit at the factory. Attempting to open or refill voids warranty and compromises pressure integrity. Units requiring service must be returned to authorized NARISHIGE service centers.
What is the typical lifetime of the hydraulic system under daily laboratory use?
Based on NARISHIGE’s accelerated aging tests and field reports from >15 years of deployment, the oil-hydraulic circuit maintains nominal performance for ≥50,000 operational cycles (defined as full 10 mm axis traversal) without degradation in responsiveness or leakage.
Does the MO-202U support vacuum or pressure-assisted pipette holding?
No—the MO-202U is a positioning-only device. Vacuum/pressure control requires external regulators (e.g., NARISHIGE IM-31, ALA-VM10) connected via standard 1/16″ OD polyethylene tubing to the pipette holder.
Is there a version with integrated digital position readout?
NARISHIGE offers the MO-202S variant with optional linear encoder kits (sold separately); the MO-202U remains the analog base model optimized for simplicity, reliability, and EMI-free operation.
