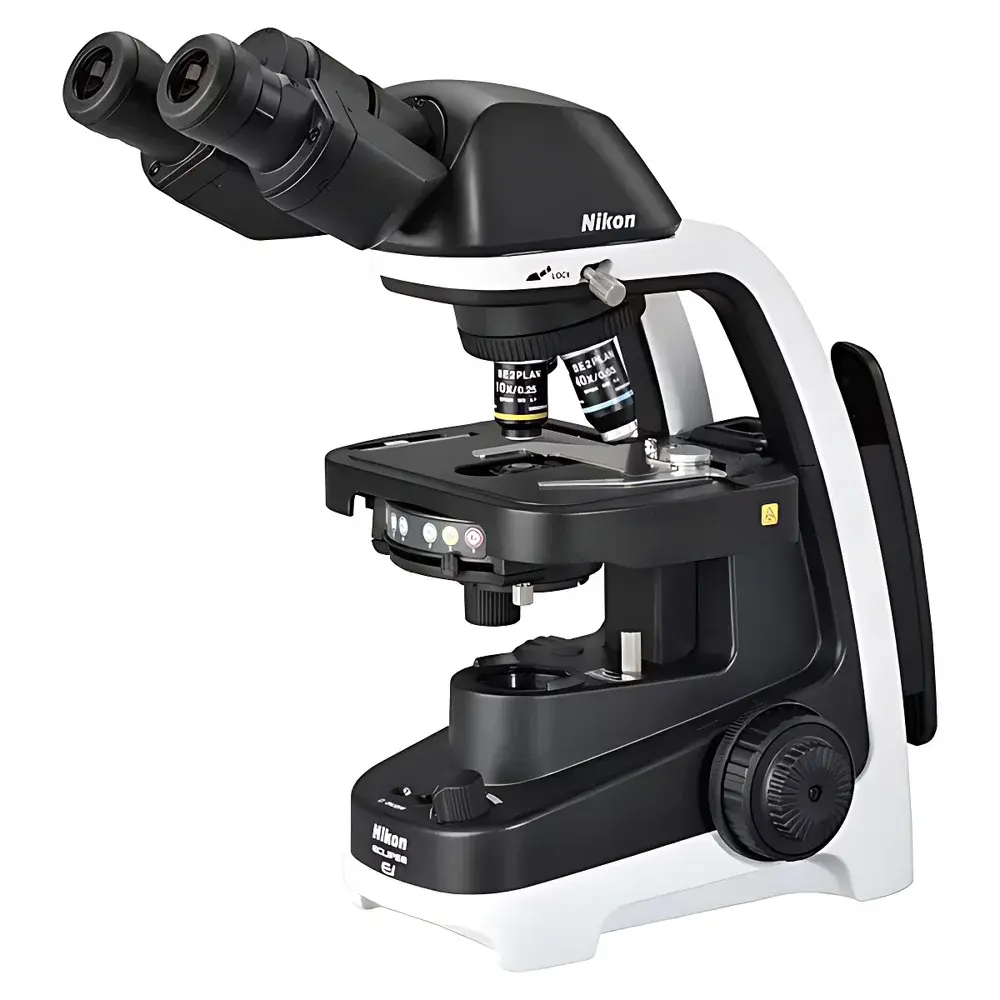

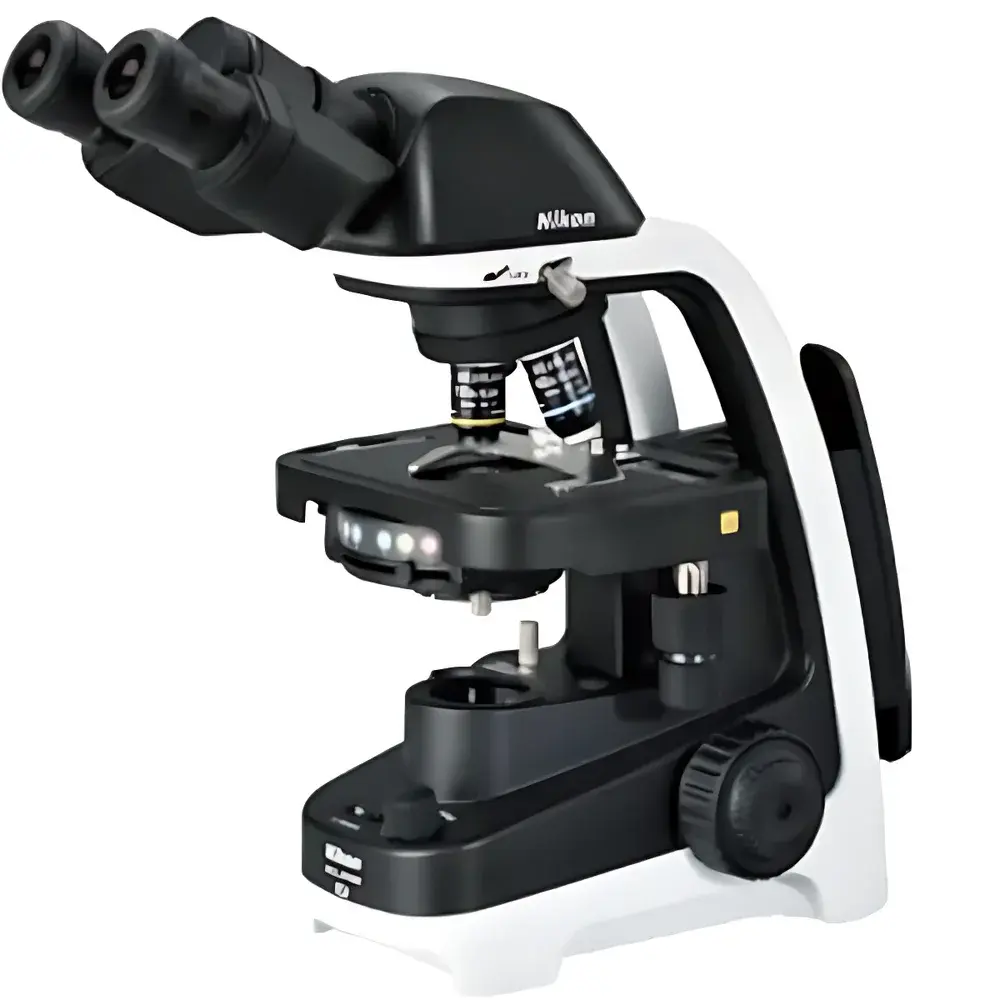

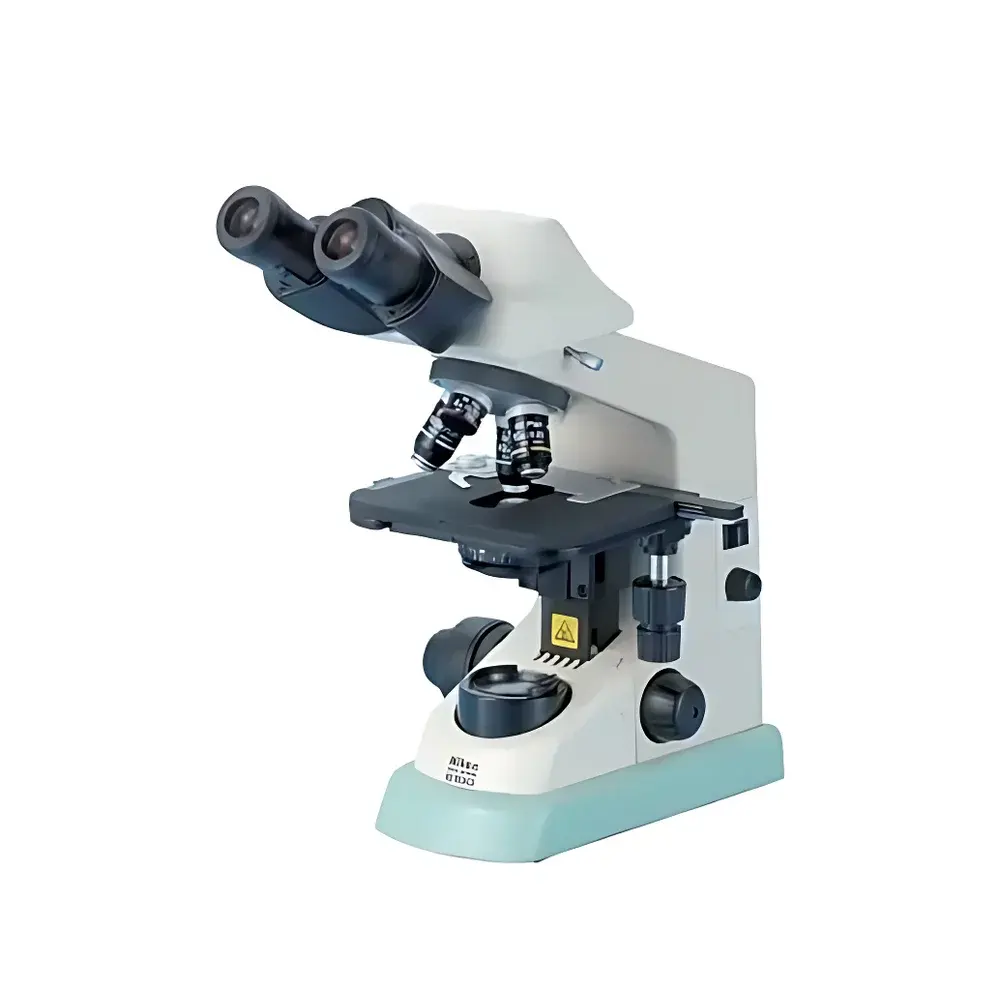

Nikon E100 Biological Microscope

Overview

The Nikon E100 is a high-performance upright biological microscope engineered for routine teaching, clinical diagnostics, and entry-level research applications in life science laboratories. Built upon Nikon’s proprietary CFI (Chromatic-aberration-free Infinity) optical architecture, the E100 delivers consistent image fidelity across its full magnification range (40× to 1500×) through precise correction of chromatic aberration and field curvature. Its infinity-corrected optical path enables modular expansion—including phase contrast, darkfield, and digital imaging—without compromising resolution or contrast. Designed as a robust, service-oriented platform, the E100 integrates ergonomic mechanical design with long-term optical stability, making it suitable for high-throughput educational labs and quality-controlled clinical environments where reproducibility and operator comfort are essential.

Key Features

• CFI Infinity-Optimized Optics: Utilizes Nikon’s CFI BE (Biological Education) plan achromat objectives—specifically designed for the E100 platform—to ensure uniform flatness and color fidelity across the entire field of view at all magnifications.
• Ergonomic Binocular Viewing System: Features the E2-TB Siedentopf-type binocular tube with 30° inclination, 360° rotation, and dual-stage eye-point adjustment (±34 mm vertical range), enabling optimal posture and reduced observer fatigue during extended use.
• Intuitive Coaxial Focus Control: Precision-machined coaxial coarse/fine focus mechanism with adjustable coarse-torque setting; coarse travel of 22 mm (37.7 mm/rev), fine adjustment resolution of 2 µm per graduation, and smooth gear-driven motion for reliable parfocal consistency.
• Abbe Condenser with Position-Indexed Aperture Diaphragm: NA 1.25 condenser includes engraved alignment markers corresponding to standard objective magnifications (4×, 10×, 40×, 60×, 100×), ensuring rapid, repeatable Köhler illumination setup and optimal resolution matching.
• Modular Imaging Readiness: Optional E2-TF trinocular tube (sold separately) incorporates an integrated 0.55× camera adapter and supports C-mount or standard DSLR/mirrorless sensor coupling—fully compatible with Nikon’s NIS-Elements LE software suite for documentation and basic analysis.
• Service-Forward Design: Halogen lamp module (6 V / 20 W) is accessible from the rear without tools; condenser and stage components feature standardized mounting interfaces for field replacement or calibration verification.

Sample Compatibility & Compliance

The Nikon E100 accommodates standard glass microscope slides (76 × 26 mm) and coverslips (0.13–0.17 mm thickness) on its dual-layer mechanical stage with graduated X-Y movement (75 × 50 mm travel). It supports common contrast enhancement techniques including brightfield, phase contrast (via optional phase slider and matched phase objectives: 10×, 40×, 100×), and darkfield (with optional darkfield rings for 10×, 20×, 40× objectives). While not certified for GMP/GLP-regulated production environments, the instrument meets ISO 10934-1 (Microscopes — Nomenclature of Components) and complies with IEC 61000-6-3 (EMC Emission Standards) and IEC 61000-6-2 (Immunity Standards). Its stable mechanical construction and calibrated focus scale support traceable manual measurements under ASTM E2877-22 (Standard Guide for Microscope Calibration).

Software & Data Management

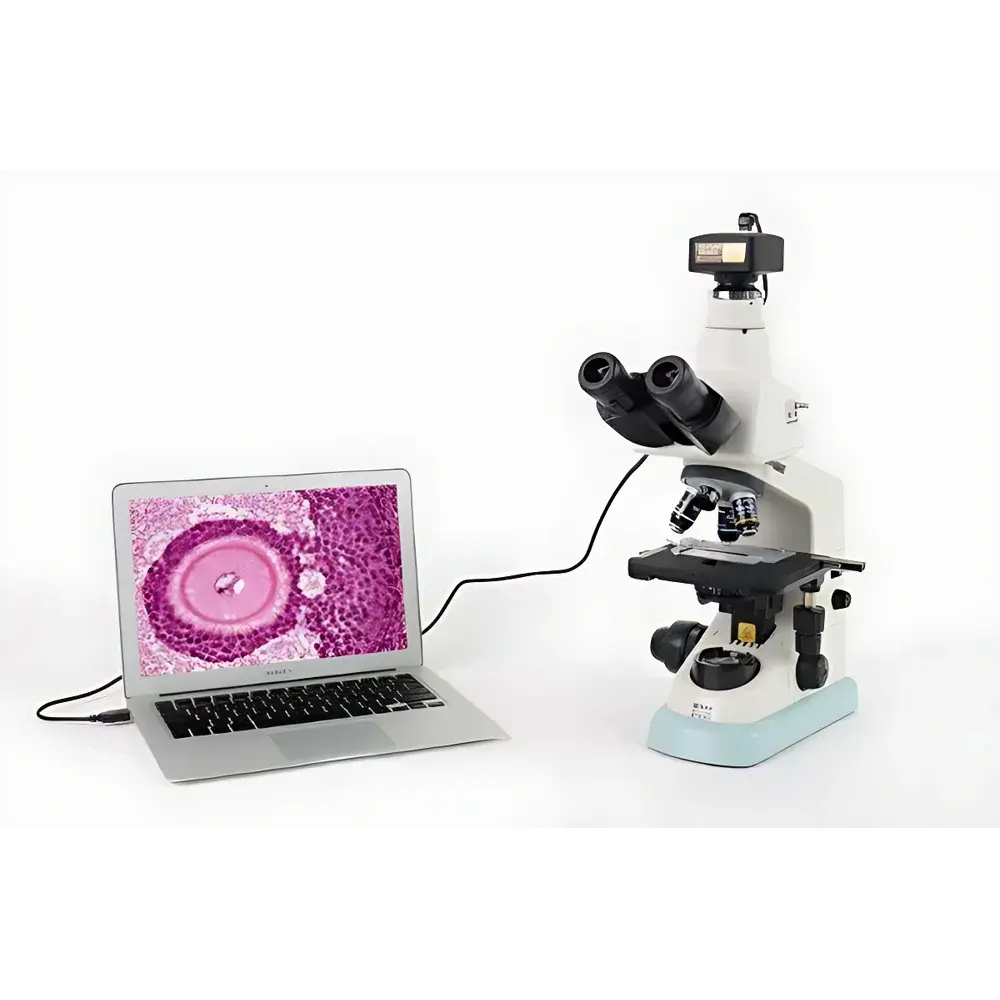

The E100 operates as a hardware platform compatible with Nikon’s NIS-Elements LE (Light Edition) software—freely distributable for basic image capture, annotation, measurement (length, area, angle), and report generation. When paired with the E2-TF trinocular tube and a compliant USB 3.0 CMOS camera (e.g., DS-Fi3), the system supports time-lapse acquisition, Z-stack capture, and export in TIFF, JPEG, and proprietary ND2 formats. NIS-Elements LE includes audit-trail logging for user actions and timestamped metadata embedding—facilitating documentation compliance in academic and non-GxP laboratory settings. No proprietary cloud services or mandatory subscriptions are required for core functionality.

Applications

• Undergraduate and graduate histology, microbiology, and cell biology instruction
• Clinical hematology and urinalysis screening in hospital core labs
• Pharmaceutical raw material identification (e.g., plant tissue morphology, crystalline excipient analysis)
• Quality assurance of cultured cells prior to passaging or assay seeding
• Basic pathology specimen triage and preliminary morphological assessment
• Environmental water microbiology (e.g., algal enumeration, protozoan identification)

FAQ

Is the Nikon E100 manufactured in Japan?
No—the E100 is assembled and quality-assured at Nikon’s manufacturing facility in Beijing, China, under strict adherence to Nikon’s global optical engineering standards and final inspection protocols.
Can the E100 be upgraded to support fluorescence imaging?
The E100 optical train does not include a fluorescence illumination path or dichroic mirror turret; fluorescence capability requires a dedicated platform such as the Nikon Eclipse Ni series.
What is the warranty coverage for the E100 in international markets?
Nikon offers a standard 2-year limited warranty covering parts and labor for optical and mechanical components, excluding consumables (e.g., bulbs, filters) and damage resulting from misuse or unauthorized modification.
Does the E100 meet FDA 21 CFR Part 11 requirements for electronic records?
NIS-Elements LE does not provide full Part 11 compliance (e.g., electronic signatures, role-based access control); for regulated environments, users must implement supplementary procedural controls or select NIS-Elements Advanced with validated e-signature modules.
Are replacement objectives and eyepieces interchangeable with older Nikon models?
CFI BE objectives are mechanically and optically compatible with all Nikon CFI-standard microscopes (ECLIPSE Ei, E200, Ci, etc.), but are not backward-compatible with pre-CFI (e.g., CF, U, or Nikon “D” series) optical systems.
