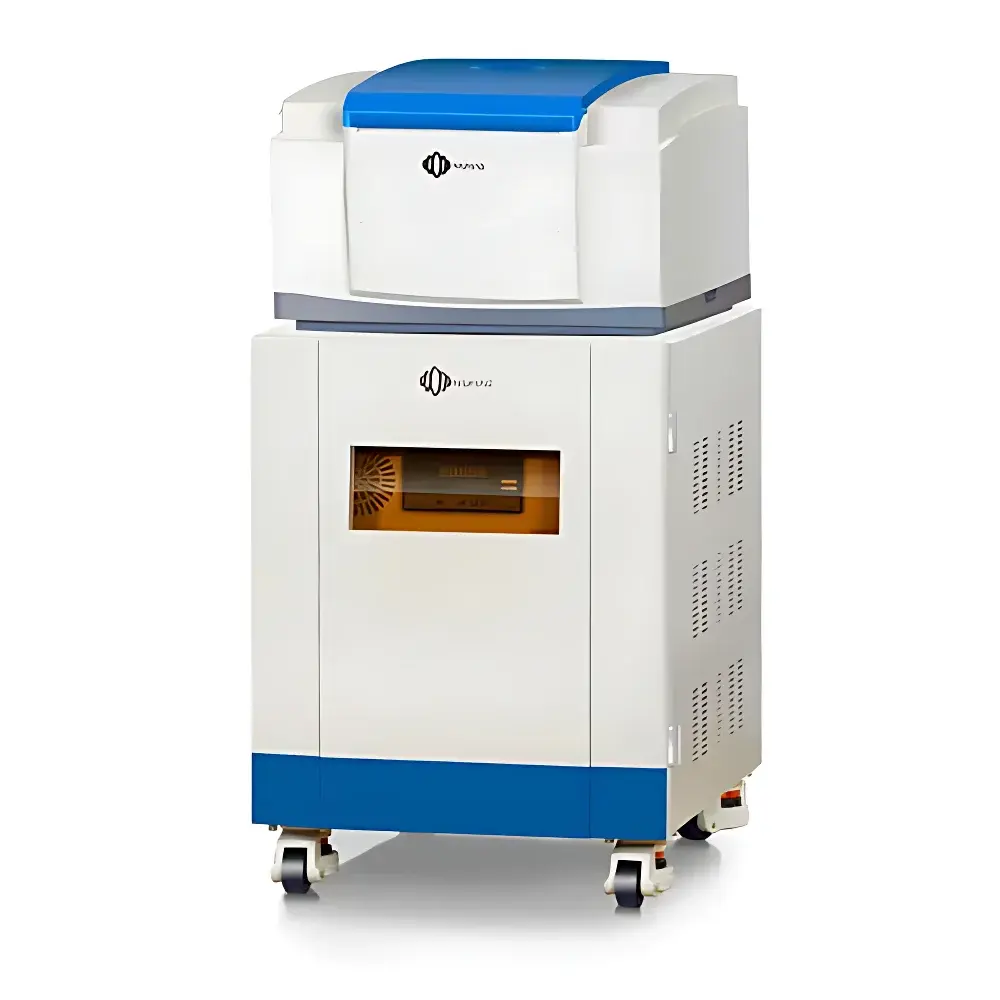

NIUMAG PQ001-SFC Benchtop Solid Fat Content Analyzer (Low-Field NMR)

Overview

The NIUMAG PQ001-SFC is a benchtop low-field nuclear magnetic resonance (LF-NMR) analyzer engineered for precise, non-invasive quantification of solid fat content (SFC) in lipid-based food matrices. It operates on the fundamental principle of proton NMR relaxation time differentiation—specifically, the distinct transverse relaxation behavior (T₂) of solid-phase versus liquid-phase triglyceride protons under controlled temperature conditions. By applying standardized temperature ramping protocols (e.g., ISO 8587:2021 and AOAC 986.15), the instrument measures the relative signal decay contributions from immobilized (solid) and mobile (liquid) fat fractions, enabling calculation of SFC as a mass percentage. Designed for routine quality control laboratories in edible oil refineries, confectionery R&D centers, and dairy product manufacturers, the PQ001-SFC delivers high reproducibility (RSD < 1.2% across replicate measurements) without chemical solvents, sample derivatization, or destructive extraction—fully aligning with green analytical chemistry principles and ISO/IEC 17025 method validation requirements.

Key Features

• Benchtop permanent magnet architecture delivering stable 0.5 ± 0.08 T field homogeneity (ΔB₀/B₀ < 150 ppm over 10 mm DSV), eliminating cryogen dependency and reducing total cost of ownership.
• Optimized 10 mm diameter RF probe coil engineered for high signal-to-noise ratio (SNR > 80:1 at 25 °C for 1 g cocoa butter reference), ensuring robust detection sensitivity for low-mass samples (0.5–3.0 g).
• Integrated Peltier-controlled temperature module with ±0.1 °C stability across –40 °C to +80 °C range, supporting full SFC curve acquisition per ISO 16584 and AOAC Official Method 986.15.
• Pre-calibrated pulse sequence library including CPMG (Carr–Purcell–Meiboom–Gill) for accurate T₂ distribution analysis, with user-definable echo spacing (0.1–2.0 ms) and echo train length (8–1024 echoes).
• Embedded real-time data acquisition firmware compliant with IEC 61508 functional safety guidelines for laboratory instrumentation, featuring automatic shimming, gain optimization, and RF power calibration routines.

Sample Compatibility & Compliance

The PQ001-SFC accommodates a broad spectrum of edible lipid systems—including cocoa butter, palm oil fractions, hydrogenated vegetable oils, margarine, butter, shortening, and dairy fat blends—without prior solvent dissolution or crystallization conditioning. Sample containers are standard 10 mm outer-diameter glass tubes conforming to ASTM D6377-22 dimensional specifications. All measurement protocols adhere to internationally recognized standards: ISO 8587:2021 (Sensory analysis — General guidance for the selection, training and monitoring of assessors), ISO 16584:2015 (Animal and vegetable fats and oils — Determination of solid fat content — Low-field pulsed nuclear magnetic resonance method), and AOAC Official Method 986.15. Instrument design supports GLP-compliant operation through audit-trail-enabled software logging (user actions, parameter changes, calibration events) and electronic signature capability per FDA 21 CFR Part 11 when paired with validated NIUMAG NMR-SFC Suite v3.2+.

Software & Data Management

The NIUMAG NMR-SFC Suite provides a Windows-based interface for instrument control, thermal protocol definition, raw FID acquisition, T₂ inversion (using non-negative least squares algorithm), SFC calculation, and report generation. Data files are stored in vendor-neutral HDF5 format with embedded metadata (timestamp, operator ID, temperature setpoint, pulse sequence parameters). The software includes built-in statistical tools for inter-day precision assessment, method transfer verification, and uncertainty estimation per GUM (JCGM 100:2008). Export options include CSV, PDF (with customizable templates), and direct integration into LIMS via OPC UA server support. All software updates undergo rigorous regression testing against NIST-traceable reference materials (e.g., NIST SRM 2370a).

Applications

• Quality assurance of cocoa butter equivalents during chocolate tempering process development.
• Monitoring polymorphic transitions (β′ → β) in margarine formulations across storage temperature profiles.
• Batch release testing of palm stearin fractions for bakery shortening applications.
• Stability assessment of plant-based butter alternatives under accelerated aging conditions.
• Supporting regulatory submissions requiring SFC data compliant with EU Regulation (EC) No 1924/2006 on nutrition claims.

FAQ

What temperature calibration standards are supported by the PQ001-SFC?

The system is factory-calibrated using NIST-traceable Pt100 sensors and verified against certified reference materials (e.g., paraffin wax standards with known SFC vs. temperature profiles). Users may perform field recalibration using the included ice-water slurry and glycerol reference points.
Can the PQ001-SFC be integrated into an automated production line?

While designed primarily for lab-based QC, optional Ethernet/IP and Modbus TCP interfaces enable integration with MES/SCADA systems for semi-automated batch reporting; full inline deployment requires custom engineering consultation.
Is method validation documentation available for pharmaceutical-grade applications?

Yes—NIUMAG provides IQ/OQ documentation packages and assists with PQ execution per USP Analytical Instrument Qualification framework upon request.
How frequently does the permanent magnet require re-shimming?

Under normal laboratory conditions (stable ambient temperature ±2 °C), no manual shimming is required for ≥12 months; automated dynamic shimming occurs during each startup sequence.
Does the system meet electromagnetic compatibility (EMC) requirements for CE marking?

Yes—the PQ001-SFC complies with EN 61326-1:2013 (Laboratory equipment EMC) and EN 61000-6-3:2011 (Emission limits), with full CE Declaration of Conformity supplied with shipment.
