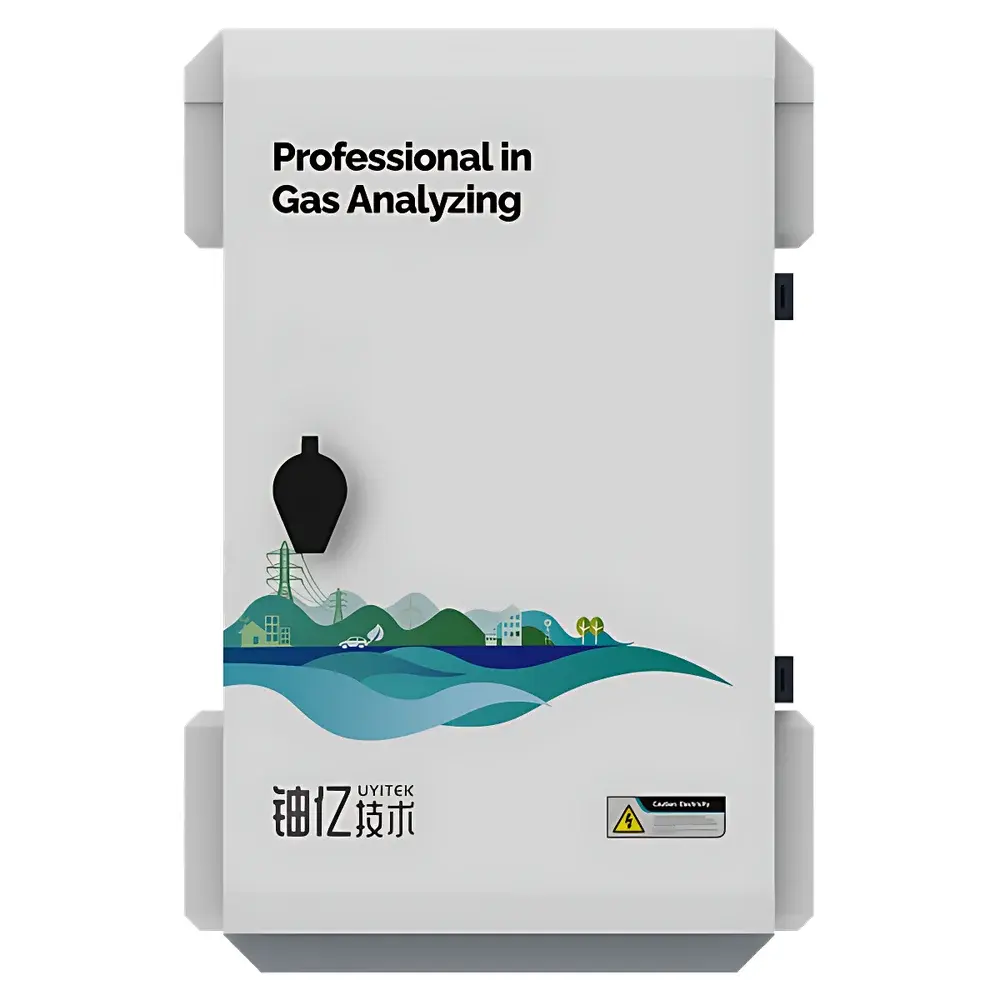

ONUEE UYI-U800 Online Gas Analyzer

Overview

The ONUEE UYI-U800 Online Gas Analyzer is an industrial-grade, multi-channel continuous emission monitoring system engineered for reliable, real-time gas concentration measurement in demanding process environments. It integrates multiple detection technologies—including Non-Dispersive Infrared (NDIR), Laser Gas Detection (LGD), electrochemical, thermal conductivity, and thin-film sensor principles—within a unified platform to support simultaneous analysis of key process and safety-critical gases such as methane (CH₄), carbon dioxide (CO₂), oxygen (O₂), hydrogen sulfide (H₂S), hydrogen (H₂), and carbon monoxide (CO). Designed for long-term field deployment, the UYI-U800 employs robust signal conditioning, temperature-compensated sensing elements, and active flow control to ensure high reproducibility and minimal drift across extended operational cycles. Its modular architecture enables flexible configuration for single-point verification or distributed multi-point monitoring across pipelines, biogas reactors, flare stacks, landfill gas collection systems, and chemical synthesis units.

Key Features

• Multi-technology sensor integration: NDIR for CH₄/CO₂, electrochemical cells for H₂S/CO/O₂, thermal conductivity for H₂, and LGD for high-selectivity trace gas detection
• Configurable 1–8 independent measurement channels with programmable sampling sequence and dwell time
• Intelligent sampling control: selectable continuous, intermittent, point-scan, or cyclic multi-point acquisition modes
• Industrial 7-inch capacitive touchscreen interface with intuitive navigation, real-time trend visualization, and local data logging (up to 30 days at 1-min intervals)
• Integrated active diaphragm pump with precision mass flow controller (500 mL/min nominal, ±5% stability)
• Optional sample conditioning package: heated line, particulate filtration (replaceable fiber cartridge), condensate trap, and thermoelectric cooler for dew point management
• Self-diagnostic subsystem continuously monitors sensor health, power integrity, flow status, and calibration validity; alerts via on-screen icon and relay output
• Expandable connectivity: optional DTU module supporting LTE-M/NB-IoT for cloud-based telemetry, remote firmware updates, and centralized fleet management

Sample Compatibility & Compliance

The UYI-U800 is validated for use with ambient, humid, and mildly corrosive process streams containing particulates up to ISO 8573-1 Class 4. Sample gas compatibility includes hydrocarbon-rich biogas, syngas, flue gas, fermentation off-gas, and refinery vent streams. All flameproof configurations comply with IEC 60079-1 (Explosion-proof “d” enclosure) and carry Ex d IIC T6 Gb certification for Group IIC gas atmospheres (e.g., hydrogen, acetylene) with surface temperature ≤85 °C. Non-flameproof variants meet IP65 ingress protection per IEC 60529. The analyzer supports audit-ready operation under GLP and GMP-aligned workflows, with optional 21 CFR Part 11-compliant software modules enabling electronic signatures, user access levels, and immutable audit trails for calibration and alarm events.

Software & Data Management

Embedded firmware provides full local control without PC dependency. Configuration, calibration, and alarm thresholds are managed via the touchscreen UI or remotely via Modbus RTU over RS485. Data export supports CSV via USB port or automated push to SCADA/DCS systems using standard 4–20 mA current loops (HART-enabled upon request). Optional ONUEE CloudLink™ software enables secure TLS-encrypted data ingestion, customizable dashboarding, threshold-based SMS/email notifications, and historical correlation analysis across multiple analyzers. Calibration logs, zero/span history, and diagnostic reports are timestamped and exportable for regulatory submission (e.g., EPA Method 21, EN 15267).

Applications

• Biogas upgrading plants: real-time CH₄/CO₂/O₂ ratio monitoring for membrane separation and PSA optimization
• Landfill and wastewater treatment facilities: H₂S and CH₄ leak detection, flare efficiency verification, and odor control compliance
• Chemical manufacturing: reactor headspace analysis for H₂, CO, and O₂ during catalytic hydrogenation or oxidation steps
• Power generation: combustion air/fuel ratio tuning via O₂ and CO measurement in boiler feed lines
• Mine ventilation systems: continuous O₂ depletion and CH₄ accumulation surveillance per MSHA and DGMS requirements
• Hydrogen production & storage: purity verification (H₂ >99.99%) and trace impurity screening (CO, H₂O, O₂)

FAQ

What gas detection principles does the UYI-U800 employ?
It utilizes NDIR for CH₄ and CO₂; electrochemical sensors for O₂, H₂S, and CO; thermal conductivity for H₂; and tunable diode laser absorption spectroscopy (TDLAS) for high-precision, cross-interference-free detection where specified.
Can the UYI-U800 operate in hazardous areas?
Yes—when equipped with the Ex d IIC T6 flameproof cabinet, it is certified for installation in Zone 1 and Zone 2 classified locations per IEC 60079-0 and IEC 60079-1.
Is third-party calibration validation supported?
Yes—the device accepts certified span gas challenges and maintains a traceable calibration log with operator ID, date/time stamp, and before/after deviation metrics, compliant with ISO/IEC 17025 documentation practices.
How is maintenance handled for field-deployed units?
The fiber filter cartridge is user-replaceable; sensor modules are hot-swappable with plug-and-play connectors; firmware updates can be performed remotely or via USB; and predictive diagnostics flag potential degradation prior to performance drift.
Does the analyzer support integration with existing DCS or MES platforms?
Yes—via native Modbus RTU over RS485 or 4–20 mA analog outputs with HART option; OPC UA gateway integration is available through ONUEE’s industrial middleware suite.
