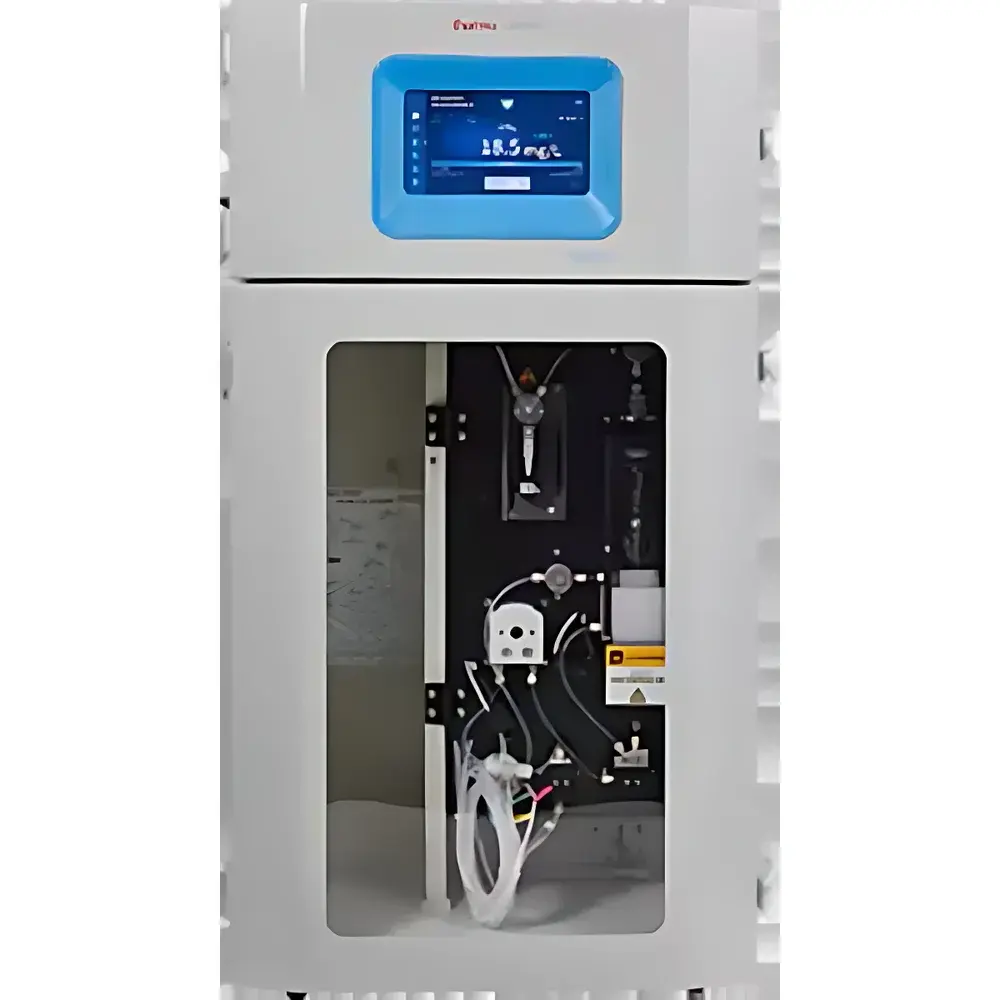

Orion 8006cX COD Online Analyzer (Domestically Manufactured Version)

Overview

The Orion 8006cX COD Online Analyzer (Domestically Manufactured Version) is a fully automated, spectrophotometric chemical oxygen demand (COD) monitoring system engineered for continuous, unattended operation in municipal wastewater treatment plants, industrial effluent discharge points, and environmental regulatory compliance stations. It implements the dichromate digestion method standardized in HJ/T 399–2007 and HJ 377–2019—China’s nationally mandated protocols for COD determination in aqueous matrices. The analyzer operates on a closed-loop flow cell principle, where samples undergo controlled high-temperature acidic digestion with potassium dichromate and sulfuric acid, followed by photometric quantification of the reduced Cr(III) at 600 nm. Its dual-range capability (0–1000 mg/L and 1000–5000 mg/L) enables precise low-concentration detection while maintaining linearity and repeatability across highly variable influent and effluent streams. Designed to meet the stringent data integrity and audit readiness requirements of China’s Ministry of Ecology and Environment (MEE), the system conforms to HJ 35X–2019 for online water quality analyzers—including mandatory data logging, remote diagnostics, and calibration traceability.

Key Features

• Automated multi-stage operational sequence: auto-sampling, auto-digestion, auto-calibration, auto-verification, and auto-range switching—minimizing manual intervention and operator dependency.
• Integrated 7-inch color TFT touchscreen with intuitive, icon-driven navigation menus; supports multilingual UI (English/Chinese) and real-time status visualization.
• Comprehensive alarm architecture: dry-sample, reagent depletion, liquid leakage, optical path obstruction, and temperature deviation alerts—all logged with timestamps and severity classification.
• Physically segregated electrical and wet modules ensure electromagnetic immunity and long-term reliability in harsh industrial environments.
• IP65-rated enclosure with corrosion-resistant housing materials suitable for outdoor or semi-outdoor installation without additional sheltering.
• Proven mechanical endurance: critical fluidic actuators and valve manifolds validated for ≥1.2 million operational cycles under simulated high-suspended-solid conditions—correlating to ≥5 years of continuous service life under typical municipal wastewater loading.

Sample Compatibility & Compliance

The Orion 8006cX is validated for use with raw sewage, secondary effluent, industrial process water, and mixed wastewater streams containing suspended solids up to 1000 mg/L. Its digestion protocol tolerates chloride concentrations up to 5000 mg/L without requiring pretreatment or masking agents—addressing a key limitation of conventional COD analyzers in coastal or saline-influenced discharge sites. All measurement outputs comply with HJ 35X–2019 requirements for data acquisition frequency (minimum 1-hour interval), storage duration (≥90 days), and electronic signature support. The system supports CCEP (China Environmental Protection Product Certification) documentation packages required for MEE registration and third-party verification audits. While not FDA 21 CFR Part 11 certified (as it is not deployed in pharmaceutical manufacturing), its audit trail functionality—including user login logs, parameter change history, and calibration event records—aligns with GLP-aligned data governance principles.

Software & Data Management

The embedded firmware provides local data storage (≥10,000 measurement records) with timestamped metadata (sample ID, reagent lot, digestion temperature, absorbance values). Communication interfaces include RS485 (Modbus RTU), 4–20 mA analog output (isolated), and optional Ethernet TCP/IP for integration into SCADA, DCS, or cloud-based EMS platforms. Remote configuration and firmware updates are supported via secure SSH or HTTPS sessions. All calibration and validation events generate digitally signed reports compliant with HJ 35X–2019 Annex D formatting. No proprietary cloud subscription is required; data export is supported via USB mass storage or CSV over serial.

Applications

• Real-time monitoring of influent and effluent COD at municipal wastewater treatment plants for process optimization and regulatory reporting.
• Continuous discharge compliance verification at textile, electroplating, food processing, and petrochemical facilities subject to local environmental permits.
• Performance evaluation of biological treatment units (e.g., activated sludge, MBR) through trending of COD removal efficiency.
• Early-warning detection of shock loads or upstream contamination events in combined sewer systems.
• Supporting ISO 14001 environmental management system documentation through automated, auditable measurement records.

FAQ

Is this instrument certified for official regulatory reporting in China?
Yes—the Orion 8006cX (Domestically Manufactured Version) holds CCEP certification and meets all technical and data integrity requirements specified in HJ 35X–2019.
Does the system require external cooling or air conditioning?
No—its thermal management subsystem maintains digestion temperature stability (165 ± 1 °C) across ambient operating ranges of 5–40 °C without auxiliary climate control.
Can reagent formulas be independently verified or reproduced?
Yes—the reagent composition is publicly disclosed per manufacturer documentation, enabling third-party verification and compatibility with alternative supply chains.
What maintenance intervals are recommended for routine operation?
Reagent replacement every 30 days (based on 1-hr sampling cycle), quartz flow cell cleaning every 7 days, and full system verification every 30 days—automatically scheduled and prompted via the HMI.
Is remote diagnostic support available outside business hours?
Yes—integrated Modbus diagnostics and error-code mapping allow qualified field engineers to perform root-cause analysis remotely using standard industrial communication tools.
