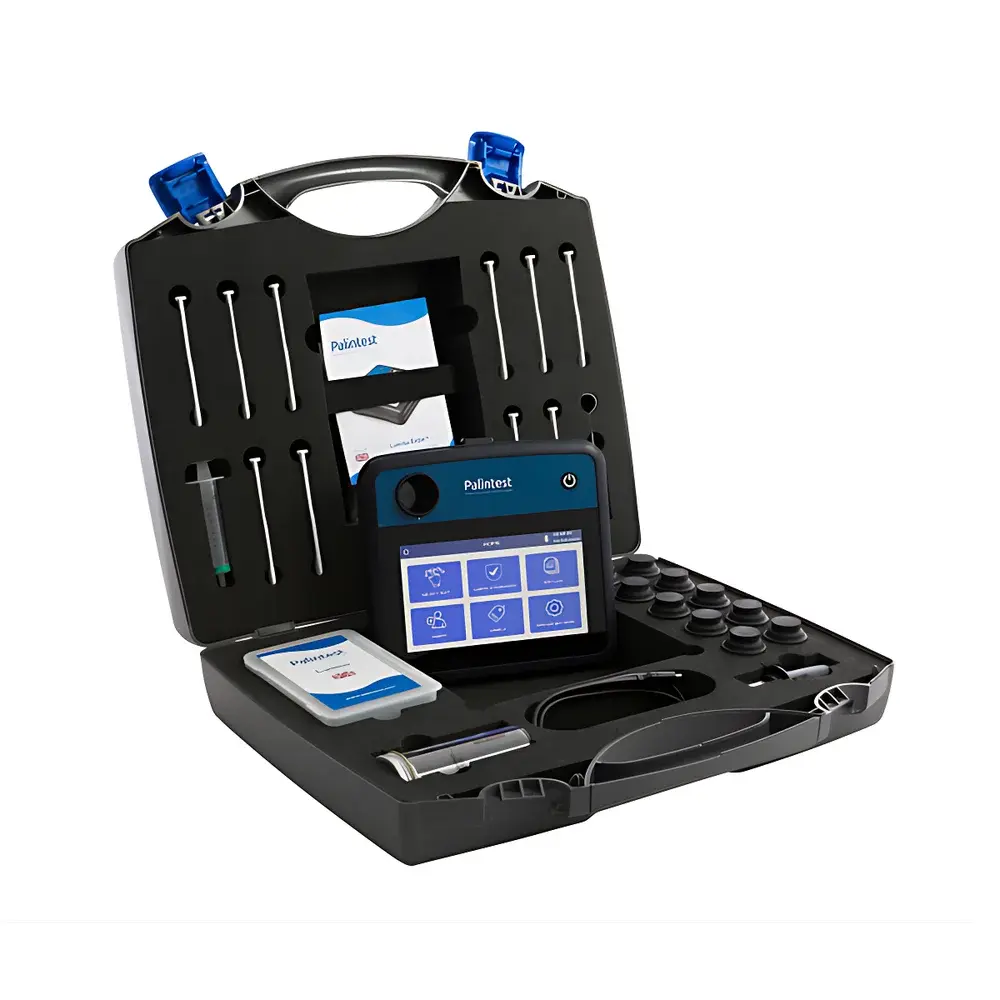

Palintest Lumiso Expert Portable Multi-Parameter Spectrophotometer
| Brand | Palintest |
|---|---|
| Origin | United Kingdom |
| Model | Lumiso Expert |
| Protection Rating | IP67 |
| Wavelengths | 430 nm, 465 nm, 530 nm, 575 nm, 620 nm (auto-selected per method) |
| Display | 16:9 full-color touchscreen, 800 × 480 px resolution |
| Photometric Accuracy | ±1% T |
| Wavelength Accuracy | ±2 nm |
| Memory Capacity | 1000 test records with timestamp, sample ID, operator info, dilution factor, and method metadata |
| Preloaded Calibration Curves | >100 (for chlorine, COD, ammonia-N, total phosphorus, total nitrogen, hardness, color, heavy metals, etc.) |
| Cuvette Compatibility | 12 mm and 25 mm round glass or plastic cuvettes |
| Power Supply | 6 × AA batteries (≈5000 measurements per charge) or AC adapter |
| Data Interface | Waterproof USB port compliant with USB 2.0 |
| Operating Languages | English, Chinese, Spanish, French, German, Portuguese |
| Compliance | Designed to support ISO 7027, ISO 8466-1, ASTM D1253, EPA 365.2, USP <643>, and EN ISO 6226 for photometric water analysis methods |
Overview
The Palintest Lumiso Expert is a field-deployable, multi-parameter spectrophotometer engineered for high-reliability quantitative analysis of drinking water, wastewater, industrial process streams, and environmental surface waters. Built upon Palintest’s legacy as the inventor of the DPD (N,N-diethyl-p-phenylenediamine) method for free and total chlorine determination, the Lumiso Expert integrates a precision optical bench with solid-state LED sources and interference-filtered detection across five fixed wavelengths (430, 465, 530, 575, and 620 nm). Each wavelength is automatically selected based on the selected analytical method—ensuring optimal spectral match for photometric assays including colorimetric, enzymatic, and redox-based reactions. Its optical architecture follows Beer–Lambert law principles with calibrated transmittance linearity from 0–100%T and photometric repeatability ≤±1%T—critical for regulatory-grade compliance in routine monitoring applications governed by ISO, EPA, and WHO guidelines.
Key Features
- IP67-rated enclosure: Fully sealed against dust ingress and submersion up to 1 m for 30 minutes—validated for operation in humid, outdoor, or splash-prone environments including wastewater treatment plants and field sampling sites.
- 16:9 full-color capacitive touchscreen (800 × 480 px): Glove-compatible and moisture-tolerant interface with intuitive icon-driven navigation; supports multi-language UI (English, Chinese, Spanish, French, German, Portuguese) and customizable date formats, units, and operator profiles.
- Integrated method library: Over 100 pre-validated calibration curves embedded in firmware—including EPA-compliant protocols for COD (closed reflux), ammonia-N (salicylate), total phosphorus (ascorbic acid reduction), total nitrogen (persulfate digestion), chromium(VI), iron, copper, nitrate, fluoride, and residual disinfectants (free/total chlorine, chlorine dioxide, ozone).
- Dual-cuvette compatibility: Accepts standard 12 mm and 25 mm round-format glass or disposable plastic cuvettes—enabling seamless transition between low-volume field testing and higher-precision lab workflows.
- Battery endurance: 6 × AA alkaline cells deliver ≥5000 measurements per set under typical usage; optional AC adapter enables continuous benchtop operation during QA/QC verification or training sessions.
Sample Compatibility & Compliance
The Lumiso Expert is validated for use with Palintest’s CE-marked reagent kits (e.g., Chlorine DPD, COD HR/LR, Ammonia Salicylate, PhosVer 3) and third-party ISO 8466-1–compliant standards. It meets mechanical and electrical safety requirements per IEC 61010-1:2010 and electromagnetic compatibility per EN 61326-1:2013. Its optical performance aligns with ISO 7027 for turbidity measurement and ASTM D1253 for residual chlorine—making it suitable for audits under ISO/IEC 17025, GLP, and municipal water utility QA programs. The device supports traceable calibration through NIST-traceable reference standards included in the LMCEXP calibration verification kit (certified per UKAS ISO/IEC 17025).
Software & Data Management
Data integrity is maintained via audit-trail-capable firmware that logs every measurement with immutable timestamps, operator ID, method version, cuvette ID, dilution ratio, and raw absorbance values. Results are stored locally in non-volatile memory (1000 records) with searchable metadata indexing. Export options include direct USB transfer to Windows/macOS systems using Palintest Data Manager software (v4.2+), or QR-scanned wireless upload to the Palintest Connect mobile application (iOS/Android) for cloud-synced reporting, PDF certificate generation, and LIMS integration via CSV/Excel export. All firmware updates and method revisions are digitally signed and distributed through Palintest’s secure customer portal—ensuring continued alignment with evolving regulatory requirements such as EU Drinking Water Directive (2020/2184) Annex II parameter updates.
Applications
- Drinking water utilities: Routine verification of disinfectant residuals, turbidity, and inorganic contaminants at intake, treatment, and distribution points.
- Environmental monitoring agencies: Field quantification of nutrients (N/P), organic load (COD), and heavy metals in rivers, lakes, and groundwater per national monitoring programs.
- Industrial hygiene labs: On-site assessment of cooling tower water quality (hardness, phosphate, biocide levels) and boiler feedwater chemistry.
- Public health laboratories: Rapid screening of sanitation efficacy in food processing facilities, swimming pools, and healthcare settings per WHO Guidelines for Safe Recreational Water Environments.
- Educational institutions: Teaching core spectrophotometric principles—including calibration curve construction, limit of detection estimation, and matrix interference evaluation—in undergraduate analytical chemistry curricula.
FAQ
Does the Lumiso Expert support custom method development?
Yes—users may import user-defined calibration curves via USB using Palintest Data Manager; however, validation against certified reference materials and documentation per ISO/IEC 17025 Section 7.2.2 is required prior to use in accredited testing.
Is the instrument compatible with EPA Method 365.2 for phosphate analysis?
Yes—the preloaded PhosVer 3 method implements the ascorbic acid–molybdate blue reaction per EPA 365.2, with built-in correction for silicate and arsenate interferences.
Can the device perform kinetic assays or time-resolved measurements?
No—the Lumiso Expert is optimized for endpoint absorbance readings only; it does not support kinetic or scanning-spectrum acquisition modes.
What is the recommended recalibration interval for field use?
Palintest recommends annual verification using the LMCEXP calibration check kit; more frequent checks are advised when operating in extreme ambient temperatures (–10 °C to +50 °C) or after physical shock events.
Are consumables like cuvettes and reagents supplied by Palintest traceable to international standards?
Yes—all Palintest reagent kits carry lot-specific certificates of analysis referencing NIST SRM 1643e (conductivity), NIST SRM 2134 (chlorine), and ERM-CA401 (phosphate); cuvettes are certified for pathlength tolerance ±0.05 mm.
