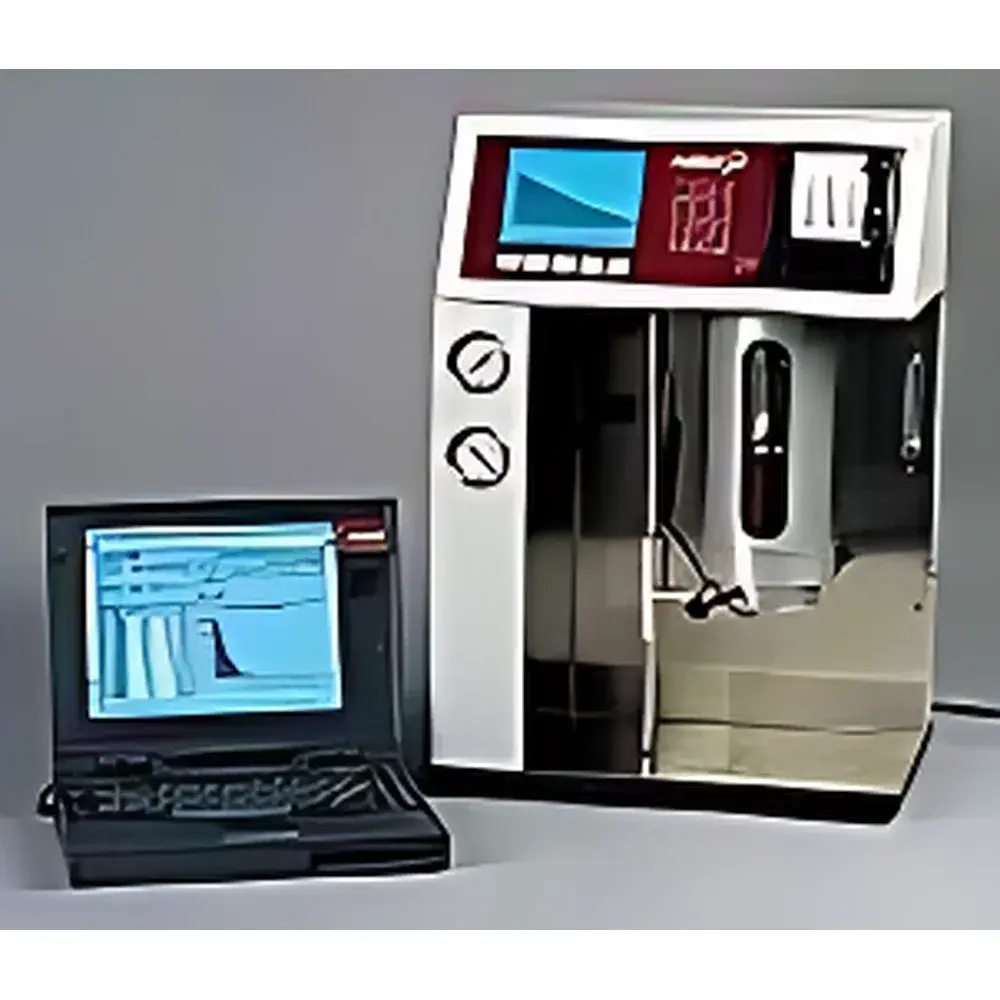

PAMAS SBSS Laboratory Optical Particle Counter

Overview

The PAMAS SBSS Laboratory Optical Particle Counter is a precision-engineered light obscuration (LO) instrument designed for quantitative analysis of solid particulate contamination in liquid media—particularly lubricating oils, hydraulic fluids, polymer solutions, and viscous colloidal systems. Operating on the principle of single-particle optical sensing, the SBSS detects transient reductions in transmitted light intensity as individual particles pass through a precisely defined optical sensing zone. This photometric blockage signal is converted into pulse amplitude, which correlates directly with particle cross-sectional area and—via calibrated transfer functions—to equivalent spherical diameter. The system’s core architecture integrates a custom-fabricated flow cell with high-stability optics and temperature-compensated photodetectors, ensuring minimal signal drift and high inter-laboratory reproducibility. Unlike imaging-based or laser diffraction methods, LO provides direct, real-time, statistically robust counts per size bin without reliance on optical modeling assumptions, making it the de facto standard for fluid cleanliness certification per ISO 4406, NAS 1638, and SAE AS4059.

Key Features

• Dual-standard calibration traceable to both ISO 11171 (for calibration particle suspensions) and ISO 4402 (legacy method), enabling seamless compliance with global fluid maintenance protocols and cross-laboratory data harmonization.
• 32 fully programmable particle size channels, each independently adjustable via digital-to-analog (D/A) threshold control—supporting granular distribution profiling from sub-micron to 800 µm with resolution sufficient for multi-modal contamination fingerprinting.
• Piston-driven volumetric sampling mechanism ensures constant flow rate and exact sample volume delivery (±0.5% repeatability), eliminating variability introduced by peristaltic or syringe-pump inconsistencies.
• Integrated 320×240 backlit graphical LCD display supports real-time histogram visualization, channel-by-channel count accumulation, and on-device statistical summary (e.g., particles/mL per ISO 4406 code bands).
• Built-in 32-column thermal printer enables immediate hard-copy reporting compliant with GLP documentation requirements—no external PC dependency for audit-ready output.
• RS-232C serial interface transmits raw count data in standardized 8-bit ASCII format, facilitating integration into LIMS, CMMS, or custom QA/QC dashboards with minimal protocol overhead.

Sample Compatibility & Compliance

The SBSS accommodates a broad range of Newtonian and mildly non-Newtonian liquids—including mineral and synthetic oils (ISO VG 10–680), glycol-based coolants, ester-based dielectric fluids, and low-concentration polymer solutions (e.g., PIB, PAO blends). Its flow cell geometry and pressure-tolerant design support viscosities up to 150 cSt at 40 °C without dilution or pre-filtration. All measurement procedures align with ASTM D6786 (Standard Test Method for Determining Particle Count Distribution in Hydraulic Fluids), ISO 4406:2017 (Fluid Power — Fluids — Method for Coding the Level of Contamination by Solid Particles), and ISO 11500 (Hydraulic Fluid Power — Determination of Particulate Contamination by Automatic Particle Counters). The dual-calibration architecture satisfies instrument qualification requirements under FDA 21 CFR Part 11 when paired with validated software and electronic audit trails.

Software & Data Management

While the SBSS operates autonomously via its embedded microprocessor and front-panel interface, optional PAMAS WinControl software (Windows-based) extends functionality to automated multi-sample sequencing, statistical trend analysis (e.g., wear debris progression tracking), and customizable report generation—including ISO 4406, NAS 1638, and user-defined severity bands. Data files are stored in CSV and XML formats, preserving full metadata (timestamp, operator ID, calibration ID, sensor status flags) to meet ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) principles. Firmware updates maintain compatibility with evolving regulatory expectations for electronic records retention and integrity verification.

Applications

• Condition monitoring of turbine, gearbox, and hydraulic system oils in power generation, aerospace, and marine sectors.
• Quality release testing of new oil batches and in-service fluid life extension validation.
• Validation of filtration efficiency (e.g., beta-ratio testing per ISO 16889) and filter integrity assessment.
• Research into particle generation mechanisms during tribological wear, oxidation-induced sludge formation, or additive depletion kinetics.
• Supporting ISO 17025-accredited laboratories in delivering accredited particle count reports for third-party certification.

FAQ

What calibration standards does the SBSS support?
The SBSS is factory-calibrated using NIST-traceable ISO 11171 reference materials and retains full backward compatibility with ISO 4402 calibration curves—enabling direct comparison with historical datasets and legacy instruments.
Can the SBSS analyze opaque or highly colored fluids?
Yes—its high-intensity LED source and optimized optical path permit reliable counting in dark mineral oils and dyed hydraulic fluids, provided optical transmission exceeds ~10% at 850 nm. For severely opaque samples, dilution with clean solvent may be required per ISO 4402 Annex B.
Is the SBSS compliant with FDA 21 CFR Part 11?
The standalone instrument meets hardware-level requirements; full Part 11 compliance is achieved when used with validated WinControl software, electronic signatures, and audit-trail-enabled data archiving protocols.
How is sample volume accuracy ensured?
Via a servo-controlled, pressure-regulated piston actuator that delivers programmed volumes (e.g., 5 mL, 10 mL, 25 mL) with ±0.5% volumetric repeatability—verified per ISO 11171 Annex D.
Does the SBSS require annual recalibration?
Annual verification against primary reference standards is recommended per ISO/IEC 17025 Clause 6.5.2; full recalibration is required only after sensor replacement, major repair, or documented performance deviation exceeding ±5% of assigned size thresholds.
