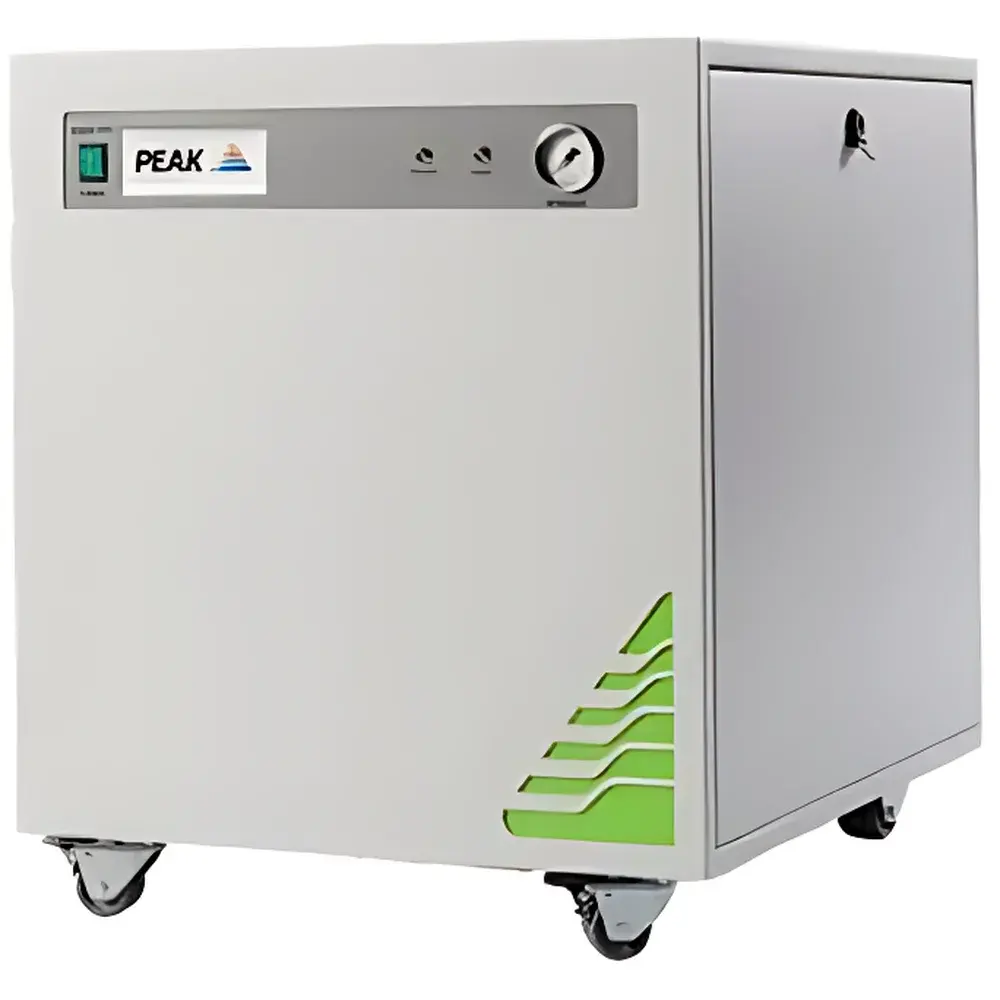

Peak Scientific Genius 1022 Nitrogen Generator for Thermo Scientific Q Exactive Mass Spectrometers

Overview

The Peak Scientific Genius 1022 Nitrogen Generator is an engineered-on-demand gas supply system specifically optimized for high-pressure nitrogen requirements of modern LC-MS platforms—including the Thermo Scientific™ Q Exactive™ series mass spectrometers and Shimadzu Nexera™ LC-MS systems. Utilizing proprietary hollow-fiber membrane separation technology, the Genius 1022 extracts high-purity nitrogen from compressed ambient air by selectively permeating oxygen, water vapor, and other trace gases through semi-permeable polymeric membranes, while retaining nitrogen molecules for delivery to the instrument. This physical separation method eliminates consumables such as cylinders or chemical scrubbers, ensuring continuous, stable, and contamination-free nitrogen supply at precisely regulated pressure and flow—critical for electrospray ionization (ESI) and heated electrospray ionization (HESI) source operation. Designed with integrated oil-free scroll compression and acoustic isolation housing, the system delivers robust performance in shared laboratory environments without compromising analytical stability or operator comfort.

Key Features

• Integrated oil-free scroll compressor with vibration-dampened mounting and acoustic enclosure—reducing operational noise to ≤54 dBA
• On-demand gas generation: starts/stops automatically based on instrument demand signals or user-defined schedules, minimizing energy consumption
• Front-panel digital interface with real-time display of output pressure, flow rate, purity status, and maintenance countdown timers
• Intelligent predictive maintenance alerts: system monitors compressor runtime, filter saturation, and membrane performance to trigger service notifications prior to degradation
• Industrial-grade casters and ergonomic handle design enable safe, tool-free relocation within lab spaces—even across level thresholds
• Compact footprint (713 × 600 × 750 mm) accommodates under-bench or adjacent-instrument placement without obstructing workflow pathways
• Compliant with IEC 61000-6-3 (EMC emission standards) and IEC 61000-6-2 (immunity), supporting integration into regulated analytical environments

Sample Compatibility & Compliance

The Genius 1022 is validated for continuous use with Thermo Scientific Q Exactive HF-X, Q Exactive Plus, and Q Exactive GC mass spectrometers—meeting the minimum inlet pressure specification (≥100 psi) and flow stability requirements (<±2% variation over 24 h) mandated by Thermo’s LC-MS interface documentation. It also supports Shimadzu LCMS-8060 and LCMS-8050 systems requiring ≥110 psi nitrogen for desolvation gas. All wetted materials—including stainless-steel regulators, EPDM-free fluoropolymer tubing, and medical-grade membrane modules—comply with USP Class VI and ISO 10993-5 biocompatibility standards. The generator conforms to CE marking directives (2014/30/EU EMC, 2014/35/EU LVD) and carries UKCA certification for post-Brexit regulatory alignment. Optional IQ/OQ documentation packages are available to support GLP, GMP, and FDA 21 CFR Part 11-compliant validation protocols.

Software & Data Management

While the Genius 1022 operates as a standalone hardware unit, its embedded microcontroller logs operational parameters—including cumulative runtime, compressor cycles, filter life index, and dew point history—for local diagnostics via USB export. For laboratories implementing centralized gas infrastructure monitoring, Peak Scientific provides optional Ethernet-enabled remote management modules (Genius Connect™) that integrate with LabVantage, STARLIMS, or custom SCADA platforms via Modbus TCP/IP. Audit trails include timestamped event logging for pressure excursions, power interruptions, and maintenance interventions—fully traceable for internal quality audits or regulatory inspections. All firmware updates are digitally signed and delivered through secure HTTPS channels to maintain integrity per NIST SP 800-53 controls.

Applications

• LC-MS nitrogen supply for ESI/HESI source gas, sheath gas, and curtain gas in proteomics, metabolomics, and small-molecule quantitation workflows
• GC-MS auxiliary nitrogen for make-up gas in electron capture detection (ECD) and nitrogen-phosphorus detection (NPD)
• FTIR purge gas for moisture-sensitive optical compartments
• Blanketing gas in sample preparation stations handling air-sensitive reagents or standards
• Instrument purging during overnight shutdown to prevent condensation in vacuum manifolds and ion optics

FAQ

Is the Genius 1022 compatible with Thermo Q Exactive instruments requiring >110 psi nitrogen inlet pressure?
Yes—the system delivers up to 116 psi (8.0 bar) at 32 L/min, exceeding the minimum 110 psi requirement specified in Thermo’s Q Exactive installation manuals.
Does the generator require external compressed air?
No—it features a fully integrated oil-free scroll compressor; no external air supply or third-party compressor is needed.
What maintenance intervals are recommended?
Pre-filters require replacement every 6 months under typical lab conditions; main membrane modules are rated for ≥20,000 hours of continuous operation and monitored via onboard diagnostics.
Can output purity be verified in-house?
Yes—integrated electrochemical oxygen sensors provide continuous purity feedback; optional calibrated O₂ analyzers (e.g., Servomex 4100) can be connected for periodic verification per ISO 8573-1 Class 2 compliance.
Is remote monitoring supported out-of-the-box?
Standard units operate autonomously; Ethernet-based remote monitoring requires the optional Genius Connect™ module and configuration via Peak’s WebConfig utility.
