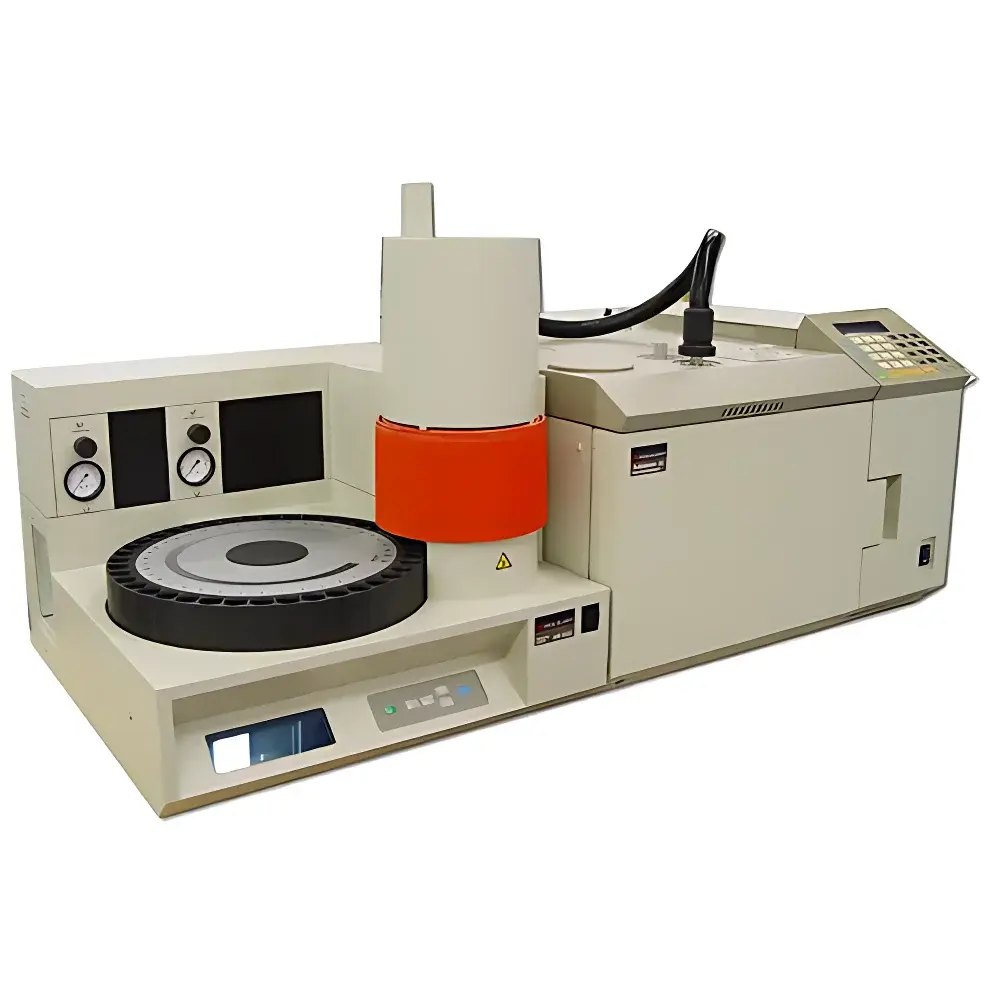

PerkinElmer AutoSystem GC with PerkinElmer Model 40 Headspace Sampler

Overview

The PerkinElmer AutoSystem GC coupled with the PerkinElmer Model 40 Headspace Sampler constitutes a fully integrated, gas chromatography-based volatile organic compound (VOC) analysis platform engineered for reproducible, high-throughput headspace analysis. This system operates on the principle of equilibrium headspace sampling—where a sealed sample vial is heated to establish vapor-phase equilibrium between the liquid/solid matrix and the headspace gas, followed by automated transfer of the equilibrated vapor into the GC injection port via pressurized gas displacement. Designed originally for regulated laboratory environments—including environmental testing labs, pharmaceutical QC, and forensic toxicology—the AutoSystem GC provides robust temperature-programmed separation capability, while the Model 40 delivers precise thermal control, programmable incubation timing, and validated syringe-based sample introduction. This refurbished unit has undergone comprehensive functional verification including leak testing, detector response calibration (FID or TCD, depending on original configuration), oven temperature ramp linearity assessment, and headspace vial pressurization integrity checks.

Key Features

• Fully refurbished PerkinElmer AutoSystem Gas Chromatograph with original firmware and hardware architecture compliant with late-1990s–early-2000s PerkinElmer GC control standards
• PerkinElmer Model 40 Headspace Sampler featuring dual-zone temperature control (incubation oven and transfer line), adjustable vial pressurization (0–30 psi), and programmable equilibration time (0.1–99.9 min)
• Integrated pneumatic control system enabling repeatable, pressure-controlled vapor transfer with minimal carryover
• Compatible with standard 10–22 mL headspace vials and crimp-cap or screw-cap sealing formats
• Refurbishment includes replacement of critical wear components: septa, capillary column ferrules, detector jets (if FID-equipped), and GC inlet liners
• Factory-aligned baseline stability and retention time reproducibility verified per ASTM D3699 and ISO 11339 headspace method prerequisites

Sample Compatibility & Compliance

This system supports aqueous, semi-solid, and solid-phase samples requiring VOC quantification without solvent extraction—ideal for residual solvents in pharmaceuticals (per USP & ICH Q3C guidelines), ethanol in blood (forensic applications), and BTEX compounds in soil/water extracts. The Model 40’s thermal design ensures compliance with EPA Method 502.2, 524.2, and 8260B requirements when operated with appropriate column selection and detector configuration. All refurbished units are documented with a Certificate of Refurbishment detailing replaced parts, calibration records, and performance validation data. While not supplied with current 21 CFR Part 11-compliant software, the hardware architecture permits integration with modern LIMS-compatible data systems via analog/digital I/O or RS-232 interfaces.

Software & Data Management

The AutoSystem GC operates using PerkinElmer TurboMass Classic or TotalChrom v6.x software (license not included; compatible versions provided upon request). Data acquisition supports peak integration, retention time locking, and multi-level calibration curve generation. Audit trails are maintained manually via printed run logs or exported ASCII reports. For GLP/GMP environments, users may implement supplementary electronic record controls through third-party middleware or validated instrument interface modules. System diagnostics—including inlet pressure monitoring, detector signal-to-noise verification, and oven temperature deviation logging—are accessible via front-panel menus and service mode protocols.

Applications

• Residual solvent analysis in active pharmaceutical ingredients (APIs) and final drug products per ICH Q3C
• Alcohol quantification in biological matrices (e.g., whole blood, urine) for clinical and forensic toxicology
• Volatile impurity profiling in polymers, coatings, and packaging materials
• Environmental monitoring of chlorinated hydrocarbons, gasoline-range organics (GRO), and purgeable halocarbons in groundwater
• Flavor and fragrance compound release kinetics in food and beverage matrices
• Quality control of industrial solvents and cleaning agents for VOC content certification

FAQ

Is this system supplied with a working computer and licensed software?
No—hardware-only delivery is standard. Compatible legacy software (TurboMass Classic or TotalChrom v6.x) can be provided for installation; however, valid PerkinElmer software licenses must be obtained separately.
What detectors were originally installed, and are they included?
Units were typically configured with flame ionization detection (FID); thermal conductivity detection (TCD) variants exist. Detector status and calibration history are confirmed during refurbishment and detailed in the technical report.
Can this system be upgraded to support modern data systems or remote operation?
Yes—RS-232 and analog output ports allow connection to contemporary data acquisition platforms. Integration with LIMS requires custom driver development or use of vendor-neutral middleware such as LabWare or Thermo Fisher SampleManager.
Does the 6-month warranty cover labor and parts globally?
Warranty covers functional defects in materials and workmanship for 6 months from shipment date. On-site service is available in North America and Western Europe; international support is coordinated via authorized service partners.
Are consumables and spare parts still available?
Yes—PerkinElmer maintains long-term component availability for the AutoSystem GC and Model 40. Critical spares—including syringe assemblies, vial carriers, and oven insulation kits—are stocked by SpectraLab Scientific and major chromatography distributors.
