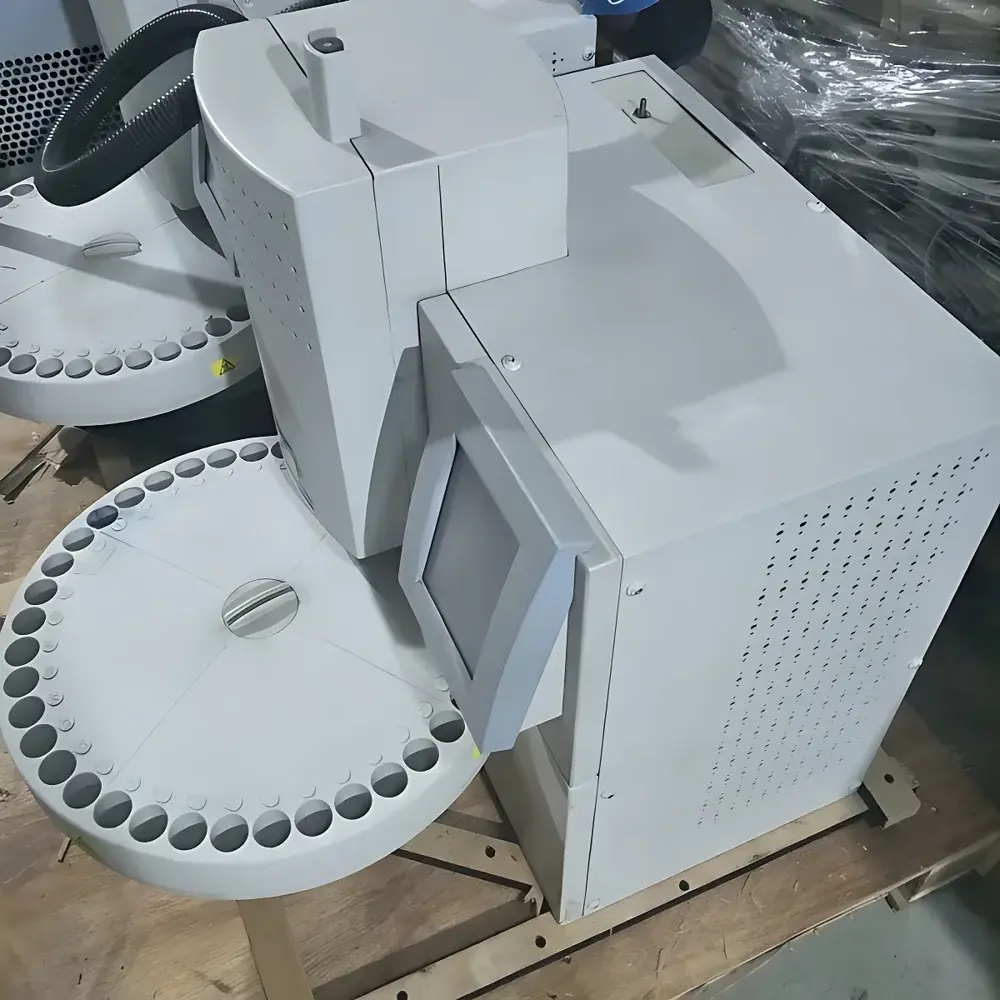

PerkinElmer TurboMatrix 40-Position Automated Headspace Sampler

Overview

The PerkinElmer TurboMatrix 40-Position Automated Headspace Sampler is a high-precision, laboratory-grade static and dynamic headspace sampling system engineered for robust integration with gas chromatography (GC) platforms. It operates on pressure-balanced headspace injection principle—eliminating carrier gas dilution during transfer and ensuring quantitative transfer of volatile organic compounds (VOCs) from the headspace phase directly into the GC column via a fully enclosed, inert capillary transfer line. This design prevents analyte diffusion, preserves peak shape integrity, and delivers high reproducibility (e.g., ≤1.5% RSD for aqueous ethanol at 0.4% w/v). The system supports both conventional static headspace analysis and trap-enriched dynamic headspace workflows, enabling sub-ppb detection limits—validated for benzene quantification in water at 1 ppb level when coupled with appropriate GC–FID or GC–MS configurations.

Key Features

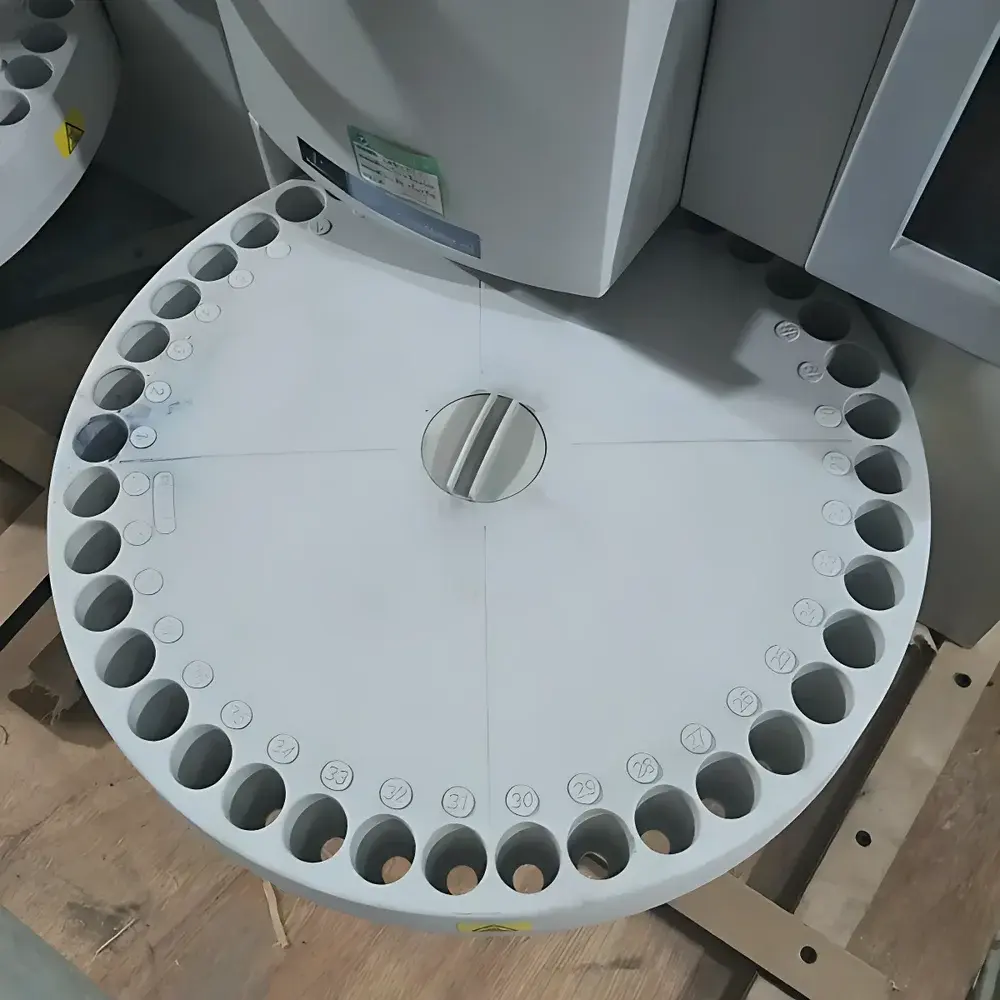

• Fully automated 40-position sample carousel with programmable vial heating (35–210 °C, 1 °C resolution) and independent injection valve temperature control (ambient to 210 °C)
• Pressure-balanced injection mechanism ensures zero carrier gas dilution and minimal band broadening during transfer
• Dual injection volume control modes: time-based and fixed-volume (1 mL quantitative loop standard)
• Three operational modes: standard static headspace, automatic sequential overlapping (up to 12 vials heated concurrently), and multiple headspace extraction (MHE) for trace-level analysis
• Configurable pneumatic control: manual regulator (0–60 psig) or optional Electronic Pressure Control (EPC/PPC) for enhanced method precision and retention time stability
• Touchscreen HMI with graphical interface; firmware supports multilingual display (including English, Chinese, Spanish, German) and method parameter logging

Sample Compatibility & Compliance

The TurboMatrix 40 accommodates standard 10 mL crimp-top headspace vials and is compatible with all major GC systems—including PerkinElmer Clarus, Agilent 7890/8890, Thermo Trace 1300/1600, and Shimadzu GC-2010 series—via universal pressure-tight septumless interface. It meets essential performance criteria outlined in ASTM D3699 (benzene in gasoline), EPA Method 502.2 (VOCs in drinking water), and ISO 15673 (petroleum hydrocarbons in soil extracts). When operated with PerkinElmer’s Chromera CDS or TurboMass software, the system supports audit trail generation, user authentication, and electronic signature functionality aligned with FDA 21 CFR Part 11 requirements for regulated environments. Routine calibration verification follows GLP/GMP-aligned procedures using certified standards (e.g., NIST-traceable VOC mixtures).

Software & Data Management

Instrument control and method development are performed through PerkinElmer’s Chromera Chromatography Data System (CDS) or legacy TurboMass software. These platforms provide full sequence definition, real-time status monitoring, event-triggered diagnostics, and integrated reporting templates compliant with ISO/IEC 17025 documentation standards. Raw data files (.raw or .ch) retain complete acquisition metadata—including vial ID, temperature ramp profiles, pressure setpoints, and injection timing—enabling retrospective reprocessing and forensic data review. Data export options include CSV, PDF, and XML formats for LIMS integration. All software modules support role-based access control and configurable password policies to enforce data governance protocols.

Applications

The TurboMatrix 40 serves critical roles across environmental testing (e.g., VOC screening in groundwater per EPA 524.2), pharmaceutical residual solvent analysis (ICH Q3C-compliant), food and beverage flavor profiling (e.g., ethanol, acetaldehyde, esters), forensic toxicology (blood alcohol quantification), and polymer additive migration studies (e.g., plasticizers, antioxidants). Its trap enrichment capability extends sensitivity for ultra-trace applications such as odorant detection in semiconductor-grade solvents or low-level chlorinated hydrocarbon monitoring in cleanroom wipe samples. The overlapping heating mode improves throughput without compromising thermal equilibration fidelity—particularly valuable in high-volume QC labs performing batch release testing.

FAQ

Is this unit factory-refurbished or third-party refurbished?
This is a pre-owned instrument sold “as-is” by an authorized PerkinElmer distributor; no OEM refurbishment certification is included unless separately specified.
Does it include a GC interface kit?
Yes—the standard delivery includes universal GC interface hardware (septumless transfer line, mounting bracket, and pressure fittings) compatible with most modern GC inlets.
Can it be upgraded to support EPC/PPC?
Yes—electronic pressure control is available as a field-installable option provided the base model includes the required pneumatic manifold and firmware revision (v3.2 or later).
What maintenance records are available?
Previous service logs and calibration certificates may be provided upon request, subject to seller discretion and data retention policy.
Is remote diagnostics supported?
Remote connectivity requires Chromera CDS with network-enabled license and firewall configuration permitting TCP/IP communication on designated ports (default: 50000–50010).
