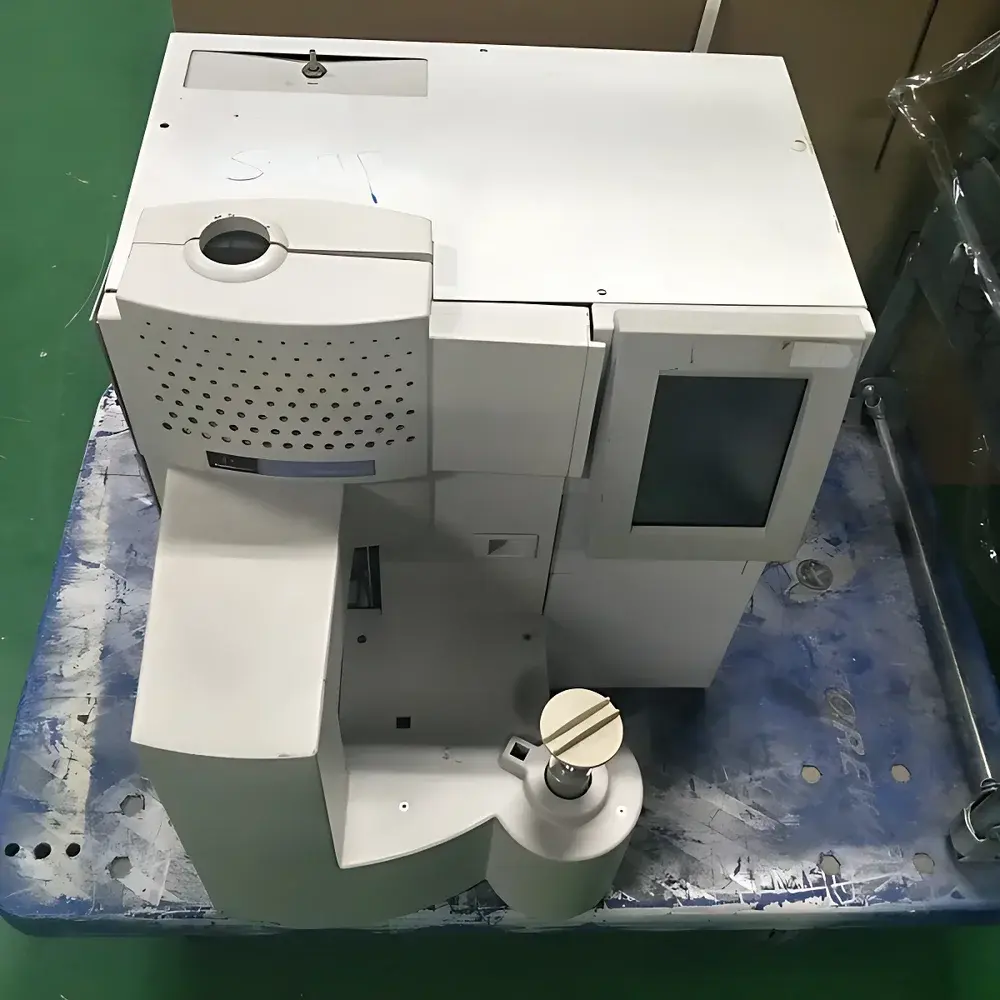

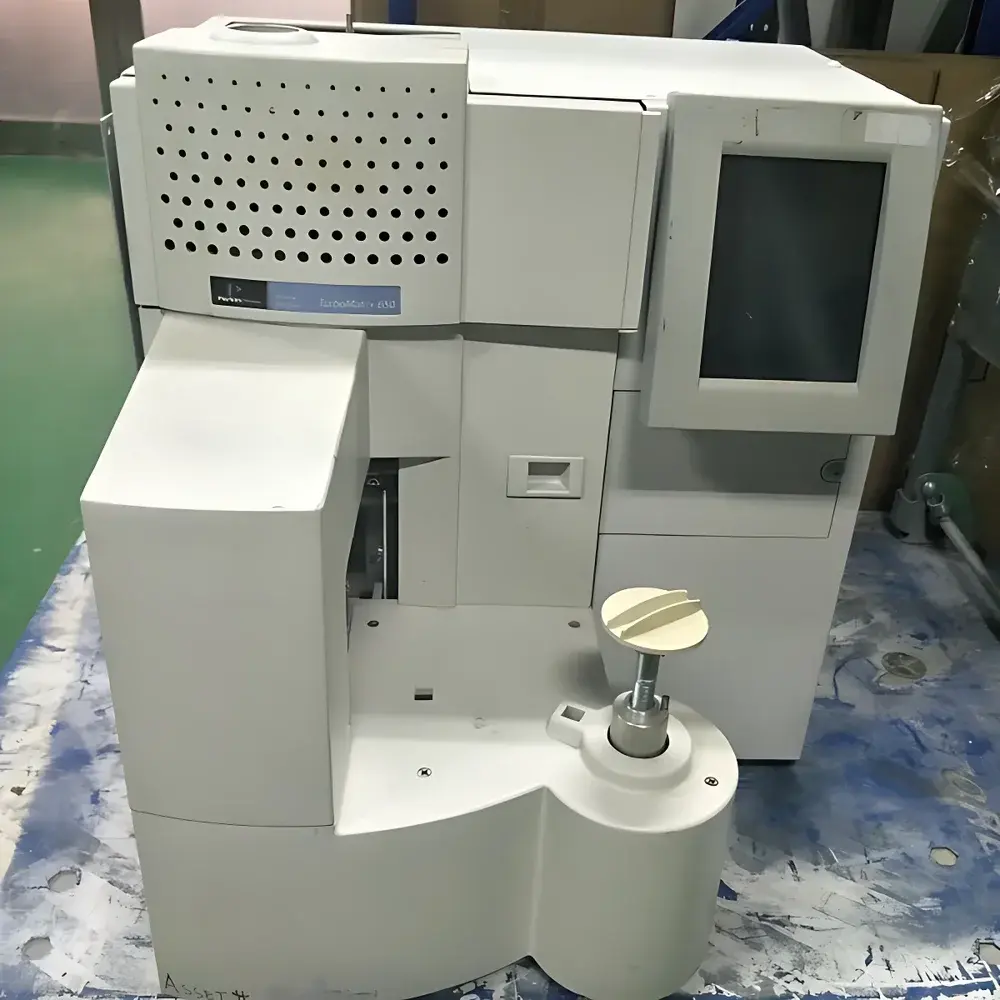

PerkinElmer TurboMatrix 650 ATD Automated Thermal Desorber

Overview

The PerkinElmer TurboMatrix 650 ATD is a dual-stage automated thermal desorber engineered for high-fidelity volatile and semi-volatile organic compound (VOC/SVOC) analysis in environmental, occupational health, and materials testing laboratories. It operates on the principle of thermal desorption—quantitatively releasing analytes pre-concentrated on sorbent tubes via controlled heating, followed by cryo-focusing in a thermoelectrically cooled trap prior to GC injection. Unlike single-stage systems, the 650 ATD implements a true two-step desorption process: primary desorption from the sample tube at programmable ramp rates and dwell times, followed by rapid transfer and refocusing of analytes in a low-temperature cold trap (down to −30 °C) before sharp, narrow-band elution into the gas chromatograph. This architecture minimizes band broadening, enhances sensitivity (detection limits typically sub-pg), and improves reproducibility across complex matrices such as air, soil headspace, or polymer off-gas.

Key Features

• Dual-stage thermal desorption with independent temperature control for sample tube (ambient–350 °C) and cold trap (−30 °C to 300 °C), enabling precise analyte focusing and peak sharpening.
• Cryogen-free electronic cooling system eliminates dependency on liquid nitrogen or dry ice—reducing operational cost, safety hazards, and logistical constraints.
• Integrated mass flow controllers (MFCs) provide real-time, pressure- and temperature-compensated carrier gas regulation across all pneumatic zones (desorption, purge, trap bake, GC transfer), ensuring method robustness and inter-laboratory transferability.
• Automated sample handling for up to 20 standard 6 mm OD sorbent tubes; compatible with common tube formats including Tenax®, Carbopack™, and multi-bed configurations.
• On-board tube conditioning and blank verification routines support GLP-compliant workflow validation and carryover assessment.
• Graphical color touchscreen interface with intuitive icon-driven navigation; supports method storage, audit trail logging, and user-access level management (operator, supervisor, administrator).

Sample Compatibility & Compliance

The TurboMatrix 650 ATD accommodates a broad spectrum of regulated and non-regulated sampling media, including stainless steel and glass sorbent tubes packed with single- or multi-sorbent beds (e.g., Tenax TA, Carbopack B/C, Carboxen 1000). It meets method requirements for EPA TO-17, ISO 16017-1, ASTM D6196, and EN 14662. Its electronic flow architecture and traceable temperature calibration support compliance with FDA 21 CFR Part 11 when deployed within validated laboratory information management systems (LIMS). All thermal zones are independently calibrated and logged, facilitating IQ/OQ documentation and routine performance qualification per ISO/IEC 17025 guidelines.

Software & Data Management

The instrument operates natively under PerkinElmer’s TurboMass™ or Chromera™ CDS software environments, supporting full method development, sequence definition, real-time monitoring, and automated report generation. Raw data files include complete metadata: tube ID, desorption parameters, MFC setpoints and actuals, temperature profiles, and cold trap status. Audit trails record all user actions—including method edits, run starts/stops, and calibration events—with timestamps and operator IDs. Data export conforms to ASTM E1394 and AIA/ASTM XML standards for interoperability with third-party data review tools and enterprise LIMS platforms.

Applications

• Environmental monitoring: Ambient and indoor air VOC profiling (BTEX, aldehydes, chlorinated solvents) per EPA Method TO-17.
• Occupational hygiene: Workplace exposure assessment using NIOSH and OSHA sorbent tube methods.
• Materials emissions testing: Determination of SVOCs from automotive interiors, building products, and consumer goods per ISO 16000-6 and ASTM D5116.
• Pharmaceutical packaging: Residual solvent and leachable analysis in primary and secondary packaging components.
• Forensic and failure analysis: Identification of volatile degradation products in polymers, adhesives, and electronic encapsulants.

FAQ

Is the TurboMatrix 650 ATD compatible with non-PerkinElmer gas chromatographs?
Yes—it features universal GC interface hardware (standard 1/16″ stainless steel transfer line) and supports analog/digital trigger protocols used by Agilent, Thermo Fisher, Shimadzu, and other major GC platforms.
Does the system support tube reanalysis or sample recovery?
Yes—the electronic flow control architecture enables quantitative sample recovery post-desorption, allowing for confirmatory analysis, alternative detection (e.g., GC-MS vs. GC-FID), or adsorbent mass verification via gravimetric comparison.
What maintenance is required for the thermoelectric cooling module?
No consumables or scheduled replacement parts are required; periodic cleaning of heat sink fins and verification of thermal interface paste integrity (every 12–18 months) is recommended for optimal cooling efficiency.
Can the 650 ATD be integrated into an unattended overnight analysis workflow?
Yes—full sequence automation includes auto-tube indexing, method parameter loading, GC ready-state handshake, and post-run tube ejection, supporting 24/7 operation when paired with compatible GC autosamplers and scheduling software.
