Pfeiffer ACG 600 Dry Vacuum Pump System

Overview

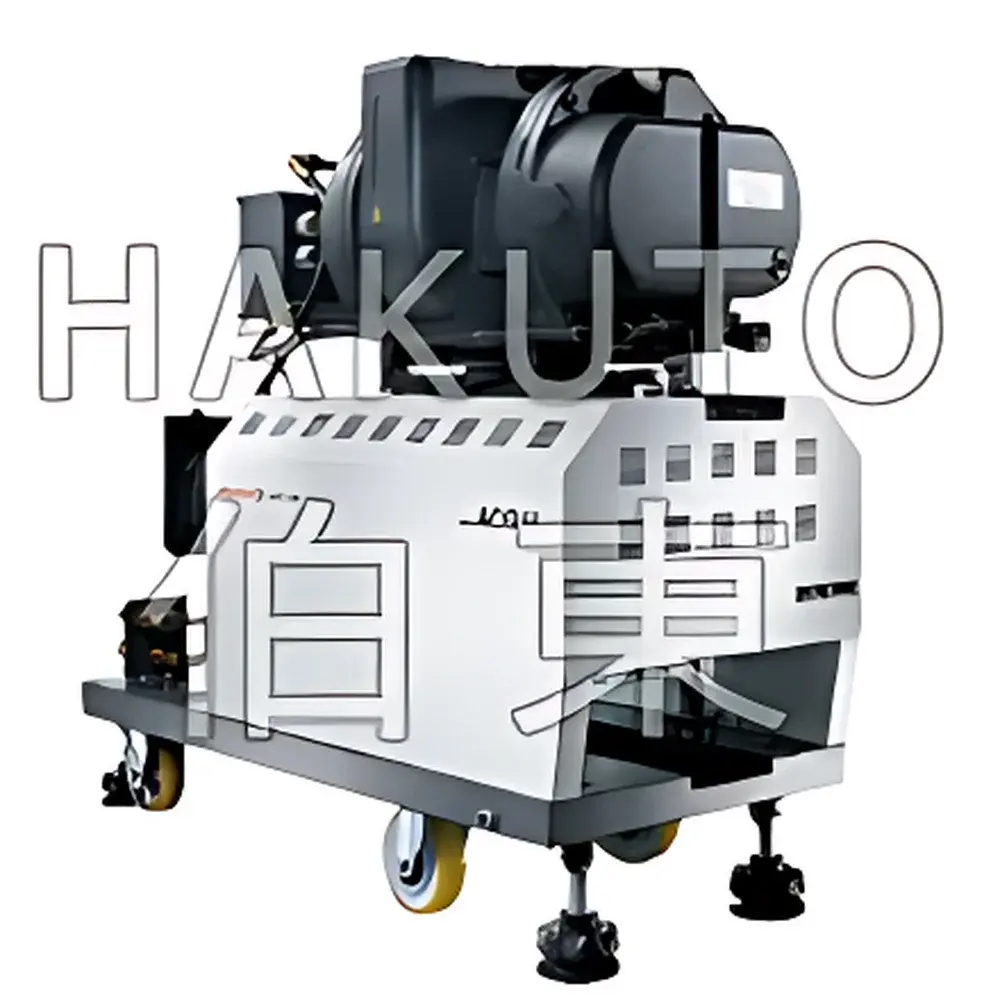

The Pfeiffer ACG 600 G is a high-performance, oil-free multi-stage Roots vacuum pump system engineered for demanding industrial and advanced laboratory applications requiring clean, stable, and contamination-free vacuum environments. Unlike traditional oil-sealed rotary vane or screw pumps, the ACG 600 integrates a dry-running ACP 120 primary pump with a high-capacity multi-stage Roots booster—enabling efficient compression across a wide pressure range (from atmosphere down to <10⁻² hPa). Its dry operation eliminates hydrocarbon backstreaming, particulate generation, and oil-related maintenance, making it ideal as a fore-vacuum pump for turbomolecular or cryogenic high-vacuum systems, as well as a standalone solution for medium-vacuum processes such as thin-film coating, leak detection, freeze-drying, and vacuum degassing. The system features integrated nitrogen purge valves to mitigate condensable or mildly corrosive process gases—enhancing long-term operational stability in reactive or humid environments.

Key Features

• Dry, oil-free operation ensures zero hydrocarbon contamination and eliminates need for oil changes, filters, or vapor traps.
• Multi-stage Roots architecture delivers high volumetric throughput (up to 560 m³/h at 60 Hz) with low power consumption (2.2 kW motor) and high energy efficiency.
• Integrated N₂ purge valve enables safe handling of condensable vapors (e.g., water, solvents) and mild corrosives (e.g., HCl, Cl₂ traces), extending service intervals.
• Robust cast-iron housing and precision-machined rotors provide mechanical stability, low vibration, and acoustic performance rated at ≤68 dB(A).
• Water-cooled design maintains thermal equilibrium under continuous duty; compatible with standard lab or facility cooling loops (max. 5 L/min flow).
• CE-marked and manufactured under ISO 9001 quality management—designed for 24/7 operation in GLP-compliant R&D labs and production-grade vacuum systems.

Sample Compatibility & Compliance

The ACG 600 G is compatible with non-aggressive, non-explosive gas loads typical in physical vapor deposition (PVD), optical coating, vacuum impregnation, and analytical instrument fore-vacuum support. It tolerates transient exposure to water vapor and light organic condensables when operated with active N₂ purging. While not rated for Class I Div 1 hazardous areas or highly aggressive halogenated chemistry, optional corrosion-resistant coatings (e.g., nickel-plated rotors) are available upon request for enhanced durability. The system conforms to EU Machinery Directive 2006/42/EC, Electromagnetic Compatibility Directive 2014/30/EU, and RoHS 2011/65/EU. Its control interface supports integration into centralized vacuum management systems compliant with ISA-88 and FDA 21 CFR Part 11 audit-trail requirements when paired with certified SCADA software.

Software & Data Management

The ACG 600 G operates via an integrated digital controller with RS-485 Modbus RTU and optional Ethernet/IP interface. Real-time monitoring includes inlet pressure (via optional Pirani or capacitance manometer input), motor current, coolant flow status, temperature sensors (stator, bearing, coolant), and purge valve actuation state. Logged operational data—including runtime hours, thermal cycles, and fault history—is stored onboard for ≥30 days and exportable via USB or network protocol. When deployed in regulated environments (e.g., pharmaceutical freeze-dryer validation), the controller supports configurable alarm thresholds, event-triggered data capture, and electronic signature-enabled parameter locking—facilitating compliance with GMP Annex 11 and ISO 13485 documentation workflows.

Applications

• Physical vapor deposition (PVD) and sputtering systems requiring clean, high-throughput roughing.
• R&D vacuum chambers up to 10 m³ volume where oil-free base pressure stability (<10⁻² hPa) is critical.
• Leak detection systems (helium mass spectrometry) as a reliable, low-noise fore-pump.
• Freeze-dryer (lyophilizer) primary condenser evacuation with integrated N₂ sweep for moisture management.
• Plasma etching and surface activation platforms needing inert, particle-free vacuum initiation.
• High-vacuum system backing for turbomolecular pumps in electron microscopy, surface analysis (XPS, AES), and accelerator beamlines.

FAQ

Is the ACG 600 G suitable as a fore-pump for turbomolecular pumps?
Yes—it is widely deployed as a high-efficiency, oil-free fore-vacuum source for TMPs operating down to 10⁻⁸ hPa, particularly where hydrocarbon cross-contamination must be avoided.
What maintenance schedule is recommended for continuous operation?
Under clean, non-corrosive conditions, Pfeiffer specifies a 4-year service interval; routine tasks include bearing replacement and coolant line inspection—no rotor reconditioning or seal replacement required.
Can the ACG 600 G handle solvent vapors from vacuum distillation?
With active N₂ purge enabled and proper condensation trapping upstream, it tolerates intermittent exposure to common organics (e.g., ethanol, acetone); prolonged exposure to high partial pressures requires application-specific risk assessment.
Does the system support remote start/stop and interlock signaling?
Yes—standard dry-contact inputs/outputs enable integration with chamber interlocks, safety PLCs, and building management systems per IEC 61508 SIL 2 functional safety guidelines.
Is firmware update capability available over network connection?
Firmware updates are performed via USB stick using Pfeiffer’s certified TPG300 configuration tool; network-based updates are not supported for security and validation integrity reasons.
