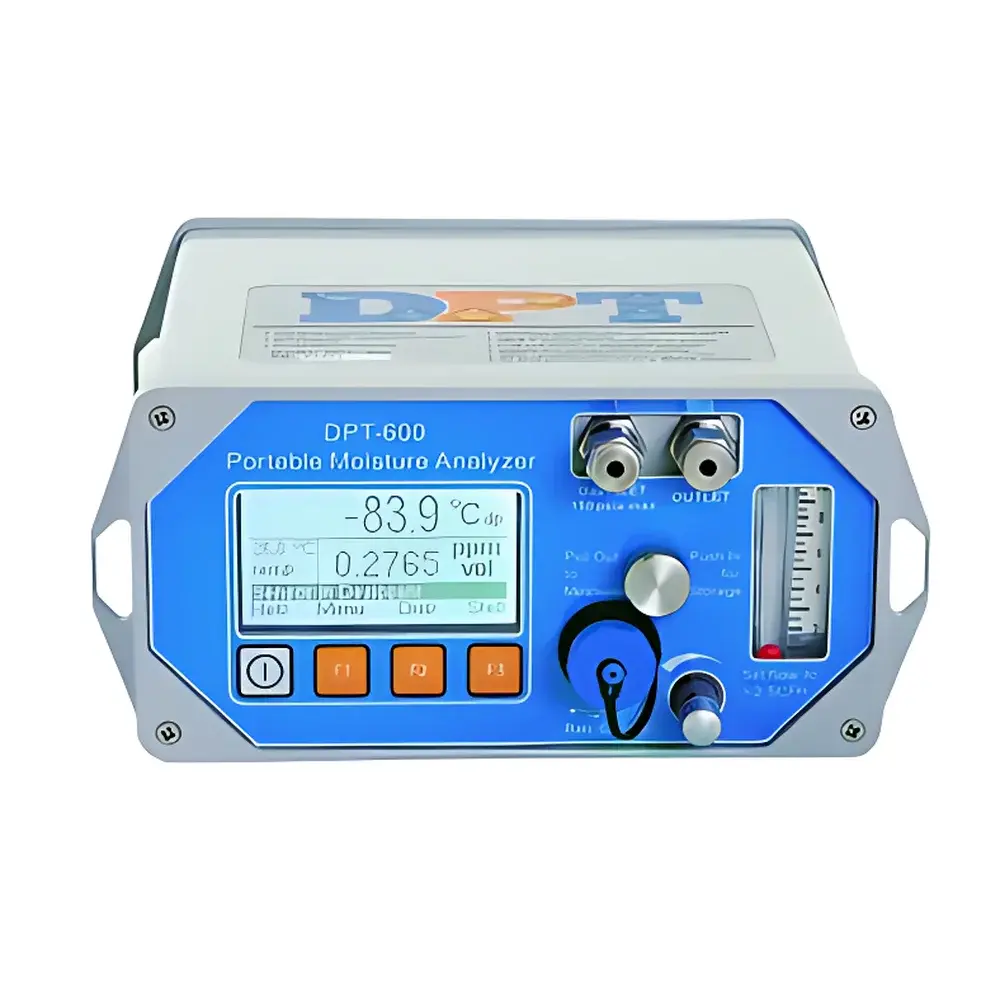

PhyMetrix DPT-600 Portable/Tabletop Dew Point Meter

Overview

The PhyMetrix DPT-600 is a high-stability, dual-form factor dew point meter engineered for field-deployable and benchtop moisture analysis in compressed gases and industrial process streams. It employs a proprietary capacitive sensor based on nanoporous metal oxide thin-film technology—offering long-term drift resistance, low hysteresis, and immunity to condensation-induced saturation. Unlike chilled-mirror or aluminum oxide sensors, this microstructured dielectric sensing element measures the capacitance shift induced by water vapor adsorption within nanoscale pores, enabling trace-level detection across an extended dew point range of −110 °C to +20 °C. The instrument operates under ISO 8573-1:2010 and ASTM D6304-compliant conditions, supporting both ambient-pressure and pressure-corrected dew point reporting—a critical requirement for gas quality verification in ISO Class 0–5 compressed air systems, pharmaceutical purge validation, and natural gas custody transfer.

Key Features

• True dual-mode operation: optimized ergonomics for handheld use (<1.6 kg) and stable tabletop deployment with integrated leveling feet and anti-slip rubber base
• Graphical backlit LCD with user-adjustable brightness and real-time auto-scaling bar chart for visual stability assessment
• Integrated temperature and optional pressure transducers enable simultaneous display of atmospheric dew point (ADP) and pressure dew point (PDP) with automatic correction per ISO 8573-3 Annex B algorithms
• Robust sampling architecture: 316L stainless steel measurement chamber, PTFE-lined internal flow path, and Swagelok® 1/8″ compression fittings rated to 137 bar inlet pressure (exhaust must be vented to atmosphere)
• IP67/IP68-rated enclosure with sealed USB Mini-B port and reinforced aluminum extrusion housing—designed for operation in harsh industrial environments including offshore platforms and utility substations
• User-configurable power management: programmable auto-shutdown (1–120 min), battery-saving deep-sleep mode, and continuous operation via external AC adapter (100–240 VAC, 50–60 Hz)

Sample Compatibility & Compliance

The DPT-600 is validated for use with non-corrosive, non-particulate gas matrices including nitrogen, oxygen, argon, dry air, hydrogen, natural gas (up to 20% CO₂), and medical-grade breathing gases. It complies with IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emissions), and its optional ATEX-certified variant (suffix -I) meets Directive 2014/34/EU for Zone 1/21 hazardous locations. When equipped with the pressure sensor option (-P), it supports GLP/GMP audit trails via timestamped data logging (RTC-backed by internal backup battery) and satisfies FDA 21 CFR Part 11 requirements when used with validated PVA simulation software. Calibration traceability is maintained to NIST-traceable standards through annual verification using certified humidity generators (e.g., MBW 373 or Rotronic HC2).

Software & Data Management

• On-device storage retains >4,000 timestamped records—including dew point, process temperature, absolute pressure (if equipped), and sensor status flags
• USB Mini-B interface enables direct data export to CSV or Excel-compatible formats; no proprietary drivers required
• Optional PVA PC Emulation Software replicates full instrument UI on Windows OS, supporting remote configuration, real-time monitoring, and report generation per ISO/IEC 17025 documentation templates
• Optional HART-enabled 4–20 mA output (suffix -A) provides analog transmission of primary dew point value with digital diagnostics accessible via standard HART communicators
• All firmware updates delivered via signed .bin files; secure boot prevents unauthorized modification

Applications

The DPT-600 serves as a reference-grade verification tool across regulated and high-reliability sectors. In pharmaceutical manufacturing, it validates dryer purge cycles and inert gas blanket integrity during lyophilization and API synthesis. In power generation, it monitors SF₆ insulation gas moisture content per IEEE C37.122.1–2013 thresholds. For semiconductor fab facilities, it verifies nitrogen purge lines prior to chamber loading (target: <−70 °C dp). In aerospace MRO, it certifies bleed air system dryness pre-flight per SAE AS5720B. Its rapid 3-minute 95% response time and sub-0.01 °C sensor resolution make it suitable for dynamic drying process characterization—especially where desiccant or membrane dryer performance must be quantified against ISO 8573-1 purity classes.

FAQ

What calibration standards are recommended for routine verification?
NIST-traceable chilled mirror hygrometers (e.g., Michell Easidew Pro) or certified humidity generator outputs at −40 °C, −70 °C, and −90 °C dp points are advised annually.
Can the DPT-600 measure dew point in corrosive gases such as HCl or Cl₂?
No—the 316L wetted parts and PTFE seals are not chemically resistant to halogen acids or oxidizing agents; dedicated corrosion-resistant variants require custom sensor housing and material certification.
Is pressure correction applied automatically when the optional pressure sensor is installed?
Yes—pressure compensation follows the Magnus–Tetens formulation per ISO 8573-3, with user-selectable reference pressure (absolute or gauge) and configurable compensation enable/disable toggle.
Does the device support Modbus RTU or other industrial protocols?
Not natively; only USB and optional HART 7.5 (4–20 mA with digital overlay) are supported. Modbus integration requires external protocol converter hardware.
What is the expected service life of the capacitive sensor under continuous operation?
Typical operational lifespan exceeds 5 years at ≤−40 °C dp exposure; accelerated aging occurs above +10 °C dp due to increased adsorption/desorption cycling—sensor replacement kits are available with factory recalibration certificate.
