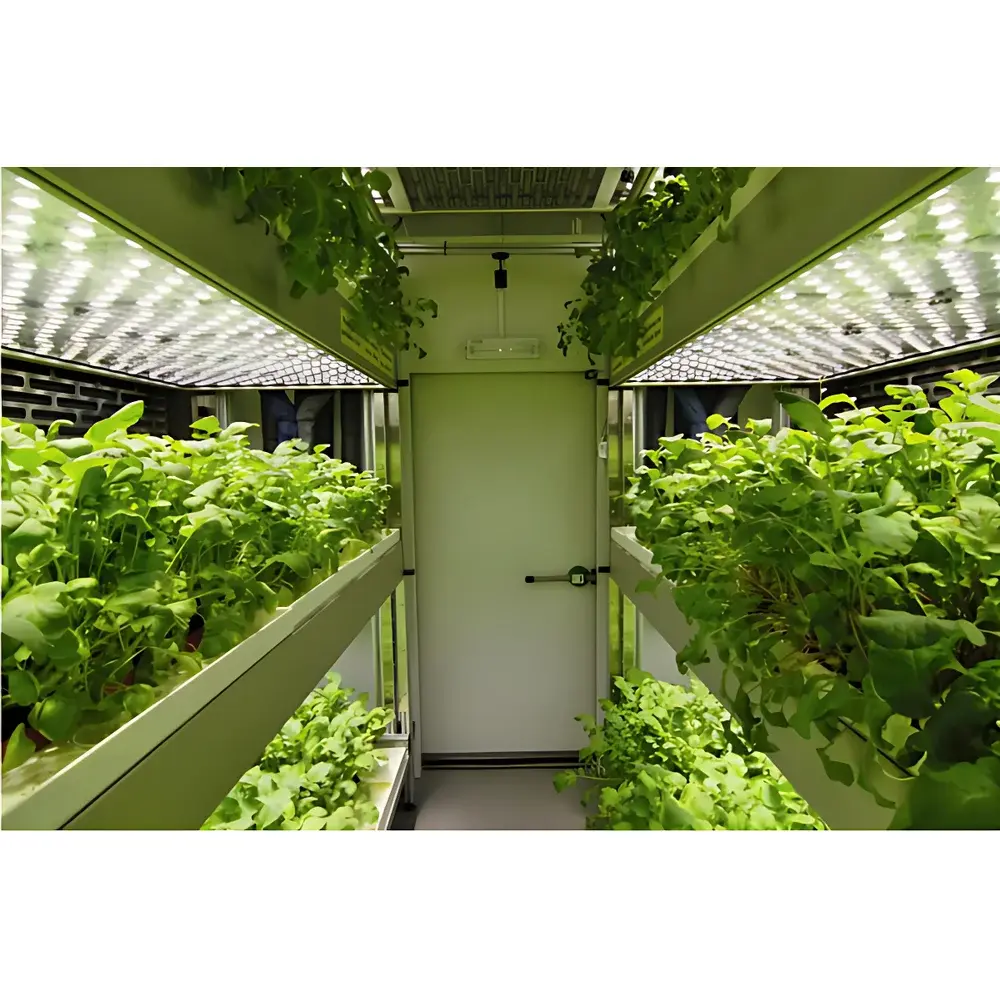

PSI FytoScope Large-Scale Walk-In Plant Growth Chamber

Overview

The PSI FytoScope Large-Scale Walk-In Plant Growth Chamber is a high-precision, fully integrated environmental simulation platform engineered for controlled-environment plant phenotyping, ecophysiological research, and ecosystem-level experimental studies. Designed and manufactured in the Czech Republic by Photon Systems Instruments (PSI), the system implements a closed-loop, multi-parameter control architecture grounded in photobiological principles and HVAC engineering rigor. Its core functionality centers on decoupled regulation of temperature, relative humidity, CO₂ concentration, spectral light quality, irradiance intensity, and temporal light patterns—enabling faithful replication of natural diurnal cycles, cloud cover dynamics, twilight transitions, and stress-inducing photoperiodic regimes. Unlike conventional growth rooms, the FytoScope integrates real-time chlorophyll fluorescence monitoring directly into its environmental control framework, allowing simultaneous acquisition of physiological response metrics (e.g., ΦPSII, NPQ, qP) alongside abiotic parameter trajectories. This co-registration capability supports mechanistic interpretation of plant performance under defined environmental gradients—critical for QTL mapping, drought/heat tolerance screening, and climate resilience modeling.

Key Features

• Four independently programmable growth zones with spatially resolved LED lighting control, enabling parallel experiments under distinct photobiological conditions within a single chamber.
• PSI’s proprietary tunable LED illumination system delivering spectrally flexible output across white (400–700 nm) and far-red (700–750 nm) bands, with dynamic modulation of intensity (0–1000 µmol/m²/s at 50 cm), pulse frequency, ramp profiles, and stochastic cloud-simulation algorithms.
• High-stability climate control: ±0.2 °C temperature uniformity and ±3 % RH repeatability across the full operating range (10–40 °C / 40–80 % RH), achieved via redundant PID-controlled refrigeration, steam humidification, and precision ducted air distribution.
• Integrated chlorophyll fluorescence imaging module compatible with Pulse-Amplitude Modulation (PAM) methodology, supporting non-invasive, high-temporal-resolution assessment of photosynthetic efficiency and photoprotective capacity.
• Robust thermal envelope constructed from polyurethane-insulated sandwich panels (λ = 0.025 W/m·K), double-leaf rotating access door (90 × 190 cm), and EN779-compliant dual-stage air filtration (G4 pre-filter + G7 fine filter).
• Embedded industrial-grade control unit featuring a 15″ capacitive touchscreen HMI, onboard Intel-based computing platform, and native support for Fytotron software—designed for GLP-compliant operation with user authentication, role-based permissions, and electronic audit trails.

Sample Compatibility & Compliance

The FytoScope accommodates a broad spectrum of plant material—from model species (Arabidopsis thaliana, Brachypodium distachyon) to agronomically relevant monocots (Zea mays, Oryza sativa, Triticum aestivum) and dicots (Solanum lycopersicum, Glycine max), including mature canopy structures up to 2.0 m height. Its modular internal layout supports hydroponic trays, soil-filled rhizotrons, aeroponic misting systems, and custom sensor integration (e.g., sap flow probes, stem dendrometers). The system complies with ISO 17025 requirements for environmental test equipment calibration traceability and supports 21 CFR Part 11 compliance when configured with Fytotron Server’s electronic signature and audit-log modules. All firmware and software components undergo annual validation per GxP-aligned protocols, ensuring data integrity for regulatory submissions related to crop trait registration or environmental impact assessments.

Software & Data Management

Fytotron software operates as a client-server application with centralized database management. The server component handles user account provisioning, hierarchical permission assignment (administrator, principal investigator, technician), SMTP-based alerting, and encrypted log archiving compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). The client interface provides protocol-driven automation: users define multi-step environmental schedules (e.g., “Day 1–7: 22/18 °C, 60 % RH, 16-h photoperiod; Day 8–14: +5 °C heat ramp + 300 ppm CO₂ step”) with conditional triggers based on sensor feedback. Real-time visualization includes synchronized time-series plots of chlorophyll fluorescence kinetics, climate variables, and actuator status. Raw data exports are available in CSV and HDF5 formats; metadata embedding follows ISA-Tab conventions for FAIR data interoperability.

Applications

• High-throughput phenotyping of genetic populations under controlled abiotic stress gradients (drought, heat, elevated CO₂, spectral deficiency).
• Diurnal and circadian rhythm studies integrating transcriptomic sampling with synchronized fluorescence and gas exchange measurements.
• Ecosystem simulation experiments involving multi-species assemblages, including mycorrhizal or rhizobacterial co-cultures under manipulated atmospheric composition.
• Pre-normative testing for EU Regulation (EU) 2019/1009 on EU fertilising products, particularly efficacy evaluation under standardized photothermal regimes.
• Validation of remote sensing indices (e.g., PRI, NDVI) against ground-truth fluorescence and pigment biochemistry across developmental stages.
• Training infrastructure for ISO/IEC 17025-accredited plant physiology laboratories requiring documented environmental reproducibility.

FAQ

Can the FytoScope be validated for GMP-compliant crop biostimulant trials?
Yes—when deployed with Fytotron Server’s 21 CFR Part 11 add-on package, the system supports electronic signatures, operator-level audit trails, and change-controlled protocol management required for ICH-GCP and EFSA guidance adherence.
Is third-party calibration of temperature/humidity sensors included?
Factory calibration certificates traceable to NIST standards are supplied with each unit; optional annual recalibration services—including on-site verification using Fluke 971 and Rotronic Hygropalm HP23-A—can be contracted through PSI’s European service network.
What level of spectral resolution does the LED system provide?
The system delivers discrete control over six independently dimmable LED channels (cool white, warm white, blue, red, far-red, UV-A), enabling user-defined spectra with <5 nm FWHM bandwidths and sub-second temporal resolution for pulse-width modulation.
How is air exchange managed during CO₂ enrichment cycles?
CO₂ injection is coupled with proportional-integral airflow modulation via the MaR central control system, maintaining stable differential pressure while minimizing cross-zone mixing—validated via tracer gas (SF₆) decay tests per ISO 16000-23.
Does the system support integration with external metabolomics or imaging platforms?
Yes—LAN-connected instrumentation (e.g., GC-MS autosamplers, hyperspectral cameras) can be synchronized via TTL triggers and shared NTP time stamping; API access to Fytotron’s PostgreSQL backend enables direct SQL queries for hybrid dataset fusion.
