Rainin E4 XLS Adjustable Spacing Electronic Multichannel Pipette

Overview

The Rainin E4 XLS Adjustable Spacing Electronic Multichannel Pipette, engineered by METTLER TOLEDO, is a precision-engineered liquid handling instrument designed for high-throughput, reproducible multichannel dispensing across heterogeneous labware formats. Unlike fixed-spacing pipettes, the E4 XLS employs a motorized, continuously adjustable inter-channel spacing mechanism—enabling seamless transitions between standard microplate layouts (e.g., 96-well, 24-well, 384-well) and non-standard configurations such as centrifuge tube racks, gel combs, and custom sample arrays. Its core operation relies on closed-loop microprocessor-controlled piston actuation, driven by a high-resolution stepper motor with 4,000 discrete steps per full stroke—ensuring deterministic displacement volume control independent of user force or fatigue. The device operates under ISO 8655-compliant principles for piston-type volumetric delivery, with all motion parameters—including aspiration/dispense speed, acceleration profile, and pause duration—fully programmable and digitally enforced.

Key Features

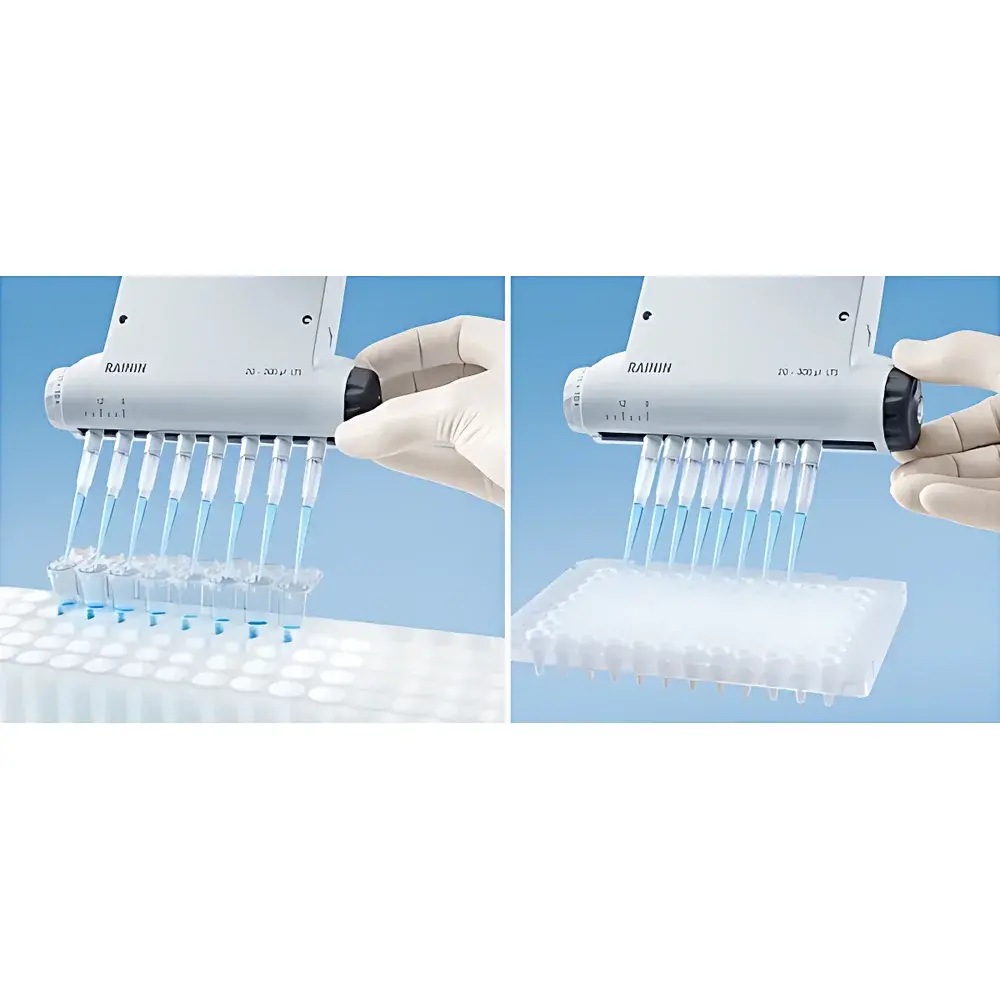

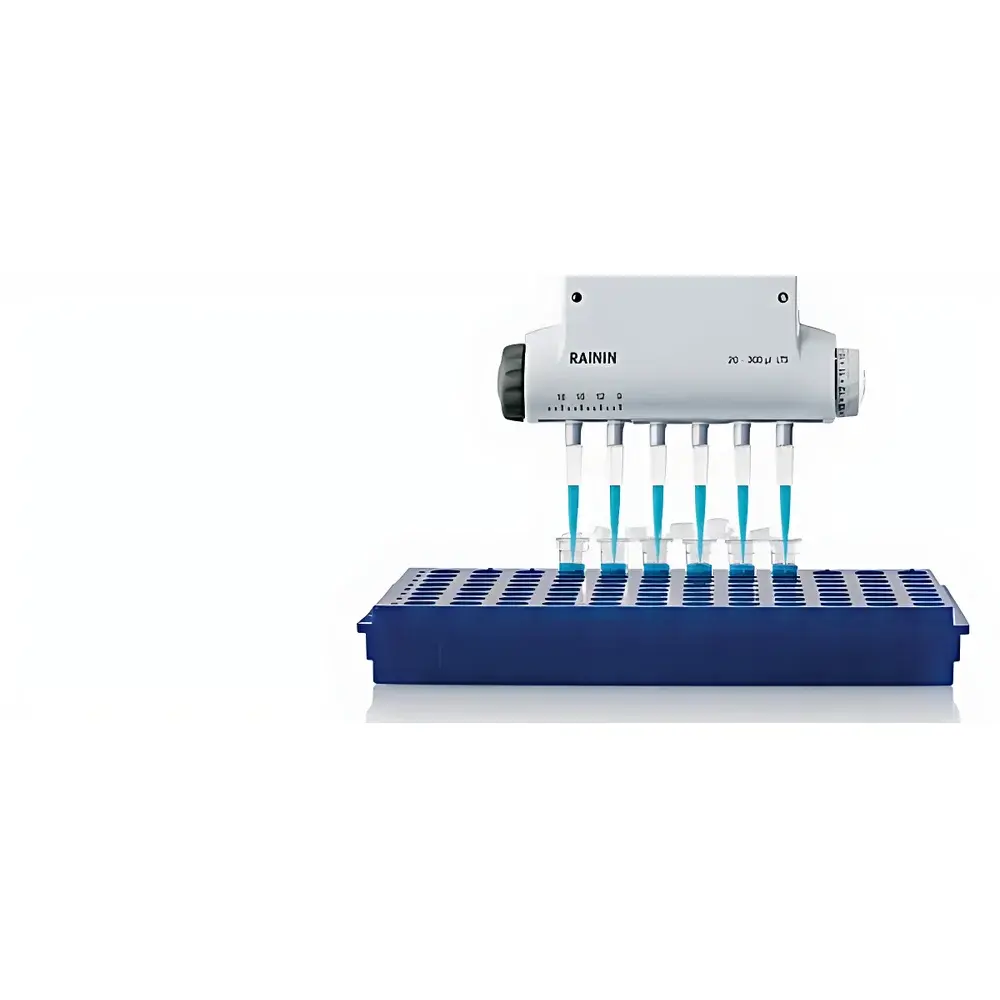

• Continuously Adjustable Inter-Channel Spacing: 6-channel version supports 9–19 mm spacing; 8-channel version supports 9–14 mm—optimized for direct transfer from 96-well source plates to 24-well assay plates or tube racks without manual repositioning.
• Ergonomic Lever-Control Interface: A tactile, low-resistance control lever enables intuitive parameter selection and execution—reducing repetitive strain while maintaining consistent pipetting rhythm and velocity.
• AutoPace™ Continuous Dispensing: One-touch lever activation initiates repeat dispensing across multiple wells at user-defined intervals—eliminating manual repetition and minimizing intra-assay variability.
• Onboard Program Storage: Up to 10 customizable protocols—including multi-step sequences (e.g., serial dilution, reagent addition + mixing)—can be saved, recalled, and executed without external software or PC connection.
• LTS® Low-Torque Tip System: Patented tip attachment design ensures uniform, low-force, single-action loading of multichannel tips—critical for maintaining alignment integrity and reducing tip ejection variability.
• Zero-Point Reinitialization: Automatic recalibration of piston home position after each operation cycle guarantees long-term volumetric fidelity and mitigates drift accumulation over extended use.

Sample Compatibility & Compliance

The E4 XLS accommodates a broad range of laboratory consumables, including ANSI/SLAS-standard microplates (96-, 24-, and 384-well), conical-bottom and round-bottom centrifuge tubes (0.5–15 mL), PCR strip tubes, and electrophoresis gel combs. Its mechanical architecture and firmware are validated to support GLP and GMP workflows in regulated environments. All user-accessible settings—including volume, speed, spacing, and program logic—are password-protected to prevent unauthorized modification. Audit-trail-capable service alerts, calibration status logs, and usage cycle counters are stored in write-protected memory compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures. Device firmware conforms to IEC 61326-1 (EMC) and IEC 61010-1 (safety) standards for laboratory instrumentation.

Software & Data Management

No external software is required for routine operation; however, optional Rainin LiteTouch™ PC software enables advanced protocol development, firmware updates, and comprehensive usage analytics—including cumulative cycle counts, error event logging, and calibration history export in CSV format. All onboard programs retain full metadata (date created, operator ID, version stamp), supporting traceability in quality-controlled laboratories. Settings can be exported/imported via USB-C interface for cross-instrument configuration synchronization—facilitating standardized SOP deployment across multi-user facilities.

Applications

The E4 XLS is routinely deployed in applications demanding both spatial flexibility and volumetric rigor: high-content screening (HCS) plate setup, qPCR master mix preparation, ELISA plate coating, cell-based assay seeding, CRISPR guide RNA library distribution, and bioprocess intermediate sampling. Its ability to maintain constant dispense velocity and calibrated piston travel distance across variable spacing configurations makes it especially suitable for workflows involving parallel processing of dissimilar labware—such as transferring lysates from 96-well plates into individual cryovials or distributing reagents across irregularly spaced biosensor arrays. In academic core facilities and CMC labs, the device serves as a bridge between manual dexterity constraints and automated liquid handler cost thresholds.

FAQ

Does the E4 XLS require routine calibration verification?
Yes—per ISO 8655-6, users must perform periodic gravimetric verification at defined volume points (e.g., 10%, 50%, and 100% of nominal range). The device supports calibration mode entry via secure password sequence and stores last-verified date and technician ID.
Can spacing adjustments be made mid-run?
Yes—spacing can be modified manually using the dedicated dial before or after aspiration, with real-time visual feedback provided by engraved scale markings and tactile detents at common intervals (e.g., 9 mm, 12 mm, 14 mm).
Is LTS tip compatibility mandatory?
While compatible with universal-fit tips, only Rainin LTS tips guarantee full performance specification adherence—including accuracy, repeatability, and channel-to-channel consistency—as validated during factory calibration.
How is data integrity ensured during power loss?
All critical parameters and program data reside in non-volatile flash memory; no volatile RAM is used for persistent storage. Power interruption does not erase saved protocols or audit logs.
What maintenance is recommended for long-term reliability?
Routine cleaning of the tip cone assembly with 70% ethanol and annual preventive maintenance (PM) by an authorized METTLER TOLEDO service engineer—including motor torque verification and optical encoder alignment check—are advised per the manufacturer’s service schedule.
