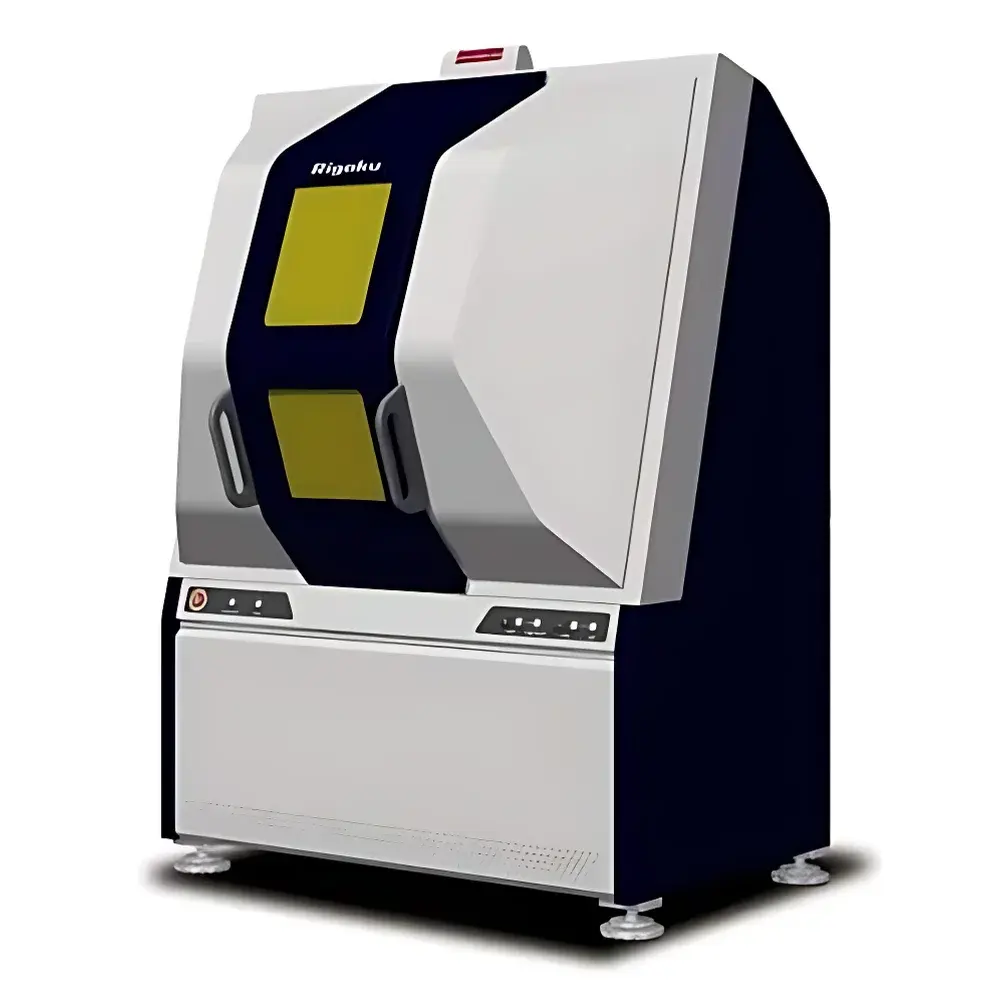

Rigaku SmartLab Series Smart X-ray Diffractometer

Overview

The Rigaku SmartLab Series Smart X-ray Diffractometer is a floor-standing, high-performance powder X-ray diffractometer engineered for precision structural characterization across academic, industrial, and regulatory laboratory environments. Based on Bragg’s law and constructive interference of monochromatic X-rays scattered by crystalline lattices, the SmartLab delivers quantitative phase identification, lattice parameter refinement, crystallite size and microstrain determination, and Rietveld-based whole-pattern fitting—all within a single, unified platform. Its core innovation lies in the patented Cross-Beam Optics (CBO) system, which enables seamless switching between high-intensity parallel-beam and high-resolution focusing geometries—without manual realignment—by integrating mirror-based collimation and dynamic optical path recognition. This architecture supports both conventional θ–2θ scanning and advanced configurations including grazing-incidence (GI-XRD), in-plane diffraction, and small-angle X-ray scattering (SAXS), making it uniquely suited for multi-modal analysis of powders, thin films, nanomaterials, pharmaceuticals, and semiconductor heterostructures.

Key Features

• Patented CBO cross-beam optics with automatic optical component and sample stage recognition—eliminates setup errors and ensures repeatable alignment across measurement modes.
• High-stability goniometer with dual optical encoders and direct-on-axis angular positioning, achieving a minimum step resolution of 0.0001° and sub-arcsecond reproducibility.
• Programmable variable divergence slits and incident-beam monochromators (Kα₁-optimized) for adaptive resolution control and background suppression.
• Modular add-on capabilities: Ultra-SAXS extension for nanoscale particle size distribution (1–100 nm range), dedicated thin-film module with in-plane geometry for simultaneous out-of-plane and in-plane reciprocal-space mapping, and CBO-F micro-area optics for spatially resolved diffraction from features down to 10 µm.
• High-throughput detection architecture supporting both energy-discriminating D/teX-Ultra linear detectors (energy resolution <20%) and PILATUS 100K/R hybrid-pixel 2D detectors—capable of handling direct-beam intensity without saturation, essential for synchrotron-compatible lab-scale measurements.
• Integrated 3 kW sealed-tube X-ray source with optional 9 kW rotating anode configuration for enhanced flux in low-signal applications such as trace-phase quantification or time-resolved studies.

Sample Compatibility & Compliance

The SmartLab accommodates diverse physical forms—including free-flowing powders, pressed pellets, bulk solids, freestanding thin films (SiN membranes, oxide stacks), liquid suspensions (via capillary or reflection cells), and micro-region samples on Si wafers or TEM grids. All measurement protocols comply with ISO 17873:2021 (XRD qualitative phase analysis), ASTM E975 (standard practice for XRD residual stress measurement), and USP (pharmaceutical polymorph screening). The system supports GLP/GMP audit trails via SmartLab Guidance software, including full electronic signatures, version-controlled method templates, and 21 CFR Part 11–compliant data integrity controls (e.g., immutable acquisition logs, user-level access permissions, and timestamped metadata embedding).

Software & Data Management

SmartLab Guidance is a patent-protected, workflow-driven software platform that guides users—from novice to expert—through method selection, alignment validation, data acquisition, and quantitative analysis. It embeds decision trees for optimal optical configuration selection based on sample type and analytical objective (e.g., “powder phase ID” vs. “thin-film texture analysis”). Real-time feedback during alignment includes motor position diagnostics, beam intensity monitoring, and auto-calibration against NIST-traceable silicon SRM 640e. Raw data are stored in vendor-neutral HDF5 format with embedded metadata (wavelength, slit settings, temperature, humidity), enabling FAIR-compliant archiving. Quantitative modules include PDXL2 for Rietveld refinement, TOPAS for parametric modeling, and SAXSLAB for Guinier/Porod analysis—all accessible via native API integration.

Applications

• Quantitative phase analysis of multi-component mixtures (e.g., catalyst formulations, battery cathode composites) using internal standard or reference intensity ratio (RIR) methods per ASTM E1361.
• Crystallinity assessment and Scherrer–Williamson crystallite size/microstrain deconvolution in polymer blends, metal-organic frameworks (MOFs), and amorphous-to-crystalline transition studies.
• Thin-film metrology: layer thickness, interfacial roughness, and strain profiling via ω-rocking curves and reciprocal-space mapping (RSM), with in-plane capability enabling simultaneous evaluation of epitaxial domain orientation and lateral coherence length.
• Nanoparticle size distribution modeling from SAXS patterns using polydisperse sphere or core-shell form factors, validated against TEM cross-correlation.
• Pharmaceutical solid-state characterization: polymorph screening, hydrate/anhydrate differentiation, and stability-indicating assays under controlled humidity/temperature stages.
• Residual stress mapping in additive-manufactured alloys and thermal barrier coatings using sin²ψ analysis with automated peak search and centroiding.

FAQ

What X-ray tube options are supported on the SmartLab platform?

The base configuration includes a 3 kW sealed-tube Cu anode source; optional upgrades include 9 kW rotating anode tubes (Cu, Co, Mo) with cryogenic cooling and extended lifetime (>2 years at 80% duty cycle).
Can the system perform in situ or operando experiments?

Yes—via integrated stages for heating (RT–1200°C), cooling (LN₂ cryostat, 80–500 K), humidity control (10–95% RH), and electrochemical cells compatible with XRD-transparent windows.
Is SmartLab Guidance compliant with FDA 21 CFR Part 11 requirements?

Yes—software enforces role-based access control, electronic signatures with biometric or token authentication, and immutable audit trails covering all acquisition, processing, and reporting actions.
How does the CBO system improve measurement reproducibility?

By eliminating mechanical repositioning of optics, CBO maintains fixed geometric relationships between source, sample, and detector—reducing angular drift to <0.0005° over 8-hour sessions and enabling <1.5% RSD in repeated Rietveld scale factor measurements.
What detector configurations support simultaneous SAXS and WAXS acquisition?

The PILATUS 100K/R 2D detector, mounted on a motorized arm with calibrated sample-to-detector distance (0.2–4 m), enables concurrent wide-angle and small-angle scattering collection without hardware reconfiguration.
