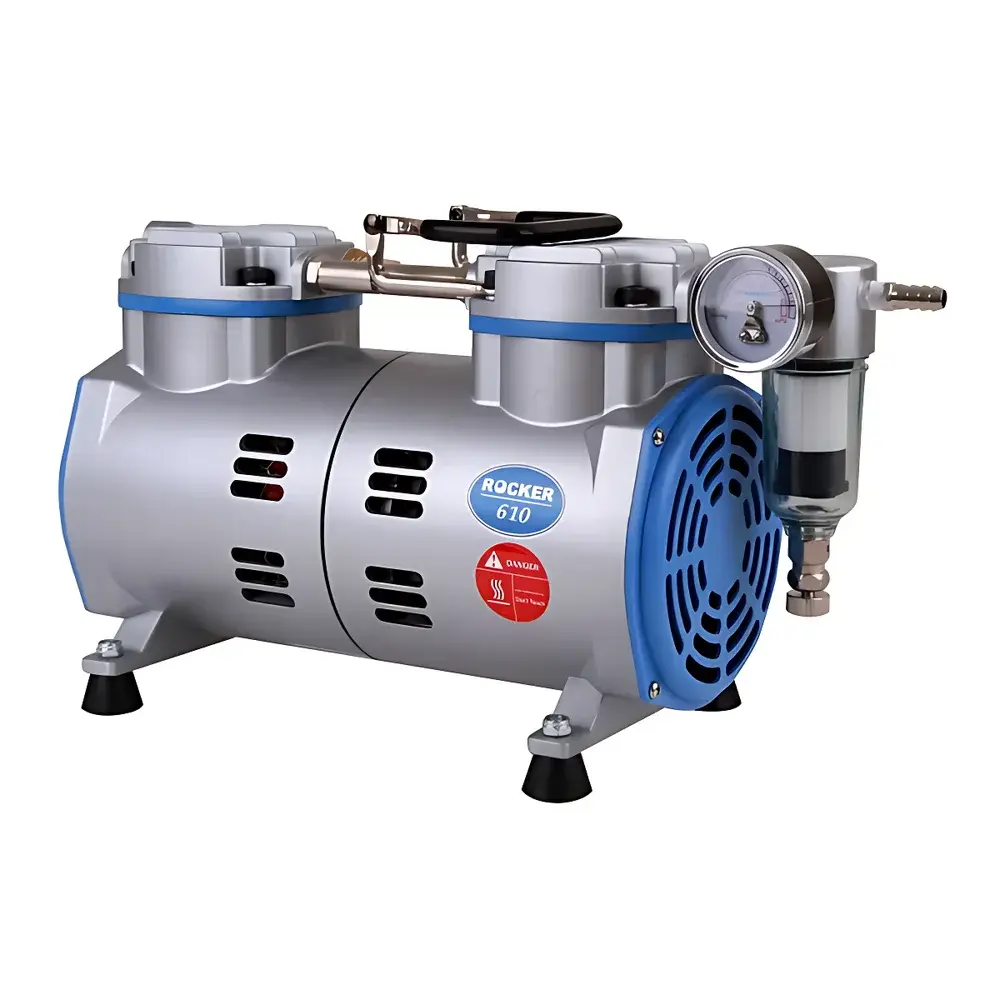

ROCKER Rocker610 Oil-Free Piston Vacuum Pump

Overview

The ROCKER Rocker610 Oil-Free Piston Vacuum Pump is an engineered solution for laboratories requiring reliable, contamination-free vacuum generation in filtration, sampling, and analytical preparation workflows. Unlike oil-lubricated rotary vane pumps, the Rocker610 employs a precision-machined reciprocating piston mechanism with polymer-coated cylinder walls and self-lubricating PTFE seals—eliminating the need for lubricating oil entirely. This design ensures zero oil carryover into vacuum lines or downstream apparatus, making it suitable for applications where hydrocarbon contamination compromises sample integrity—such as microbial colony isolation, suspended solids analysis (e.g., EPA Method 160.2), and sterile filtration of aqueous or mildly corrosive solutions. Its fixed-speed AC induction motor delivers consistent performance across variable load conditions, while the integrated thermal cutoff switch prevents coil overheating during extended operation or inlet blockage events.

Key Features

• Oil-free piston architecture with PTFE-sealed cylinders—no oil replenishment, no oil mist emission, no risk of vacuum line contamination
• Direct-drive motor coupling eliminates belt slippage, reducing mechanical losses and enhancing long-term torque stability
• Acoustic damping housing and vibration-isolating feet achieve ≤62 dB(A) sound pressure level at 1 m distance—compliant with ISO 3744 for laboratory noise management
• Integrated thermal protection switch automatically de-energizes the motor when internal winding temperature exceeds safe thresholds; auto-resets upon cooling
• Replaceable inlet particulate/moisture filter (standard 5-μm rated sintered polyethylene element) protects cylinder bore and piston rings from abrasion and condensate ingress
• CE-marked per EN 61000-6-3 (EMC) and EN 61000-6-4 (immunity); CSA-certified to CAN/CSA-C22.2 No. 61010-1 for electrical safety in North American labs
• Compact footprint (34.1 × 17.4 × 19.6 cm) and low mass (7.6 kg) enable benchtop integration without structural reinforcement

Sample Compatibility & Compliance

The Rocker610 is validated for use with standard laboratory filtration assemblies including 47-mm and 90-mm membrane filters (cellulose acetate, mixed ester, PVDF), glass fiber crucibles, and stainless-steel filtration manifolds. Its dry, oil-free vacuum output meets ASTM D5907 requirements for total suspended solids (TSS) gravimetric analysis and supports USP particulate matter testing protocols when paired with appropriate filter holders. The pump’s maximum attainable vacuum (−730 mmHg / 40 mbar absolute) satisfies ISO 7207-1 criteria for air sampling pump calibration and enables efficient solvent evaporation in rotary evaporator pre-concentration steps. All materials in contact with the intake stream are RoHS-compliant and non-leaching under normal operating conditions.

Software & Data Management

As a standalone analog vacuum source, the Rocker610 does not incorporate digital control interfaces or embedded firmware. It operates via simple on/off rocker switch actuation and requires no software drivers, network configuration, or data logging integration. This architecture ensures deterministic startup behavior, immunity to firmware corruption, and full compatibility with legacy lab infrastructure—including GLP/GMP environments where validation of embedded electronics would otherwise necessitate extensive IQ/OQ/PQ documentation. Optional analog vacuum gauges (e.g., Bourdon tube or capacitance manometers) may be installed downstream for manual process verification without altering the pump’s certified safety profile.

Applications

• Vacuum-assisted membrane filtration for microbiological enumeration (e.g., membrane filtration method per ISO 9308-1)
• Gravimetric determination of total suspended solids (TSS) in wastewater, surface water, and drinking water per EPA 160.2 and ISO 11923
• Airborne particulate collection using PM10/PM2.5 samplers compliant with ISO 7708 and EN 12341
• Pre-concentration of trace analytes prior to HPLC or ICP-MS analysis
• Desiccation of moisture-sensitive samples in vacuum desiccators
• Support vacuum for gel electrophoresis blotting systems and vacuum-assisted microplate washing

FAQ

Is the Rocker610 suitable for continuous 24/7 operation?
It is rated for intermittent duty cycles up to 8 hours per day under standard ambient conditions (20–25°C, ≤60% RH). Continuous operation requires external thermal monitoring and periodic inlet filter inspection.
Can it handle vapors from organic solvents?
No—it is not chemically resistant to chlorinated or ketonic solvents. Use only with aqueous, buffered, or mildly acidic/basic solutions. For aggressive vapors, consider a chemically resistant diaphragm pump.
What maintenance is required beyond filter replacement?
None. The piston assembly is sealed for life; no greasing, oil changes, or valve adjustments are specified in the manufacturer’s maintenance schedule.
Does the 2-year warranty cover labor costs?
The warranty covers parts only. Labor reimbursement requires separate service contract enrollment at time of purchase.
Is the 110 V / 60 Hz version electrically identical to the 230 V model?
Yes—motor windings and internal circuitry are reconfigured for nominal voltage; all performance specifications (vacuum level, flow rate, noise) remain unchanged.
