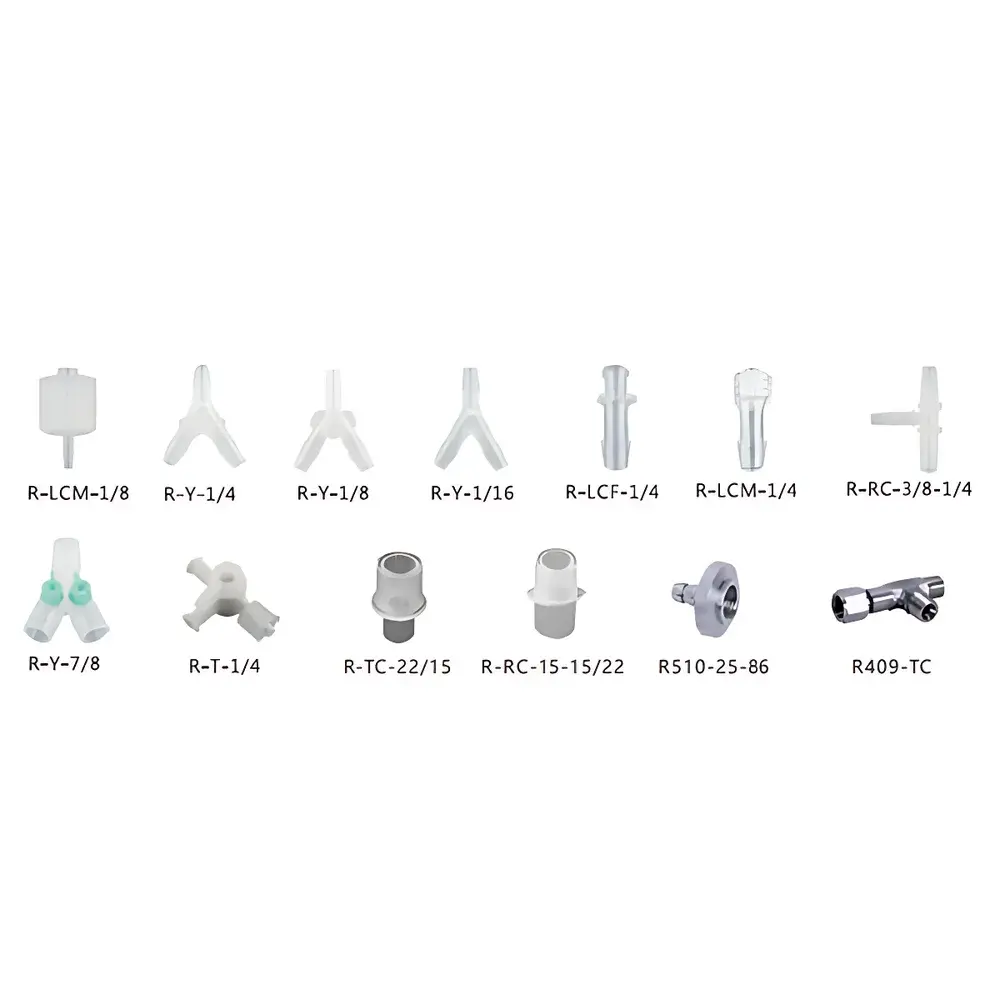

RWD R-LCM-1/8 Luer Male Connector for Fluidic Tubing Systems
| Brand | RWD |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Manufacturer |
| Region of Origin | Domestic (China) |
| Model | R-LCM-1/8 |
| Pricing | Upon Request |
Overview
The RWD R-LCM-1/8 Luer Male Connector is a precision-engineered fluidic interface component designed for reliable, leak-tight connections in low-to-medium pressure laboratory, biomedical, and industrial fluid handling systems. Based on the standardized ISO 594-1/2 Luer taper geometry, this connector ensures repeatable mating with compatible Luer lock or slip fittings—enabling secure attachment to syringes, tubing, valves, filters, and analytical instrumentation. Its primary function is to facilitate rapid, tool-free assembly and disassembly of modular fluid pathways while maintaining dimensional consistency and chemical compatibility across diverse reagent and gas transport applications. The R-LCM-1/8 is part of RWD’s broader R-Series fluidic interconnect portfolio, which supports scalable system integration in preclinical research equipment, IV infusion setups, chromatography manifolds, and pneumatic control circuits.
Key Features
- ISO 594-compliant Luer male taper with 6% conical geometry for high-reproducibility sealing under hand-tight torque
- Machined from medical-grade polypropylene (PP) or acetal (POM), offering excellent resistance to alcohols, dilute acids/bases, and common organic solvents
- Integrated 1/8″ NPT (National Pipe Thread) external thread for direct mounting into panel-mounted ports, manifolds, or custom housings
- Dimensionally stable across operating temperatures from –10 °C to +60 °C; suitable for intermittent sterilization via autoclaving (121 °C, 20 min, max 3 cycles)
- Free of plasticizers, latex, and heavy metals—certified compliant with USP Class VI and ISO 10993-5 cytotoxicity requirements
- Traceable lot numbering and RoHS-conforming material documentation provided per shipment
Sample Compatibility & Compliance
The R-LCM-1/8 is validated for use with silicone, PTFE, Tygon®, PVC, and fluorinated ethylene propylene (FEP) tubing having inner diameters ranging from 0.5 mm to 3.2 mm. It maintains mechanical integrity when interfacing with gases (air, O₂, N₂, CO₂) and aqueous or mildly aggressive liquid media—including saline, PBS, ethanol/water mixtures, and HPLC mobile phases. All RWD fluidic connectors adhere to ISO 8536-4 (infusion equipment), ISO 594-2 (Luer taper testing), and GB/T 1962.1–2015 (Chinese national standard for conical fittings). Batch-level biocompatibility test reports (ISO 10993-4 hemolysis, -5 cytotoxicity, -10 sensitization) are available upon request for regulated life science deployments.
Software & Data Management
As a passive mechanical component, the R-LCM-1/8 requires no firmware, drivers, or software integration. However, its standardized interface enables seamless incorporation into digitally controlled fluidic platforms—such as those governed by LabVIEW-based DAQ systems, PLC-driven peristaltic pump arrays, or ISO/IEC 17025-accredited calibration workflows. When used within GLP/GMP environments, RWD provides full traceability documentation including raw material certifications (e.g., FDA 21 CFR 177.2470 for PP), dimensional inspection reports (CMM-measured tolerances ±0.05 mm), and packaging integrity records. Audit-ready documentation supports compliance with FDA 21 CFR Part 11 electronic record requirements when archived alongside instrument qualification protocols.
Applications
- Preclinical anesthesia delivery systems requiring gas pathway branching and pressure regulation
- Modular microfluidic test benches integrating syringe pumps, pressure sensors, and inline filters
- In-vitro diagnostic (IVD) cartridge interfaces for sample introduction and reagent metering
- Gas chromatography (GC) carrier gas routing between regulators, traps, and column ovens
- Cell culture bioreactor feed/inlet manifolds supporting sterile fluid transfer
- Custom-built environmental monitoring probes using capillary sampling lines and electrochemical sensors
FAQ
Is the R-LCM-1/8 compatible with Luer lock syringes?
Yes—it mates securely with all ISO 594-2–compliant Luer lock female fittings, delivering leak-free performance up to 100 kPa (14.5 psi) at room temperature.
Can this connector be used in vacuum applications?
It is rated for continuous operation at pressures down to 50 kPa (absolute); for high-vacuum (<1 kPa) use, pairing with metal-reinforced ferrules or secondary clamping is recommended.
What surface finish options are available?
Standard units feature matte-finish injection-molded polymer; custom electropolished stainless steel variants (316L) are available under OEM agreement.
Does RWD offer custom threading or hybrid configurations?
Yes—RWD’s engineering team supports bespoke adaptations including dual-thread combinations (e.g., Luer + M6), integrated O-ring grooves, and laser-marked identification codes.
How is dimensional verification performed during production?
Each production lot undergoes 100% automated vision inspection for taper angle, thread pitch, and major diameter, followed by statistical process control (SPC) sampling per ISO 2859-1 AQL Level II.
