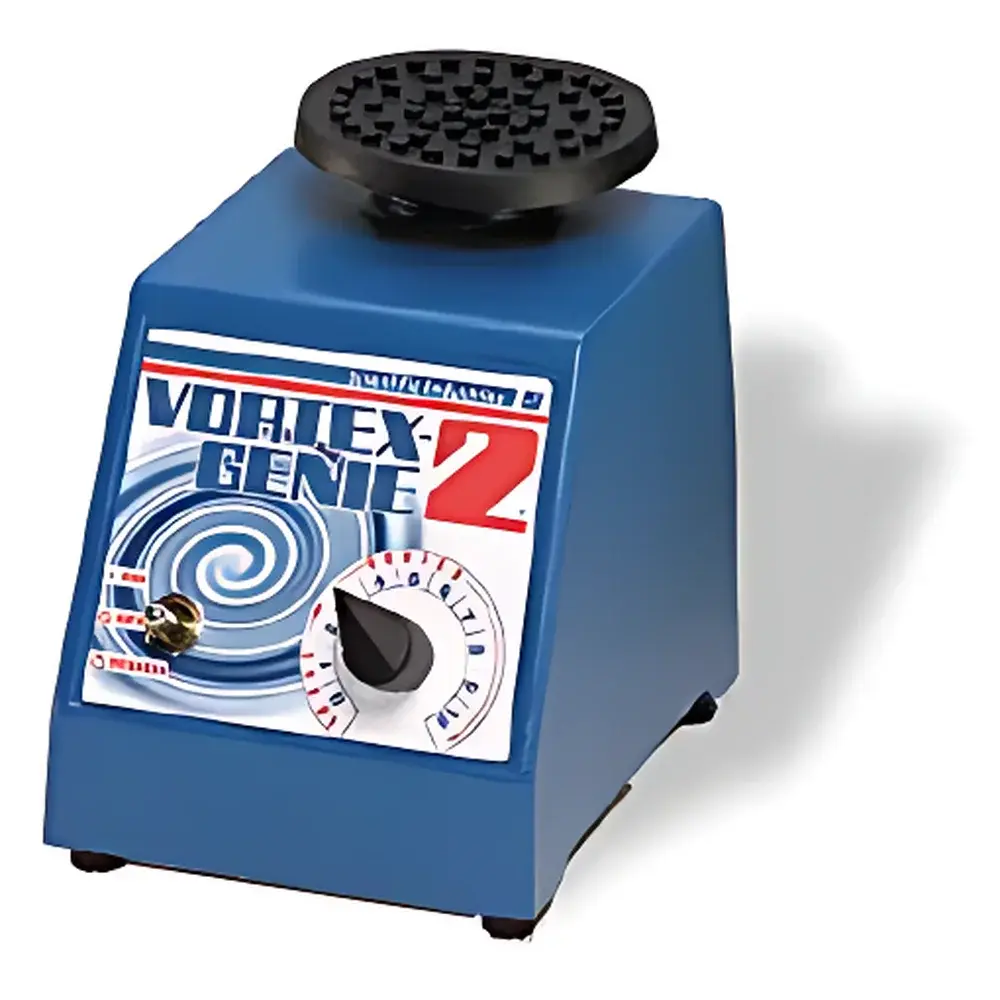

Scientific Industries Vortex Genie 2 Vortex Mixer

Overview

The Scientific Industries Vortex Genie 2 is a precision-engineered, benchtop vortex mixer widely deployed in life science, clinical diagnostics, pharmaceutical quality control, and academic research laboratories. It operates on the principle of orbital shaking—generating controlled circular motion at the base to induce rapid, reproducible vortex formation in liquid samples contained in tubes, vials, or microplates. Unlike orbital shakers or rocking platforms, the Genie 2 delivers high-frequency, low-amplitude oscillation optimized for homogeneous suspension of particulates, reagent resuspension, cell dissociation, and sample homogenization without foaming or splashing when operated within recommended fill volumes. Its robust die-cast metal housing (4 kg total mass) ensures mechanical stability during continuous operation—even at maximum speed—minimizing resonance-induced vibration transfer to adjacent instrumentation.

Key Features

• Two-mode operation via three-position toggle switch: OFF / TOUCH (momentary activation upon contact) / ON (continuous vortexing)
• Continuously variable speed control (0–3200 rpm), calibrated for consistent torque delivery across the full range
• Heavy-duty die-cast aluminum housing with integrated rubber non-slip feet—designed to resist displacement during vigorous mixing
• Interchangeable platform system supporting multiple tube geometries: conical, round-bottom, and flat-bottom vessels from 0.5 mL microcentrifuge tubes to 50 mL conical tubes
• No maintenance required motor with sealed bearings and thermal overload protection for extended service life
• Compliance-ready design: compatible with audit-trail-enabled lab management systems when integrated into validated workflows

Sample Compatibility & Compliance

The Vortex Genie 2 accommodates a broad spectrum of container types—including polypropylene, glass, and polycarbonate tubes—without risk of slippage or misalignment, thanks to its precisely engineered cup head and optional flat platform. The standard cup head supports most common tube diameters (10–17 mm), while the 3-inch flat platform enables simultaneous mixing of multiple small-volume tubes or microplate wells. All accessories are autoclavable (121°C, 15 psi, 20 min), ensuring compatibility with sterile technique requirements. While the instrument itself carries no regulatory certification (e.g., CE, UL), its mechanical design and operational consistency support adherence to ISO/IEC 17025 method validation protocols and FDA 21 CFR Part 11–aligned data integrity practices when used within documented SOPs.

Software & Data Management

The Vortex Genie 2 is a standalone analog instrument with no embedded firmware, digital interface, or software dependency. This architecture eliminates cybersecurity vulnerabilities, firmware update cycles, and calibration drift associated with microprocessor-controlled mixers. Speed settings are manually adjusted via front-panel potentiometer and remain stable over time—ideal for labs requiring long-term method equivalence across instruments. For traceability, users may document operating parameters (mode, speed setting, duration) directly in electronic lab notebooks (ELNs) or paper-based batch records. When deployed in GxP environments, the device is commonly included in equipment qualification protocols (IQ/OQ/PQ) as part of laboratory-wide validation packages.

Applications

• Resuspension of lyophilized reagents and bacterial pellets in molecular biology workflows
• Homogenization of immunoassay standards and calibrators prior to pipetting
• Cell suspension preparation for flow cytometry and viability assays
• Extraction buffer mixing in protein purification and nucleic acid isolation protocols
• Pre-analytical sample agitation in clinical chemistry and hematology testing
• Quality control checks for uniformity of suspension in pharmaceutical suspension formulations

FAQ

Is the Vortex Genie 2 suitable for use with hazardous or volatile solvents?
Yes—its fully enclosed motor housing and absence of exposed electronics make it appropriate for fume hood installation; however, ensure all containers are tightly capped and chemically compatible with standard rubber gaskets.
Can the Genie 2 accommodate 96-well microplates?
Not natively—the standard platforms do not provide plate-specific clamping. However, third-party adapter plates (not supplied by Scientific Industries) may be used with caution to avoid imbalance-induced wear.
What is the expected service life under routine lab use?
With proper handling and avoidance of overloading, the Genie 2 typically exceeds 10 years of continuous operation—supported by field reports from academic core facilities and contract research organizations.
Does Scientific Industries offer calibration services for the Genie 2?
No formal calibration certificate is provided; however, speed verification can be performed using a handheld tachometer per internal SOPs. Many labs include this check in semi-annual preventive maintenance routines.
Are replacement parts available for legacy units?
Yes—Scientific Industries maintains inventory of critical components including cup heads, flat platforms, and motor assemblies for Genie 2 units manufactured since 1985.
