Sciteq B50 Pipe Impact Testing Machine
| Brand | Sciteq |
|---|---|
| Origin | Denmark |
| Instrument Type | Falling Weight Impact Tester |
| Model | B50 |
| Hammer Mass Range | 0.250–16 kg |
| Impact Heights | 2 m, 3 m, 4 m (model-dependent) |
| Compliance | ISO 3127, EN 744, EN 1411, EN 1452, ASTM D2444 |
| Impact Velocity Accuracy | >95% of theoretical free-fall velocity |
| Sample Diameter Range | Ø32 mm to Ø630 mm (customizable beyond) |
| Dimensions (H×W×D) | 4050 × 1800 × 600 mm |
| Weight | ~600 kg |
| Operating Temperature | 5–70 °C |
| Relative Humidity | ≤70% |
| Power Supply | 3 × 400 V AC |
| Compressed Air Requirement | 4–8 bar |
| Hammer Mass Tolerance | ±0.005 kg (per ISO/EN standards) |
| Max. Test Frequency | 15 impacts/min |
| Safety Features | Vacuum-based hammer retention with fail-safe slow descent, interlocked safety door, dual-hand release control, integrated impact velocity monitoring |
Overview

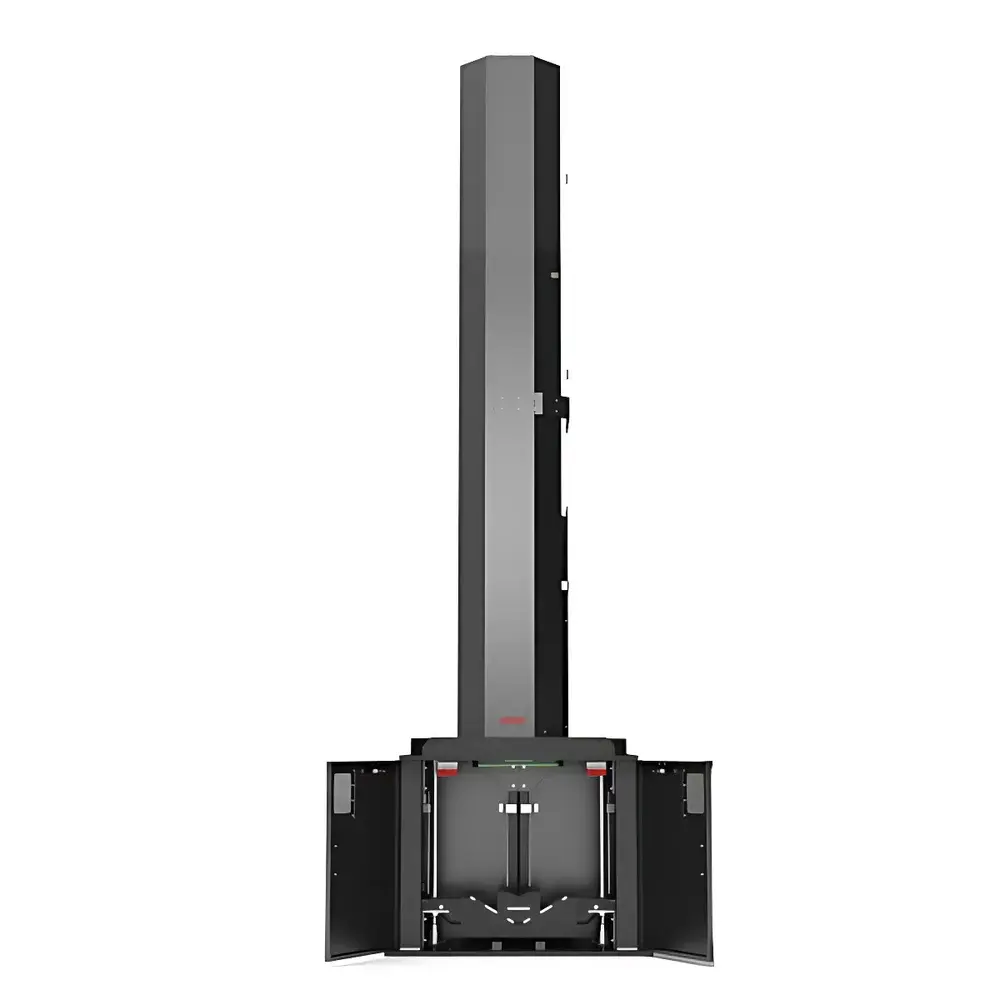

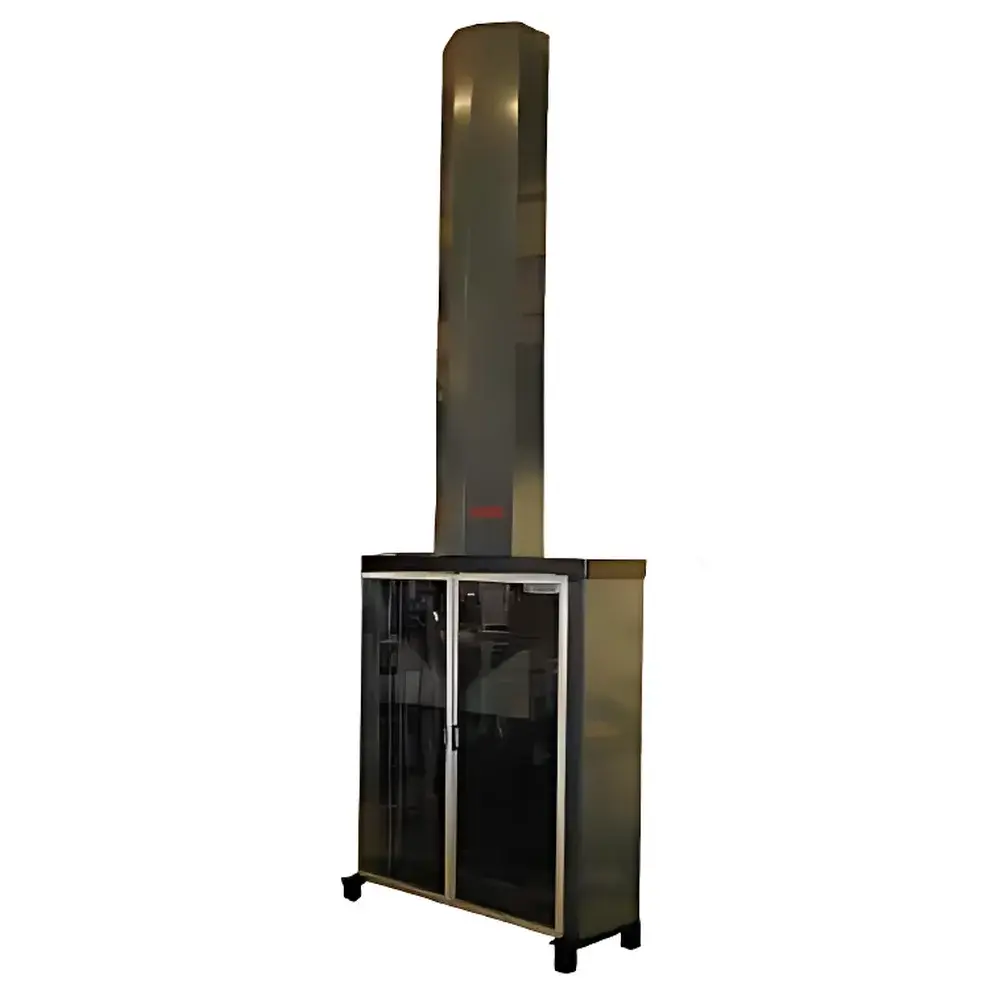

The Sciteq B50 Pipe Impact Testing Machine is a precision-engineered falling weight impact tester designed specifically for the rigorous mechanical evaluation of thermoplastic and composite pipes used in water, gas, drainage, and industrial applications. Based on the fundamental principle of controlled gravitational energy transfer—where a calibrated hammer is released from a defined height onto a standardized pipe specimen—the B50 delivers repeatable, traceable, and standards-compliant impact energy delivery. Unlike conventional electromechanical or solenoid-lift systems, the B50 employs a proprietary vacuum-assisted hammer lifting mechanism that ensures rapid, consistent, and vibration-free positioning without mechanical backlash or thermal drift. This architecture enables high-throughput testing in both production-line quality assurance and R&D environments while maintaining full compliance with international regulatory frameworks governing pipe certification.
Key Features
- Vacuum-driven hammer elevation system enabling precise, noiseless, and wear-free lifting—eliminating gear wear, motor overheating, and positional hysteresis common in servo- or pneumatic-lift alternatives.
- Fail-safe passive safety architecture: residual vacuum retention ensures controlled, parachute-like descent (<0.5 m/s) during power interruption—fully eliminating uncontrolled free fall per EN ISO 13857 requirements.
- Interlocked safety door with redundant microswitches prevents hammer release unless fully closed and latched; dual-hand push-button activation enforces operator presence and minimizes accidental actuation.
- Integrated optical velocity measurement system captures real-time hammer descent speed prior to impact—automatically validating energy delivery against theoretical free-fall values (>95% accuracy per ASTM D2444 Annex A1).
- Modular hammer assembly allows tool-free exchange of impact masses (0.250–16 kg) and tup geometries within seconds—supporting multi-standard testing (e.g., ISO 3127 vs. EN 1411) without recalibration.

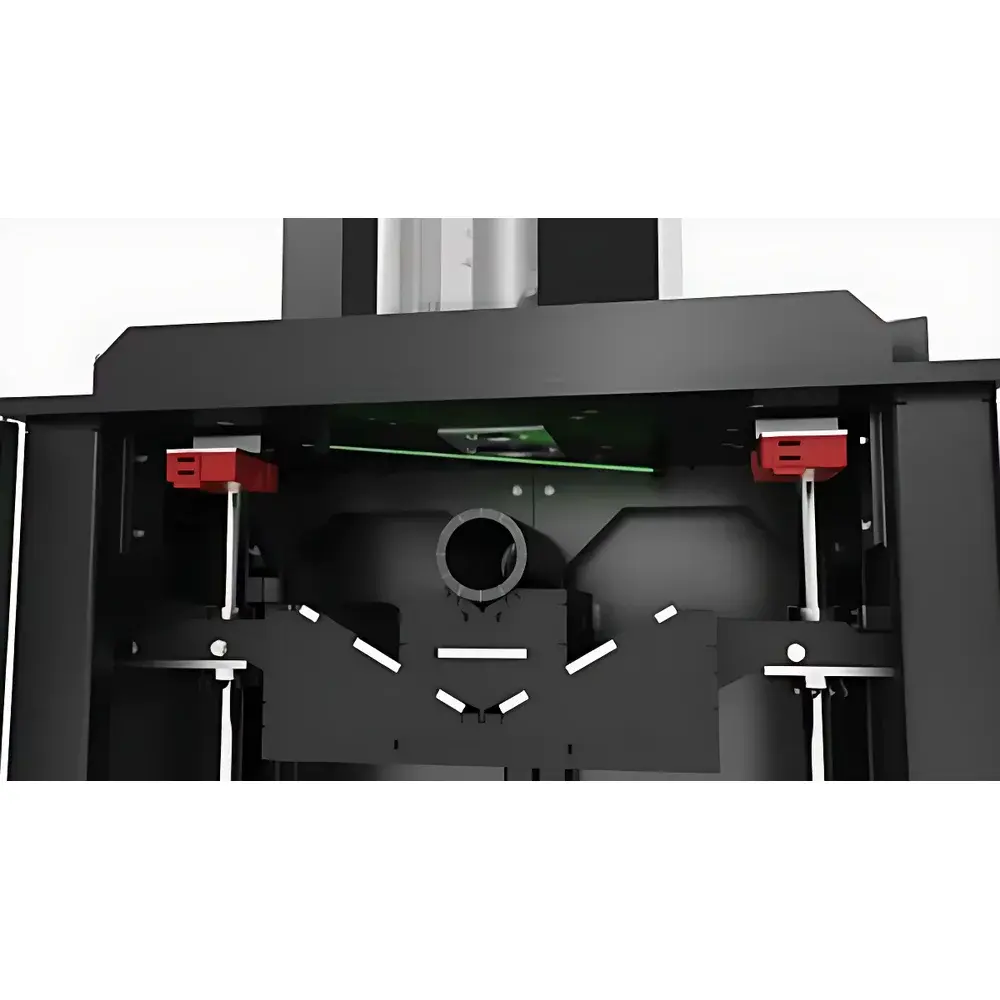

- Adjustable V-block support system accommodates pipe diameters from Ø32 mm to Ø630 mm; custom fixtures available for oversized or non-circular profiles under GLP-controlled engineering documentation.
Sample Compatibility & Compliance
The B50 is validated for testing rigid and semi-rigid thermoplastic pipes—including PVC-U, PE, PP-R, and multilayer composites—as specified in ISO 3127 (plastic piping systems), EN 744 (impact resistance of plastic pipes), EN 1411 (impact testing of PE pipes), EN 1452 (PVC-U pressure pipes), and ASTM D2444 (standard test method for impact resistance of thermoplastic pipe). Specimen conditioning follows ISO 23529 protocols (23 ± 2 °C, 48 h minimum equilibration). All test parameters—including drop height, hammer mass, tup radius, and support span—are programmable and auditable. The system supports full traceability per ISO/IEC 17025:2017 requirements, with calibration certificates traceable to DKD/DAkkS-accredited national standards.
Software & Data Management
The B50 operates via an embedded industrial PLC interface with intuitive touchscreen HMI, supporting multilingual operation (English, German, French, Spanish). All test configurations, raw velocity logs, pass/fail status, and timestamped metadata are exportable in CSV and XML formats compatible with LIMS integration. Optional Sciteq TestSuite™ software provides advanced reporting modules compliant with FDA 21 CFR Part 11 (electronic signatures, audit trails, user role management) and supports automated generation of test certificates aligned with EN 10204 Type 3.1 documentation requirements. Data integrity safeguards include write-protected storage, cyclic redundancy checks (CRC), and automatic backup to network drives.
Applications
- Production line QC screening of extruded pipe batches per ISO 4427/4437 specifications.
- Developmental validation of new polymer formulations and wall-thickness optimization studies.
- Third-party certification testing for CE marking, WRAS approval, and KIWA/DVGW certification bodies.
- Root cause analysis of field failures through comparative impact resilience profiling across material grades and processing conditions.
- Temperature-dependent impact behavior assessment using optional environmental chamber integration (−20 °C to +60 °C).
FAQ
Does the B50 require annual recalibration?
Yes—calibration of the velocity sensor, hammer mass verification, and height encoder alignment must be performed annually by an accredited service provider or Sciteq-certified technician per ISO/IEC 17025 Clause 6.5.
Can the B50 be integrated into an Industry 4.0 manufacturing execution system (MES)?
Yes—via OPC UA or Modbus TCP protocol support, enabling real-time test status, throughput metrics, and SPC data streaming to central MES platforms.
Is operator training included with installation?
Sciteq provides on-site commissioning and two-day certified operator training covering safety protocols, routine maintenance, test method setup, and GLP-compliant reporting procedures.
What maintenance intervals are recommended?
Vacuum pump oil change every 2,000 operating hours; V-block wear inspection every 500 tests; compressed air filter replacement quarterly; full mechanical inspection biannually.
Are spare hammers and tups supplied with the base configuration?
The standard delivery includes one 1 kg hammer with 10 mm radius tup and one 5 kg hammer with 25 mm radius tup—additional configurations are orderable as accessories with NIST-traceable calibration certificates.
