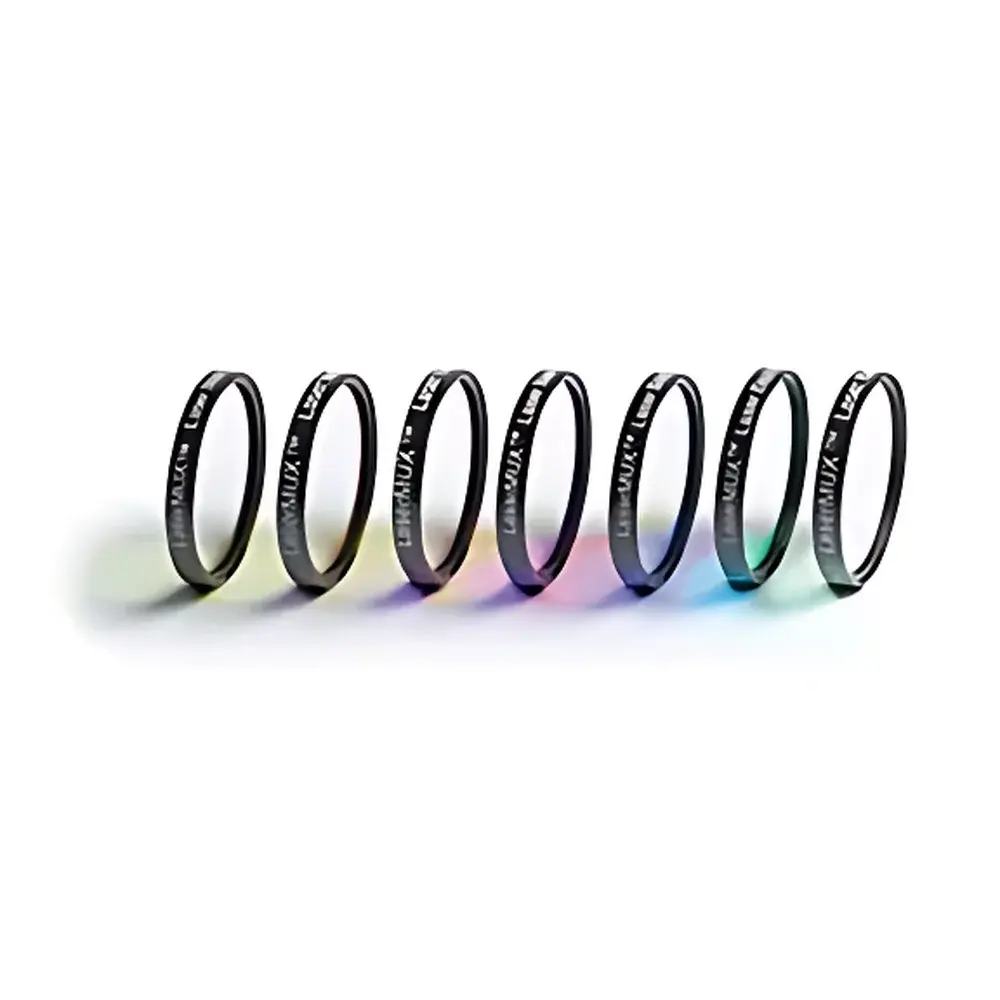

Semrock Optical Filters
| Brand | Semrock |
|---|---|
| Origin | USA |
| Distributor Type | Authorized Distributor |
| Import Status | Imported |
| Model Range | Multiple Standard & Custom Models |
| Price Range | USD $1,400 – $7,200 (FOB) |
| Component Category | Precision Optical Elements |
Overview
Semrock optical filters are high-performance, hard-coated interference filters engineered for demanding fluorescence microscopy, spectroscopy, and laser-based optical systems. Built using advanced ion-beam sputtering (IBS) deposition technology, these filters deliver exceptional spectral precision, steep edge transitions, deep out-of-band blocking (OD6–OD8), and long-term environmental stability. Unlike traditional soft-coated or epoxy-bonded filter assemblies, Semrock filters feature monolithic, all-dielectric thin-film architectures on fused silica or BK7 substrates—eliminating delamination risks and enabling repeated cleaning with isopropanol or mild detergent without performance degradation. Their design adheres to the fundamental principles of thin-film interference, where constructive and destructive interference of reflected/transmitted light waves is precisely controlled via layer thickness, refractive index, and stack architecture. This enables reliable separation of excitation and emission bands in multicolor fluorescence imaging, critical for quantitative colocalization analysis and low-background signal detection.
Key Features
- High optical density blocking (OD6–OD8) across UV-VIS-NIR ranges, minimizing crosstalk in multiplexed assays
- Ultra-steep transition edges (typically <1% of center wavelength) for precise spectral isolation
- Hard-coated, abrasion-resistant surfaces compliant with ISO 9342 and MIL-C-48497A standards
- Thermal stability tested from –40 °C to +85 °C; negligible wavelength shift (<0.01 nm/°C)
- No epoxy bonding—monolithic construction ensures zero humidity-induced drift or aging effects
- Available in standard 25 mm, 32 mm, and 50 mm diameters; custom sizes and mounting options (e.g., SM1-threaded mounts, cage-compatible holders) supported
Sample Compatibility & Compliance
Semrock filters are compatible with major commercial microscope platforms including Nikon Ti2-E, Olympus IX83, Zeiss Axio Observer, and Leica DMi8. Filter sets are validated for use with LED, mercury, and solid-state laser excitation sources (405 nm, 488 nm, 561 nm, 640 nm). All products comply with RoHS 2015/863/EU and REACH SVHC regulations. Manufacturing follows ISO 9001:2015 quality management protocols. Filter spectral data—including transmission curves, reflection spectra, and angle-tuning behavior—is traceably certified per NIST-traceable calibration procedures and documented in supplied spectral reports. For regulated environments (e.g., clinical IVD or GLP-compliant imaging labs), filter lot numbers, coating run IDs, and full spectral validation datasets are provided upon request to support audit readiness.
Software & Data Management
While Semrock filters are passive optical components, their integration into automated imaging workflows is supported through vendor-agnostic spectral configuration files (.spc, .txt) compatible with common microscope control software (e.g., Micro-Manager, MetaMorph, ZEN Blue, NIS-Elements). Each filter set includes a unique spectral signature file containing normalized transmission/reflection curves sampled at 0.1 nm resolution. These files enable precise channel mapping in multi-channel acquisition sequences and facilitate spectral unmixing algorithms in downstream analysis (e.g., using Fiji/ImageJ or Imaris). For enterprise deployment, Semrock provides spectral metadata in JSON-LD format, supporting integration into LIMS or ELN systems for full traceability under 21 CFR Part 11-compliant environments when paired with electronic lab notebook validation.
Applications
- Multiplexed fluorescence in situ hybridization (FISH) with simultaneous 4–7 color detection
- Super-resolution microscopy (STORM, PALM, STED) requiring ultra-low autofluorescence and high signal-to-noise ratios
- Live-cell calcium and voltage imaging using genetically encoded indicators (e.g., GCaMP, ASAP)
- Laser scanning cytometry and flow imaging cytometry with solid-state laser excitation
- Raman spectroscopy notch filtering and laser line cleanup
- Quantitative co-localization analysis in confocal and spinning-disk systems
FAQ
Are Semrock filters suitable for high-power laser applications?
Yes—standard models are rated for CW laser power densities up to 5 W/cm² at 532 nm; high-damage-threshold (HDT) variants support >10 W/cm² and pulsed lasers (e.g., 10 ns pulses at 10 Hz repetition rate).
Can I clean Semrock filters with ethanol or acetone?
Isopropanol is recommended; ethanol is acceptable but not preferred due to potential residue. Acetone is not recommended—it may attack certain AR coatings on substrate edges.
Do filter performance specifications vary with angle of incidence?
Yes—bandpass center wavelength shifts hypsochromically with increasing angle; detailed angular tuning curves are provided in the spectral report for each lot.
Are custom designs available for non-standard wavelengths or bandwidths?
Yes—Semrock offers rapid-turnaround custom filter design and fabrication with typical lead times of 6–8 weeks; NDA and ITAR-controlled projects supported.
How do I verify spectral performance upon receipt?
Each shipment includes a calibrated spectral report traceable to NIST SRM 2036; optional third-party verification via accredited metrology labs (e.g., PTB or NPL) is available on request.
