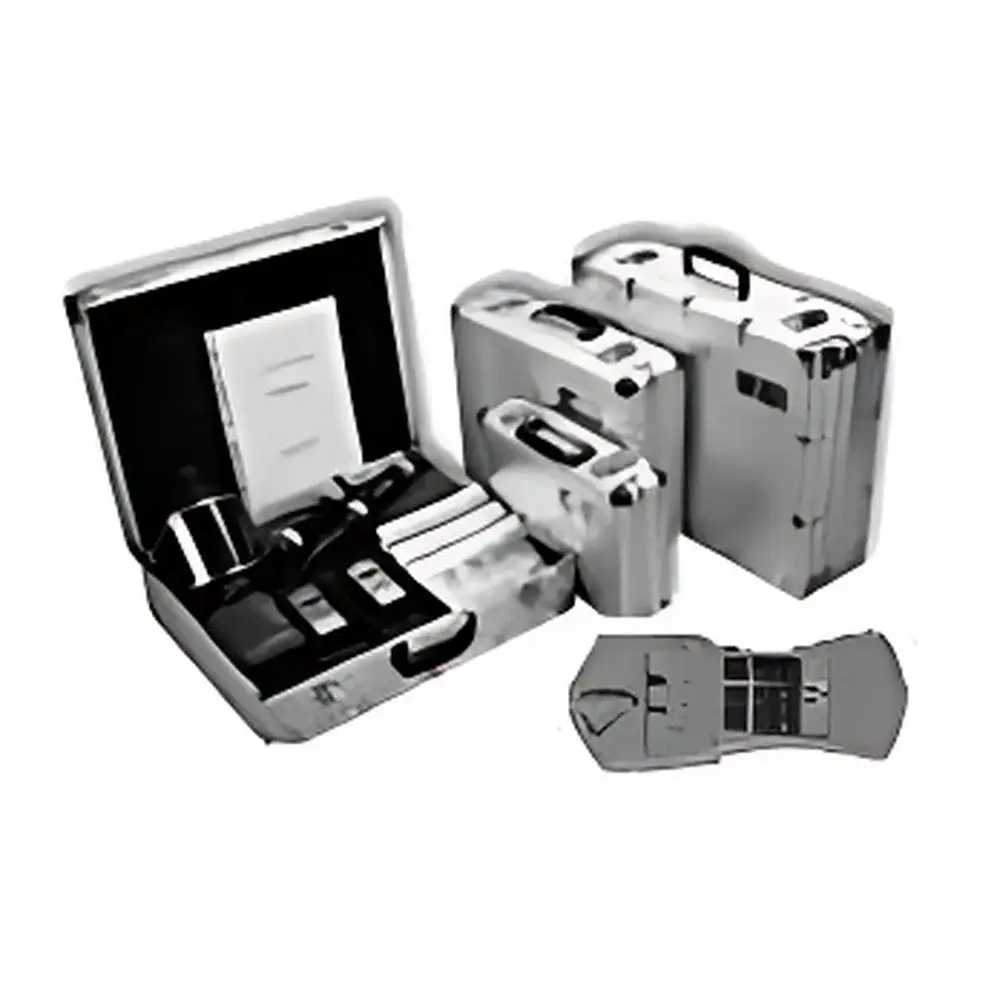

SenTinain Nuclear & Chemical Emergency Detection Kit

Overview

The SenTinain Nuclear & Chemical Emergency Detection Kit is a field-deployable, integrated rapid-response system engineered for first responders, civil defense units, industrial safety teams, and emergency management agencies operating in CBRN (Chemical, Biological, Radiological, Nuclear) incident scenarios. Unlike laboratory-based analytical instruments, this kit employs proven colorimetric gas detection tube technology—based on stoichiometric reaction kinetics and calibrated chromatic development—and complementary solid-state radiation detection to deliver immediate, on-site qualitative and semi-quantitative hazard identification. The system operates on passive sampling principles: gases diffuse through reagent-coated glass capillaries, inducing visible color change proportional to concentration; radiation is measured via energy-compensated Geiger-Müller detection with discrimination capability across α, β, γ, and X-ray spectra. Designed for use under ISO 22320-compliant emergency operation protocols, the kit meets functional requirements for Tier-1 field triage per IAEA Safety Standards Series No. GSG-12 and supports initial hazard classification prior to deployment of advanced instrumentation.

Key Features

• Modular, mission-ready configuration housed in an impact-resistant anodized aluminum transit case (IP65-rated, MIL-STD-810G compliant)
• Comprehensive detection coverage: >120 standardized colorimetric tubes for VOCs, inorganic gases (e.g., Cl₂, NH₃, H₂S, CO, NO₂), acid vapors, and radioactive particulates
• Integrated SenTinain Radiation Assessment Unit Model 950: GM-based detector with energy compensation, capable of discriminating α (≥4 MeV), β (≥0.15 MeV), γ/X-ray (≥20 keV) emissions; dose rate range: 0.01–100 mSv/h
• Manual dual-stroke air sampler (100 mL ±2% volumetric accuracy) with ergonomic handle and calibrated stroke counter
• Extendable remote sampling probe (up to 3 m length) with flexible stainless-steel conduit and sealed rotary coupling for confined-space or high-risk zone assessment
• Dedicated glass tube cutter with tungsten-carbide blade and integrated safety shield; certified for Class I Division 1 hazardous locations (ATEX/IECEx compatible)
• Sealed, leak-proof waste container for spent detection tubes (UN 3291 compliant for hazardous chemical waste transport)
• NIOSH-certified half-mask respirator (filter class P100 + organic vapor) included with fit-test documentation

Sample Compatibility & Compliance

The kit supports direct analysis of ambient air, headspace vapors, and surface-emitted volatiles without sample preparation. Detection tubes comply with ASTM D5402 (Standard Practice for Determining Volatile Organic Compound Emissions from Paints Using a Portable Detector Tube Method) and JIS K 0111 (Gas Detection Tubes). Radiation measurements adhere to IEC 60846-1:2014 (Radiation protection instrumentation – Ambient and/or directional dose equivalent (rate) meters and/or monitors for beta, X and gamma radiation). All components are CE-marked per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD); radiation unit carries type approval under Chinese National Standard GB/T 10257-2021. Documentation includes bilingual (English/Chinese) operational manuals, calibration traceability statements, and QC verification reports per ISO/IEC 17025:2017 Annex A.2.

Software & Data Management

While inherently hardware-centric, the kit integrates with SenTinain’s optional FieldLog™ Mobile Application (iOS/Android) for digital recordkeeping. The app enables barcode-scanned tube lot registration, geotagged measurement logging, real-time exposure mapping via Bluetooth pairing with the Model 950 unit, and automatic PDF report generation compliant with OSHA 29 CFR 1910.120 (HAZWOPER) and EU Directive 2013/35/EU (Electromagnetic Fields). Audit trails include user authentication, timestamped entries, and immutable export to CSV or XML formats suitable for GLP/GMP-regulated environments. No cloud storage is enabled by default; all data remains locally encrypted on-device unless explicitly configured for secure enterprise server sync.

Applications

• Rapid hazard screening during chemical plant leaks, refinery incidents, or transportation accidents involving hazardous materials
• Initial radiological survey following suspected dirty bomb deployment, nuclear facility breach, or orphan source discovery
• Confined space entry verification (OSHA 1910.146) prior to hot work or maintenance in petrochemical, wastewater, or mining infrastructure
• Environmental first-response monitoring at contaminated sites (EPA Region 10 CERCLA protocols) or post-disaster zones (FEMA Urban Search and Rescue Task Forces)
• Border security and customs inspection for illicit chemical precursors or undeclared radioactive sources
• Field validation of fixed-gas detection systems during commissioning or routine performance verification

FAQ

What is the shelf life of the detection tubes?
Standard tubes retain calibration for 24 months from manufacture date when stored at 15–25°C and <60% RH; expiration dates are laser-printed on each tube sleeve.
Can the Model 950 detect neutron radiation?
No—the Model 950 is optimized for charged particle and photon detection only; neutron monitoring requires supplemental thermal neutron detectors (e.g., He-3 proportional counters), which are not included in this base configuration.
Is the kit suitable for underwater or submerged sampling?
No—gas sampling components are not submersible; however, surface vapor sampling above water bodies (e.g., spill containment booms) is fully supported using the remote probe.
Does the system require annual recalibration?
Detection tubes are single-use consumables with factory calibration; the Model 950 requires biannual functional verification using certified check sources (Cs-137, Co-60, Am-241), documented per ANSI N42.22-2020.
Are replacement tubes available as individual SKUs?
Yes—SenTinain supplies >120 tube types under discrete part numbers, each traceable to NIST-traceable reference standards and supplied with lot-specific calibration curves.
