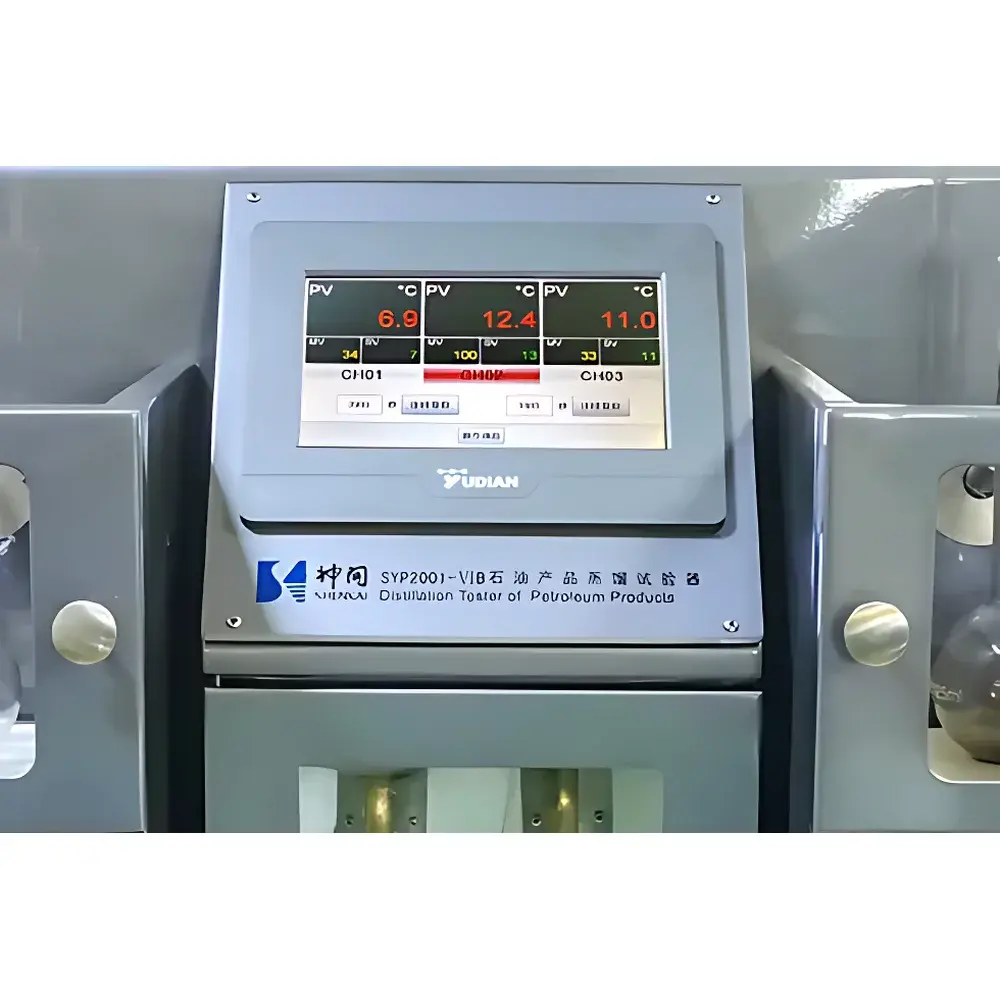

Shenkai SYP2001-VIB Petroleum Distillation Apparatus

Overview

The Shenkai SYP2001-VIB Petroleum Distillation Apparatus is a precision-engineered instrument designed for standardized atmospheric distillation testing of petroleum fractions in accordance with major international and national specifications—including GB/T 6536, ASTM D86, ISO 3405, IP 123, and SY/T 5648. It implements the classical batch distillation principle under controlled ambient pressure, measuring the temperature-volume relationship during progressive vaporization of liquid hydrocarbon samples. This apparatus is specifically optimized for volatile and mid-boiling range products such as gasoline, jet fuel, diesel, kerosene, naphtha, and petroleum solvents—excluding heavy residues or highly viscous materials that exceed the operational scope of ASTM D86 methodology.

Key Features

• Front-mounted dual-bath, dual-condenser architecture enables concurrent distillation of two independent samples under individually regulated thermal conditions—enhancing laboratory throughput without cross-contamination or thermal interference.
• Independent temperature control for left and right baths (0–60 °C, ±0.5 °C stability), each equipped with motor-driven stirring to ensure uniform thermal distribution and minimize axial temperature gradients across condenser sections.
• Imported high-efficiency refrigeration system provides rapid, stable cooling of condensate baths—reducing energy consumption and eliminating dependency on three-phase power infrastructure.
• Integrated 7-inch color touchscreen interface hosts an embedded intelligent temperature-timing control module, supporting real-time setpoint adjustment, automatic ramp/soak profiles, and synchronized heating/cooling coordination.
• Manually adjustable continuous-voltage heating furnace (0–1200 W) features analog pointer display for intuitive voltage regulation—offering precise thermal input control aligned with ASTM D86 procedural requirements for heating rate management.
• Dedicated exhaust ventilation system accelerates heat dissipation from the heating mantle between tests, significantly shortening turnaround time; removable front access door simplifies installation and removal of distillation flasks while maintaining operator safety and ergonomic workflow.

Sample Compatibility & Compliance

The SYP2001-VIB is validated for use with transparent, non-residual petroleum distillates meeting the volatility and boiling point criteria defined in ASTM D86 Scope. It supports standard 125-mL distillation flasks and 100-mL graduated cylinders per method requirements. The apparatus complies fully with mechanical and performance criteria outlined in SY/T 5648 for petroleum distillation equipment, including structural integrity, thermal response fidelity, and measurement repeatability. Its design facilitates traceable calibration using NIST-traceable reference thermometers and certified volume standards, supporting GLP-compliant documentation practices required in refinery QC labs and third-party testing facilities.

Software & Data Management

While the SYP2001-VIB operates via embedded firmware rather than PC-hosted software, its touchscreen interface logs critical test parameters—including start/end times, bath temperatures, distillation temperatures at 5%, 10%, 30%, 50%, 70%, 90%, and 95% recovered volumes, and final dry point—into internal memory with timestamping. Data export is supported via USB interface for transfer to LIMS or Excel-based reporting systems. Audit trail functionality records operator ID (via manual entry), method selection, calibration events, and system error flags—aligning with basic FDA 21 CFR Part 11 data integrity expectations for non-networked instruments used in regulated environments.

Applications

• Quality assurance of gasoline blending components and finished spark-ignition fuels in refinery laboratories.
• Distillation curve characterization of aviation turbine fuels (Jet A/A-1) for volatility compliance against DEF STAN 91-91 or ASTM D1655.
• Batch release testing of diesel fuel per EN 590 or GB 19147, focusing on T10, T50, T90, and recovery endpoints.
• Specification verification of naphtha cuts in petrochemical feedstock evaluation.
• Educational demonstration of fractional distillation principles in university chemical engineering laboratories.
• Contract testing services accredited to ISO/IEC 17025, where method-defined reproducibility (e.g., ASTM D86 repeatability limits of 1.0–2.5 °C depending on cut point) must be routinely verified.

FAQ

Does the SYP2001-VIB support automated data reporting to LIMS?
Yes—test results stored internally can be exported via USB to CSV format for integration into LIMS or custom QA databases.
Can it be used for vacuum distillation applications?
No—this model is strictly configured for atmospheric distillation per ASTM D86 and related standards; vacuum-capable variants require separate instrumentation.
What maintenance intervals are recommended for the compressor and heating elements?
Compressor oil inspection is advised annually; heating mantle resistance should be verified quarterly using a calibrated multimeter to ensure linearity within ±2% of nominal output.
Is third-party calibration certification available?
Shenkai provides factory calibration certificates traceable to CNAS-accredited standards; users may engage ISO/IEC 17025-certified metrology providers for on-site verification.
How does the dual-bath configuration improve test reproducibility?
Independent thermal regulation eliminates inter-sample thermal coupling, ensuring each distillation follows identical bath temperature profiles—critical for achieving ASTM D86 repeatability thresholds across parallel runs.
