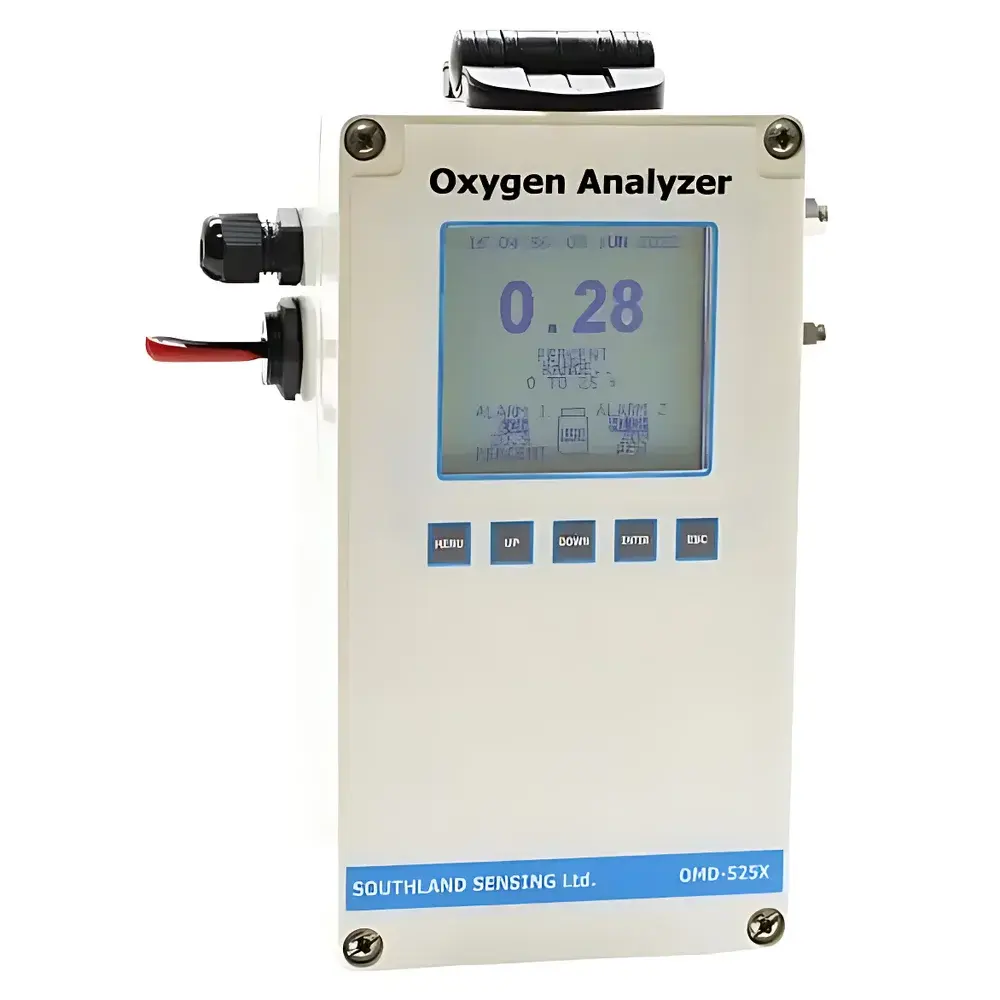

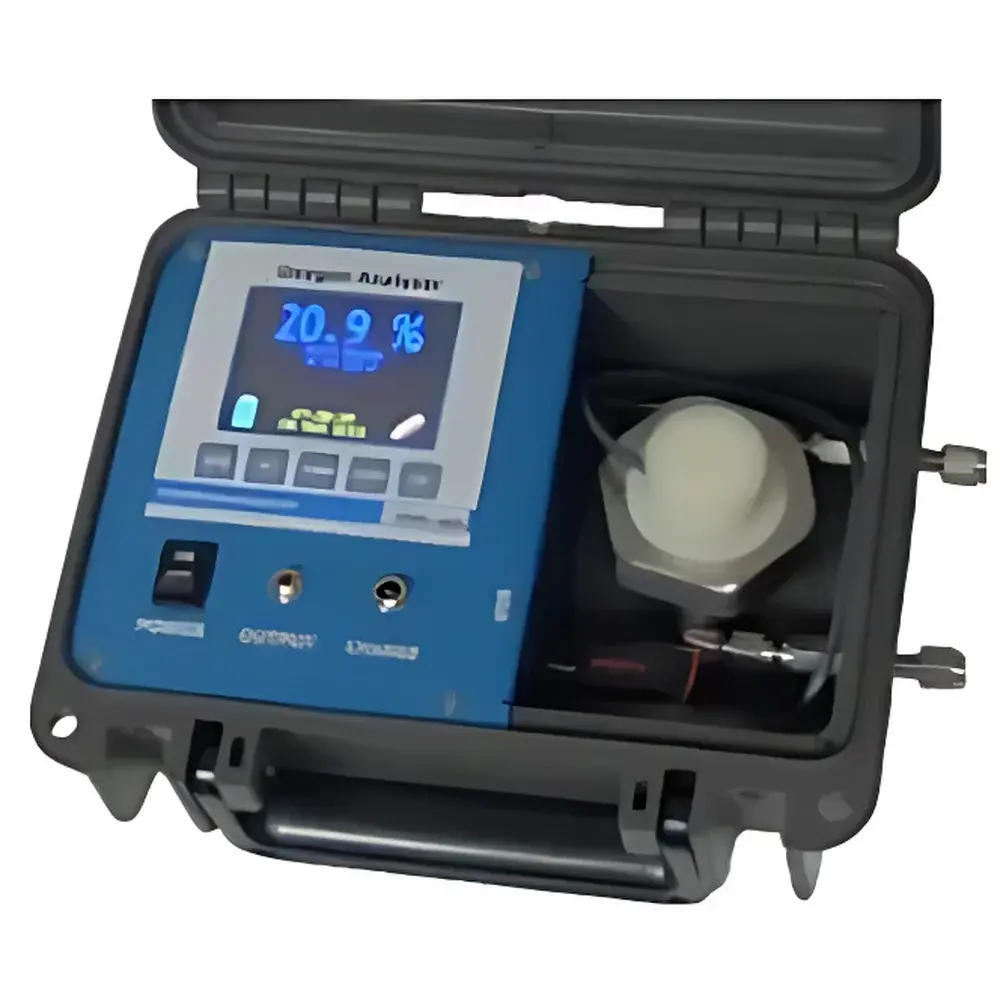

Southland 525X Online Trace Oxygen Analyzer
| Brand | Southland |
|---|---|
| Origin | USA |
| Model | 525X |
| Measurement Range | 0–10 / 100 / 1000 ppm, 0–1% / 5% / 10% / 25% / 100% O₂ |
| Accuracy | < ±1% FS |
| Display | Backlit LCD |
| Enclosure | Die-cast aluminum, IP66 / NEMA 4X rated |
| Mounting | Wall-mountable |
| Operating Temperature | 0–50 °C |
| Power Supply | 10–28 VDC or 100–240 VAC |
| Output Signals | 4–20 mA (standard), 1–5 VDC (optional) |
| Data Logging | USB flash drive (up to 8 GB), configurable interval 1–120 min |
| Alarm Outputs | Two non-latching relay contacts |
| Flow Rate Sensitivity | 0.5–5 SCFH |
| Pressure Range | 0.1–50 PSIG |
| Warranty | 12 months (sensor & electronics) |
| Compliance | CE-marked, RoHS-compliant, designed for GLP/GMP-aligned environments |
Overview
The Southland 525X Online Trace Oxygen Analyzer is a field-deployable, electrochemical-based gas analyzer engineered for continuous, real-time quantification of oxygen concentration across an exceptionally wide dynamic range—from sub-ppm trace levels (0–10 ppm) up to full-scale 100% O₂. Utilizing a high-stability, temperature-compensated galvanic sensor architecture, the 525X delivers repeatable and drift-minimized measurements in demanding industrial and laboratory environments. Its dual-range capability—switchable between trace (ppm) and percent-level modes via onboard menu navigation—eliminates the need for separate instruments when monitoring processes spanning nitrogen blanketing, inert gas purity verification, and ambient air leakage detection. The analyzer operates on the principle of diffusion-controlled oxygen reduction at a noble-metal cathode, generating a linear current proportional to partial pressure; this analog signal is digitized with 16-bit resolution and processed using embedded firmware calibrated against NIST-traceable standards.
Key Features
- Dual-mode operation: seamless switching between trace (0–10/100/1000 ppm) and bulk (0–1%/5%/10%/25%/100%) oxygen measurement ranges without hardware modification
- Robust die-cast aluminum enclosure with EMI/RFI shielding and IP66/NEMA 4X ingress protection—certified for outdoor, washdown, and hazardous-area-adjacent installations
- Integrated data logging: records timestamped O₂ values to removable USB flash drives (up to 8 GB capacity); supports user-defined intervals from 1 to 120 minutes; 1-minute logging yields >50 years of continuous storage
- Two independently configurable non-latching relay outputs with adjustable delay timers—programmable for high/low alarms, system interlocks, or maintenance alerts
- Flexible power architecture: accepts either 10–28 VDC (e.g., for integration into control cabinets or battery-backed systems) or universal 100–240 VAC input with internal AC/DC conversion
- Standard 4–20 mA analog output with HART-compatible signaling; optional 1–5 VDC voltage output for PLC or DCS interfacing
- Onboard calibration support: accommodates zero and span adjustments using certified calibration gases; automatic pressure compensation within 0.1–50 PSIG operating range
Sample Compatibility & Compliance
The 525X is optimized for dry, non-corrosive process streams with flow rates between 0.5 and 5 SCFH. It is compatible with nitrogen, argon, helium, CO₂, and compressed air matrices—commonly deployed in PSA nitrogen generators, beverage-grade CO₂ purification loops, laser welding purge lines, and additive manufacturing inert chambers. Sensor response is unaffected by moderate particulate loading, though inlet filtration (5 µm recommended) is advised upstream of high-dust applications. All units are CE-marked and RoHS-compliant. While not intrinsically safe, the analyzer’s low-power design and sealed construction enable use in Zone 2/Class I, Division 2 environments when installed per local electrical codes. Firmware includes audit trail functionality supporting GLP and GMP documentation requirements, including operator ID tagging and change-log timestamps for calibration events.
Software & Data Management
No proprietary software is required for basic operation or data retrieval. Logged data exports natively in comma-separated values (.csv) format—fully compatible with Microsoft Excel, MATLAB, LabVIEW, and LIMS platforms. Each record includes UTC timestamp, measured O₂ value, sensor temperature, analog output status, and alarm state flags. USB drive insertion triggers automatic file enumeration; no driver installation or external utilities are needed. For enterprise integration, the 4–20 mA output supports standard 24V loop-powered configurations compatible with Siemens Desigo, Honeywell Experion, and Emerson DeltaV DCS architectures. Optional Modbus RTU over RS-485 interface available upon request for centralized SCADA communication.
Applications
- Purified nitrogen and oxygen generation systems (PSA, membrane, cryogenic)—real-time O₂ purity verification at product outlet and final delivery points
- Food & beverage industry: dissolved oxygen monitoring in CO₂ used for carbonation, blanketing, and modified-atmosphere packaging (MAP)
- Advanced manufacturing: inert atmosphere control during TIG/MIG welding, electron beam melting, and metal powder bed fusion (3D printing)
- Research laboratories: controlled-atmosphere glove boxes, catalyst deactivation studies, and oxidation kinetics experiments
- Air separation plant (ASU) commissioning and performance validation—tracking O₂ breakthrough across molecular sieve beds and heat exchangers
- Pharmaceutical inerting: validation of nitrogen purging cycles in API synthesis reactors and lyophilizer chambers
FAQ
Can the 525X measure oxygen in high-humidity or corrosive gas streams?
The analyzer is designed for dry, non-acidic sample gases. For humid or acidic applications (e.g., biogas, flue gas), a Nafion™ dryer or chemical scrubber must be installed upstream. Sensor lifetime is reduced under sustained condensation or SO₂/Cl₂ exposure.
Is sensor replacement user-serviceable?
Yes—the electrochemical sensor module is field-replaceable using standard Torx tools; no recalibration is required post-replacement if using Southland-certified sensors with pre-loaded calibration coefficients.
Does the device support FDA 21 CFR Part 11 compliance?
While the 525X does not include electronic signature or role-based access controls, its audit-trail-capable firmware, immutable .csv logs, and time-stamped calibration records align with foundational Part 11 expectations for instrument qualification in regulated environments.
What is the typical sensor lifespan under normal operating conditions?
Galvanic oxygen sensors exhibit a finite electrochemical charge; typical service life is 18–24 months in continuous operation at ambient temperature and <10 ppm average O₂ exposure.
Can the 4–20 mA output be scaled to match a specific DCS input range?
Yes—output scaling is fully programmable via the front-panel menu: users define custom low/high engineering units (e.g., 0–10 ppm → 4–20 mA) independent of the selected measurement range.
