Southland Sensing OMD-507 Glovebox-Specific Oxygen Analyzer

Overview

The Southland Sensing OMD-507 Glovebox-Specific Oxygen Analyzer is an engineered solution for ultra-low to high-range oxygen concentration monitoring in inert or reducing atmospheres—primarily deployed within controlled environments such as argon- or nitrogen-purged gloveboxes used in battery R&D, air-sensitive synthesis, additive manufacturing (e.g., metal 3D printing), and semiconductor packaging. Unlike broad-spectrum paramagnetic or zirconia-based analyzers, the OMD-507 employs a proprietary micro fuel cell oxygen sensor, operating on electrochemical principle: O₂ molecules diffuse through a selective membrane and undergo reduction at the cathode, generating a current linearly proportional to partial pressure. This architecture delivers inherent stability, low drift, and immunity to background gas interference from common glovebox carriers (N₂, Ar, H₂), provided acidic contaminants are mitigated via optional acid-resistant sensor variants.

Key Features

• Multi-range configurable detection: factory-calibrated options spanning 0–10 ppm (for ultra-high-purity inerting validation) up to 0–100% O₂ (for ambient air leak verification or purge endpoint confirmation)
• Micro fuel cell sensor with >2-year typical service life under continuous operation; no consumable electrolyte replacement required
• Integrated temperature compensation circuitry ensuring consistent accuracy across –10 to 50 °C ambient conditions—critical for glovebox sumps or recirculation loops subject to thermal gradients
• Low-power design (25 mA @ 24 VDC) enabling integration into sealed glovebox control cabinets without thermal load concerns

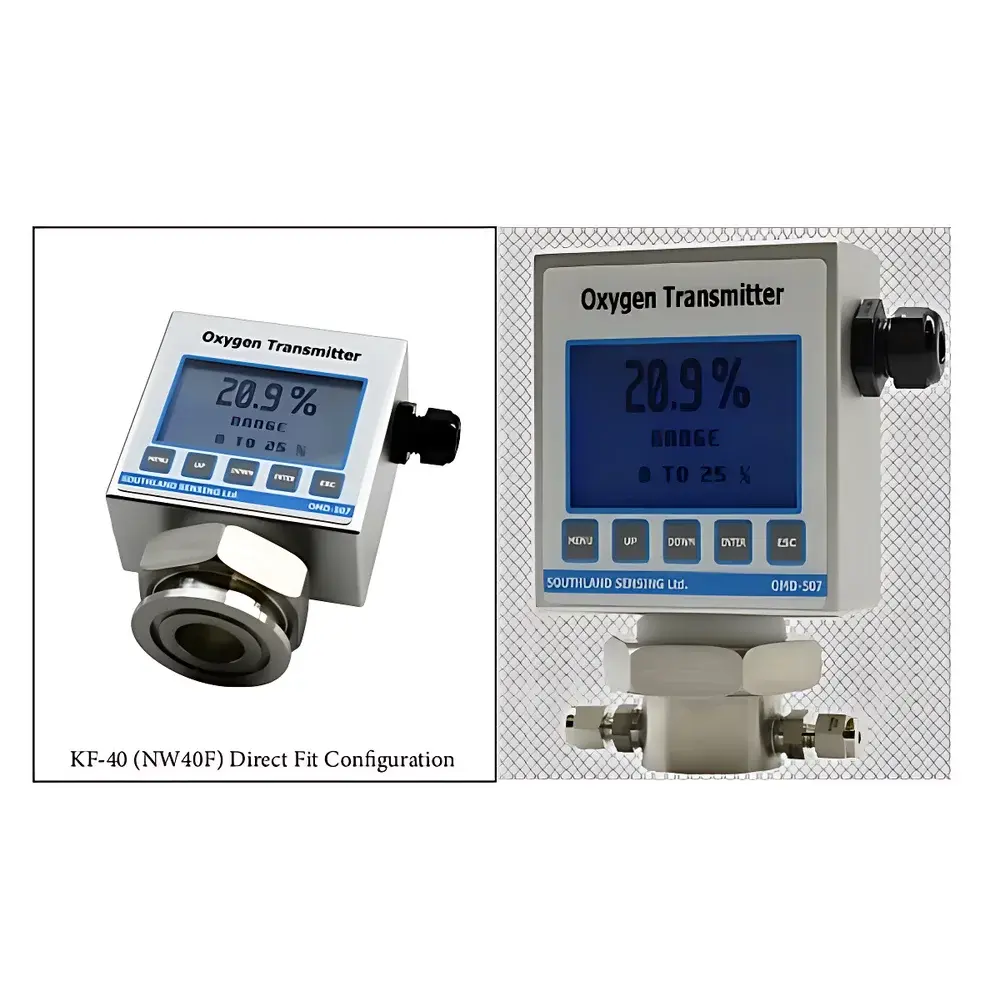

• Compact form factor (241 × 165 × 96 mm) optimized for panel mounting or inline installation in H1 flow cells or KF-40 flanged interfaces
• Dual analog outputs (4–20 mA and 0–10 VDC) support simultaneous connection to PLCs, SCADA systems, and local display modules
• CE-marked construction compliant with EN 61326-1 (EMC) and EN 61010-1 (safety) for industrial laboratory deployment

Sample Compatibility & Compliance

The OMD-507 is validated for use with non-corrosive process gases including nitrogen, argon, helium, hydrogen, and saturated hydrocarbons. When measuring in atmospheres containing CO₂, H₂S, or SO₂—common in metallurgical off-gas or biogas-influenced purge streams—an acid-resistant sensor variant must be specified to prevent electrolyte degradation and signal drift. The analyzer meets functional safety expectations for Class I, Division 2 environments per NEC/CEC guidelines when installed externally to hazardous zones. While not intrinsically safe certified, its low-energy design minimizes ignition risk in properly ventilated glovebox antechambers. Data integrity aligns with GLP/GMP documentation requirements when paired with compliant data loggers recording timestamped 4–20 mA outputs.

Software & Data Management

The OMD-507 operates as a standalone transducer with no embedded firmware interface; configuration and diagnostics rely on external instrumentation. Its analog outputs integrate natively with LabVIEW, DeltaV, Siemens Desigo, or custom Python-based acquisition scripts using standard DAQ hardware. For audit-ready traceability, users may route the 4–20 mA signal through a 21 CFR Part 11-compliant recorder (e.g., Eurotherm 3508 or Yokogawa DX1000) to maintain electronic signatures, calibration logs, and alarm history. Calibration verification intervals are defined by ISO 17025-accredited labs based on usage frequency and criticality—typically every 3–6 months for QC-critical glovebox validation protocols.

Applications

• Real-time O₂ monitoring in inert-atmosphere gloveboxes for lithium-ion battery electrode handling and solid-state electrolyte synthesis
• Leak detection and purge cycle optimization in metal 3D printing chambers (Ti-6Al-4V, Inconel 718) where residual O₂ >50 ppm induces porosity
• Process gas purity verification upstream of catalytic reactors in fine chemical synthesis
• Oxygen ingress quantification during long-term storage of hygroscopic or pyrophoric reagents (e.g., organolithiums, NaH)
• Quality assurance of nitrogen generators supplying semiconductor cleanrooms (measuring breakthrough O₂ at <1 ppm)

FAQ

Can the OMD-507 measure oxygen in hydrogen-rich glovebox atmospheres?
Yes—the micro fuel cell sensor is inherently compatible with H₂ as a carrier gas; however, ensure the sensor variant is rated for reducing environments and avoid exposure to >100 ppm H₂S without the acid-resistant option.
What is the recommended calibration gas for 0–10 ppm range verification?
Certified zero gas (99.999% N₂) and 5 ppm O₂ in N₂ (±1% uncertainty, NIST-traceable) are standard for two-point calibration; avoid synthetic air blends due to potential CO₂-induced baseline shift.
Is temperature compensation automatic or user-adjustable?
Compensation is fully automatic and embedded in the analog signal path; no manual offset adjustment is required or supported.
Does the analyzer support digital communication protocols like Modbus or HART?
No—the OMD-507 provides analog-only output; for digital integration, pair with a third-party analog-to-Modbus converter (e.g., Acromag 962EN) mounted locally.
How often should the sensor be replaced under continuous 24/7 operation?
Typical functional lifespan exceeds 24 months at <25 °C ambient and 2% FS deviation during scheduled calibration checks.
