Southland Sensing OMD-525X Online Oxygen Analyzer

Overview

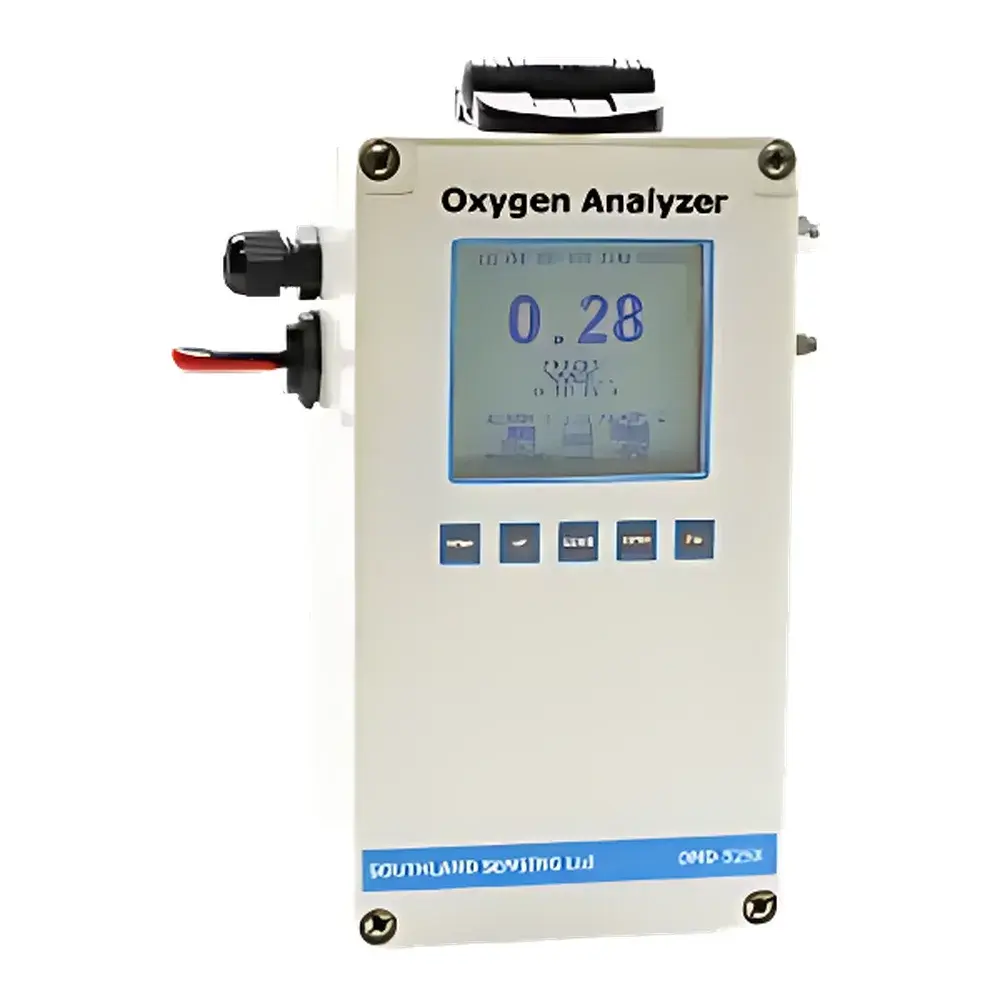

The Southland Sensing OMD-525X Online Oxygen Analyzer is an industrial-grade electrochemical gas analyzer engineered for continuous, real-time monitoring of oxygen concentration in demanding process environments. It employs galvanic (TO2 series) and polarographic (PO2 series) sensor technologies—each optimized for distinct measurement domains: trace-level detection down to 0.01 ppm in high-purity inert or reducing gases (e.g., N₂, Ar, He, H₂), and percent-level quantification up to 100% O₂ in air separation units, combustion control loops, or medical gas production lines. Unlike optical or zirconia-based analyzers, the OMD-525X leverages diffusion-limited electrochemical cell architecture, delivering stable baseline performance without external power to the sensing element, minimal drift over time, and immunity to background gas interference when operated within specified matrix constraints. Its modular sensor design supports field-swappable cartridges with factory-calibrated response curves, enabling rapid reconfiguration between ppm- and %-range applications without recalibration.

Key Features

• Multi-range hardware-selectable configuration: Five discrete full-scale ranges per sensor type (e.g., 0–10 ppm, 0–100 ppm, 0–1000 ppm, 0–10,000 ppm, 0–25% for TO2; 0–1%, 0–5%, 0–10%, 0–25%, 0–100% for PO2), activated via front-panel rotary switch
• Robust IP65-rated ABS enclosure with chemical-resistant keypad, sealed against dust, moisture, and acidic vapors encountered in refinery or semiconductor fab environments
• Dual independent relay outputs configurable for high/low alarm thresholds, interlock signaling, or system shutdown protocols compliant with IEC 61511 functional safety guidelines
• Integrated temperature and pressure compensation algorithms ensure measurement integrity across variable process conditions without external transmitters
• Onboard 8 GB USB data logger captures timestamped O₂ readings, alarm events, calibration logs, and diagnostic flags for audit-ready traceability
• Galvanic TO2 sensors require zero polarization voltage and exhibit no warm-up delay; PO2 variants feature extended-life electrolyte formulations rated for 24 months at 25°C

Sample Compatibility & Compliance

The OMD-525X is validated for use with non-corrosive, non-condensing sample streams including nitrogen, argon, helium, hydrogen, carbon dioxide, acetylene, ethylene, butadiene, and generic hydrocarbon mixtures (CnHm). For CO₂-rich streams (>0.5% v/v), PO2-24 and PO2-1120 sensors operate maintenance-free due to proprietary cathode passivation. TO2-2x sensors maintain ppm-level stability in CO₂ matrices up to 5% without signal quenching. All wetted materials—1/4″ stainless steel compression fittings, PTFE-sealed valves, and FKM diaphragms—conform to ASTM F2257 for elastomer compatibility with industrial gases. The analyzer meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage directive (2014/35/EU); its analog output and relay logic support integration into SIL-2-rated safety instrumented systems (SIS) per IEC 61508.

Software & Data Management

While the OMD-525X operates as a standalone embedded instrument, its USB data export functionality enables seamless ingestion into LIMS, SCADA, or MES platforms. Logged files follow CSV format with ISO 8601 timestamps, enabling direct import into Excel, LabVIEW, or Python-based analytics pipelines. Calibration records include operator ID, date/time, standard gas lot number, and pre-/post-calibration deviation metrics—satisfying FDA 21 CFR Part 11 electronic record requirements when paired with controlled access protocols. Firmware updates are delivered via encrypted USB image files, preserving configuration integrity during version upgrades. No cloud connectivity or proprietary software installation is required, minimizing IT security surface area in regulated GMP/GLP facilities.

Applications

• Air separation plants: Continuous monitoring of oxygen purity in liquid nitrogen, crude argon, and high-purity oxygen product streams (e.g., ASU cold box exit points, distillation column side draws)
• Semiconductor manufacturing: Inert purge gas verification (N₂, Ar) for cleanroom tooling and wafer processing chambers where sub-ppm O₂ excursions compromise gate oxide integrity
• Hydrogen production & purification: Residual oxygen detection downstream of palladium membrane purifiers or pressure swing adsorption (PSA) units to prevent catalyst poisoning
• Medical gas systems: USP ^® Grade oxygen certification (≤0.1% O₂ impurity in N₂/Ar carriers) and hospital pipeline monitoring per ISO 8573-1 Class 1 compressed air standards
• Power generation: Combustion optimization in gas turbines via flue gas O₂ feedback control, meeting EPA Method 3A compliance for continuous emissions monitoring (CEMS)

FAQ

What sensor technology does the OMD-525X use?
It utilizes galvanic (TO2 series) and polarographic (PO2 series) electrochemical cells—selected based on required detection range and sample matrix.
Can it measure oxygen in hydrogen or CO₂ streams?
Yes: TO2-2x and PO2-24/1120 variants are specifically characterized for stable operation in H₂ and CO₂ backgrounds up to 5% v/v.
Is automatic calibration supported?
No—calibration requires manual introduction of certified span gas (~80% of selected range) via the integrated flow control valve; however, zero calibration is unnecessary due to inherent sensor stability.
How is pressure compensation implemented?
An onboard absolute pressure transducer feeds real-time data to the microprocessor, which applies NIST-traceable correction factors derived from the ideal gas law and sensor-specific diffusion coefficients.
Does it comply with pharmaceutical or food-grade validation requirements?
Its analog output, relay logic, and audit-trail-capable USB logging meet foundational requirements for IQ/OQ documentation under Annex 11 and EU GMP Chapter 4; full validation support packages are available upon request.
