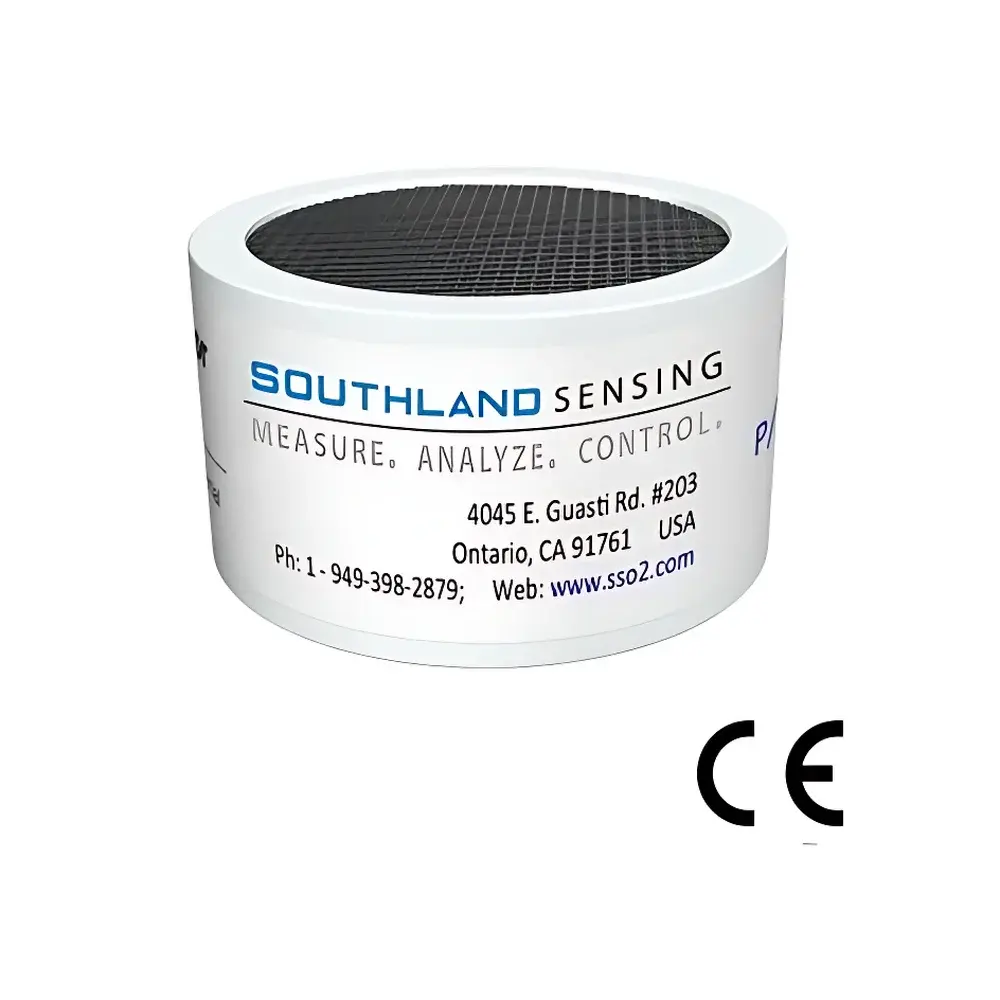

Southland Sensing PO2-2X Percent Oxygen Sensor
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | PO2-2X |
| Price Range | USD 1–9,999 |
Overview
The Southland Sensing PO2-2X is a high-reliability, electrochemical fuel-cell-based percent oxygen sensor engineered for continuous, real-time monitoring of O₂ concentration in industrial process and inert gas streams. Unlike paramagnetic or zirconia-based analyzers, the PO2-2X employs a proprietary miniature galvanic fuel cell that generates a linear current output (285–590 µA) proportional to oxygen partial pressure—enabling stable, drift-free measurement across multiple full-scale ranges (0–1%, 0–5%, 0–10%, 0–25%, and 0–100% O₂). Its solid-electrolyte architecture eliminates the need for external power supply to the sensing element, ensuring intrinsic safety and low-power system integration. Designed for demanding environments—including semiconductor purge lines, nitrogen generator outlets, hydrogen production skids, and high-purity inert gas distribution networks—the PO2-2X delivers consistent performance under variable flow, temperature, and humidity conditions without routine calibration.
Key Features
- Fuel-cell oxygen sensing technology with no internal heater or reference gas requirement—reducing power consumption and thermal drift
- Five selectable full-scale ranges (1%, 5%, 10%, 25%, 100% O₂), configured via hardware jumper or external signal scaling
- Fast T₉₀ response time of ≤13 seconds across all ranges, verified per ASTM D6347/D6347M for electrochemical gas sensors
- Full-scale accuracy of ±1% F.S. and repeatability of ±0.5% F.S., traceable to NIST-certified gas standards
- Operating temperature range: 0–50°C; storage temperature: 0–45°C; relative humidity tolerance: 0–100% RH (non-condensing)
- Optimized flow sensitivity: recommended sample flow rate of 0.5–5 SCFH (standard cubic feet per hour) for optimal diffusion-limited response
- Two configurable SPDT alarm relays supporting fail-safe or fault-indication logic per IEC 61508 SIL 1 requirements
- PCB-mountable design with center-foil cathode (negative) and outer-foil anode (positive); compatible with standard 0.1″ pitch headers
Sample Compatibility & Compliance
The PO2-2X is validated for use in non-corrosive, non-condensing gas matrices including N₂, Ar, He, H₂, CH₄, and other hydrocarbon-rich process streams. It is not suitable for exposure to halogenated gases, SO₂, Cl₂, NOₓ, or high-concentration CO₂ (>10%), which may poison the fuel-cell catalyst. The sensor complies with RoHS Directive 2011/65/EU and meets CE marking requirements for electromagnetic compatibility (EN 61326-1) and environmental stress (IEC 60068-2). While not intrinsically safe certified as a standalone device, it is routinely integrated into Class I, Division 2 (CID2) and ATEX Zone 2 systems when housed within appropriately rated enclosures and paired with barrier-protected signal conditioning.
Software & Data Management
As a 4–20 mA or 0–5 V analog-output sensor, the PO2-2X interfaces seamlessly with distributed control systems (DCS), programmable logic controllers (PLCs), and SCADA platforms without proprietary drivers. When used with Southland Sensing’s optional signal conditioner modules (e.g., SC-200 series), it supports Modbus RTU over RS-485, enabling remote configuration, diagnostic logging, and audit-trail-capable data acquisition compliant with FDA 21 CFR Part 11 Annex 11 requirements. All firmware updates and calibration records are timestamped and user-authenticated, supporting GLP/GMP documentation workflows in pharmaceutical and semiconductor manufacturing facilities.
Applications
- Oxygen purity verification in on-site nitrogen and hydrogen generators (ISO 8573-1 Class 2–4 air quality compliance)
- Leak detection and blanketing gas integrity monitoring in semiconductor wafer fabrication tools and ALD/CVD chambers
- Residual oxygen quantification in aerospace-grade inerting systems (MIL-STD-889, NASA-STD-6002)
- Process safety interlocks for hydrogen reformer off-gas and syngas handling in petrochemical refineries
- Quality assurance in heat-treating furnace atmospheres (AMS 2750E pyrometry-compliant ambient O₂ validation)
- Research-grade O₂ profiling in catalytic reaction studies and plasma chemistry reactors
FAQ
What is the expected service life of the PO2-2X sensor under continuous operation?
Typical operational lifespan is 20–25 months at 25°C and 21% O₂; lifetime decreases predictably at elevated temperatures or in high-O₂ partial pressure environments, per Arrhenius degradation modeling.
Can the PO2-2X be used in high-humidity or condensing gas streams?
No—it must be installed upstream of any moisture trap or desiccant bed; condensation will irreversibly damage the electrolyte membrane and cause rapid signal decay.
Is field calibration required, and what gas standards are recommended?
Zero calibration is unnecessary; span calibration is recommended annually using certified NIST-traceable O₂-in-N₂ standards at the intended measurement range (e.g., 1.00% O₂ for low-range applications).
Does the sensor require temperature compensation during operation?
Yes—the built-in thermistor provides real-time temperature feedback; external systems must apply the specified temperature coefficient of 2.54%/°C to maintain full-scale accuracy across the 0–50°C operating band.
What mechanical protection is recommended for installation in high-vibration environments?
Mounting in a rigid, isolated bracket with silicone-damped gasketing is advised; direct bolt-on to vibrating panels or piping risers may accelerate electrolyte delamination.
