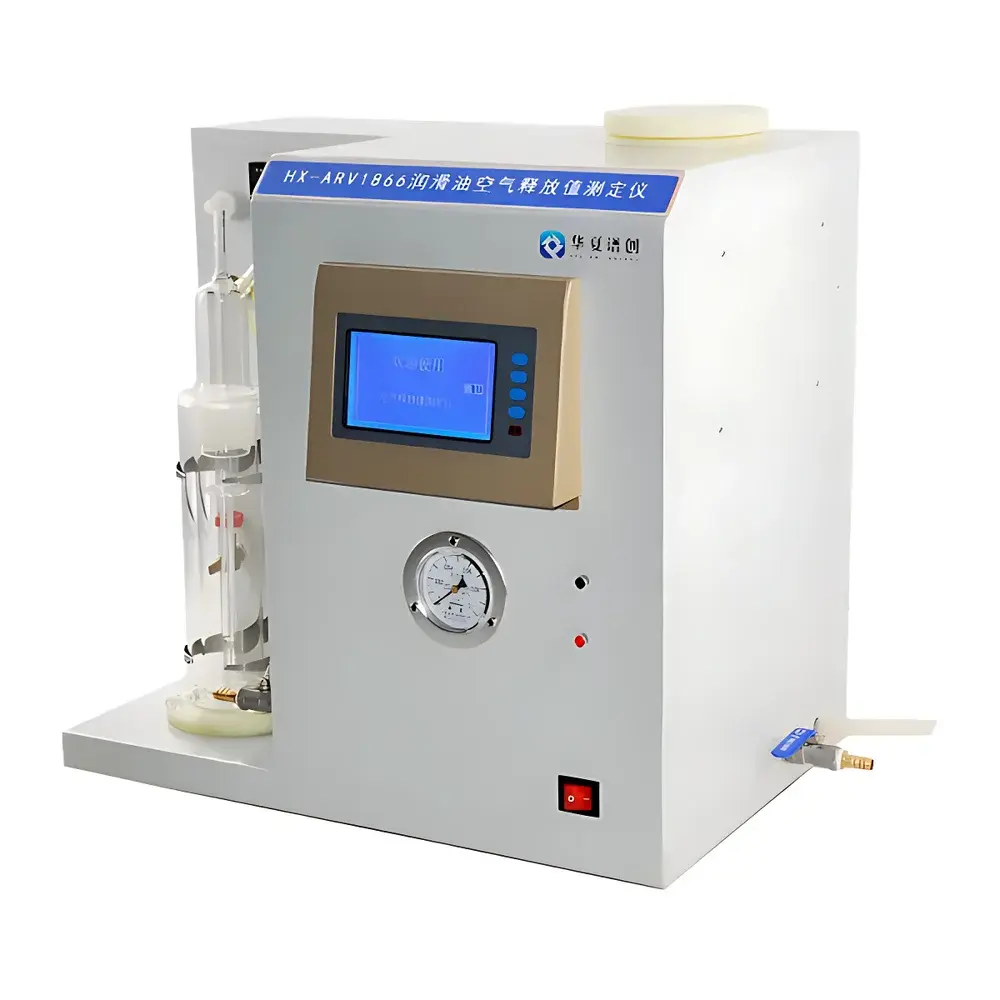

Spectra Invent HX-ARV1866 Air Release Value Tester for Lubricating Oils

Overview

The Spectra Invent HX-ARV1866 Air Release Value Tester is a precision-engineered laboratory instrument designed to quantify the air release characteristics of petroleum-based lubricants—including hydraulic oils, turbine oils, and industrial circulating oils—according to standardized test methodology. It operates on the principle of measuring the time required for entrained air bubbles (introduced under controlled pressure and temperature conditions) to separate from the oil phase and rise to the surface, where they coalesce and escape into the headspace. This measurement—expressed in seconds—is defined as the Air Release Value (ARV), a critical indicator of oil formulation integrity, additive package stability, and resistance to foaming and cavitation in high-pressure hydraulic and power generation systems. The instrument complies with SH/T 0308—China’s national standard equivalent to ASTM D3427 and ISO 9120, ensuring methodological consistency with internationally accepted protocols for evaluating air separation performance in lubricant quality control and R&D environments.

Key Features

• Dual independent PID temperature control system: Simultaneously regulates both bath temperature (via water circulation) and ambient air temperature within the test chamber, enabling precise thermal stabilization per SH/T 0308 requirements.
• Integrated water-circulating constant-temperature bath: Equipped with a high-stability submersible pump and thermally insulated reservoir to maintain bath uniformity within ±0.3°C across the full operating range (ambient to 99.9°C).
• Adjustable pneumatic pressure regulation: Digital pressure controller provides fine-tuned air pressurization (0–98 kPa) during sample saturation, supporting reproducible bubble nucleation and dispersion.
• High-resolution timing module: Real-time elapsed time measurement with ±1 s accuracy, automatically triggered upon initiation of depressurization and terminated when the air–oil interface stabilizes.
• Intuitive LCD interface: Local display of setpoints, real-time bath/air temperatures, pressure status, and countdown timer—enabling standalone operation without external PC dependency.
• Robust mechanical architecture: Stainless-steel frame, borosilicate glass test vessels, and corrosion-resistant fluid pathways ensure long-term reliability in routine QC laboratories.

Sample Compatibility & Compliance

The HX-ARV1866 is validated for use with mineral-based, synthetic, and semi-synthetic lubricants having kinematic viscosities between 20 cSt and 300 cSt at 40°C. It accommodates standard 200 mL cylindrical test vessels conforming to SH/T 0308 dimensional specifications. Instrument design and operational logic align with GLP-aligned laboratory practices: all temperature, pressure, and timing parameters are traceable via onboard logging (optional USB export), and user access levels can be configured to support audit-ready workflows. While not pre-certified for FDA 21 CFR Part 11, its deterministic control architecture and immutable timestamping facilitate validation for regulated environments under internal SOPs referencing ASTM D3427 or ISO 9120.

Software & Data Management

The base configuration supports manual data recording via LCD readout; an optional PC interface module enables serial (RS-232) or USB connectivity for automated acquisition of test parameters and results into LIMS or Excel-compatible formats. Firmware supports configurable data fields including operator ID, sample ID, batch number, test date/time, bath temperature, air temperature, applied pressure, and final ARV result. All logged entries include embedded timestamps and cannot be edited post-acquisition—ensuring data integrity for internal QA review or regulatory submission. Exported CSV files retain full metrological context, facilitating trend analysis across batches or supplier qualification studies.

Applications

• Quality assurance testing of new and in-service turbine oils in power plants and cogeneration facilities.
• Formulation development and additive compatibility screening by lubricant manufacturers.
• Condition monitoring of hydraulic fluids in aerospace ground support equipment and heavy machinery OEMs.
• Third-party certification testing per contractual specifications requiring SH/T 0308, ASTM D3427, or ISO 9120 compliance.
• Educational laboratories conducting tribology and fluid property coursework aligned with API RP 936 or ISO 11171 standards.

FAQ

What standard methods does the HX-ARV1866 support?
It is fully compliant with SH/T 0308 and technically aligned with ASTM D3427 and ISO 9120 for air release value determination.
Can the instrument operate unattended during a test cycle?
Yes—the system executes fully automated temperature equilibration, pressurization, timing, and endpoint detection without manual intervention.
Is calibration traceable to national standards?
Temperature sensors are factory-calibrated against NIST-traceable references; users may perform periodic verification using certified RTD probes and digital manometers.
What maintenance is required for long-term accuracy?
Routine tasks include deionized water replenishment in the bath, periodic cleaning of glass vessels and air dispersion frits, and annual verification of pressure transducer linearity.
Does the unit meet electromagnetic compatibility (EMC) requirements for lab environments?
It conforms to IEC 61326-1 Class A emission and immunity specifications for laboratory electrical equipment.
