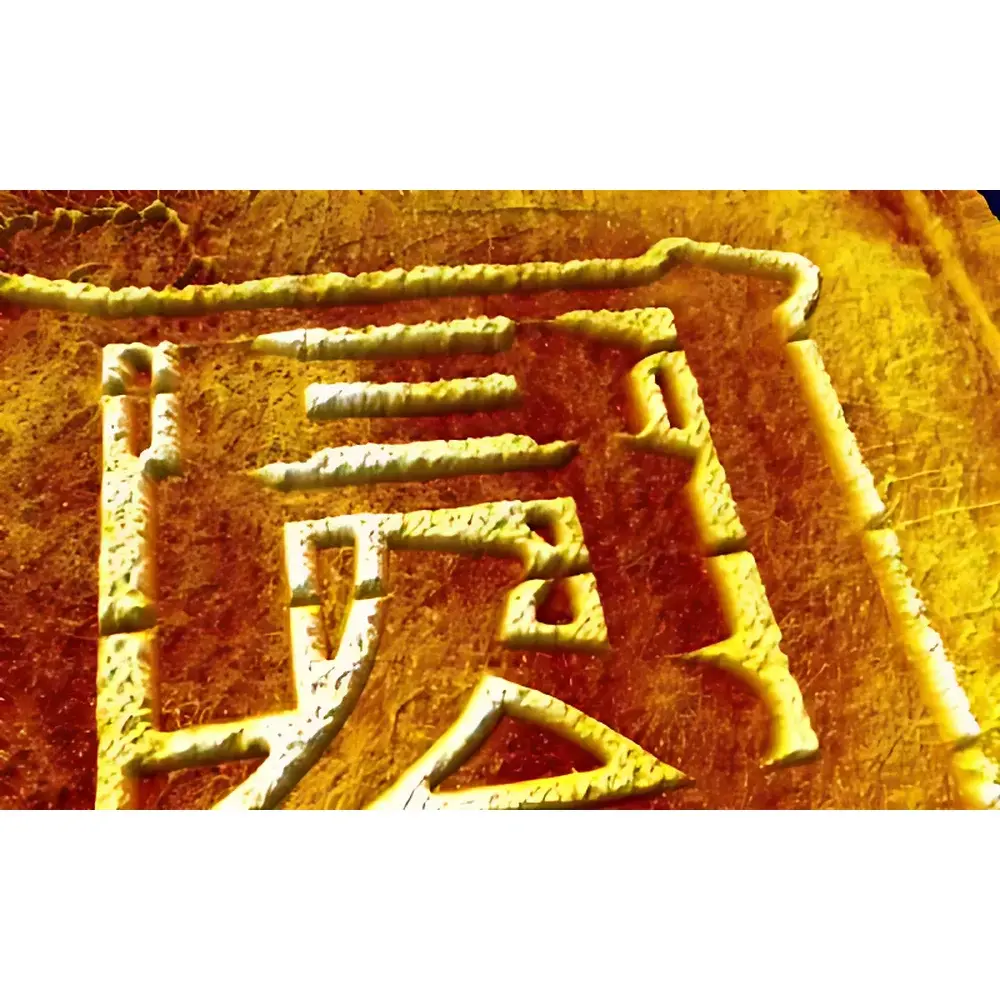

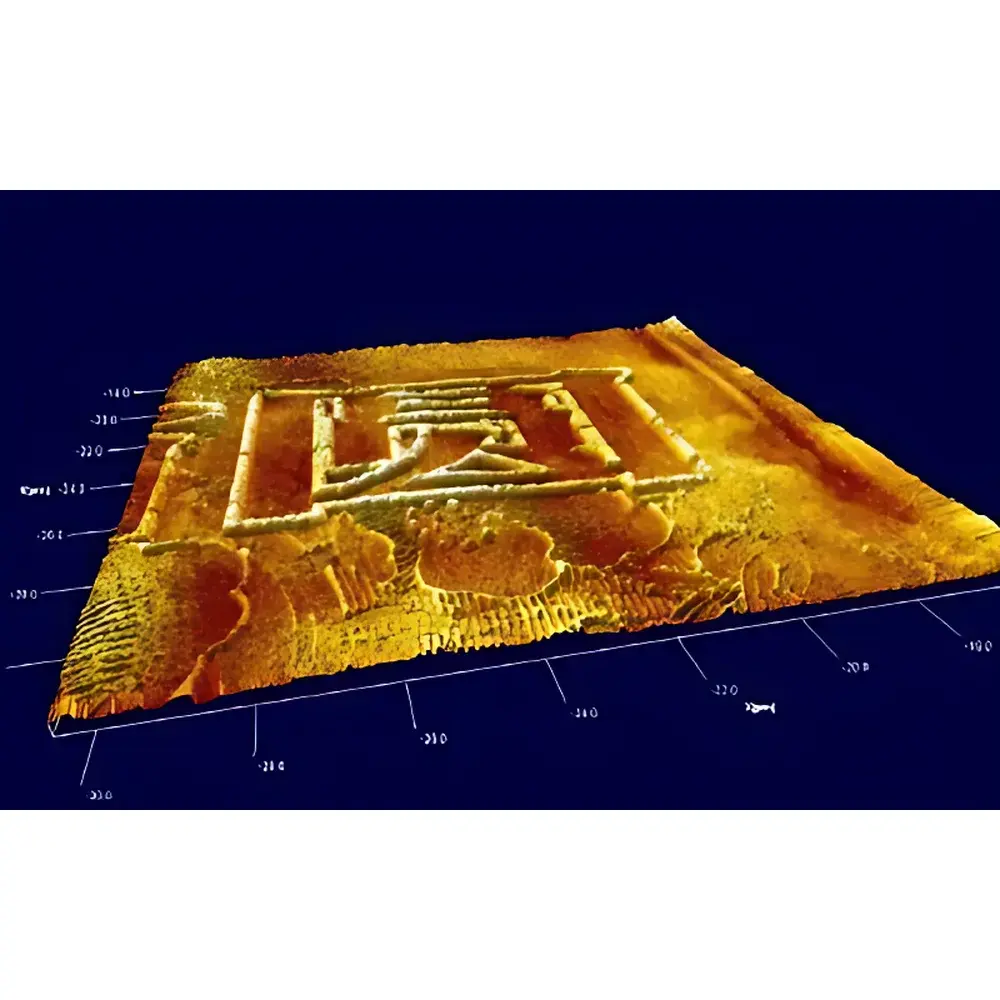

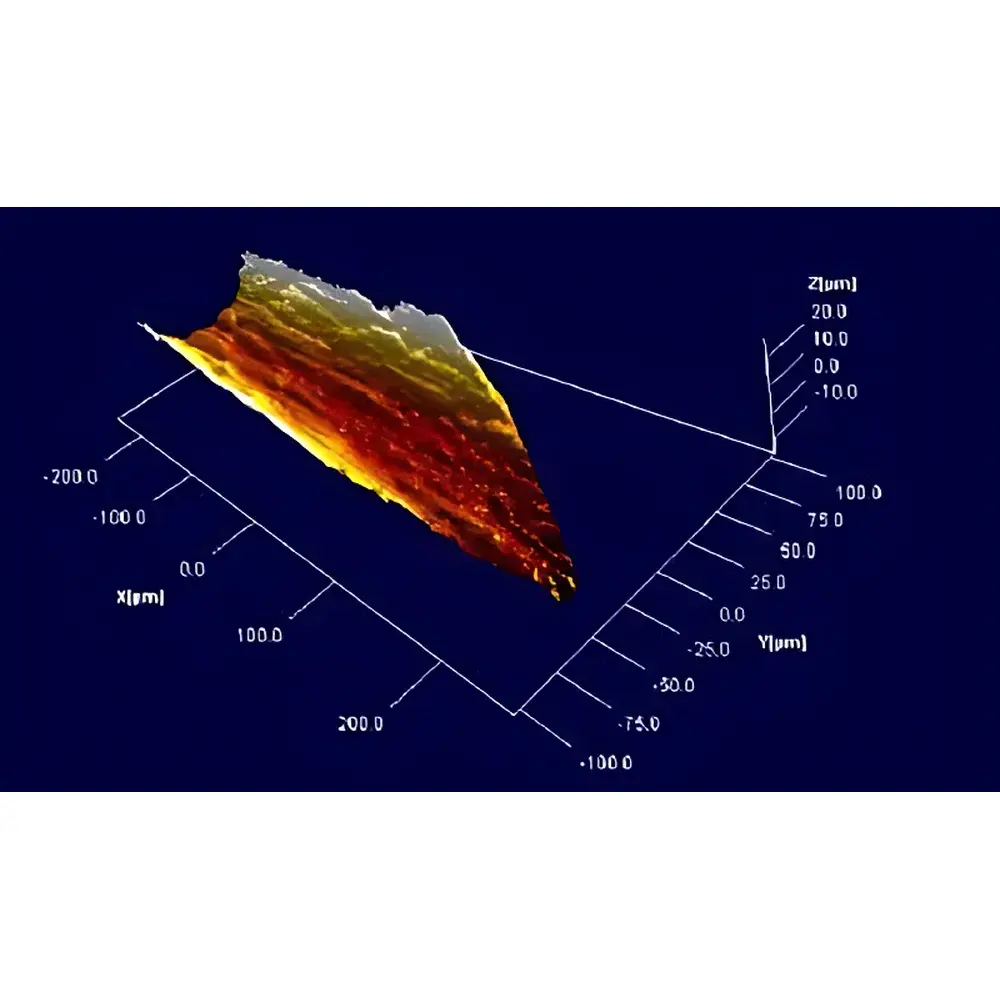

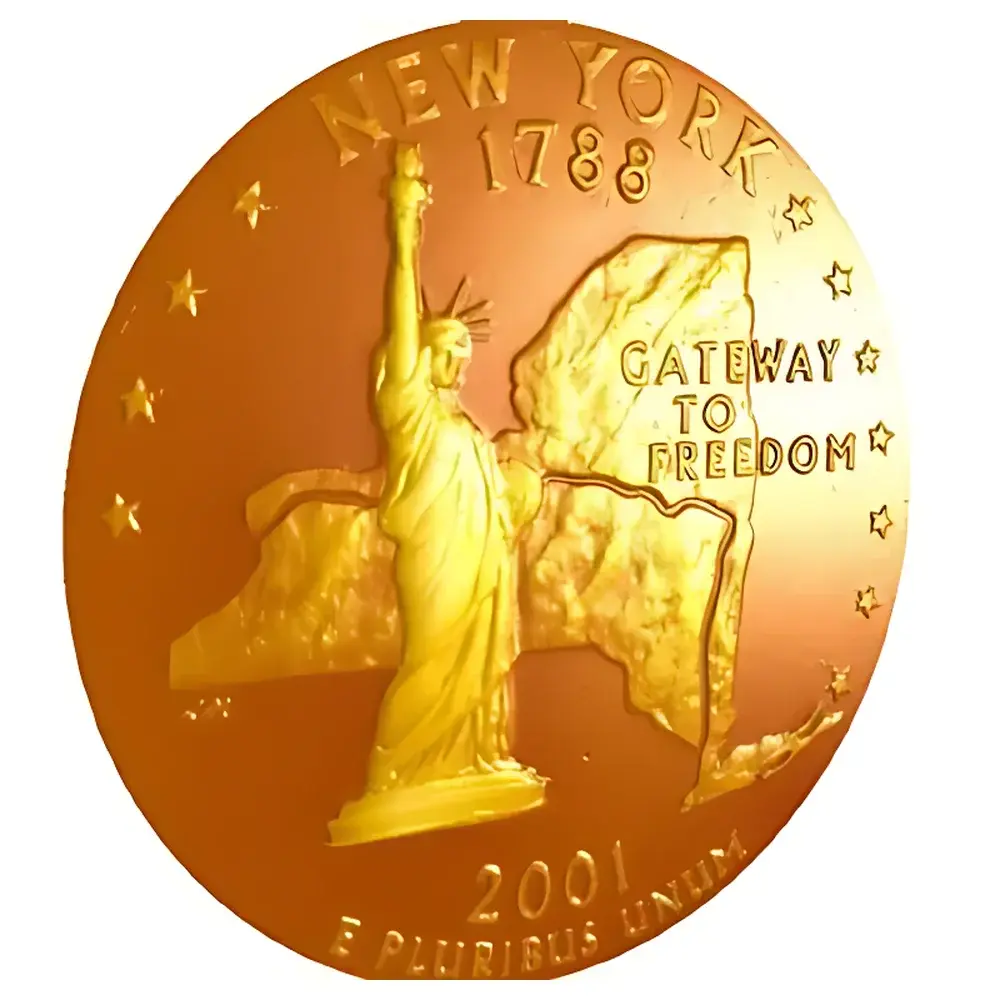

SPIP 6.0.14 Surface Metrology & 3D Topography Analysis Software

Overview

SPIP™ 6.0.14 is a professional-grade, modular surface metrology and 3D topography analysis platform developed by Image Metrology ApS and distributed globally for quantitative characterization of nanoscale and microscale surface structures. Engineered for precision and reproducibility in regulated and research-intensive environments, SPIP implements rigorous mathematical algorithms grounded in ISO 25178-2 (Geometrical Product Specifications — Surface texture), ISO 5436-2 (Profile measurement standards), and ASTM E2923-23 (Standard Guide for Measurement Uncertainty Analysis in Atomic Force Microscopy). Its core architecture supports traceable height calibration, spatial filtering, geometric feature extraction, and statistical surface parameter quantification—including Sa, Sq, Sz, Sk, Spk, Svk, and hybrid functional parameters (e.g., Sdq, Sdr). Unlike generic image processors, SPIP operates on calibrated, dimensional data—preserving true nanometer-scale Z-resolution and lateral pixel scaling—making it indispensable for metrology-critical applications in semiconductor process control, thin-film characterization, biomaterial interface analysis, and additive manufacturing surface qualification.

Key Features

• Modular architecture: Base module includes file import, planar/tilt correction, leveling, noise suppression (median, Gaussian, wavelet), and ISO-compliant roughness & waviness separation.
• 13 optional application-specific modules: Advanced Particle Analysis, Grain & Domain Detection, Fractal Dimension Mapping, Tip Convolution Modeling, Mechanical Property Mapping (via force-distance curve integration), Cross-Section & Profile Extraction, Layer Thickness Quantification, and Batch Processing Automation.
• Multi-instrument data interoperability: Native support for over 40 proprietary file formats from leading SPM (Bruker, Keysight, Park Systems), SEM (Thermo Fisher, Zeiss, JEOL), interferometric (Zygo, Taylor Hobson), confocal (Leica, Olympus), and profilometric (Nanovea, KLA, Sensofar) platforms.
• Calibration-aware workflow: Integrated calibration database with user-defined reference standards (e.g., NIST-traceable step heights, pitch gratings); automatic propagation of uncertainty through all processing steps.
• Reproducible reporting engine: Template-driven report generation with embedded metadata (acquisition parameters, software version, operator ID, timestamp), export to PDF, HTML, or structured CSV/Excel with full parameter traceability.

Sample Compatibility & Compliance

SPIP 6.0.14 processes quantitative 2D and 3D surface datasets acquired from contact and non-contact modalities—including atomic force microscopy (AFM), scanning tunneling microscopy (STM), magnetic force microscopy (MFM), electrostatic force microscopy (EFM), scanning electron microscopy (SEM) with topographic reconstruction, white-light interferometry (WLI), phase-shifting interferometry (PSI), focus-variation microscopy, and stylus profilometry. It fully complies with ISO 25178 series for areal surface texture analysis and supports ASTM E2923-23 workflows for uncertainty budgeting in nanomechanical measurements. Optional Audit Trail Module enables 21 CFR Part 11–compliant electronic records, including immutable user activity logs, version-controlled processing histories, and digital signature support—validated for use in GLP and GMP-regulated laboratories conducting materials qualification, medical device surface testing, or pharmaceutical packaging evaluation.

Software & Data Management

The software employs a deterministic, scriptable processing pipeline using SPIP Script Language (SSL)—a Python-embedded environment enabling custom macro development, batch analysis across hundreds of datasets, and integration with external tools (e.g., MATLAB, Python SciPy, R). All operations maintain full metadata lineage: original scan parameters (scan size, resolution, feedback settings), applied corrections (flattening order, filter kernels), and derived metrics are stored in hierarchical HDF5-based project files. Data export adheres to FAIR principles (Findable, Accessible, Interoperable, Reusable), supporting MIAME/MINSEQE-compliant annotation schemas for publication-ready archiving. Network license options enable concurrent multi-user access in core facility environments, with centralized license server management and usage analytics.

Applications

SPIP 6.0.14 serves as the analytical backbone for surface metrology across academia and industry. In semiconductor R&D, it quantifies EUV lithography resist line-edge roughness (LER/LWR), trench depth uniformity, and CMP-induced dishing. In materials science, it characterizes grain boundary networks in polycrystalline films, pore morphology in battery electrodes, and crack propagation topography in ceramic composites. In life sciences, it extracts cell-substrate adhesion metrics from AFM force maps, analyzes collagen fibril alignment in tissue scaffolds, and measures nano-roughness-dependent protein adsorption kinetics. In precision engineering, it validates surface finish specifications per ISO 13565-3 for optical components, aerospace turbine blades, and orthopedic implant coatings—ensuring conformance to functional performance criteria beyond nominal Ra values.

FAQ

Does SPIP support real-time analysis during data acquisition?
No—SPIP is an offline post-processing platform designed for high-fidelity, auditable analysis; it does not interface directly with microscope control hardware for live feedback.
Can SPIP import and co-register multimodal datasets (e.g., AFM + SEM)?
Yes—through its landmark-based registration tool and common coordinate system alignment, enabling correlative topography-chemistry-mechanics analysis.
Is source code or algorithm documentation available for validation purposes?
Image Metrology provides detailed technical white papers, ISO/ASTM implementation notes, and third-party verification reports upon request for regulatory submissions.
What training and technical support options are offered?
Comprehensive remote and on-site training programs, ISO 17025-aligned validation protocols, and priority response SLAs are included with annual maintenance contracts.
How is software versioning and backward compatibility managed?
All SPIP versions maintain forward compatibility with legacy project files; new features are introduced via non-breaking updates, and deprecated functions retain support for ≥3 major releases.
