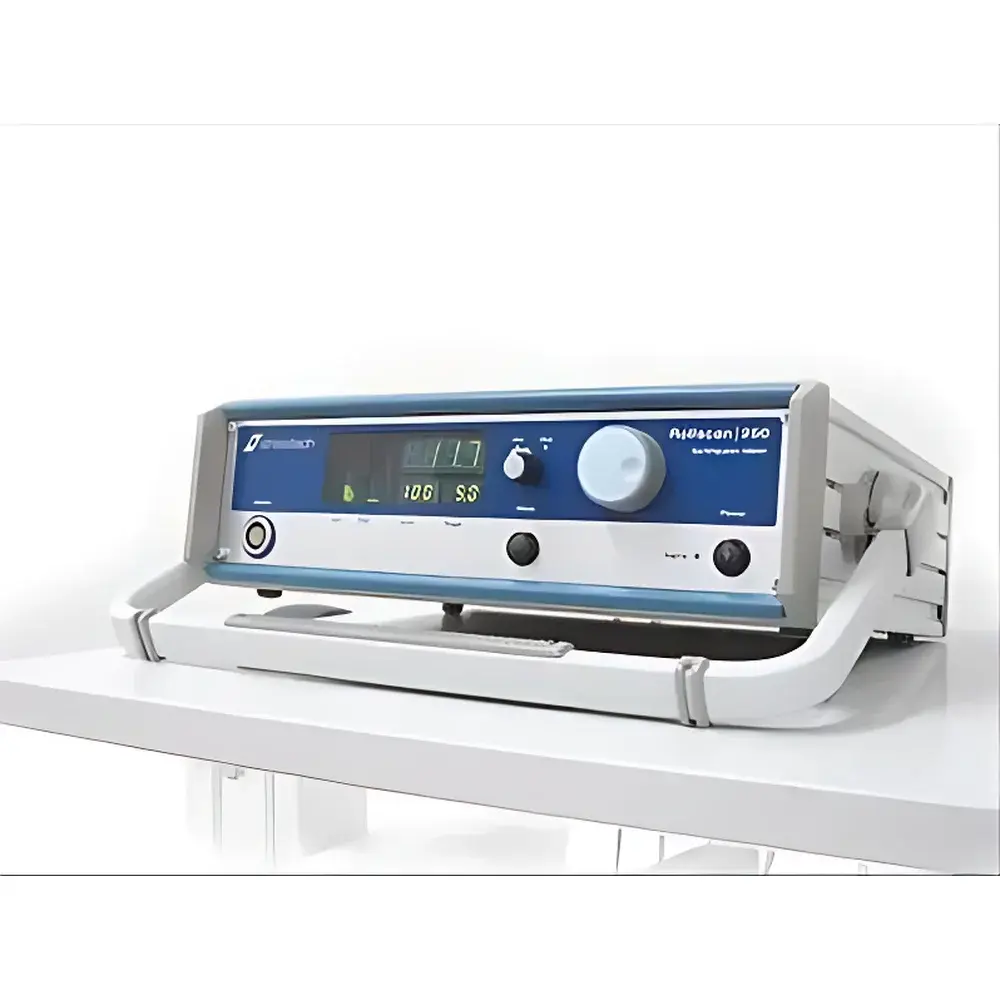

Stresstech RollScan 250 Magnetic Barkhausen Noise Analyzer

Overview

The Stresstech RollScan 250 Magnetic Barkhausen Noise (MBN) Analyzer is a precision-engineered, non-destructive testing (NDT) instrument designed for the quantitative detection and characterization of surface and near-surface grinding burns and heat treatment damage in ferromagnetic components. It operates on the physical principle of Magnetic Barkhausen Noise emission—arising from irreversible domain wall jumps under controlled cyclic magnetization—enabling highly sensitive discrimination between thermally induced microstructural changes (e.g., untempered martensite, residual austenite, or soft-phase reversion) and mechanically induced defects such as grinding-induced tensile stresses or microcracks. Unlike destructive methods such as nital etching (acid wash), the RollScan 250 delivers immediate, repeatable, and traceable results without altering part integrity or requiring surface preparation. Its design targets high-volume production environments where rapid, operator-independent pass/fail decisions are critical for quality gate control—particularly in aerospace, automotive transmission, and bearing manufacturing.

Key Features

• Single- and multi-channel configurations support flexible deployment—from handheld spot-checking to automated inline integration with conveyor systems or robotic arms.

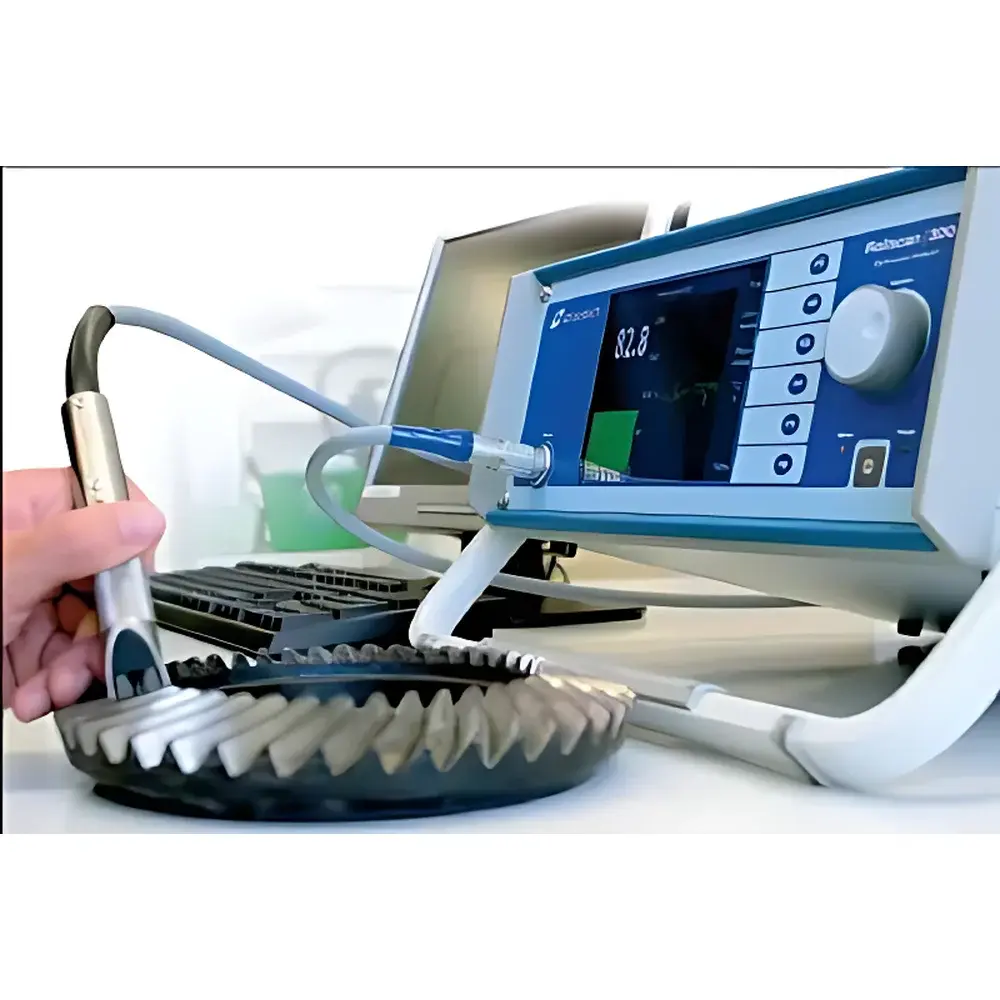

• Modular probe architecture includes flat, curved, contour-fitting, and miniature probes (e.g., Ø3 mm tip), enabling reliable MBN signal acquisition across complex geometries: gear teeth flanks, cam lobes, crankshaft journals, piston rods, fuel injector nozzles, and aircraft landing gear components.
• Real-time signal processing with adjustable magnetization frequency (1.0–1000 Hz) and voltage (0–16 V) allows optimization for material grade (e.g., 52100 bearing steel, 17-4PH stainless, case-hardened 18CrNiMo7-6), hardness range (HRC 45–65), and prior thermal history.
• Configurable alarm thresholds based on amplitude, RMS, peak count, or spectral energy ratio (e.g., low-frequency/high-frequency MBN power ratio), supporting statistical process control (SPC) and automated sorting logic.
• Rugged industrial enclosure rated IP54, compliant with EN 61326-1 (EMC for industrial environments) and EN 61000-6-2/6-4, suitable for shop-floor deployment adjacent to CNC grinders or heat-treat furnaces.

Sample Compatibility & Compliance

The RollScan 250 is validated for use on hardened and tempered steels, carburized alloys, and precipitation-hardened nickel-iron superalloys exhibiting sufficient magnetic permeability and coercivity contrast between sound and damaged microstructures. It complies with ASTM E3021–22 “Standard Practice for Nondestructive Detection of Grinding Burns Using Magnetic Barkhausen Noise Analysis” and supports traceable implementation of ISO 9001:2015 and AS9100D quality management system requirements. Data output meets GLP/GMP documentation expectations—including timestamped measurement records, operator ID, probe calibration status, and environmental temperature logging—facilitating audit readiness for FDA-regulated medical device component suppliers or EASA Part 21G manufacturers.

Software & Data Management

The instrument integrates with Stresstech’s proprietary RollScan Studio software (Windows 10/11, 64-bit), providing full waveform visualization, spectral analysis (FFT-based), statistical reporting (Cp/Cpk, X̄-R charts), and export to CSV, XML, or SQL database formats. Audit trail functionality satisfies 21 CFR Part 11 requirements through electronic signatures, role-based access control, and immutable event logs covering parameter changes, calibration updates, and result approvals. Optional OPC UA server module enables seamless data handoff to MES (e.g., Siemens Opcenter, Rockwell FactoryTalk) or SCADA platforms for real-time SPC dashboarding.

Applications

• Aerospace: Screening of turbine engine shafts, landing gear pins, and helicopter transmission gears for grinding-induced white-layer formation prior to shot peening or coating.
• Automotive: In-process verification of CV joint housings, differential pinions, and camshafts after hard turning or profile grinding.
• Bearing Industry: 100% inspection of rolling element raceways and rollers for subsurface plastic deformation and tempering instability.
• Power Generation: Assessment of generator rotor dovetails and turbine blade root attachments following final finish grinding.
• Railway: Validation of wheelset axle journals and brake disc mounting surfaces for thermal damage during high-speed grinding operations.

FAQ

Does the RollScan 250 require surface cleaning or pre-conditioning before measurement?
No—MBN analysis is insensitive to minor oil films, light rust, or oxide layers; however, thick coatings (>50 µm) or non-ferromagnetic overlays must be removed to ensure magnetic coupling.
Can it distinguish between grinding burn and decarburization?
Yes—through multi-parameter MBN signature analysis (e.g., pulse amplitude distribution skewness + high-frequency spectral attenuation), validated against metallographic cross-sectioning per ASTM E3021 Annex A3.
Is probe calibration traceable to national standards?
Yes—Stresstech provides NIST-traceable calibration certificates for all standard probes, including reference samples with certified burn severity levels (Level 1–5 per DIN 50140).
What is the typical measurement repeatability under controlled conditions?
Within ±3% coefficient of variation (CV) for RMS MBN amplitude on homogeneous test blocks, verified per ISO 5725-2 precision criteria.
Does the system support automated report generation for quality audits?
Yes—RollScan Studio generates PDF reports containing raw waveforms, pass/fail status, measurement metadata, and digital signature fields compliant with ISO/IEC 17025 documentation requirements.
